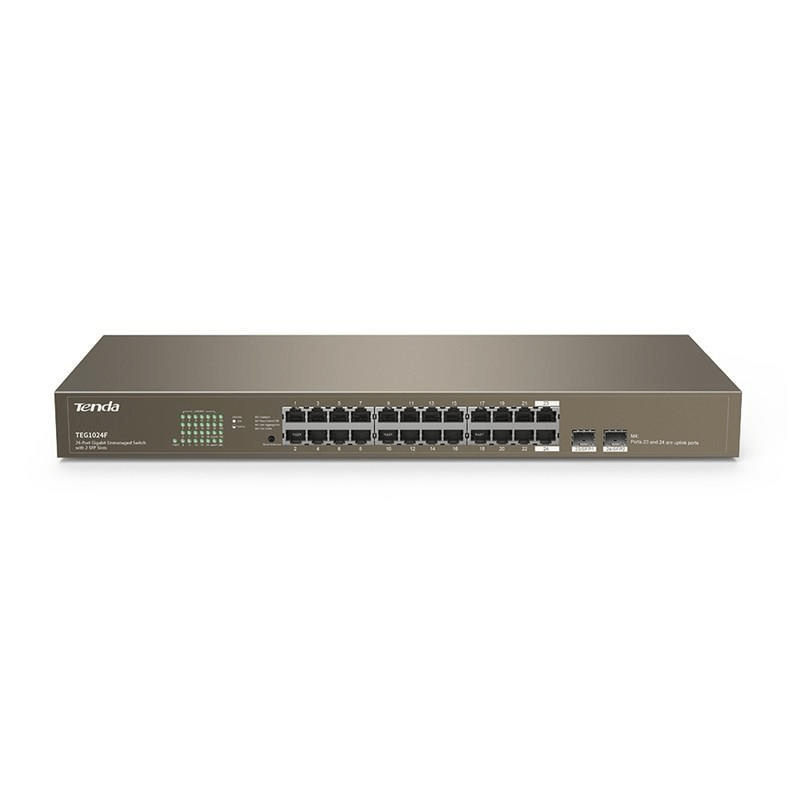

Tenda TEG1024F 24-port Gigabit Unmanaged Switch with 2 SFP Slots

TEG1024F is a 24-port gigabit rackmount switch providing easy-to-use, cost-effective and fast network for IP surveillance projects, offices, workgroups and small and medium-sized enterprises. With 2 gigabit SFP combo ports used to connect to Tenda optical modules, it can be used for long distance networking up to 20 km. TEG1024F also offers a data rate in full duplex of as high as 2000 Mbps, ensuring fast transmission of large files and smooth playback of videos. With professional lightning protection circuit, the switch provides 6 kV lightning protection for all the RJ45 ports and the power module, ensuring stability and reliability of the switch. TEG1024F allows users to change its work modes among standard (default mode), flow control off, link aggregation and port VLAN, fitting multiple network environments, making it the perfect choice for you to extend or upgrade your high-speed, stable gigabit wired network at long distance.

Specification

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

LED Indicator

1* Power,24* Link/Act,4*Mode

Interfaces

24*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
2*1000 Base-X SFP ports (Combo)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

440.0mmx178.0mmx44.0mm

Material

Metal

Level of protection

Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

48Gbps

Packet forwarding rate

35.60Mpps

Buffer

2Mb

MAC address table

8K

Jombo frame

N/A

Power

Input: 100-240V AC 50/60Hz

Power consumption

Max:<13W

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting : support

Environment

Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing

Certification

CE, FCC, RoHS

Software

Protocols

CDMA/CD

MAC address learning

Auto-Learning and Auto-Aging

Funtions

M1: Standard mode, the default mode of the switch. In that mode, all ports can communicate with each other.
M2: Port-based priority mode, ports 1 to 8 have higher priority than other ports, and all ports can communicate with each other.
M3: Port-based VLAN mode, ports 1 to 24 can co.0mmunicate with uplink ports (ports 25 and 26) but cannot communicate with each other.
