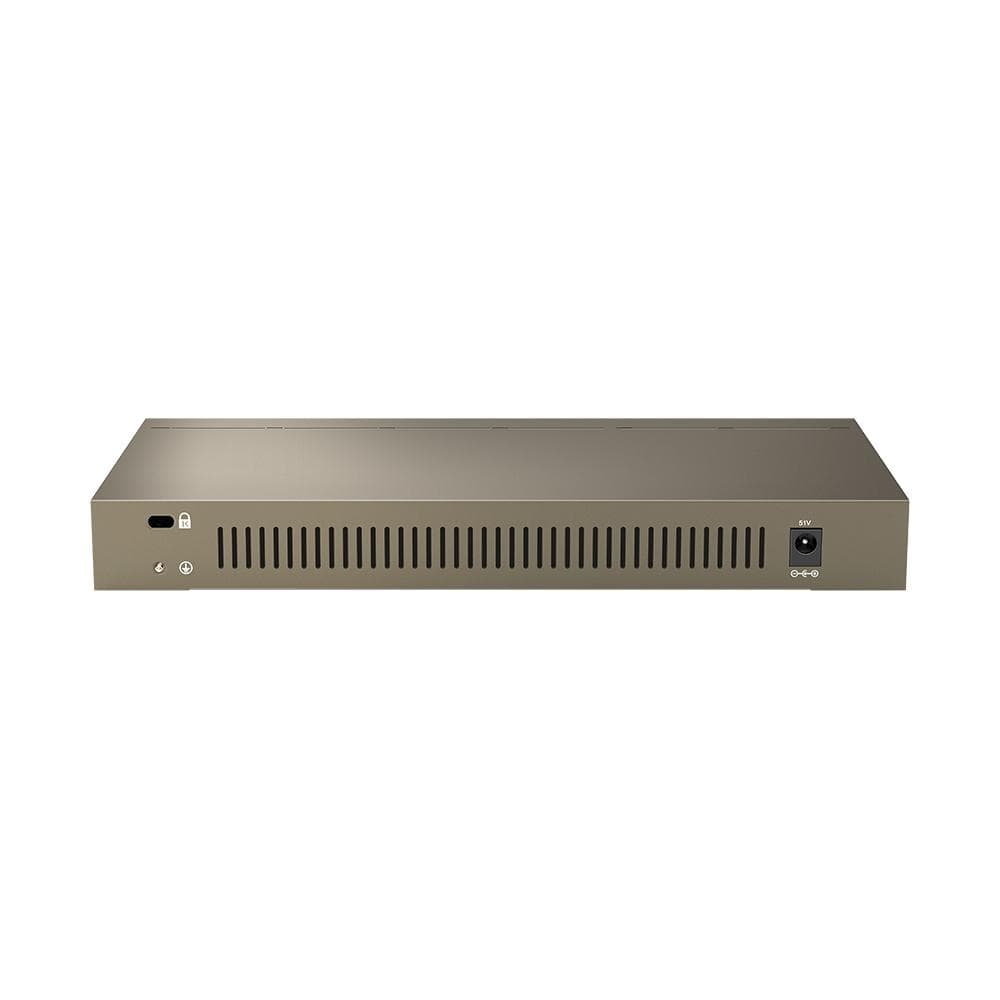

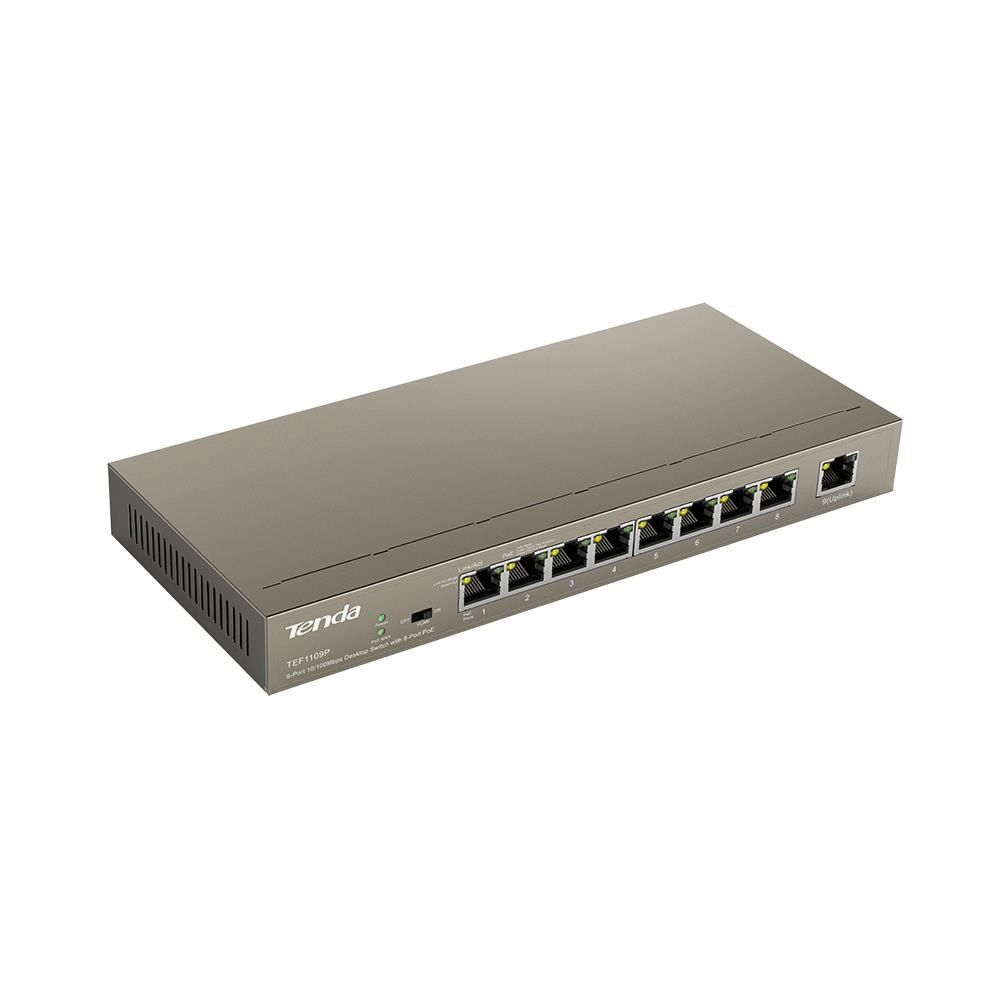

Tenda TEF1109P Managed Switch Fast Ethernet PoE Grey

Tenda TEF1109P. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 9. Full duplex. MAC address table: 4000 entries. Networking standards: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u,IEEE 802.3x. Power over Ethernet (PoE)

TEF1109P, 9-Port 100M Unmanaged Tenda Switch with 8 PoE ports, is specialized on wireless and monitoring networks. It adopts professional PoE swtich solution, provides 9 10/100M auto-negotiated RJ45 ports. Ports 1~8 support IEEE802.3af/IEEE802.3at PoE power supply, and can automatically detect and identify the IEEE802.3af/IEEE802.3at-based powered devices, and can suppply PoE power for them via Ethernet cables. The uplink port is equipped with professional lightning protection circuit, which is 4KV lightning-proof. One-key VLAN devision feature can help restraint broadcast storm and defense DHCP spoofing. UPNP and zero configuration save you a lots using troubles; moreover, PoE supply makes power cabling more easily and flexibly.

- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, and IEEE 802.3at standards.
- 1.8Gbps backbound bandwidth,1.34Mpps packets forwarding speed,Supports nonblocking wire speed switching.
- Supports uplink port ligthning-proof,Ports 1~8 are PoE-capable,Output power of a single port is up to 40W.
- Transfer distance is up to 150m (standard Cat.5e or Cat.6).
- One-key VLAN: Solid DIB switch to devide port VLAN easily.

High Power PoE for Security and Public Service Applications
1~8 10/100 Mpbs Port supports IEEE802.3af/at PoE power supply, Maximum Output Power of Single PoE Port Up to 40W , and can automatically detect and identify the IEEE802.3af/at based powered devices.

Ports can be isolated from each other via DIP switch
Vlan can prevent the broadcast storm, speed up the frame of the forward rate,improve the transmission performance of the network.

The intelligent power supply
The device can auto-detect power consumption of PD device and match proper output power ,The Idle Mode Link Down power saving of the TEF1109P complies with Energy Efficient Ethernet standard to automatically lower power for a given port when it is not linked.

Extend power supply distance
Adopts Cat-5e , power and transmission distance up to 150 metres. The device not only improves the quality of data delivery, but also expands coverage range of small network.

High Reliability
Integrates with professional lightning protection circuit and 2-level lightning-proof for uplink port(4KV lightning proof for 9th ports). Stronger ethernet technology to improve your network performance.
