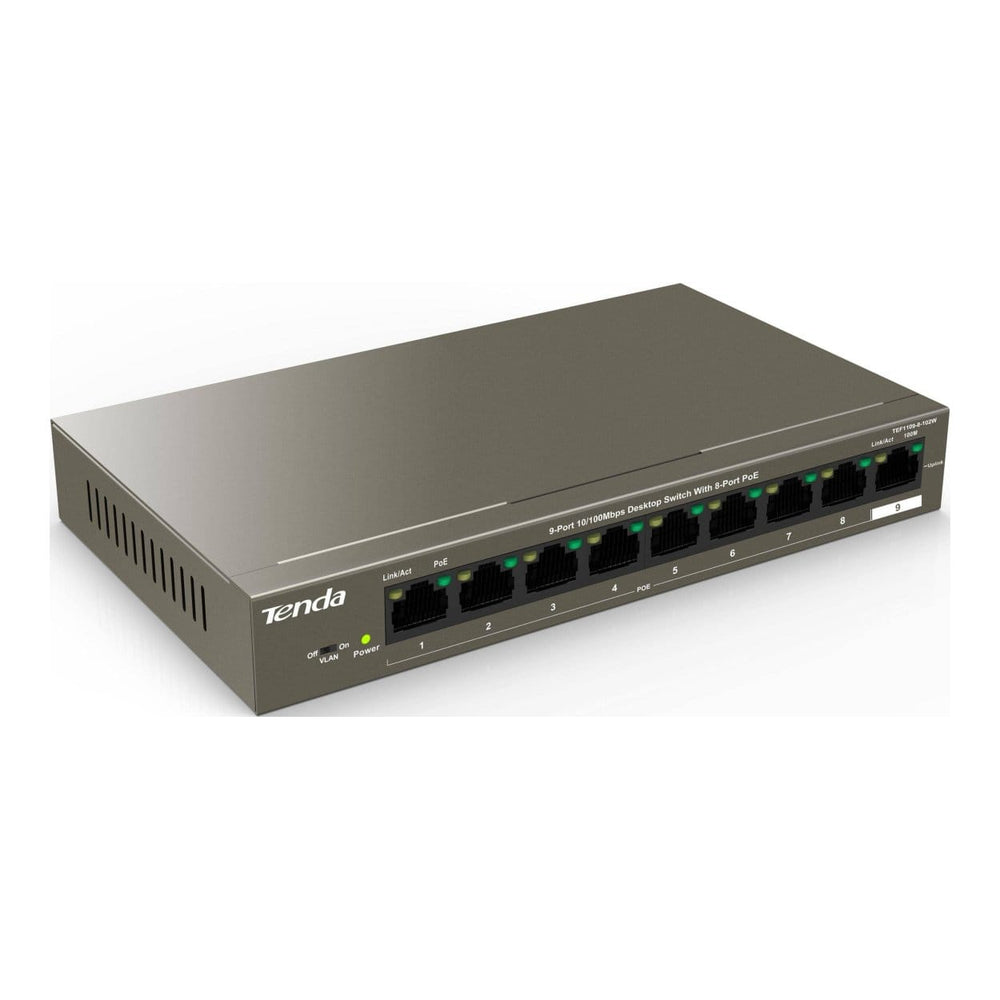

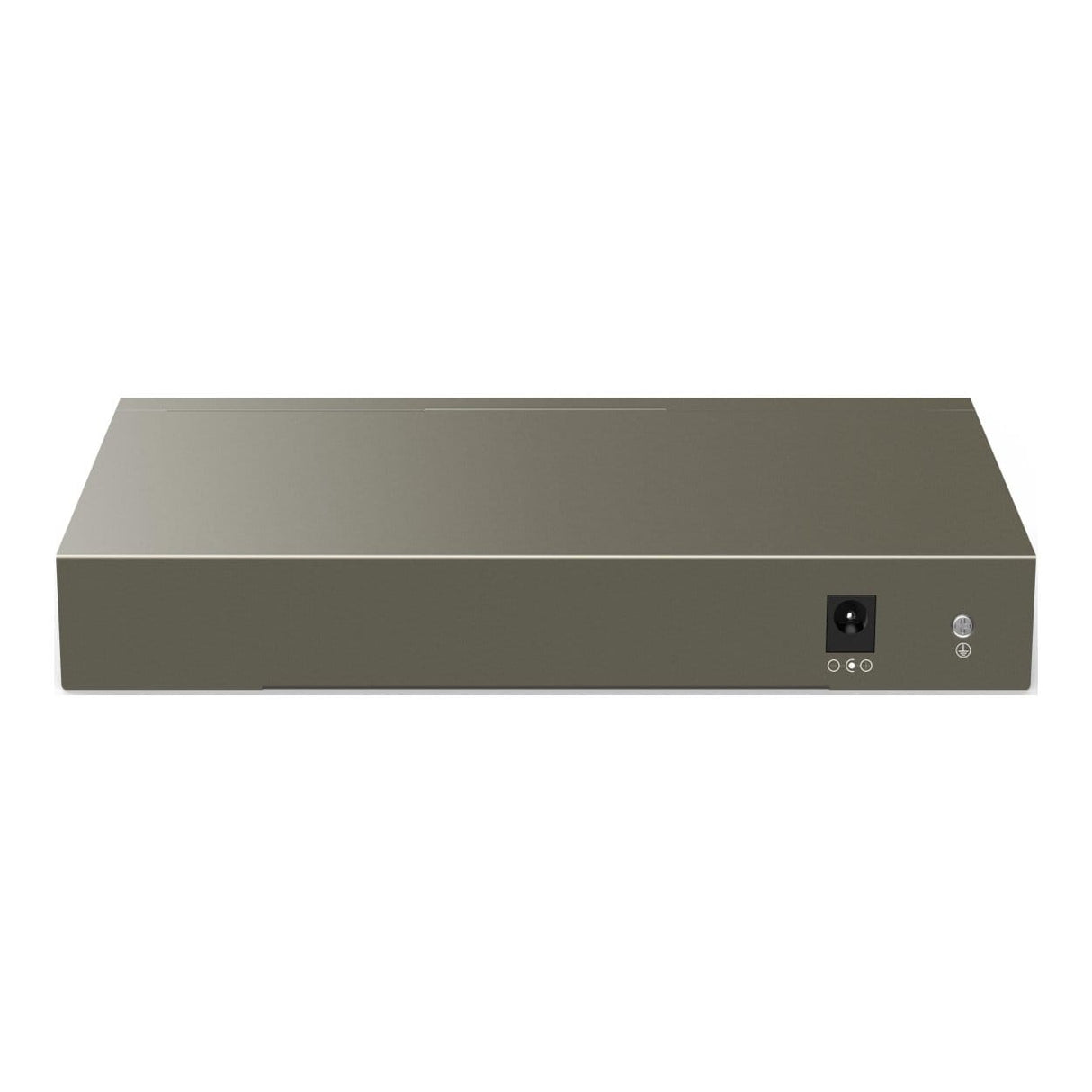

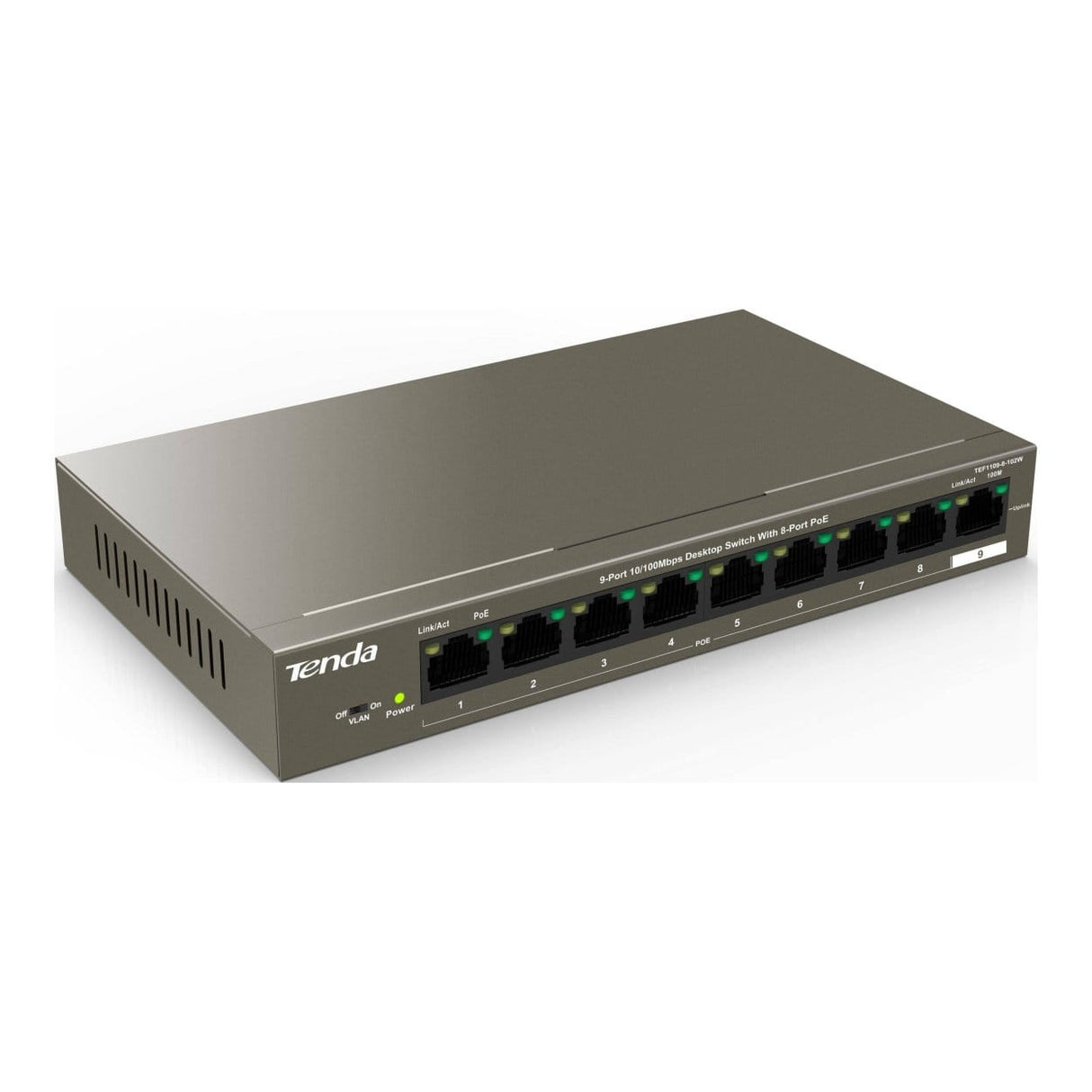

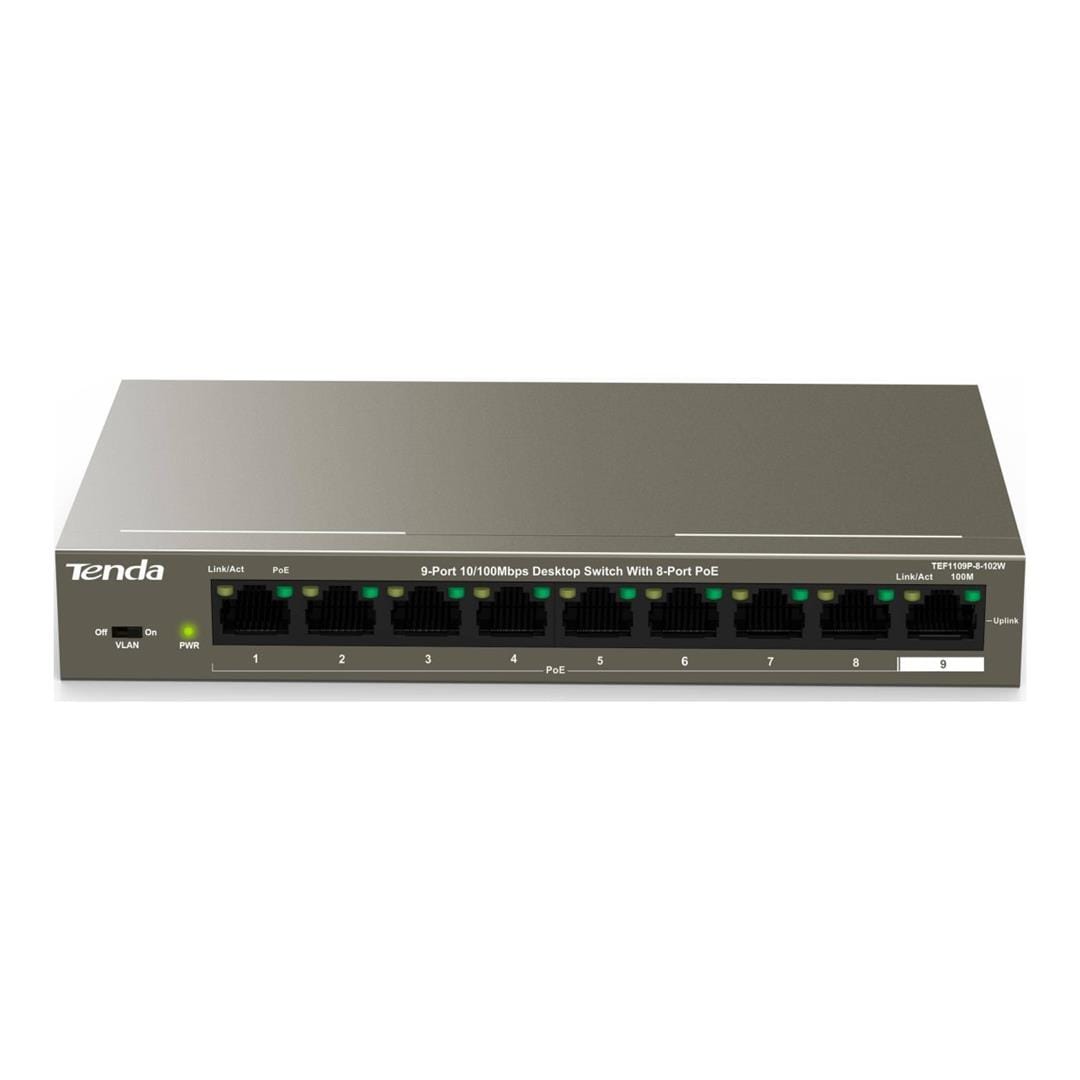

Tenda TEF1109P-8-102W 9-port Fast Unmanaged Switch with 8-port PoE
The Tenda TEF1109P-8-102W is a 9-port Gigabit unmanaged PoE switch designed for IP surveillance, wireless access points and small business networks. Featuring eight Gigabit PoE ports, a dedicated Gigabit uplink, long-distance PoE transmission and intelligent power management, it provides reliable power and data connectivity for professional networking installations.
Key Features
- 9-port Gigabit unmanaged PoE switch.
- 8 × Gigabit RJ45 PoE ports.
- 1 × Gigabit RJ45 uplink port.
- Supports IEEE 802.3af and IEEE 802.3at PoE standards.
- 92W total PoE power budget.
- Up to 30W PoE output per port.
- Extend Mode supports PoE transmission up to 250m.
- Built-in 6kV lightning protection.
Reliable PoE Connectivity
The TEF1109P-8-102W supplies both power and Gigabit data over a single Ethernet cable, making deployment of IP cameras, wireless access points, VoIP phones and other PoE-powered devices simple and cost-effective.
Long-Distance Surveillance Support
Extend Mode enables PoE and data transmission of up to 250 metres at reduced network speed, making the switch ideal for CCTV and surveillance installations where devices are located far from the network cabinet.
Plug-and-Play Operation
As an unmanaged switch, the TEF1109P-8-102W requires no configuration. Intelligent PoE management automatically allocates power to connected devices while protecting the switch from overload conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Tenda |
| Model | TEF1109P-8-102W |
| Product Type | 9-Port Gigabit Unmanaged PoE Switch |
| PoE Ports | 8 × 10/100/1000Mbps RJ45 (IEEE 802.3af/at PoE) |
| Uplink Ports | 1 × 10/100/1000Mbps RJ45 |
| PoE Standard | IEEE 802.3af and IEEE 802.3at |
| Total PoE Budget | 92W |
| Maximum PoE Output Per Port | 30W |
| Switching Capacity | 18Gbps |
| Forwarding Rate | 13.39Mpps |
| MAC Address Table | 4K Entries |
| Transmission Mode | Store-and-Forward |
| Extend Mode | Up to 250m PoE Transmission (10Mbps) |
| Flow Control | IEEE 802.3x Full-Duplex Flow Control |
| Lightning Protection | 6kV Port and Power Lightning Protection |
| Power Input | 100–240V AC, 50/60Hz |
| Mounting Options | Desktop or Wall Mount |
| Dimensions | 177.5 × 104 × 26 mm |
| Package Contents | TEF1109P-8-102W Switch, Power Cord, Quick Installation Guide |
| Applications | IP Surveillance, Wireless Access Points, VoIP Phones, Small Business Networks and PoE Device Deployment |
The Tenda TEF1109P-8-102W provides reliable Gigabit networking, intelligent PoE power delivery and long-distance transmission, making it an excellent solution for surveillance systems and small business network deployments.
