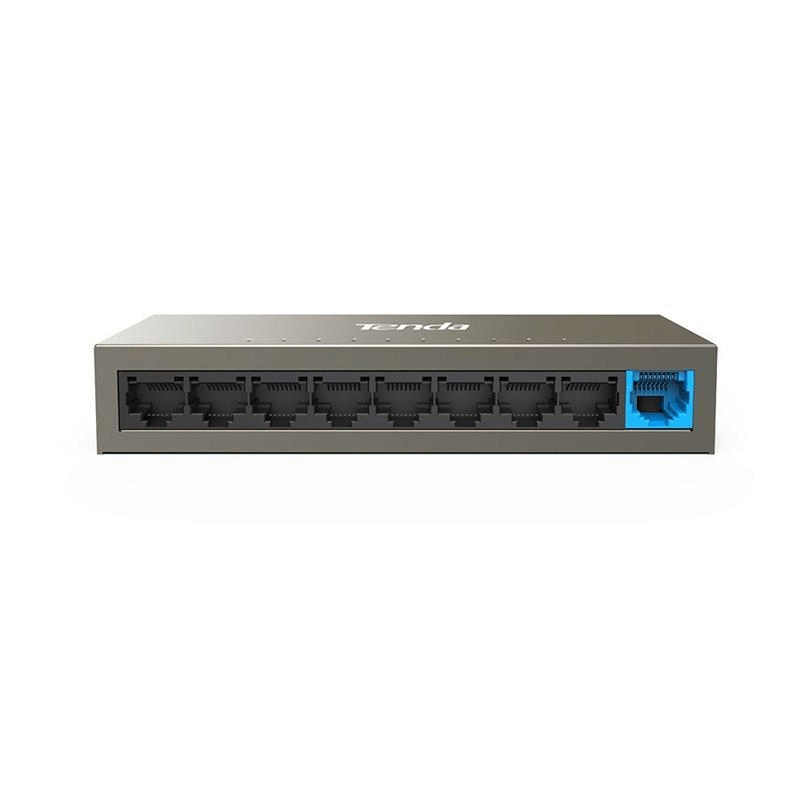

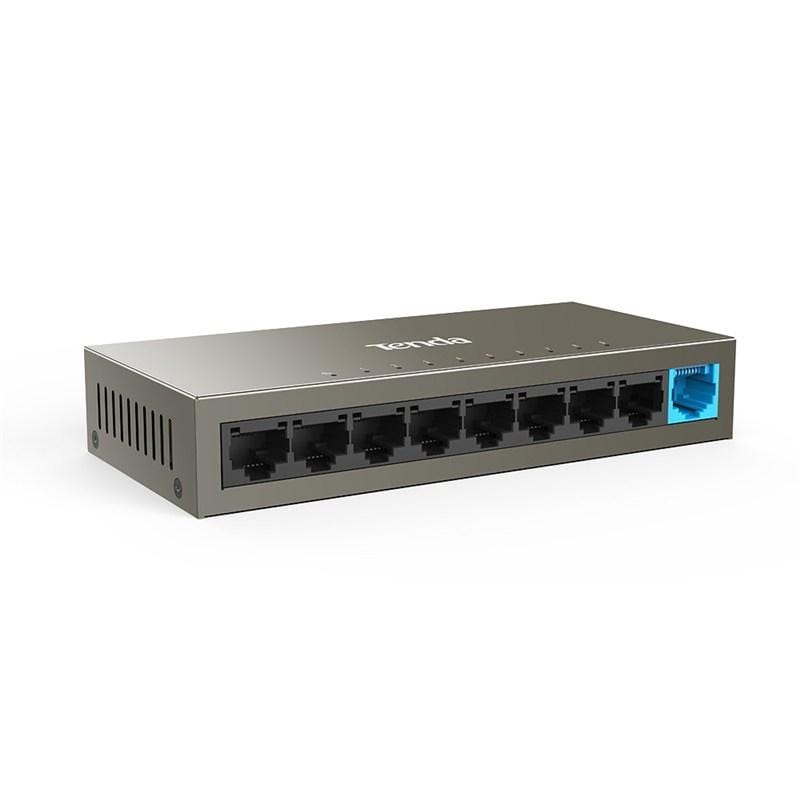

Tenda TEF1109D Unmanaged Switch Fast Ethernet Grey

TEF1109D is a 9-port fast Ethernet switch developed by Tenda, offering 9 10/100 Mbps RJ45 ports. Equipped with large packet buffer, it also ensures smooth streaming even when 8 HD IP cameras are working simultaneously. You can enable port VLAN mode of the switch to protect your LAN network from broadcast storm and prevent loss of monitoring images. In addition, the switch offers 6 kV lightning protection for its uplink port. In a word, TEF1109D is a perfect choice for small and medium-sized IP surveillance projects and enterprises to have network. Excellent Lightning Protection The switch supports 6 kV lightning protection for uplink port,protecting the switch from thunderstorms and making it more stable. Transmission Distance up to 250m With the extension technology,data can be transmitted through 250 meters cable which would be a cost-effective replacement for extenders and optical fibers. Easy Port VLAN Setup With VLAN Mode on , ports 1 to 8 are isolated from each other, enabling the switch to isolate broadcast storm, improving LAN security and data transmission.

Specification

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

LED Indicator

1* Power,9* Link/Act

Interfaces

9*10/100 Base-TX Ethernet ports(Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

140.0mmx66.5mmx25.3mm

Material

Metal

Level of protection

Lightning protection for uplink port: 6KV
Lightning protection for power: N/A
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

1.8 Gbps

Packet forwarding rate

1.40Mpps

Buffer

1.25Mb

MAC address table

2 K

Jombo frame

N/A

Power

Input: 100 - 240 V AC 50/60 Hz
Output: DC 9 - 12 V

Power consumption

Max:<5W

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing

Certification

CE, FCC, RoHS

Software

Protocols

CDMA/CD

MAC address learning

Auto-Learning and Auto-Aging

Funtions

VLAN:Port 9 is an uplink port and ports 1 to 8 are isolated from each other.
