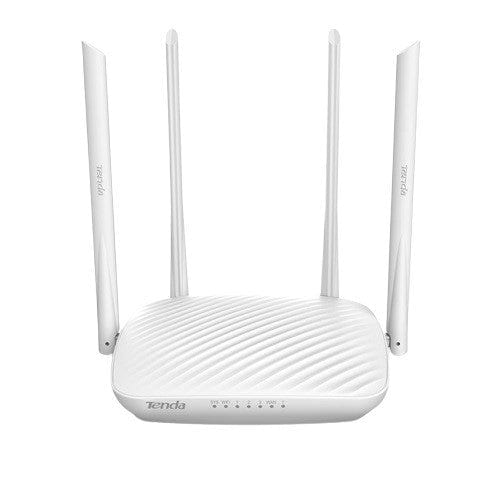

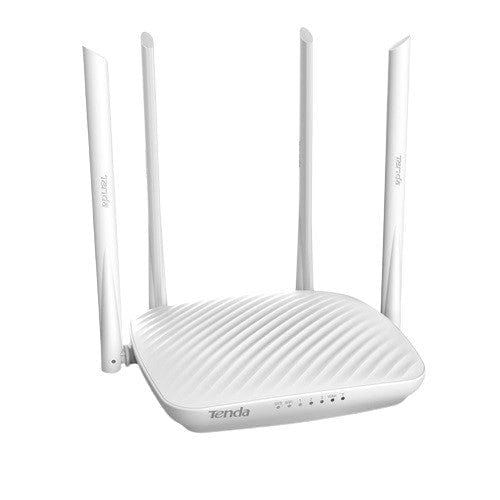

Tenda F9 Wi-Fi 4 Wireless Router - Single-band 2.4GHz Gigabit Ethernet White

Tenda F9 Wi-Fi 4 Wireless Router - Single-band 2.4GHz Gigabit Ethernet White

600Mbps High Speed whole-home coverage Wi-Fi router
Compared to 450Mbps and 300Mbps products,it’s transmission is more efficient and smooth.Support more devices connection at the same time

4*6dBi High-Gain Omnidirectional Antennas, Incredible Wi-Fi Coverage and Reliability.
- high-gain omnidirectional antenna x 4
- Better performance than 5 dBi antennas

Specification

Standard&Protocol

IEEE802.3, IEEE802.3u,IEEE802.3ab

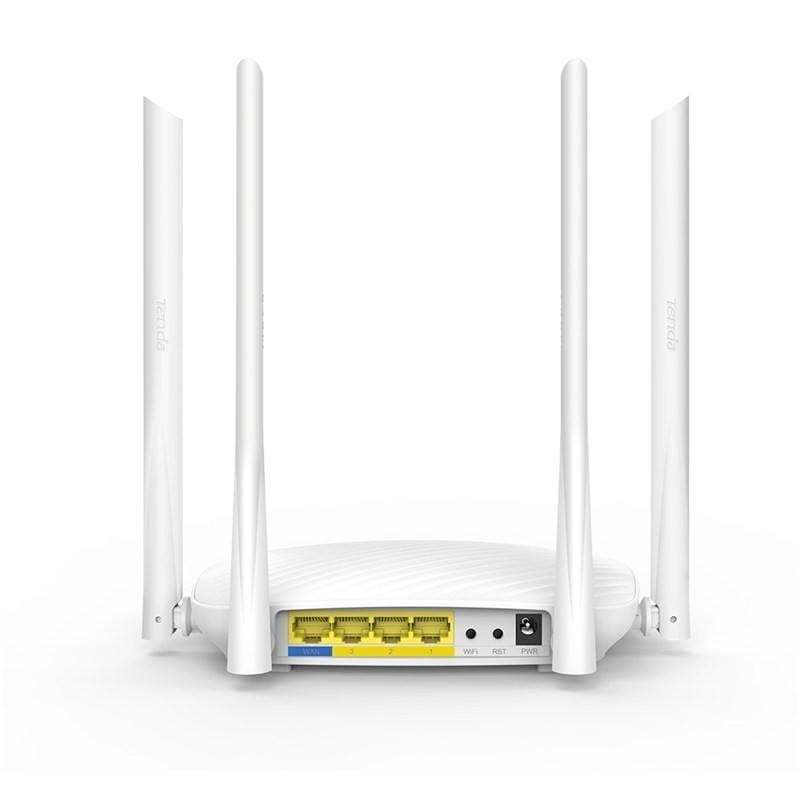

Interfaces

1*10/100Mbps WAN port
3*10/100Mbps LAN ports

Antenna

4*6dBi external antennas

Button

1*WPS/RST,1*WIFI

Power

Input：AC 100-240V~50/60Hz 0.6A
Output：DC 9V0.6A

Dimension

171.3mm*171.3mm*36.4mm

LED Indicator

SYS，WiFi，1，2，3，WAN，T

Wireless

Wireless Standard

IEEE 802.11b/g/n 2.4GHz

Data Rate

2.4GHz: Up to 600Mbps

Frequency

2.4GHz

Transmission Power

CE：<20dBm

Basic Features

WiFi On/Off
Transmission Power: high, low

Wireless Security

WPA/WPA2, WPA-PSK/WPA2-PSK

Software

Internet Connection Type

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode

Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server

DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server

Port Forwarding
DMZ Host
UPnP

Security

Client Filter
Parental Control(support black list and white list)
Remote Web Management

Firewall

Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP attack
Forbid WAN PING from internet

DDNS

no-ip,DynDNS,Oray

VPN

IPsec pass through
PPTP pass through
L2TP pass through

Special Features

PPPoE Username/password Clone
Smart WiFi Schedule

Others

Bandwidth Control
MAC Clone
System Log
Backup
