Tenda 5-port Gigabit Desktop Switch with 4-port PoE and 1 PoE Input TEG1105PD

Save R 100

R 559 R 659

Includes VAT

In stock


Tenda 5-port Gigabit Desktop Switch with 4-port PoE and 1-port PoE Input


Integrated PSE & PD, No power adapter required 5-Port Gigabit PD Switch with 4-Port PoE 5 Gigabit Ports, Integrated PSE & PD Design

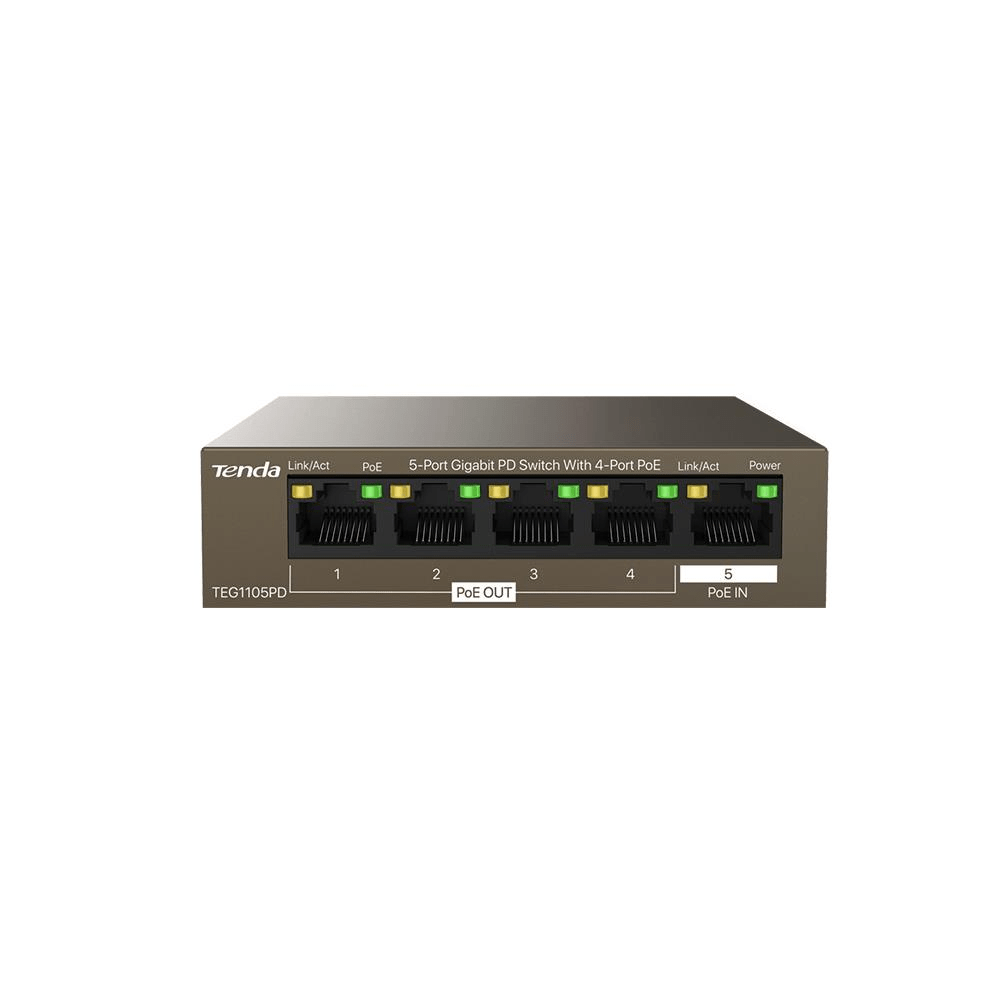

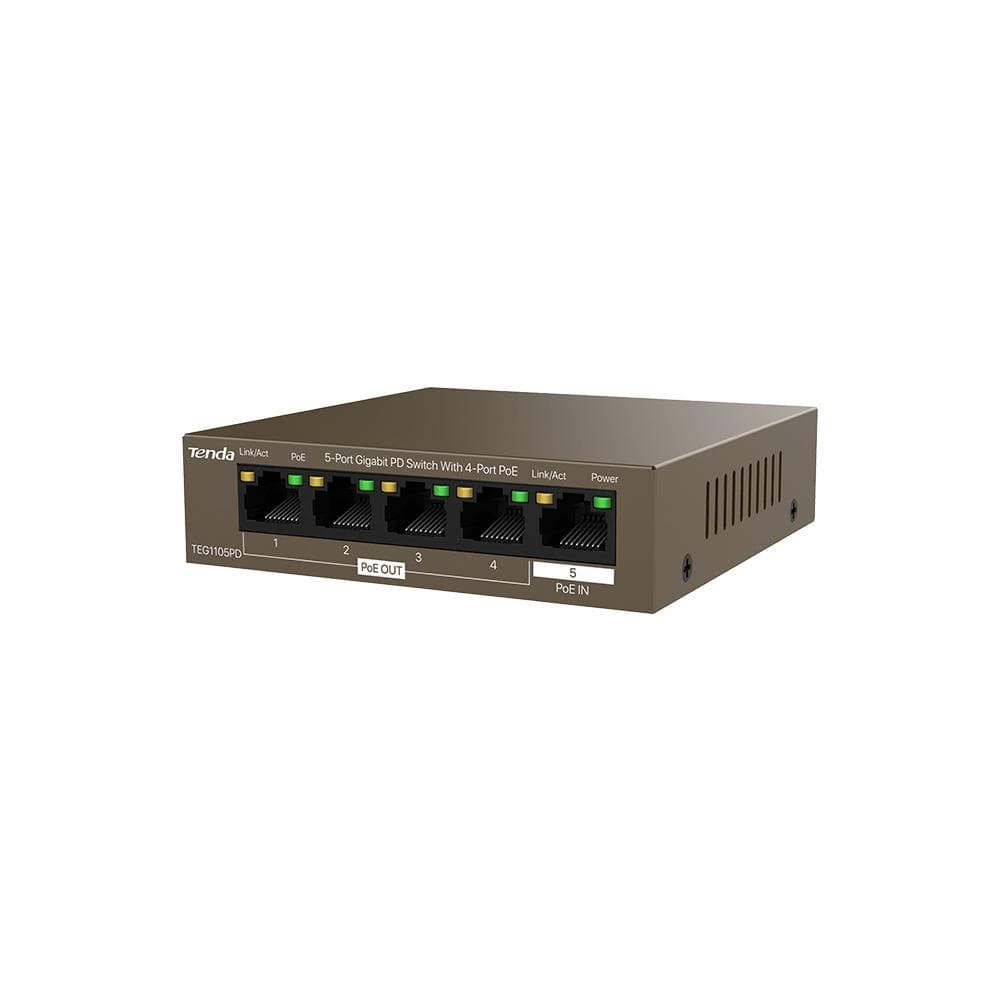

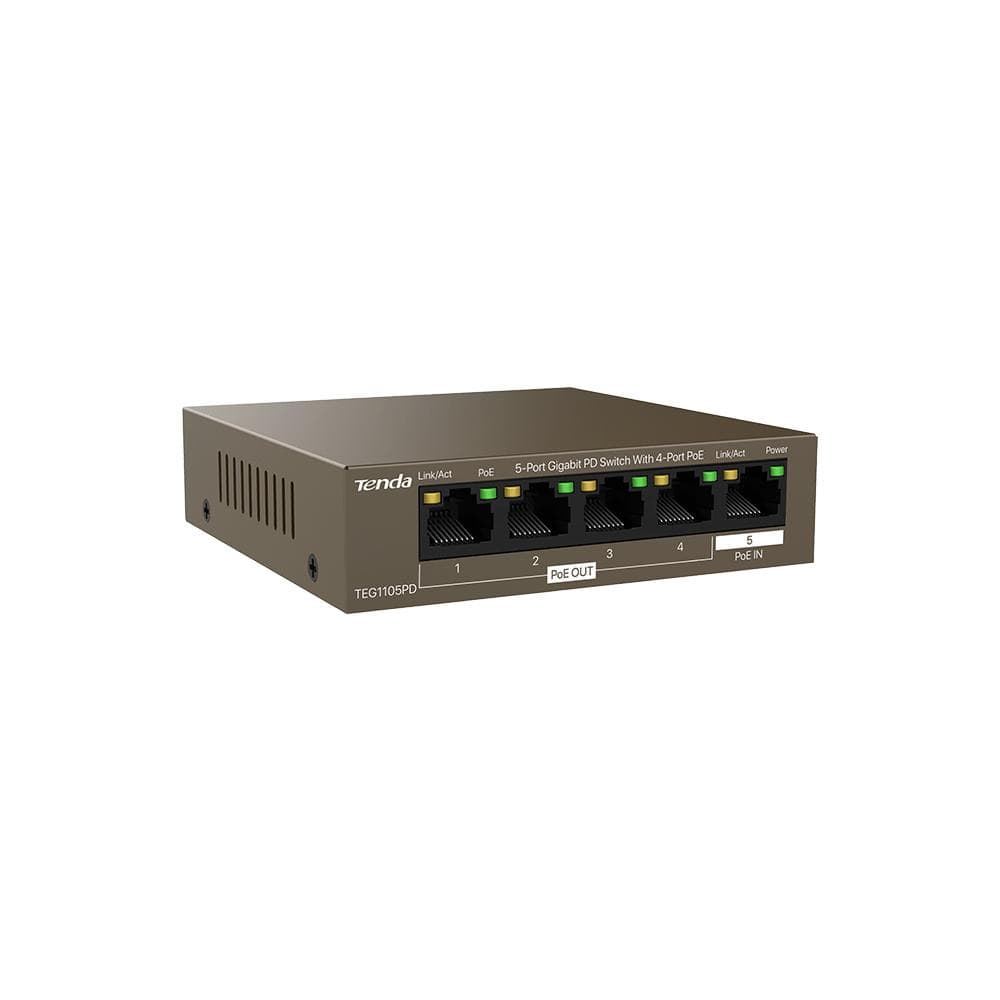

The 5 ports of TEG1105PD are all gigabit ports, with 4 PoE OUT ports (ports 1 to 4) and 1 PoE IN port (port 5). The switch can be powered by the IEEE 802.3af/at compliant PSE through port 5 with an Ethernet cable, and supply power to such PDs as low-power APs and IP cameras through ports 1 to 4.

Gigabit speed without reduction within 200m, Stable transmission without dropping

As a relay, the switch can extend the data transmission distance to 325 meters at most and offer long-distance PoE power supply through multiple PoE ports. Suitable for medium and long-distance wired monitoring scenarios or low-power wireless coverage scenarios such as enterprise parks, factories, schools, etc.

Cut costs,Practical & Stable,Your Better Choice

TEG1105PD does not require independent power supply, just plug and play, no need to consider the power supply during the network deployment; in addition, there is no need to pull out multiple network cables from the PoE switch (PSE) in the data equipment room to supply power to multiple PoE powered devices (PD). Therefore, the network deployment cost can be greatly saved while ensuring the quality of the project. 325m long-distance PoE relay, No power adapter required, Easy to get power supply, Suitable & Practical for your networking.

6KV lightning protection, Stable operation in thunderstorm environment

This switch provides short circuit protection for PSE and 6 kV lightning protection for all ports, protecting the switch itself to operate steadily from surge and lightning damages in thunderstorms.

Small & Delicate,Easy to be installed in the weak electric/waterproof box

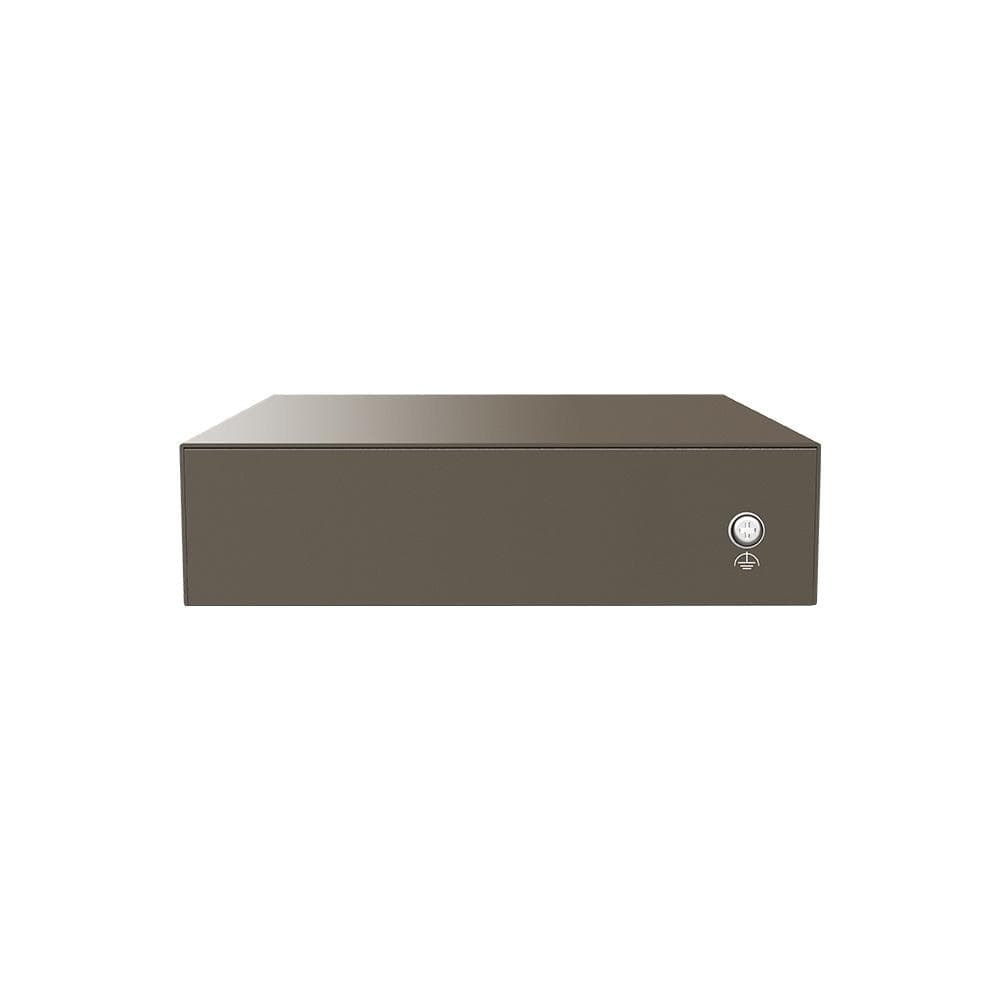

TEG1105PD has a compact shell, about the size of two splicing bank cards, and can be easily installed in a weak electric box or an outdoor waterproof box. All-steel shell, sturdy and durable.

  • Quiet & Heat dissipation - Steel Shell, Fanless Design, Low Power Consumption
  • Safer Network - Construction Without Strong Electricity
  • Stable Operation - Few failure points, easy maintenance

Technical Specification

Product: Tenda TEG1105PD Desktop Switch
  • 4x 10/100/1000 Base-T Ethernet Ports(Data/PoE OUT)
  • 1x 10/100/1000 Base-T Ethernet Port(Power/Data/PoE IN)
Recommended transmission media: CAT5/5e UTP or better
MAC address table: 2000 entries
Switching capacity: 10 Gbit/s
Jombo frame: 9K
Buffer: 1 Mb
Packet forwarding rate: 7.44Mpps
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
DC power input: Not Supported, can only be power by PoE adapter via the PoE input port
Power Input voltage: 50-57V DC, 0.6A
Power over Ethernet (PoE) out: Single port: AF: 15.4W
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
  • Air discharge: ±10kV
  • Contact discharge: ±8kV
