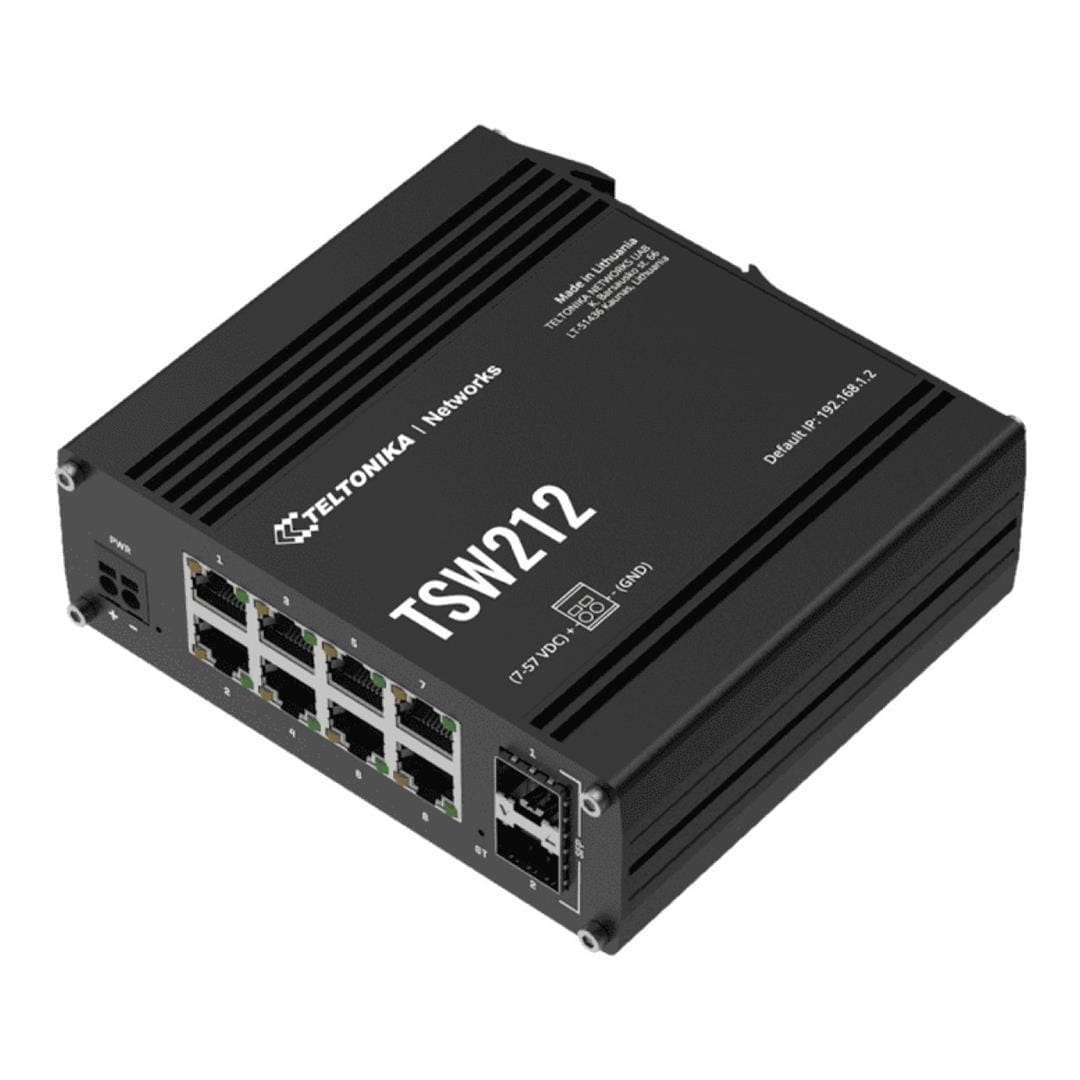

Teltonika TSW212 8-port Managed Switch with 2x SFP Ports
The Teltonika TSW212 is an industrial managed network switch designed for reliable wired connectivity in business, automation, and industrial environments. It combines 8 Gigabit Ethernet ports with 2 SFP ports, giving users flexible copper and fibre connectivity for local networks and longer-distance links.
Managed Network Control
The TSW212 is an L2 managed switch with additional L3 features, including static IPv4 routing, static IPv6 routing, DHCPv6 client support, and static IPv6 addressing. This makes it suitable for networks that require more control than a basic unmanaged switch can provide.
Ethernet and Fibre Connectivity
With 8 RJ45 Gigabit Ethernet ports and 2 SFP ports, the TSW212 supports both standard Ethernet connections and fibre optic communication. This is useful for industrial sites, distributed systems, and installations where longer cable runs or fibre links are required.
Industrial Protocol Support
The switch supports industrial networking protocols including EtherNet/IP, PROFINET Class B, and MRP. It also includes features such as VLAN, STP/RSTP, loop protection, port mirroring, QoS, rate limiting, and storm control for managed network performance.
Rugged Industrial Design
The TSW212 is housed in anodised aluminium and is designed for demanding operating conditions. It supports DIN rail mounting as standard, with additional options for wall mounting or flat surface placement where required.
Features:
- 8 x Gigabit Ethernet RJ45 ports for high-speed wired network connections.
- 2 x SFP ports support fibre optic communication for longer-distance links.
- L2 managed switch with additional L3 features for advanced network management.
- Supports EtherNet/IP, PROFINET Class B, MRP, SNMP, LLDP, VLAN, and STP/RSTP.
- Rugged anodised aluminium housing with integrated DIN rail bracket.
- Wide 7-57V DC input voltage range for industrial power environments.
- Operates in temperatures from -40°C to 75°C.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Teltonika Networks |
| Model | TSW212 |
| Product Type | L2 managed industrial network switch |
| Ethernet Ports | 8 x RJ45 Gigabit Ethernet ports, 10/100/1000 Mbps |
| Fibre Ports | 2 x SFP ports |
| Switching Bandwidth | 20Gbps non-blocking |
| Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8K entries |
| Jumbo Frame Support | 10,000 bytes |
| Managed Features | VLAN, STP/RSTP, loop protection, port mirroring, port isolation, QoS, rate limiting, and storm control |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, and static IPv6 address |
| Industrial Protocols | EtherNet/IP, PROFINET Class B, and MRP |
| Management | Web UI, SNMP V2/V3, FOTA, RMS, firmware update, and configuration backup |
| Operating System | TSWOS, OpenWrt-based Linux OS |
| Memory | 128MB DDR3 RAM |
| Storage | 16MB serial flash |
| Power Connector | 2-pin industrial DC power socket |
| Input Voltage | 7-57V DC |
| Power Consumption | Idle: less than 2.5W; maximum: 6W |
| Housing | Anodised aluminium housing and panels |
| Mounting Options | Integrated DIN rail bracket, wall mounting with additional kit, or flat surface placement |
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection | IP30 |
| Dimensions | 132 x 44.2 x 122.2mm |
| Weight | 615g |
| Standard Package Contents | TSW212, quick start guide, and packaging box |
Build a more controlled industrial network with the Teltonika TSW212 managed switch and add it to your cart today.
