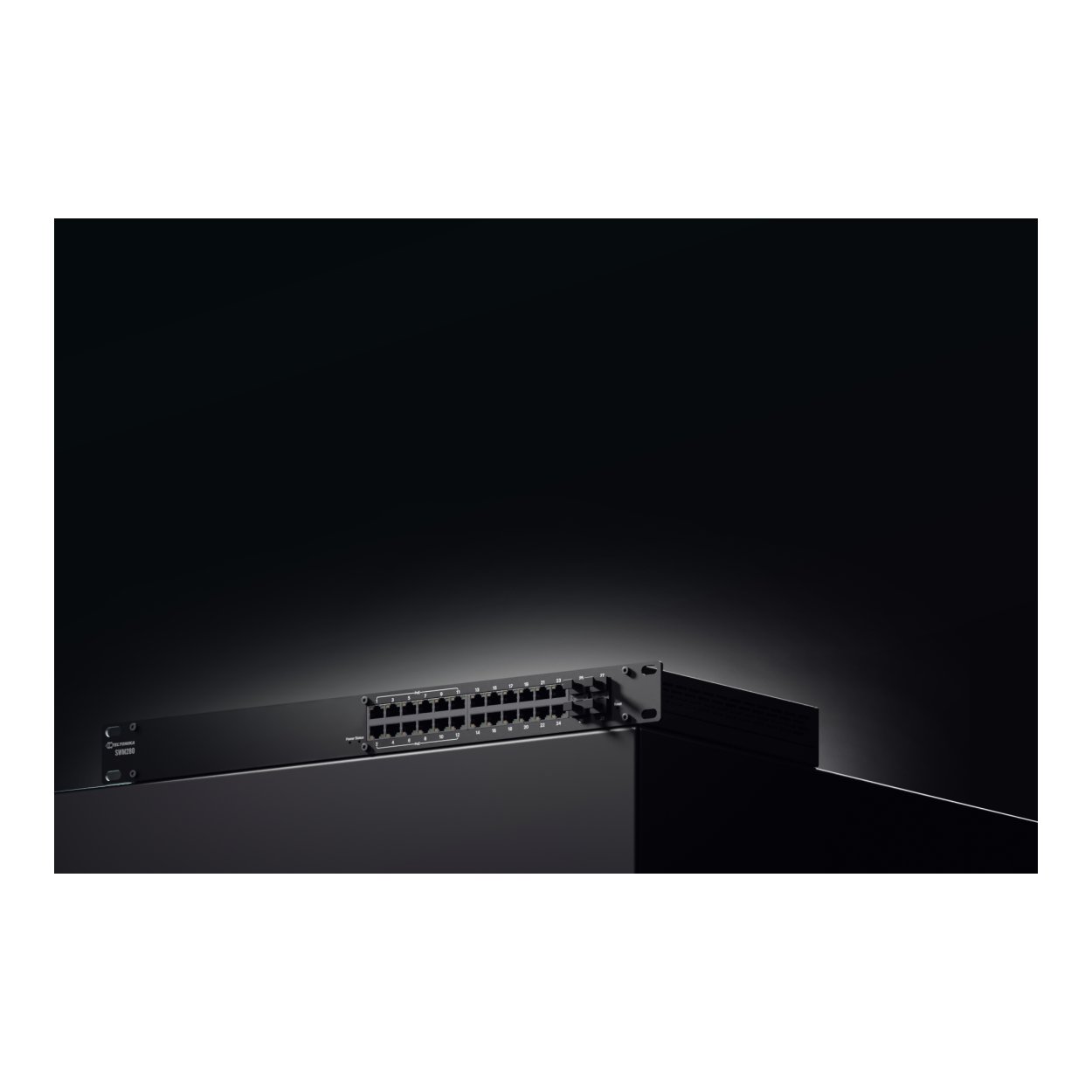

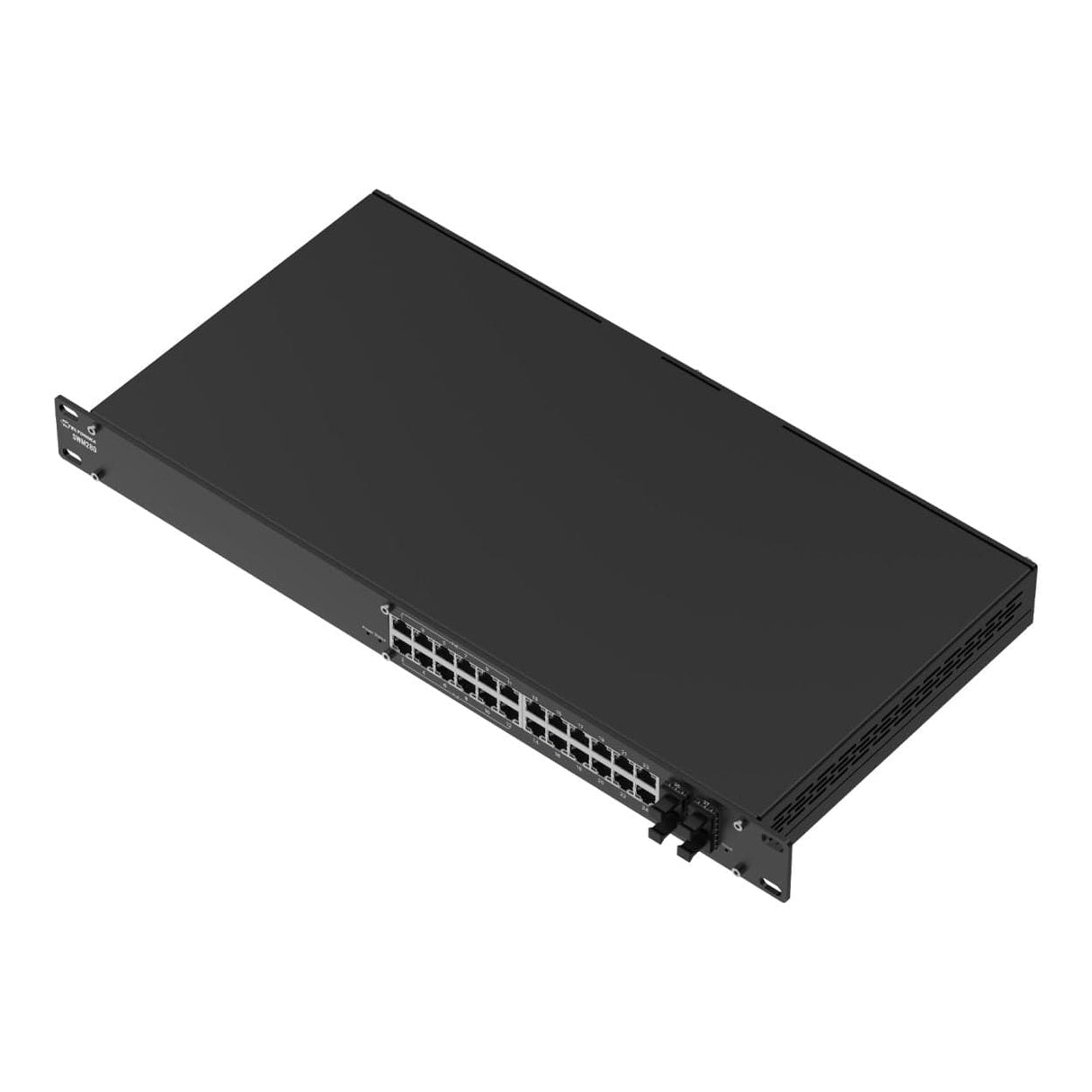

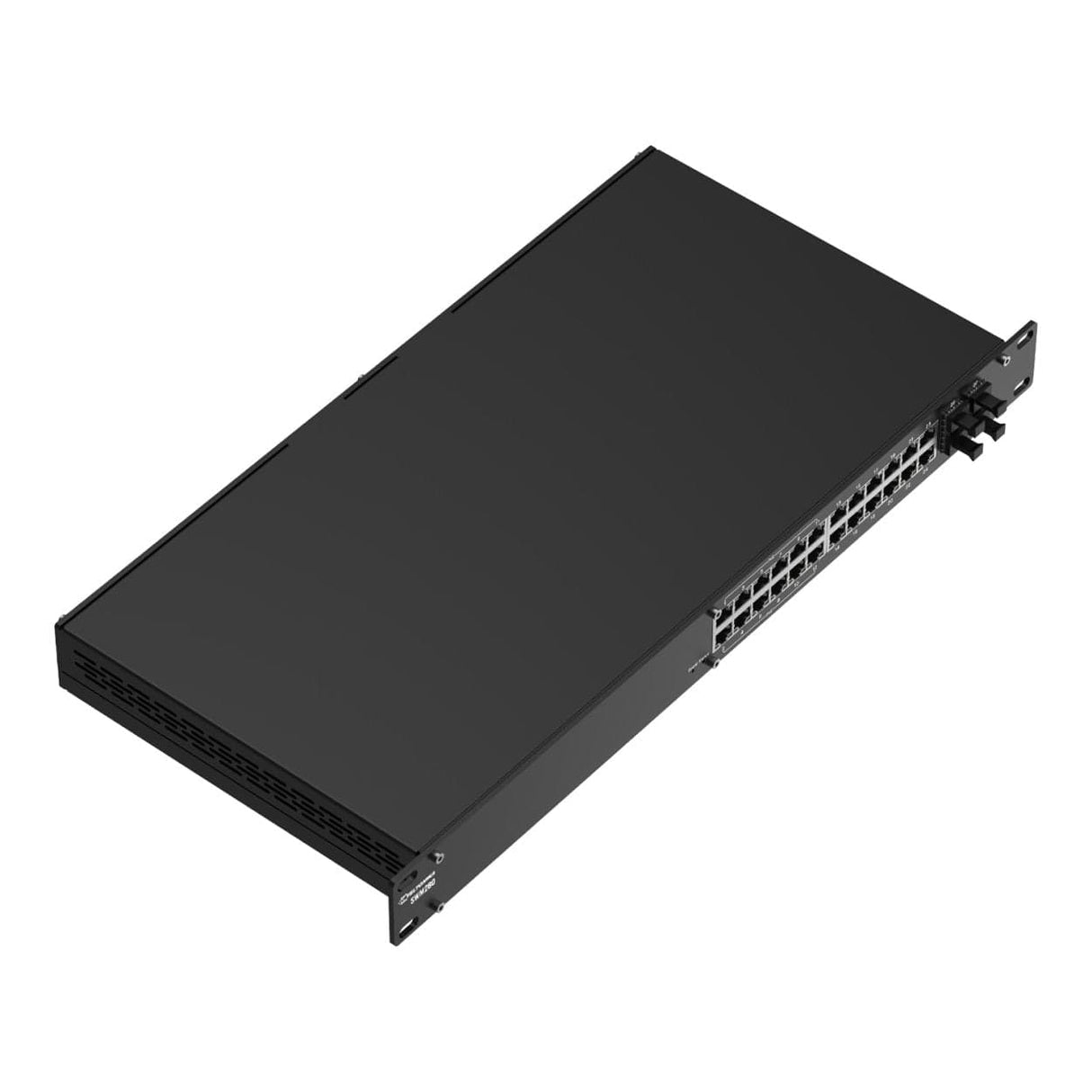

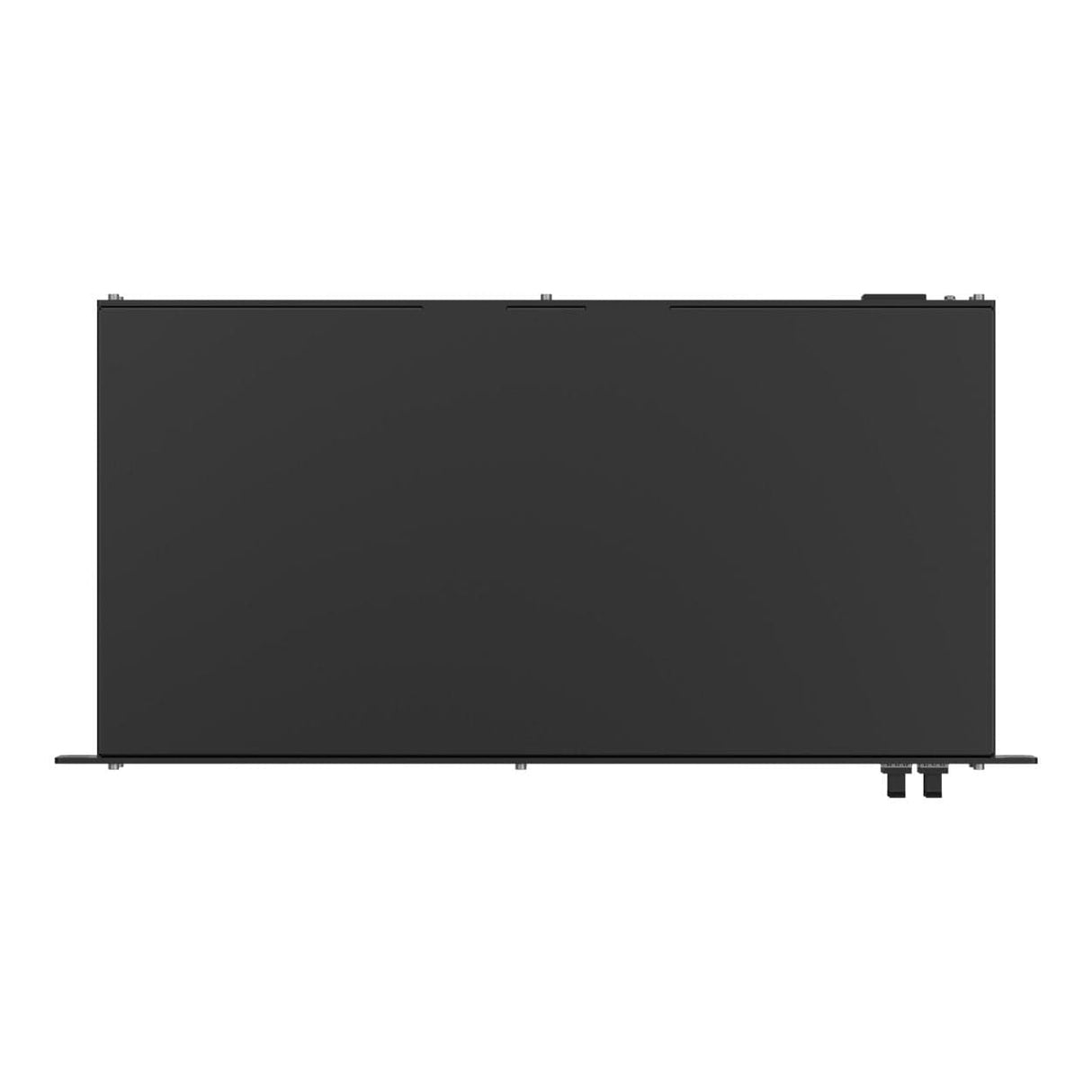

Teltonika SWM280 L2+ Gigabit Ethernet (10/100/1000) PoE Managed Network Switch

Teltonika SWM280 L2+ Gigabit Ethernet (10/100/1000) PoE Managed Network Switch

The SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply.

Features:

• PoE+: Provides power and data over 12 PoE+ ports, up to 30W per port
• L2+: Supports advanced routing protocols and VLAN segmentation
• Cloud-enabled: Includes 2 years of RMS management out of the box
• Protocols: Supports Profinet, MRP, and EtherNet/IP for mixed industrial environments

Technical Specifications

Industrial Protocols
Profinet Class B conformance (optional)
Ethernet Fiber: 4 x SFP ports
IEEE 802.3 series: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Network & Routing
Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP
MRP: Client and manager roles
L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP
L3 features: Static IPv4/IPv6 routing, DHCPv6 client, static IPv6 address
DHCP: Server, client, static leases with MAC wildcards
Port Settings: Enable/disable, link speed control, port isolation, PoE management, EEE management, port mirroring

Security
Authentication: PAM, Radius, TACACS+, IP & login attempt block
VLAN: Port VLAN separation
802.1x: Port-based network access control client and server
MAC filtering: Allow/deny specific MAC addresses

API & Management
Teltonika Networks Web API (beta) support
WEB UI: Firmware update, configuration backup, profiles management
FOTA: Firmware update
RMS: Firmware/configuration updates for multiple devices
Factory reset: Restores all settings to default
Firmware customization: SwmOS (OpenWrt based), Busybox shell, Lua, C, C++
SDK: Build environment for custom firmware
Package Manager: Install additional software

PoE Output
PoE+ Ports: 1–12
PoE Standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Alternative A
Max Power per Port: 30 W
Total PoE Power Budget: 300 W

Power

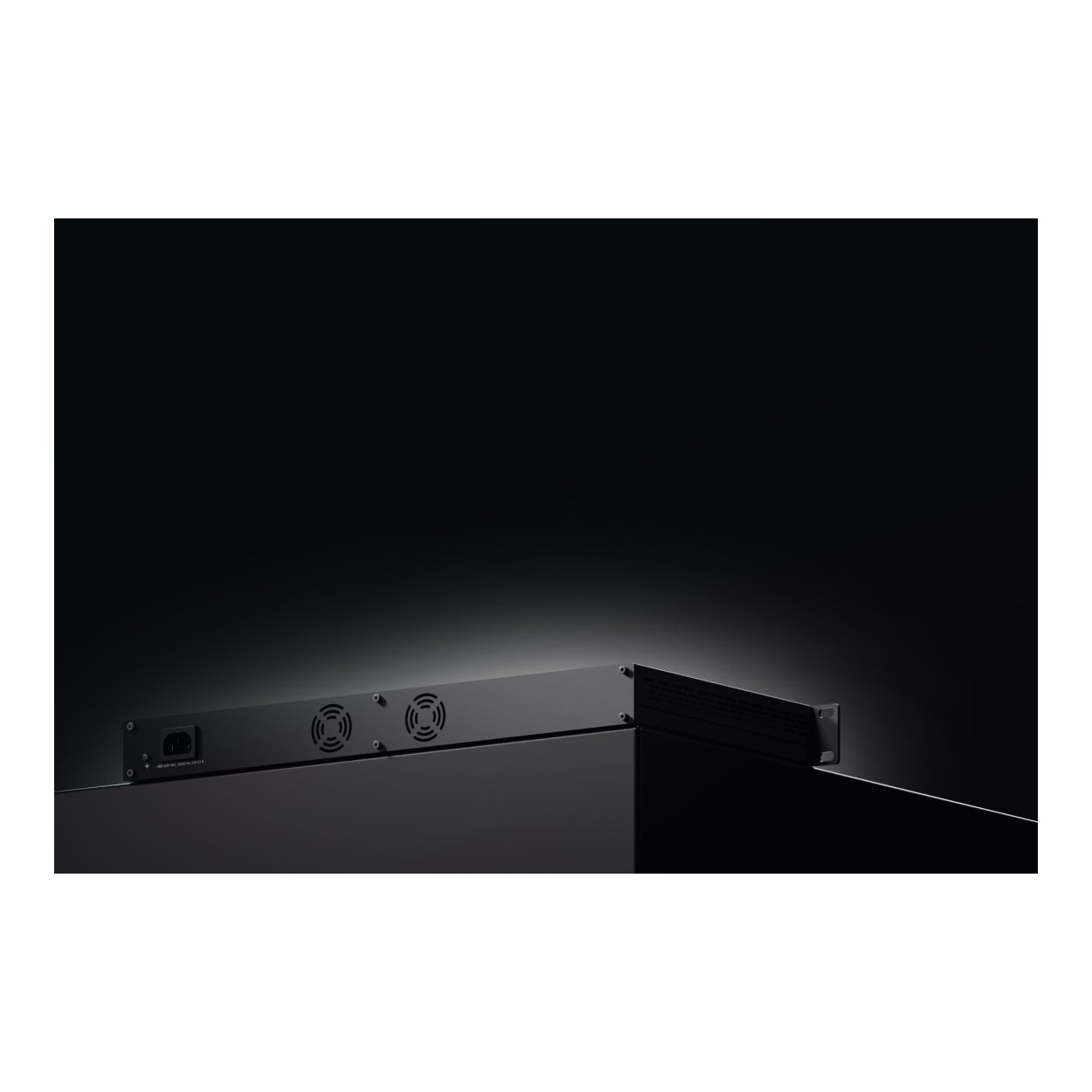

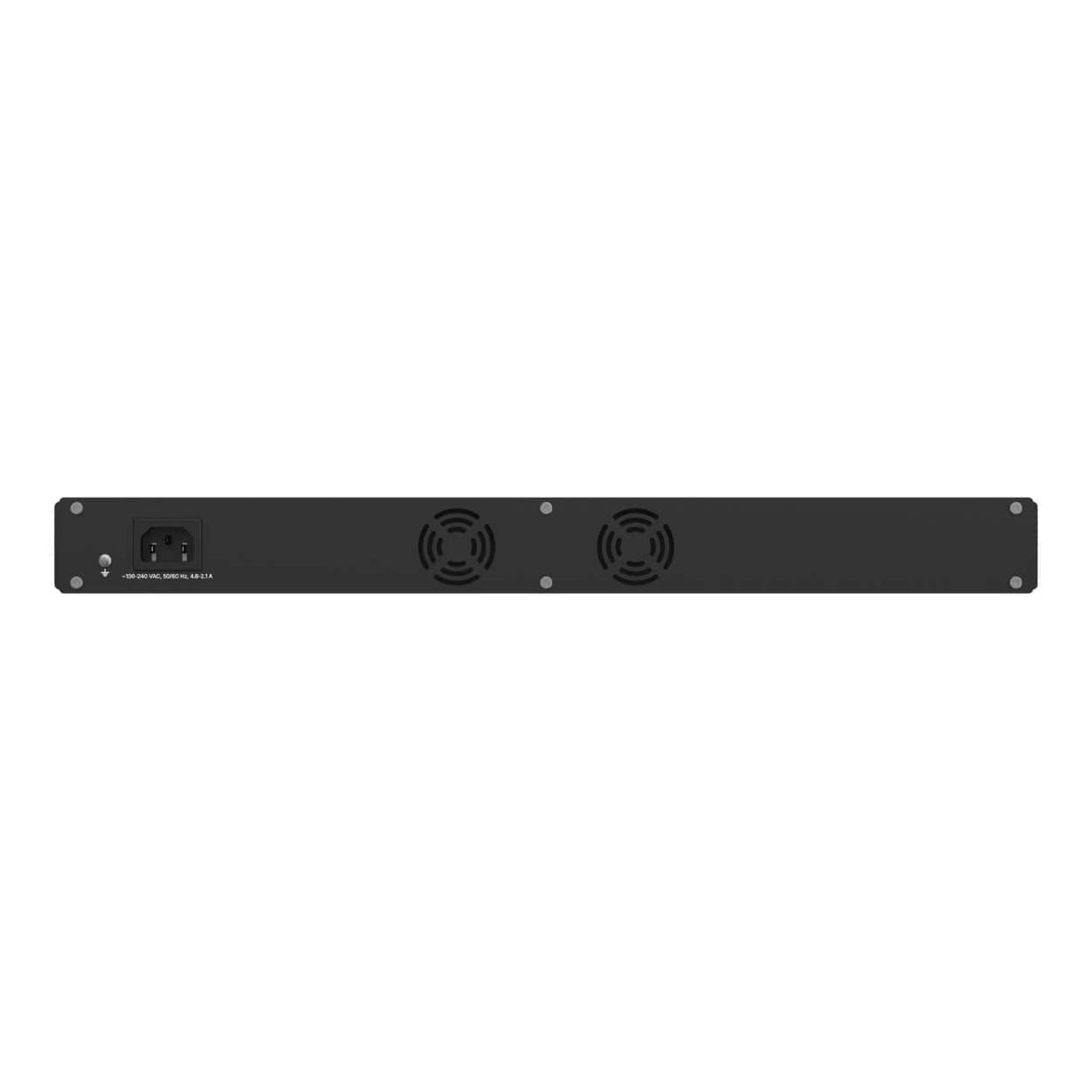

Connector: C14
Input Voltage Range: 100–240 VAC, 50/60 Hz
Power Consumption: Idle 7.5 W, Max 325 W, PoE Max 300 W

Physical Interfaces
Ethernet: 24 x RJ45, 10/100/1000 Mbps
Fiber: 4 x SFP ports
Status LEDs: 1 x Power, 48 x ETH status, 1 x Status, 4 x SFP status
Reset: Software reset button
Other: 1 x Grounding screw

Physical Specifications
Casing: Anodized aluminum housing and panels
Dimensions (W x H x D): 483 x 44 x 234 mm
Weight: 1842 g
Mounting: Rack mounting kit

Operating Environment
Temperature: 0–50 °C
Humidity: 10–90% non-condensing
Ingress Protection: IP30

Regulatory Approvals
CE, UKCA, CB, RCM, FCC, IC

Services & Network Management
EtherNet/IP: Supported
SNMP v2/v3: Supported
LLDP: Supported
802.1p QoS, 802.1x port-based access control, 802.1Q VLAN
Scheduling: SP/WFQ/WRR
Bandwidth control: Rate limiting, storm control
Traffic Shaper: Port-based

Diagnostics
Cable diagnostic, ping, traceroute, nslookup
Ping reboot: Restart PoE on a specific port

Performance Specifications
Bandwidth (Non-blocking): 56 Gbps
Forwarding Rate: 83.33 Mpps
Packet Buffer: 512 KB
MAC Address Table: 8K entries
Jumbo Frame Support: 10000 bytes

Features

PoE+ delivers both power and data through 12 ports at up to 30 W each.
L2+ capabilities include advanced routing protocols and VLAN segmentation.
Supports cloud-enabled management via 2 years of RMS included.
Industrial protocol support for Profinet, MRP, and EtherNet/IP.
High-performance forwarding with 56 Gbps non-blocking bandwidth and 83.33 Mpps forwarding rate.
Robust diagnostics and security including 802.1x, VLAN separation, MAC filtering, and firewall rules.
