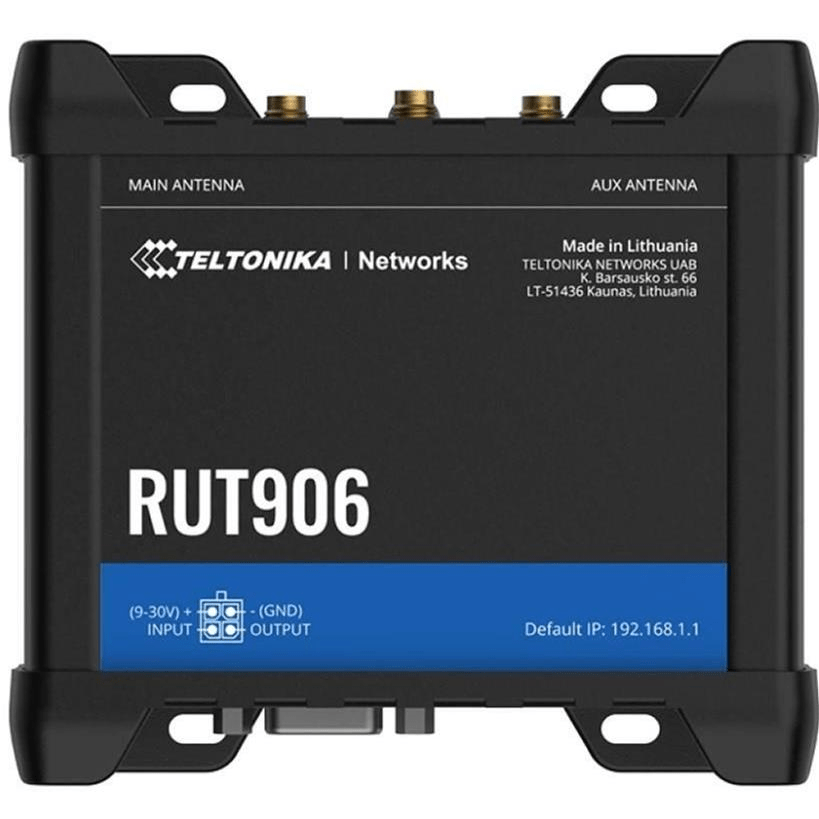

Teltonika RUT906 LTE Cellular WLAN Modem Router

Teltonika RUT906 LTE Cellular WLAN Modem Router

Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.

Technical Specifications:

Mobile

Mobile Module

• 4G LTE Cat 4: Up to 150 Mbps Download / 50 Mbps Upload
• 3G: Up to 21 Mbps Download / 5.76 Mbps Upload
• 2G: Up to 236.8 kbps Download / 236.8 kbps Upload

3GPP Release
Release 9

eSIM Support

• Consumer Type eSIM
• Profile Download and Removal Operations Supported
• Up to 7 eSIM Profiles
• Does Not Include Data Plans
• Feature Availability Varies by Order Code

SIM Switching

• SIM and eSIM Auto-Switch Supported
• Auto-Switch Conditions:
  • Weak Signal
  • Data Limit
  • SMS Limit
  • Roaming
  • No Network
  • Network Denied
  • Data Connection Failure
  • SIM Idle Protection

Status Monitoring

• IMSI
• ICCID
• Operator
• Operator State
• Data Connection State
• Network Type
• Bandwidth
• Connected Band
• Signal Strength (RSSI)
• SINR
• RSRP
• RSRQ
• EC/IO
• RSCP
• Data Sent/Received
• LAC
• TAC
• Cell ID
• ARFCN
• UARFCN
• EARFCN
• MCC
• MNC

SMS Features

• SMS Status
• SMS Configuration
• Email to SMS
• SMS to Email
• SMS to HTTP
• SMS to SMS
• Scheduled SMS
• SMS Auto-Reply
• SMPP Support

USSD Support
Supports Sending and Reading Unstructured Supplementary Service Data Messages

Operator Management

• Operator Block/Allow List (By Country or Separate Operators)
• Band Lock
• Used Band Status Display

SIM Management

• SIM Idle Protection Service
• SIM PIN Code Management

APN Configuration
Auto APN

Network Modes

• Direct Connection (Bridge)
• Passthrough Mode

Wireless

Wireless Mode

• IEEE 802.11b/g/n (Wi-Fi 4)
• Access Point (AP)
• Station (STA)

Wi-Fi Security

• WPA2-Enterprise (PEAP)
• WPA2-PSK
• WPA-EAP
• WPA-PSK
• WPA3-SAE
• WPA3-EAP
• OWE
• AES-CCMP
• TKIP
• Auto Cipher Modes
• Client Separation
• EAP-TLS with PKCS#12 Certificates
• 802.11w Protected Management Frames (PMF)

SSID Features

• SSID Stealth Mode
• MAC Address-Based Access Control

Wi-Fi Users
Up to 100 Simultaneous Connections

Wireless Connectivity Features

• Wireless Mesh (802.11s)
• Fast Roaming (802.11r)
• Relayd
• BSS Transition Management (802.11v)
• Radio Resource Measurement (802.11k)

Wireless MAC Filtering

• Allowlist
• Blocklist

Wireless QR Code Generator
Supported

TravelMate Feature
Supported

Ethernet

WAN Ports

• 1 × WAN Port, 10/100 Mbps
• IEEE 802.3, IEEE 802.3u, IEEE 802.3az Compliant
• Auto MDI/MDIX Supported

LAN Ports

• 3 × LAN Ports, 10/100 Mbps
• IEEE 802.3, IEEE 802.3u Compliant
• Auto MDI/MDIX Supported

Network

Routing Support

• Static Routing
• Dynamic Routing:
  • BGP
  • OSPF v2
  • RIP v1/v2
  • EIGRP
  • NHRP
• Policy-Based Routing

Supported Network Protocols

• TCP
• UDP
• IPv4
• IPv6
• ICMP
• NTP
• DNS
• HTTP
• HTTPS
• SFTP
• FTP
• SMTP
• SSL/TLS
• ARP
• VRRP
• PPP
• PPPoE
• UPnP
• SSH
• DHCP
• Telnet
• SMPP
• SNMP
• MQTT
• Wake-On-LAN (WOL)
• VXLAN

VoIP Support

• H.323
• SIP ALG

Connection Monitoring

• Ping Reboot
• Wget Reboot
• Periodic Reboot
• LCP Monitoring
• ICMP Monitoring

Firewall Features

• Port Forwarding
• Traffic Rules
• Custom Rules
• TTL Target Customisation

Hotspot Features

• Captive Portal
• Internal/External Radius Server
• Radius MAC Authentication
• SMS Authorisation
• Internal/External Landing Page
• Walled Garden
• User Scripts
• URL Parameters
• User Groups
• User Management
• Customisable Themes

DHCP Features

• Static IP Allocation
• Dynamic IP Allocation
• DHCP Relay
• Static Leases

QoS / Smart Queue Management (SQM)

• Traffic Priority Queuing
• WMM
• IEEE 802.11e Support

DDNS Support
Supports More Than 77 Service Providers

DNS Over HTTPS
Supported

Network Backup

• Wi-Fi WAN
• Mobile
• VRRP
• Wired Failover

Load Balancing
Supported

Port Mirroring
Supported

Security

Authentication Methods

• Pre-Shared Key
• Digital Certificates
• X.509 Certificates
• TACACS+
• Internal and External RADIUS Authentication

Firewall Capabilities

• DMZ
• NAT
• NAT-T
• NAT64

Attack Prevention

• DDoS Prevention
• SYN Flood Protection
• SSH Attack Prevention
• HTTP/HTTPS Attack Prevention
• Port Scan Prevention

VLAN Support

• Port-Based VLAN
• Tag-Based VLAN

Web Filtering

• Allow List
• Block List

Access Control

• SSH
• Web Interface
• CLI
• Telnet

Certificate Manager
Supported

VPN

Supported VPN Types

• OpenVPN
• IPsec
• GRE
• PPTP
• L2TP
• SSTP
• WireGuard
• ZeroTier
• Tinc
• DMVPN

System Characteristics

CPU
Mediatek 580 MHz, MIPS 24KEc

Memory (RAM)
128 MB DDR2

Flash Storage
16 MB SPI Flash

Operating System
RutOS (OpenWrt-Based Linux OS)

Location Tracking

GNSS Support

• GPS
• GLONASS
• BeiDou
• Galileo
• QZSS (Under Development)

Coordinates Reporting

• Web UI
• SMS
• TAVL
• RMS

Geofencing
Supports Multiple Configurable Zones

Interfaces

Ethernet Ports

• 4 × RJ45 Ports, 10/100 Mbps

USB Port

• 1 × USB Type-A (USB 2.0)

Serial Ports

• 1 × RS232 (DB9)
• 1 × RS485 (6-Pin Industrial Socket)

SIM Slots

• 2 × Mini SIM (2FF), External SIM Holders

Antenna Connectors

• 2 × SMA (LTE)
• 2 × RP-SMA (Wi-Fi)
• 1 × SMA (GNSS)

Input/Output Interfaces

• 1 × 10-Pin Industrial I/O Socket
• 1 × 4-Pin Power Connector

Power

Power Connector
4-Pin Industrial DC Socket

Input Voltage Range
9–30 VDC

Passive PoE Support

• Mode B
• 9–30 VDC
• Not Compatible with IEEE 802.3af/at/bt Standards

Power Consumption

• Idle: < 2 W
• Maximum: < 7 W

Physical Specifications

Casing Material
Aluminium Housing with Plastic Panels

Dimensions (W × H × D)
109.5 × 50 × 100 mm

Weight
295 g

Mounting Options

• DIN Rail
• Wall Mount
• Flat Surface Mount (Additional Kit Required)

Operating Environment

Operating Temperature
-40°C to 75°C

Operating Humidity
10% to 90% Non-Condensing

Ingress Protection Rating
IP30

Regulatory and Compliance

Regulatory Certifications

• CE
• UKCA
• RCM
• CB
• E-Mark

EMC Standards

• EN 55032:2015+A11:2020
• EN 55035:2017+A11:2020
• EN 61000-3-3:2013+A1:2019+A2:2021
• EN IEC 61000-3-2:2019+A1:2021

RF Standards

• EN 301 908-1
• EN 301 908-2
• EN 301 908-13
• EN 300 328
