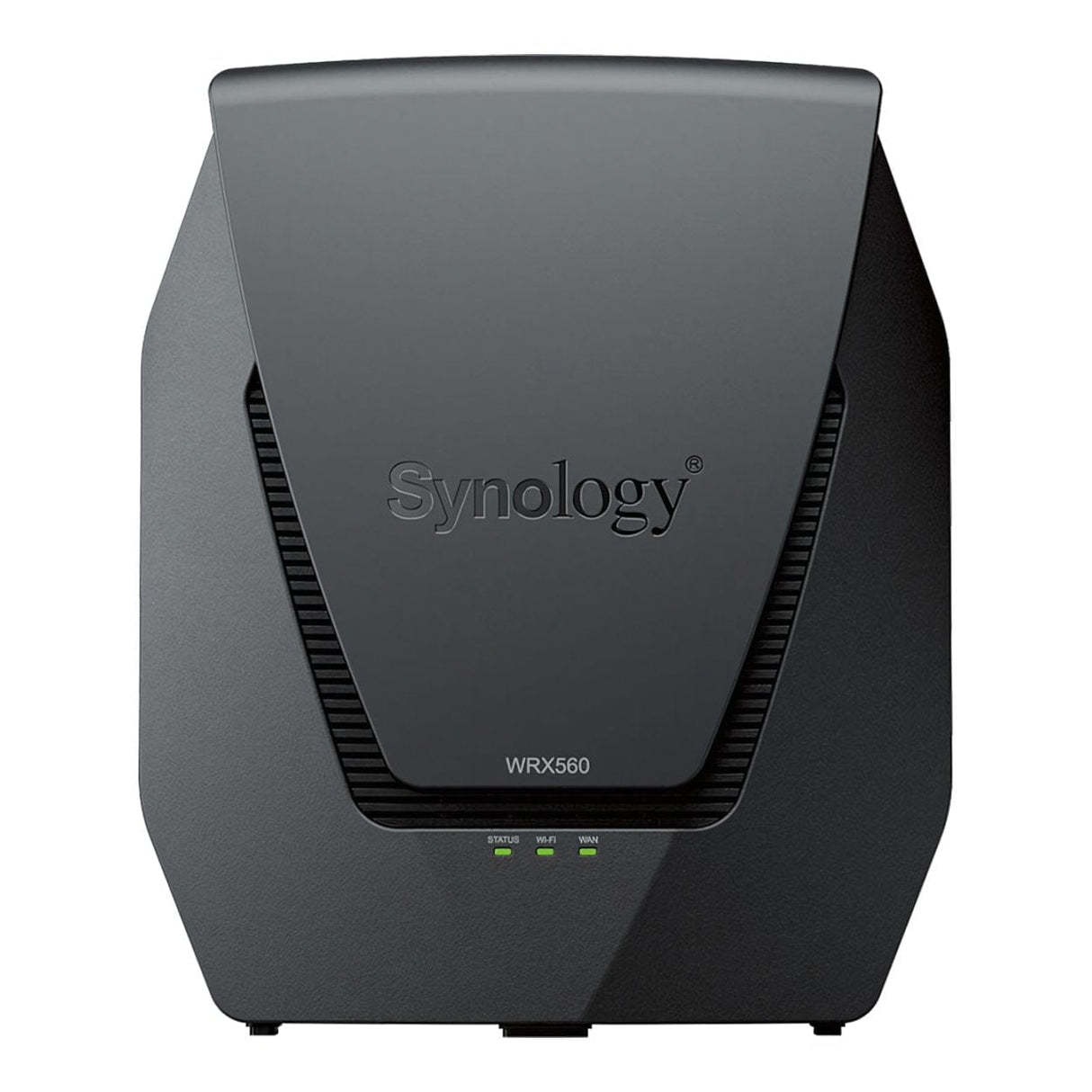

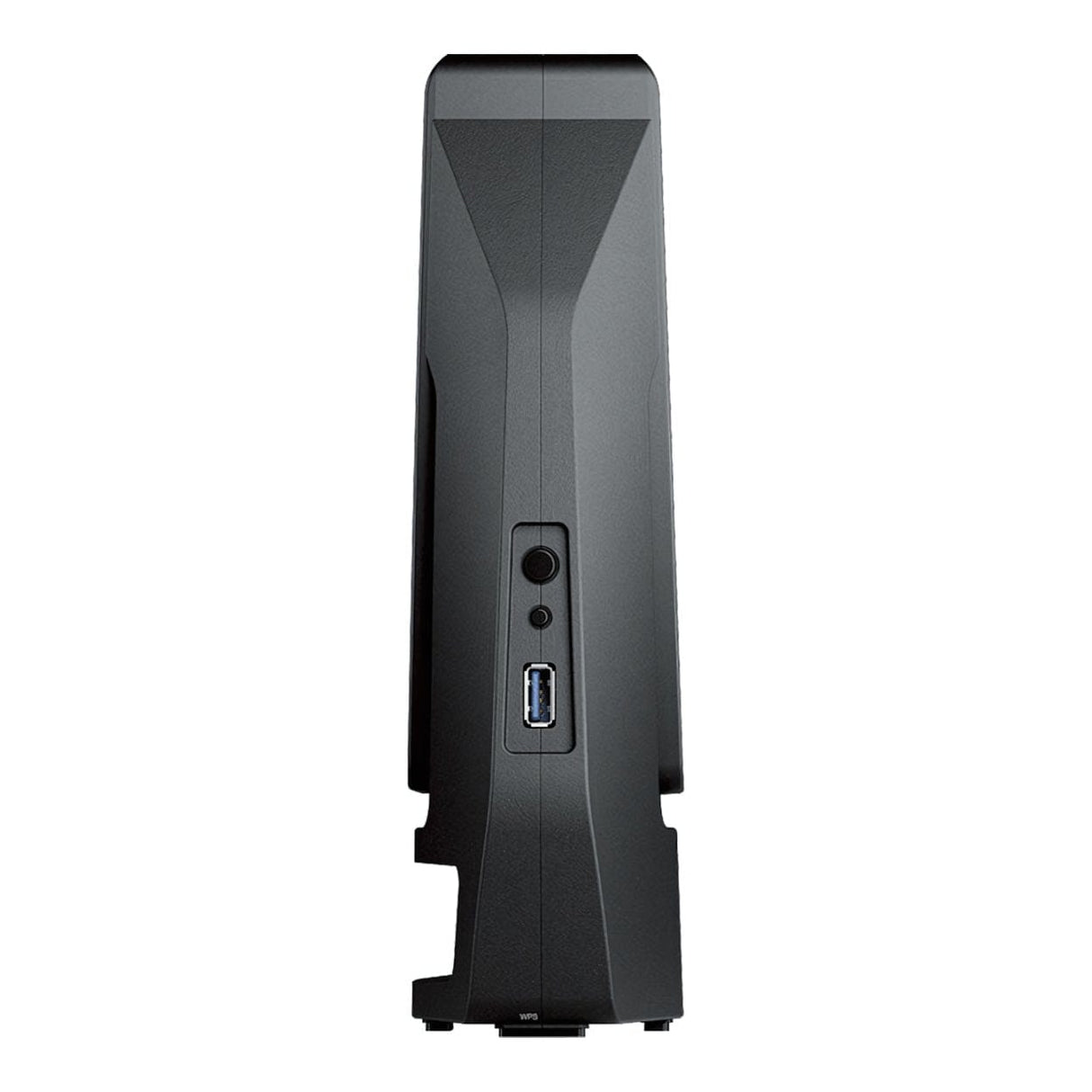

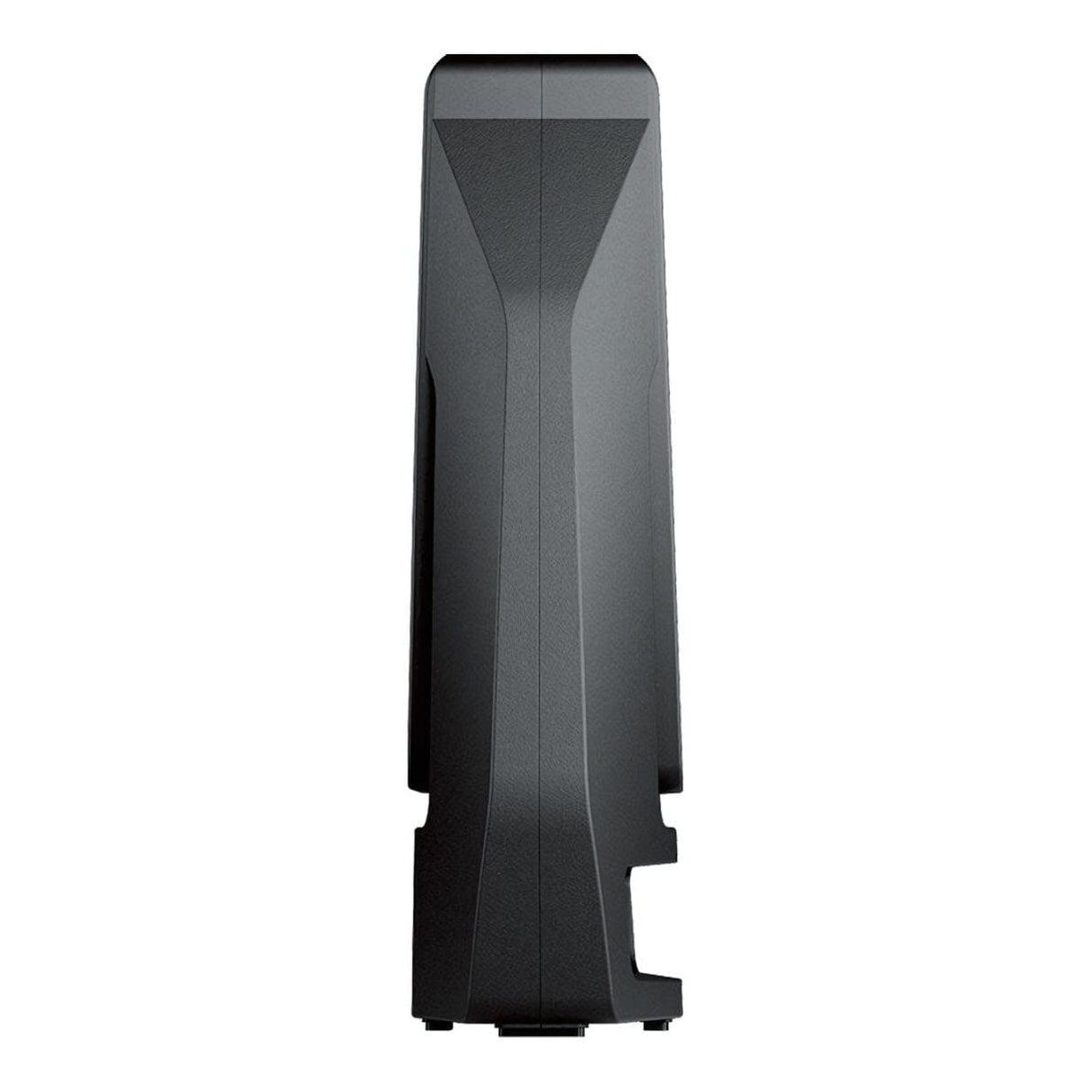

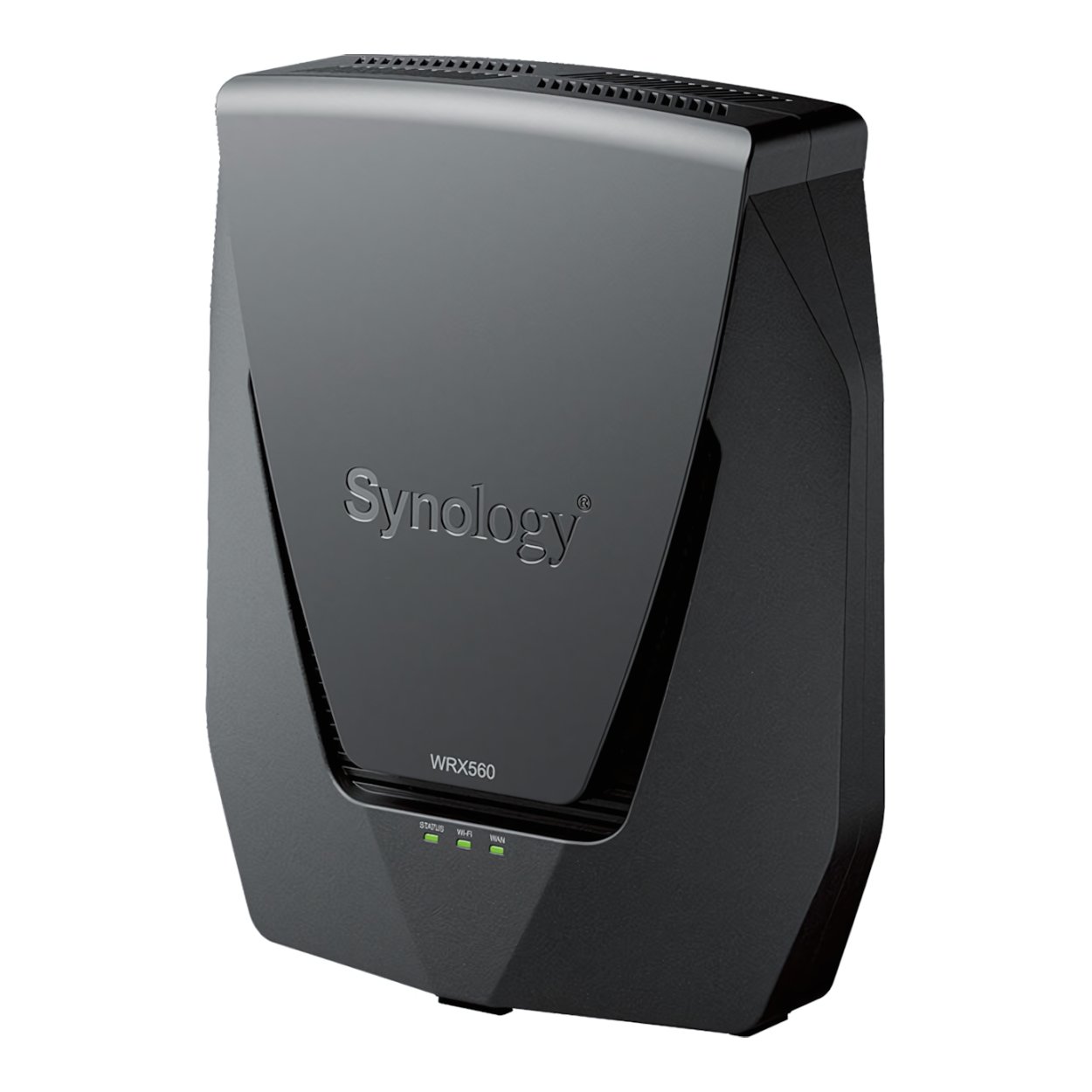

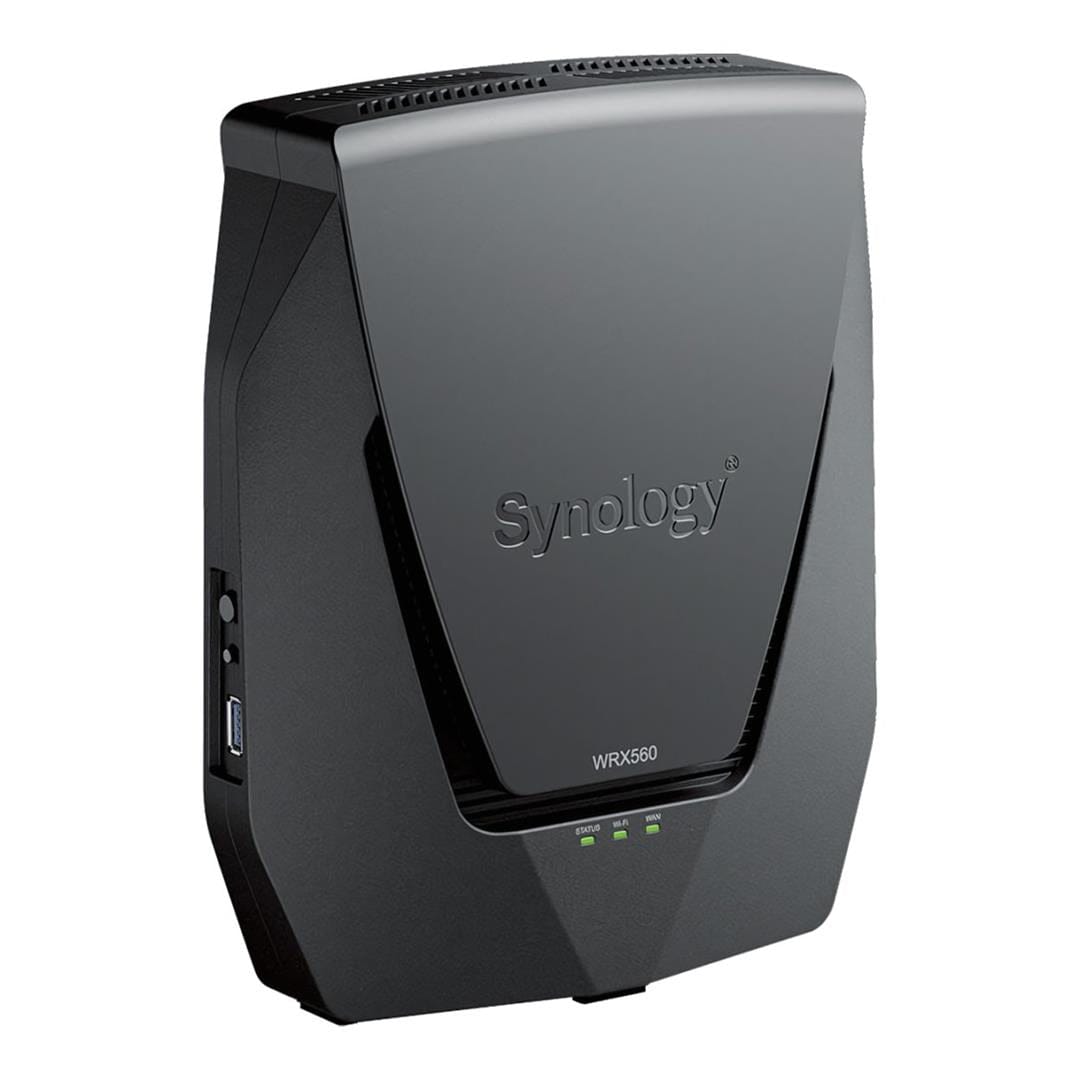

Synology WRX560 Wireless Router - Dual-band 2.4GHz 5GHz Gigabit Ethernet

Synology WRX560 Wireless Router - Dual-band 2.4GHz 5GHz Gigabit Ethernet

Designed for the modern smart home

Wi-Fi 6

Up to 3,000 Mbps wireless speeds

Mesh support

Seamless whole-home Wi-Fi with other Synology routers

Safe internet access

Comprehensive parental controls

2.5GbE WAN/LAN

Support for superfast internet or high-performance devices

Faster Wi-Fi with better coverage

High performance in a space-saving design

Wi-Fi 6 technology combined with high-performance internal antennas bring higher speeds to more devices at greater ranges, all in a compact design.

Mesh Wi-Fi

Say goodbye to Wi-Fi dead zones. Combine multiple Synology routers (WRX560 or other) for consistent and high-speed whole-home coverage under a single Wi-Fi name.

Support for 5.9 GHz band

5.9 GHz band support provides access to an interference-free band for higher potential connection speeds or dedicated wireless backhaul.

Optimized Wi-Fi signal

Smart Connect automatically steers your devices to the Wi-Fi band that provides the best signal and speed.

Comprehensive parental controls backed by Synology Router Manager (SRM)

Profiles for easy management

Create profiles for family members and assign devices to them for easy internet access management and monitoring of devices connected to your local network.

Understand usage

Gain insight into your kids’ activities online, such as the daily amount of time spent on the Web or whether they have attempted to visit inappropriate websites.

Limit screen time for kids

Set internet use quotas or restrict internet access to certain hours for each device your child owns. Define how much time can be spent on laptops, smartphones, and game consoles.

Web filtering

Prevent children from accessing adult, violent, gaming, and social networking websites, as well as explicit search results. Apply filters flexibly, for example, restricting social media during homework hours.

Technical Specifications:

Hardware Specifications
CPU: Quad core 1.4 GHz
Hardware Acceleration Engine: Layer 4 / Layer 7
Memory: 512 MB DDR4
Antenna Type: 4x4 MIMO high-performance internal antenna (5 GHz); 2x2 MIMO high-performance internal antenna (2.4 GHz)

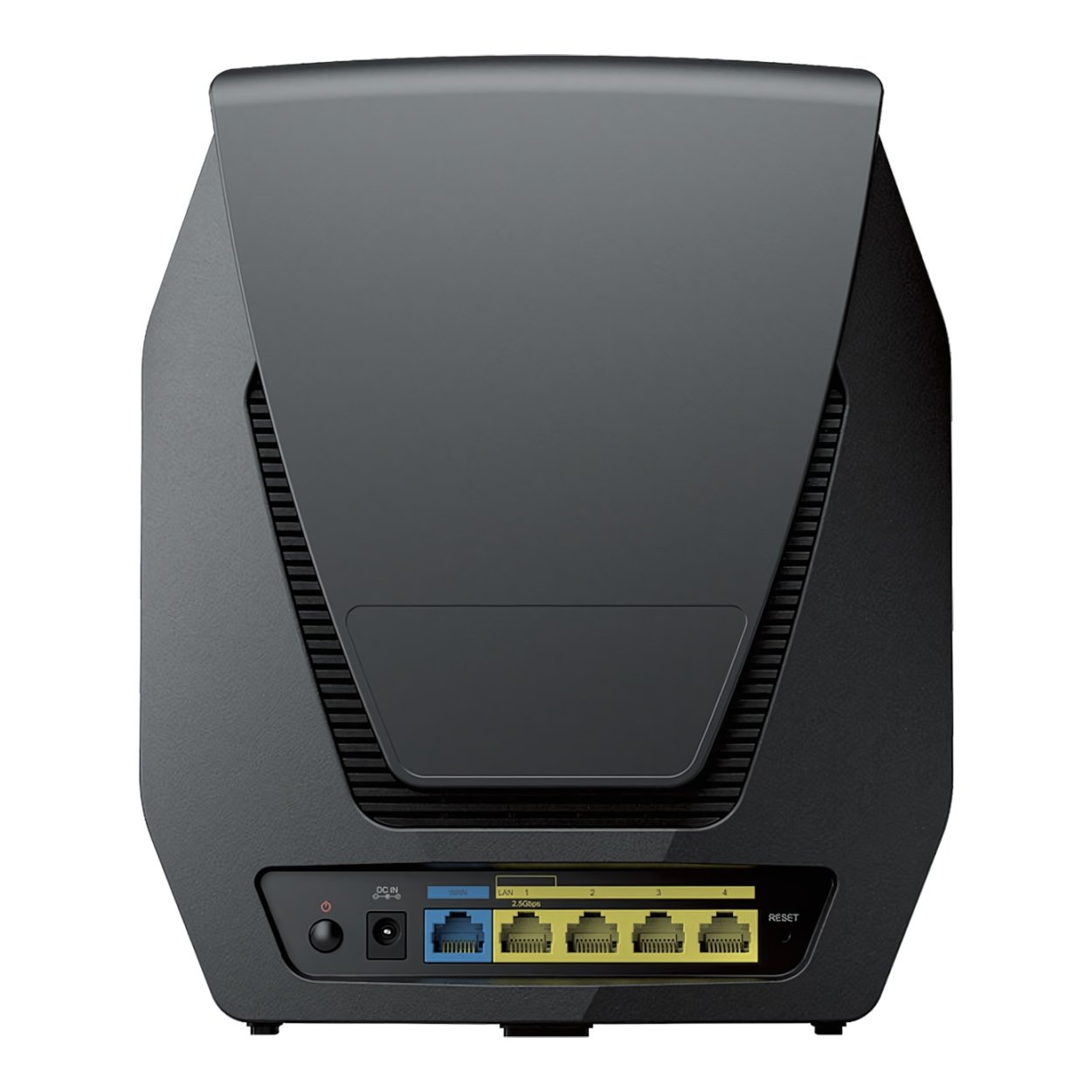

LAN Port: 2.5GbE (RJ-45) x 1; Gigabit (RJ-45) x 3
WAN Port: Gigabit (RJ-45) x 1; 2.5 GbE (RJ-45) x 1 (Dual WAN)
External Ports: USB 3.2 Gen 1 x 1 (5V, 0.9A power output)

Wireless Standards: IEEE 802.11ax; IEEE 802.11a/b/g/n/ac/ax
Wireless Speed: 2.4GHz: 600 Mbps; 5GHz: 2400 Mbps
Wireless Mode: Simultaneous dual-band Wi-Fi
Wi-Fi Encryption: WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)

Buttons and Switches: WPS, Power, Reset, Wi-Fi On/Off

Physical Specifications
Size (H x W x D): 233 mm x 194 mm x 66 mm
Weight: 1.35 kg

Environmental Conditions
Operating Temperature: 5°C to 40°C (40°F to 104°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Relative Humidity: 5% to 95% RH

Power
AC Input Power Voltage: 100 V to 240 V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption: 10.80 W (Access); 7.94 W (Idle)

Certifications
Certification: FCC, UKCA, CE, BSMI, VCCI, RCM, KC, iDA, TELEC, JATE, IC
Wi-Fi Certification: CE, UKCA, FCC, NCC, RCM, iDA, TELEC, KC, IC

Warranty
Warranty: 2 Years
Notes: The warranty period starts from the purchase date as stated on your purchase receipt.

Environment Compliance
RoHS Compliant

SRM Specifications

Wireless
Wi-Fi MAC Address Filter: Supported
Maximum MAC Filters: 64
Maximum Devices per MAC Filter: 256
Seamless Roaming: 802.11k/v/r support
Beamforming: Supported
DFS: Supported
Maximum Number of Wi-Fi SSID: 10
Schedulable Wi-Fi: Supported
Guest Network: Supported
Guest Portal: Customized page style, connection time limit, password rotation
WPS 2.0: Supported
3G / 4G Dongle & Tethering: Supported
Recommended Maximum Wi-Fi Points: 1 Primary + 6 (wireless uplink); 1 Primary + 12 (wired uplink)
Maximum Connected Devices: 150

Network
Internet Connection Types: Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
Operating Modes: Wireless Router, Wireless AP
IPv6 Support: DHCP server/client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay
DHCP: Server/client, MAC reservation; Maximum Reservations: 500
Routing: Policy route, static route (IPv4: 100; IPv6: 100)
NAT: Supported, including NAT Loopback
VLAN: Supported; Maximum Network Segments: 5
Port Forwarding: Maximum Rules: 64
UPnP: Maximum Rules: 64

VPN
VPN Server: WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site
VPN Client: PPTP, OpenVPN, L2TP/IPSec
Maximum Client VPN Licenses: 20
Maximum Site-to-Site VPN Tunnels: 10

Traffic Control & Security
Application Layer (L7) QoS: Supported
Traffic Monitoring & Reports: Daily, Weekly, Monthly, Annual
Safe Access: User profiles, web filtering, schedules, reports
Threat Prevention: Supported
Firewall: SPI Firewall, DoS Protection

Management
Operating System: Synology Router Manager (SRM)
Remote Access: QuickConnect & Dynamic DNS
Notifications: Email, SMS, Push
System Management: SNMP, SSH, Configuration Backup & Restore

File & Media Services
File System Support: EXT4, FAT, NTFS, HFS+
Protocol Support: CIFS, AFP, FTP/FTPS, WebDAV
Media Server: DLNA compliant
Download Station: BT/HTTP/FTP/NZB/eMule

What’s in the Box:

• WRX560 Wireless Router x 1
• AC Power Adapter x 1
• RJ-45 LAN Cable x 1
• Quick Installation Guide x 1
