Synology RS2423RP+ 12-Bay Rack NAS CAS-NASBOX-RS2423RP+

Synology RS2423RP+ 12-Bay Rack NAS

Synology RackStation / RS2423RP+ | 12-Bay NAS - 8GB RAM, AMD Ryzen V1780B CPU, No HDD

Efficient storage for centralized data management

The RS2423RP+ (redundant power) are versatile and cost-effective 2U 12-bay storage servers for central data storage and sharing, endpoint and server backup, surveillance management and other business applications. With over 3,500 / 1,700MB/s sequential read/write performance, up to 216TB of raw storage and the option to boost I/O speeds through SSD caching, the RS2423RP+ provide flexible storage with strong built-in data protection capabilities.

Features:

• Solid Performance - Over 3,500 / 1,700MB/s sequential read/write throughput supports office-wide applications
• On-Demand Expansion - Scale up to 24 drive bays and 432TB of raw storage with one Synology RX1223RP Expansion Unit
• Comprehensive Backups - Protect your IT infrastructure with license-free solutions for backup, replication and recovery
• Availability Safeguards - Hot-swappable drives, online volume expansion, dual power supplies (RS2423RP+) and high-availability clustering help keep services online

Specifications:

CPU

• CPU Model: AMD Ryzen V1780B
• CPU Quantity: 1
• CPU Architecture: 64-bit
• CPU Frequency: 4-core 3.35 (base) / 3.6 (turbo) GHz
• Hardware Encryption Engine (AES-NI): Yes

Memory

• System Memory: 8 GB DDR4 ECC UDIMM
• Memory Module Pre-installed: 8 GB (8 GB × 1)
• Total Memory Slots: 2
• Maximum Memory Capacity: 32 GB (16 GB × 2)

Notes:

• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.

Storage

• Drive Bays: 12
• Maximum Drive Bays with Expansion Unit: 24 (RX1223RP × 1)
• Compatible Drive Type* (See all supported drives): 3.5" SATA HDD2.5" SATA SSD
• Hot Swappable Drive: Yes

Notes:

• Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
• "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

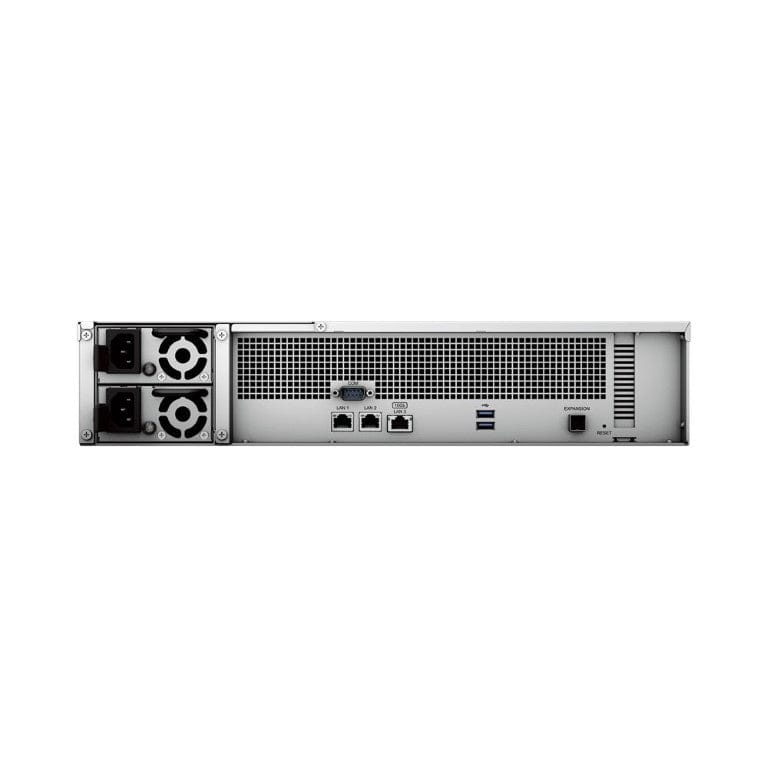

External Ports

• RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
• RJ-45 10GbE LAN Port: 1
• USB3.2 Gen 1 Port: 2
• Expansion Port: 1

PCIe

• PCIe Expansion: 1 x Gen3 x8 slot (x4 link)

Appearance

• Form Factor (RU): 2U
• Size RS2423RP+ : 88 × 482 × 578mm |
• weight RS2423RP+ : 11.9kg
• Rack Installation Support: 4-post 19" rack (Synology Rail Kit - RKS-02)

Notes: The rail kit is sold separately

Packaging Content

• RS2423RP+ 1× Main Unit
• 1× Accessory Pack
• 2× AC Power Cord
• 1× Quick Installation Guide
