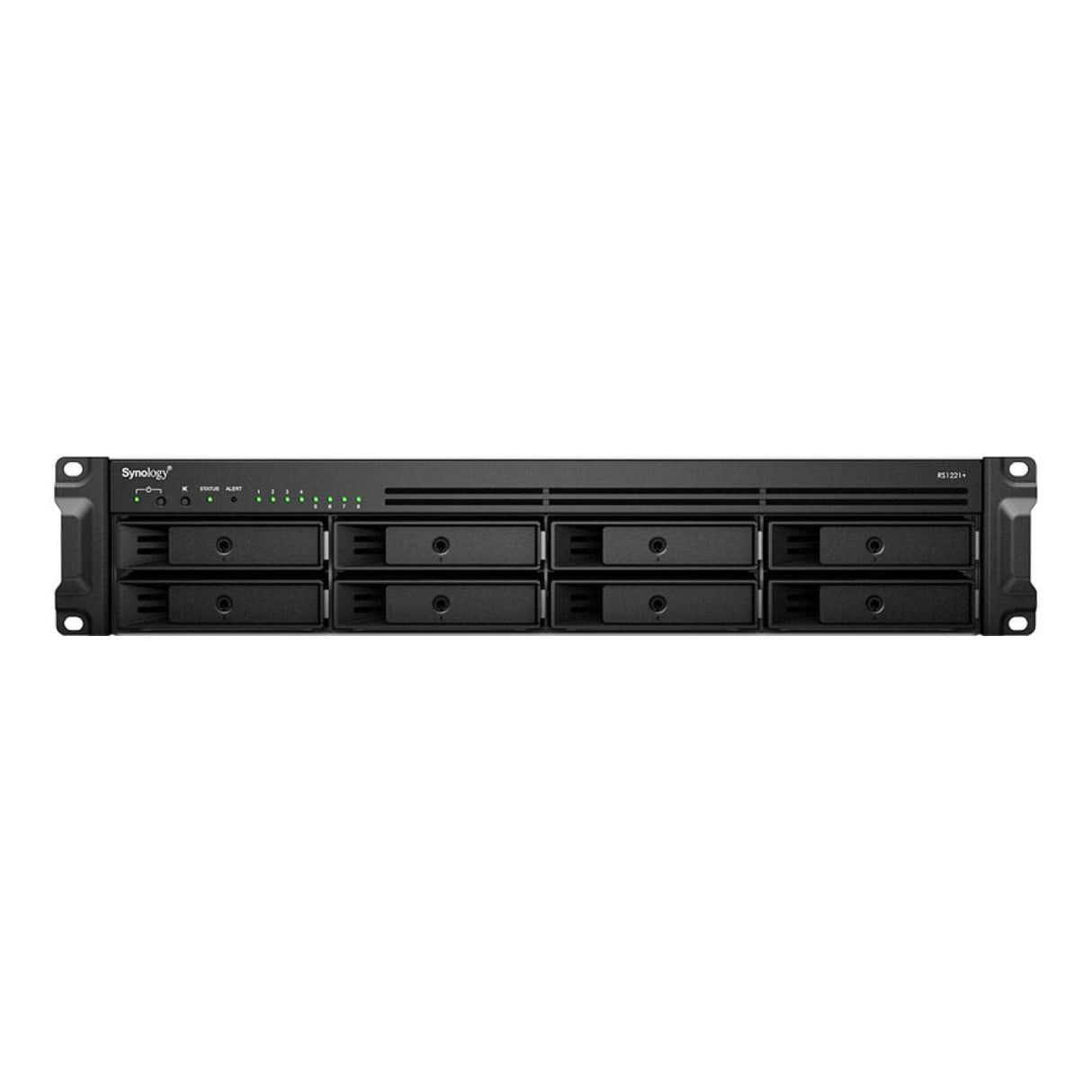

Synology RS1221+ AMD Ryzen V1500B 4GB Diskless Rackstation CAS-NASBOX-RS1221+

Synology RS1221+ AMD Ryzen V1500B 4GB Diskless Rackstation CAS-NASBOX-RS1221+

A powerful storage solution for businesses and IT enthusiasts with redundancy and service continuity features.

The Synology RackStation RS1221RP+ / RS1221+ are powerful 2U 8-bay rackmount network attached storage solutions, perfect for centralising data management in short rack-depth environments. RS1221RP+ / RS1221+ are ideal for handling heavy file workloads and protecting digital assets in small business environments through the comprehensive data protection options included in the DiskStation Manager (DSM) operating system.

• High Performance: Tackle multi-user environments effortlessly with up to 2,315 MB/s read and 1,147 MB/s write performance
• Ready for 10/25GbE: Supports 10GbE SFP+/RJ45 and 25GbE SFP28 NICs to instantly increase network bandwidth based on your infrastructure
• Synology High Availability:  Configure two units together to create a high-availability cluster for maximum service uptime and minute-level failover

Specifications:

Hardware Specifications

CPU Model: AMD Ryzen V1500B
CPU Quantity: 1
CPU Cores: 4
CPU Architecture: 64-bit
CPU Frequency: 2.2 GHz
Hardware Encryption Engine: Yes

System Memory: 4GB DDR4 ECC SODIMM
Memory Pre-installed: 4GB (1×4GB)
Total Memory Slots: 2
Maximum Memory Capacity: 32GB (2×16GB)

Drive Bays: 8
Maximum Drive Bays with Expansion: 12 (1× RX418)
Supported Drive Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
Hot-Swappable Drives: Yes

RJ45 1GbE LAN Ports: 4
USB Ports: 2× USB 3.2 Gen1
Expansion Port: 1
Expansion Port Type: eSATA

PCIe Expansion Slot: 1× Gen3 x8 (x4 link)

Form Factor: 2U Rackmount
Dimensions (H × W × D): 88 × 482 × 407.5 mm
Weight: 6.9 kg

System Fans: 2× 80 × 80 mm
Fan Speed Modes: Full-Speed, Cool, Quiet
Noise Level: 37.8 dB(A)

Power Supply: 250W
Redundant Power Supply: No
AC Input Voltage: 100–240 V
Power Frequency: 50/60 Hz
Power Consumption (Access): 49.89 W
Power Consumption (HDD Hibernation): 22.64 W

Operating Temperature: 0 °C to 35 °C
Storage Temperature: −20 °C to 60 °C
Operating Humidity: 8%–80% RH
Storage Humidity: 5%–95% RH

Certifications: FCC, CE, BSMI, VCCI, RCM, EAC, CCC, KC, BIS, UL
Environmental Compliance: RoHS

Warranty: 3-Year Hardware Warranty (extendable to 5 years)
