Description
Description

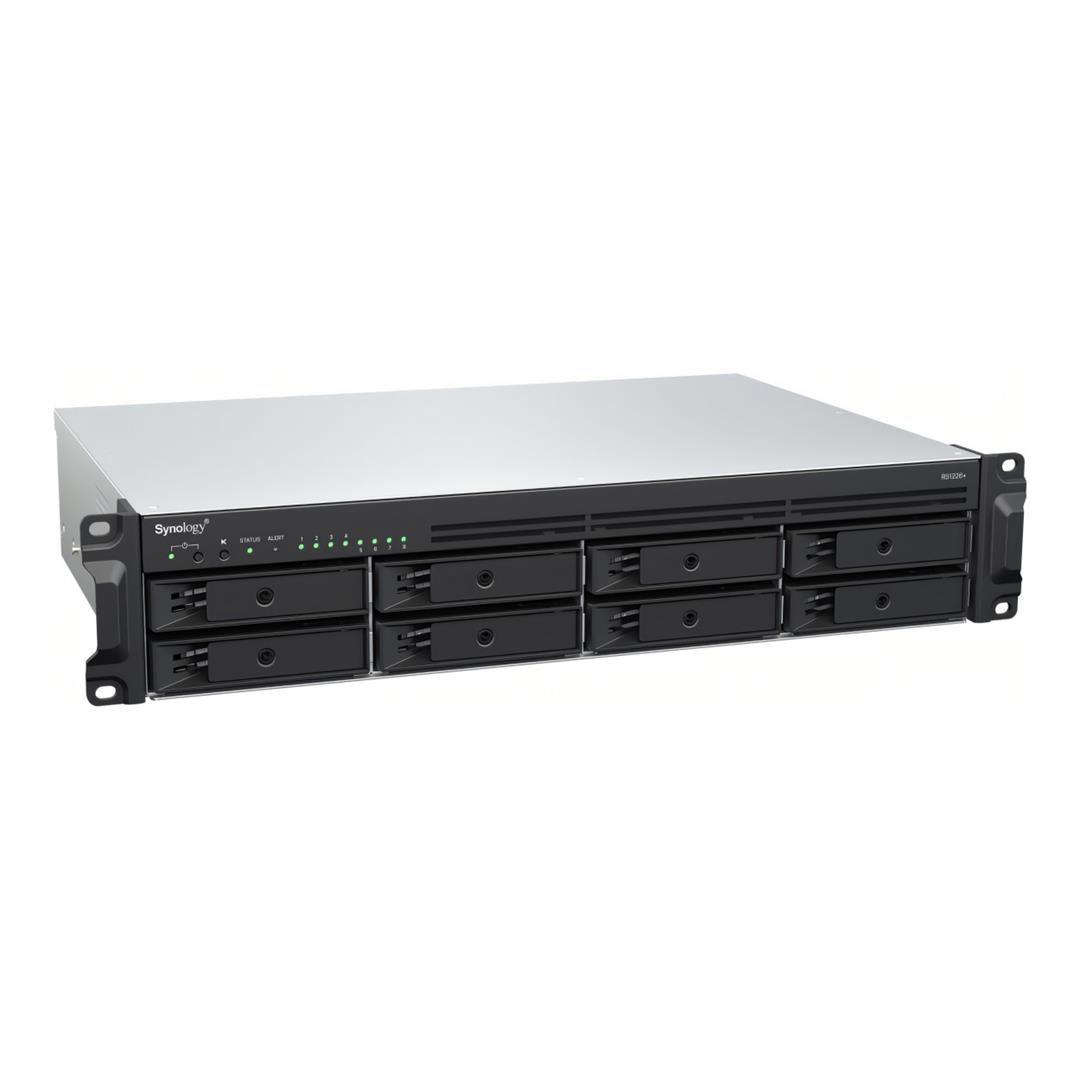

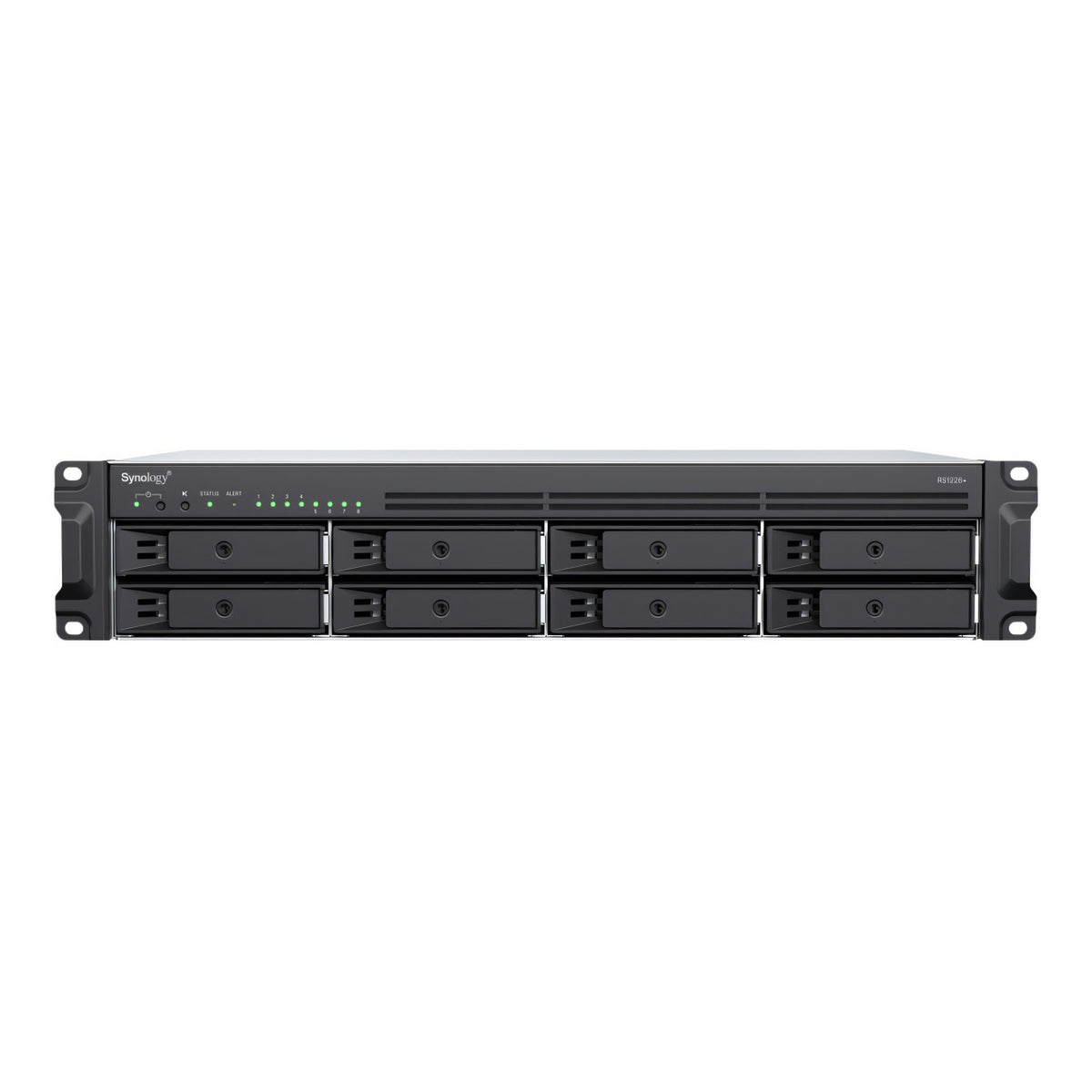

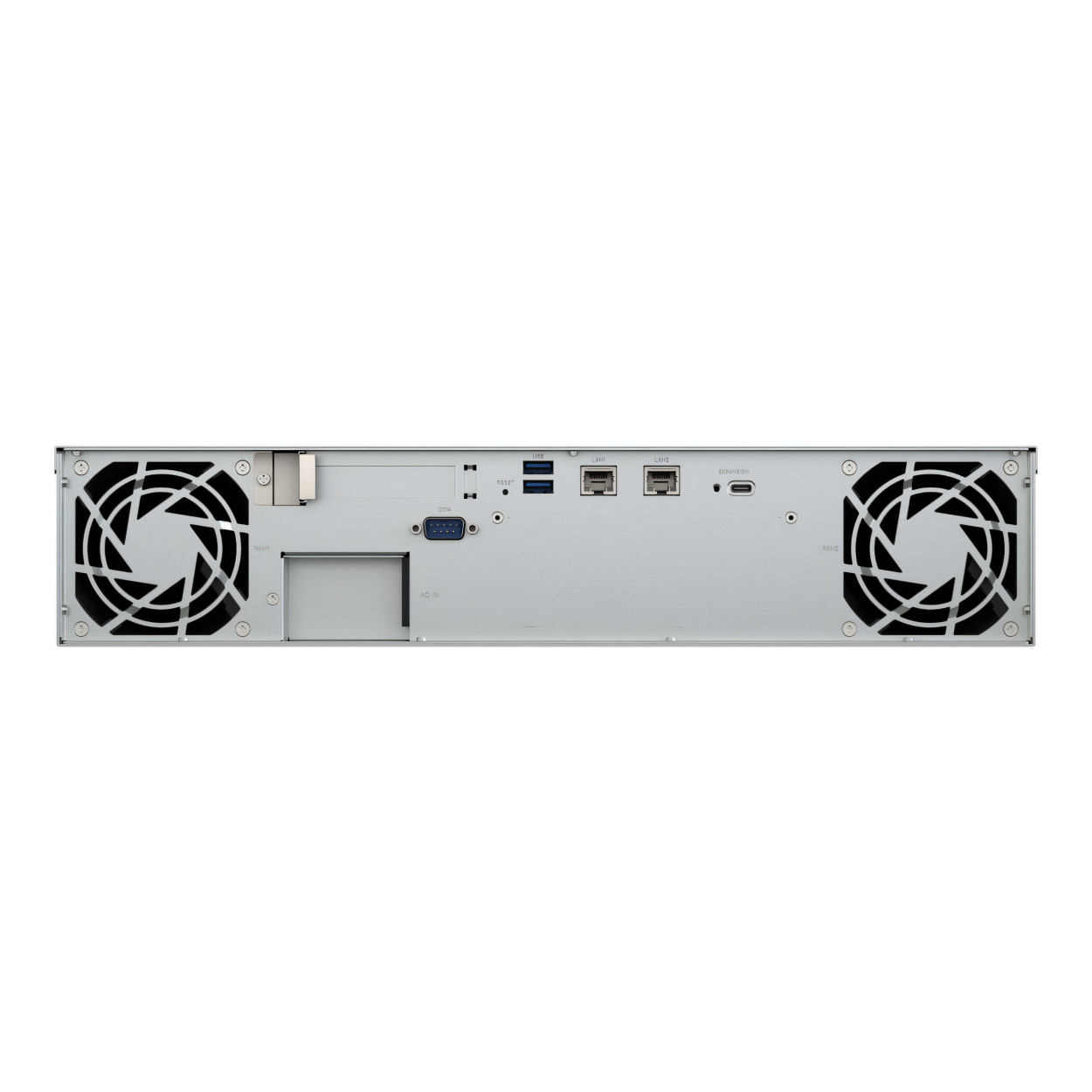

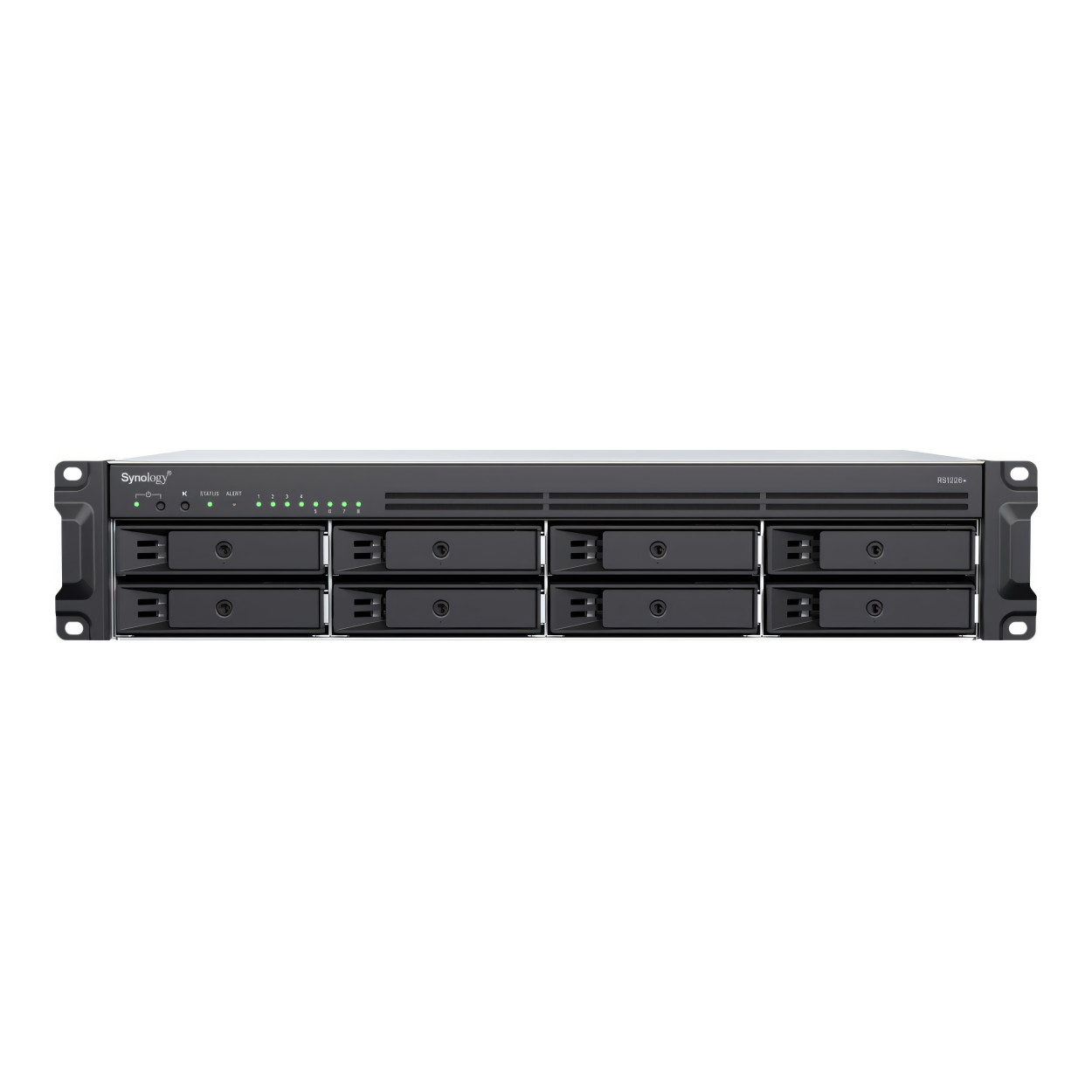

Synology RackStation RS1226+ 8-Bay NAS Enclosure
The Synology RackStation RS1226+ is a compact 2U 8-bay rackmount NAS designed for business file storage, backup, data protection and demanding edge or branch-office deployments. Powered by a 2.2GHz AMD Ryzen V1500B quad-core processor and 4GB of ECC memory, it combines reliable business-class performance with dual 2.5GbE networking, built-in M.2 NVMe SSD cache slots and optional 10GbE or 25GbE connectivity. Its short-depth chassis makes it particularly well suited to space-constrained server rooms and network cabinets.
Key Features
- 8 SATA drive bays supporting compatible 3.5-inch and 2.5-inch drives.
- AMD Ryzen V1500B 4-core / 8-thread 2.2GHz processor.
- 4GB DDR4 ECC memory installed, expandable to 32GB.
- Dual 2.5GbE RJ45 network ports for high-speed connectivity.
- Two built-in M.2 NVMe slots for compatible SSD caching.
- PCIe expansion slot supports optional 10GbE and 25GbE network adapters.
- Expandable to 12 drive bays with an optional Synology RX426 expansion unit.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Synology |
| Product Range | RackStation |
| Model | RS1226+ |
| Product Type | Rackmount Network Attached Storage (NAS) |
| Form Factor | 2U Rackmount |
| Drive Bays | 8 |
| Supported Drive Types | Compatible 3.5-inch SATA HDD / 2.5-inch SATA SSD |
| Maximum Drive Bays with Expansion | 12 with 1 × Synology RX426 |
| Hot-Swappable Drive Bays | Yes |
| M.2 SSD Slots | 2 × M.2 NVMe |
| M.2 SSD Application | SSD Cache with Compatible SSDs |
| Processor | AMD Ryzen V1500B |
| CPU Architecture | 64-bit |
| CPU Cores / Threads | 4 Cores / 8 Threads |
| CPU Frequency | 2.2GHz |
| Hardware Encryption Engine | Yes |
| System Memory | 4GB DDR4 ECC SODIMM |
| Pre-Installed Memory | 1 × 4GB |
| Memory Slots | 2 |
| Maximum Memory | 32GB (2 × 16GB) |
| Network Ports | 2 × 2.5GbE RJ45 |
| Network Expansion | Optional 10GbE / 25GbE via Compatible PCIe Network Adapter |
| PCIe Expansion | 1 × PCIe Gen3 x8 Slot (x4 Link) |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Expansion Port | 1 × USB Type-C |
| Sequential Performance | Over 2,300MB/s Read / 1,500MB/s Write under Synology Test Conditions |
| System Fans | 2 × 80mm |
| Fan Modes | Full-Speed / Cool / Quiet |
| Noise Level | 23.3dB(A) |
| Power Supply | 250W |
| AC Input | 100–240V AC, 50/60Hz, Single Phase |
| Power Consumption | 72.33W (Access) / 20.74W (HDD Hibernation) |
| Rack Compatibility | 19-inch Rack |
| Rack Installation | 2-Post Direct Mounting / 4-Post with Compatible Synology Rail Kit |
| Dimensions (H × W × D) | 88 × 482 × 306.6mm |
| Weight | 6.8kg |
Deploy scalable business storage in space-constrained rack environments with the compact Synology RackStation RS1226+ and its flexible networking, caching and expansion options.
