Description
Description

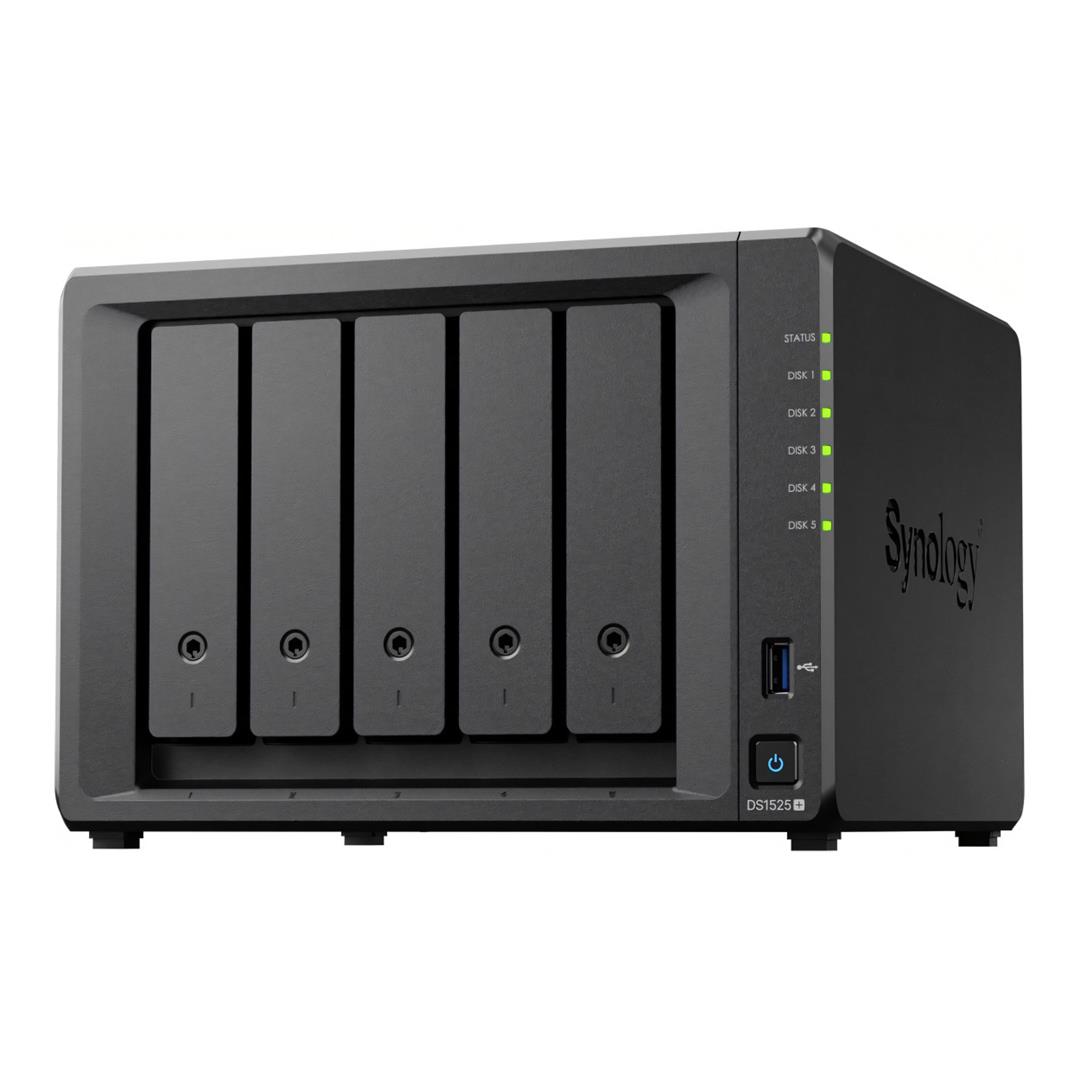

Synology DiskStation DS1525neo+ 5-Bay NAS Enclosure
The Synology DiskStation DS1525neo+ is a versatile 5-bay NAS designed for centralised business storage, file sharing, backup, synchronisation and surveillance. Powered by an AMD Ryzen V1500B quad-core processor with 4GB of DDR4 memory, it combines dual 2.5GbE networking with optional 10GbE connectivity and two M.2 NVMe slots for compatible SSD caching or storage pools. Support for two DX525 expansion units allows the system to grow from 5 to as many as 15 drive bays as storage requirements increase.
Key Features
- 5 drive bays supporting compatible 3.5-inch SATA HDDs and 2.5-inch SATA SSDs.
- AMD Ryzen V1500B 4-core / 8-thread 2.2GHz processor.
- 4GB DDR4 memory installed and expandable up to 32GB.
- Dual built-in 2.5GbE network ports with optional 10GbE upgrade.
- Two M.2 2280 NVMe slots for compatible SSD caching or storage pools.
- Expandable to 15 total drive bays using two optional Synology DX525 expansion units.
- Powered by Synology DiskStation Manager for file management, backup, collaboration, virtualisation and surveillance applications.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Synology |
| Product Range | DiskStation |
| Model | DS1525neo+ |
| Product Type | Network Attached Storage (NAS) |
| Drive Bays | 5 |
| Supported Internal Drives | 3.5-inch SATA HDD / 2.5-inch SATA SSD |
| M.2 Drive Slots | 2 × M.2 2280 NVMe |
| M.2 Applications | Compatible SSD Cache / M.2 SSD Storage Pool |
| Maximum Drive Bays with Expansion | 15 with 2 × Synology DX525 Expansion Units |
| Hot-Swappable SATA Drives | Yes |
| Processor | AMD Ryzen V1500B |
| CPU Architecture | 64-bit |
| CPU Cores / Threads | 4 Cores / 8 Threads |
| CPU Frequency | 2.2GHz |
| System Memory | 4GB DDR4 non-ECC SODIMM |
| Pre-Installed Memory | 1 × 4GB |
| Memory Slots | 2 |
| Maximum Memory | 32GB (2 × 16GB) |

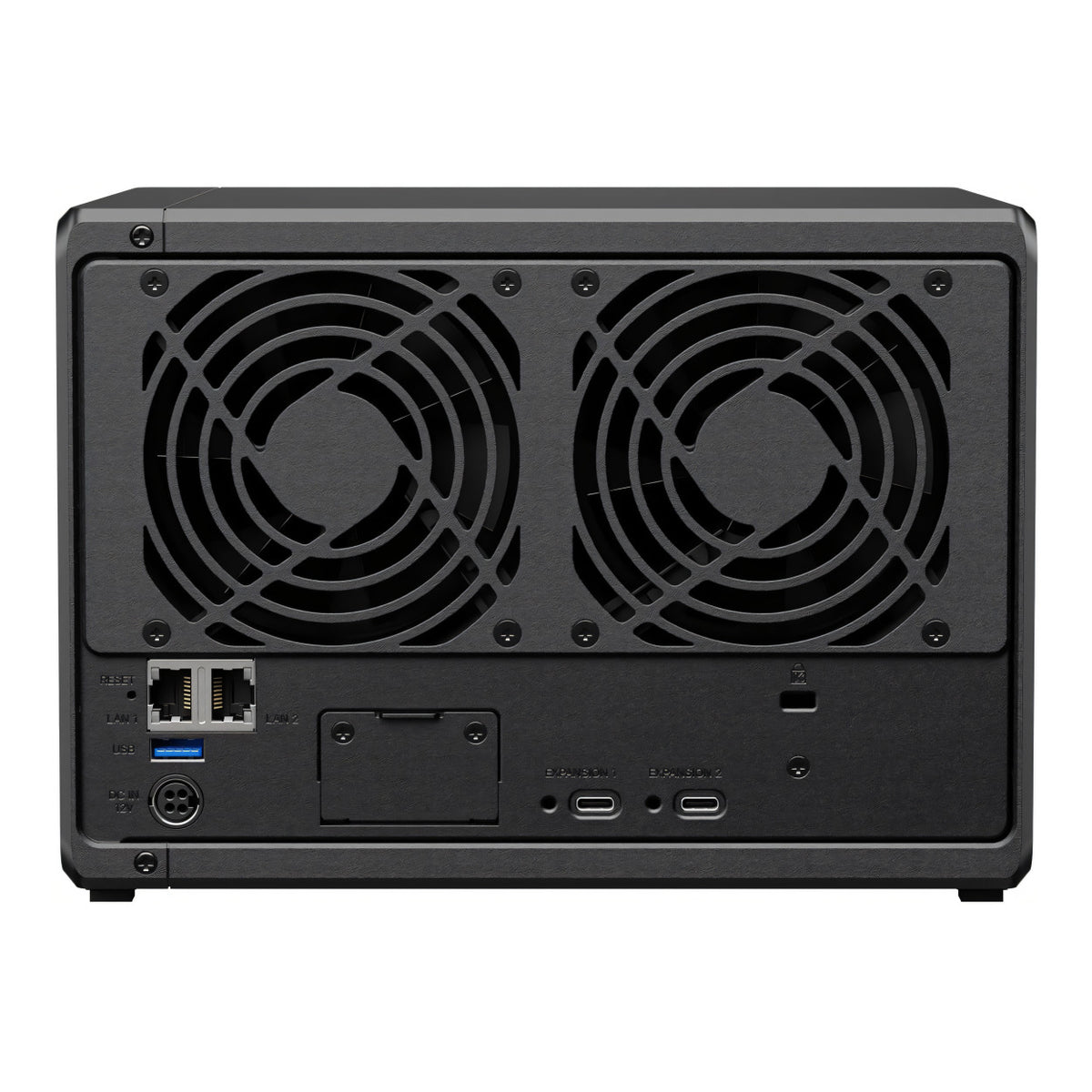

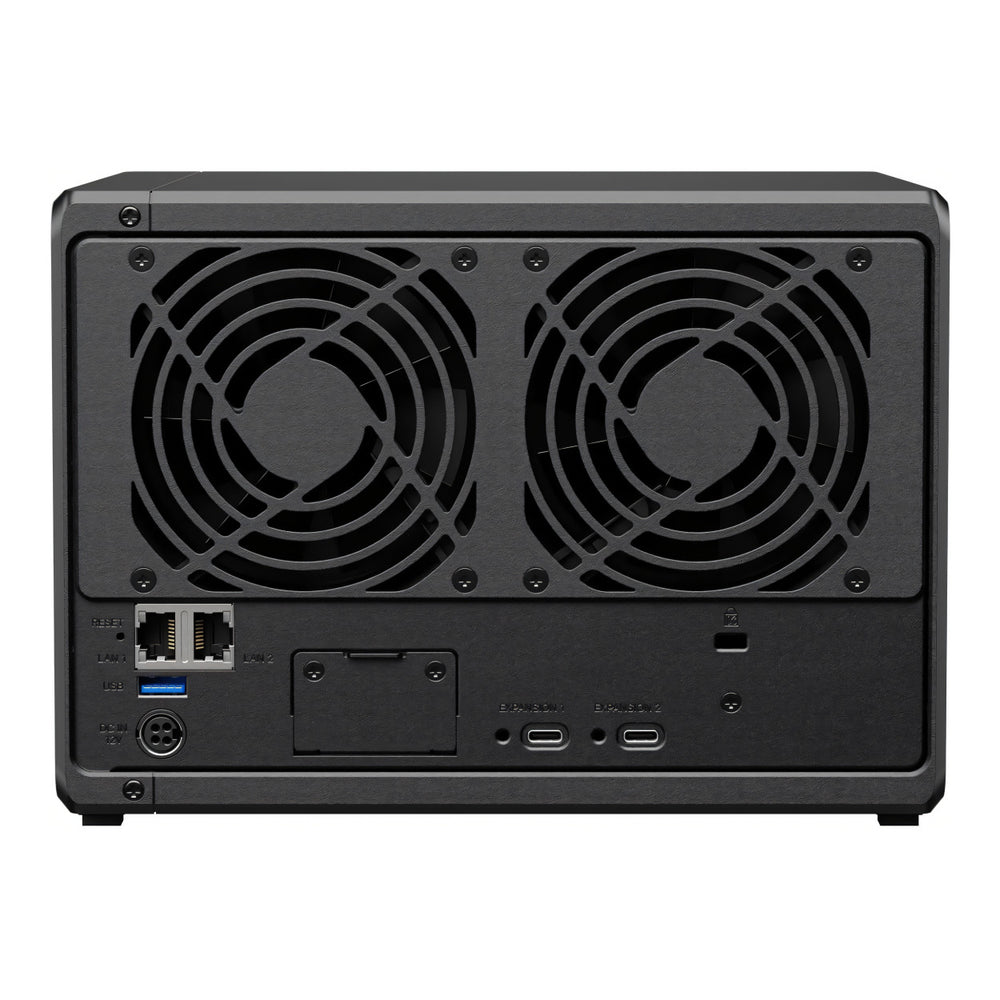

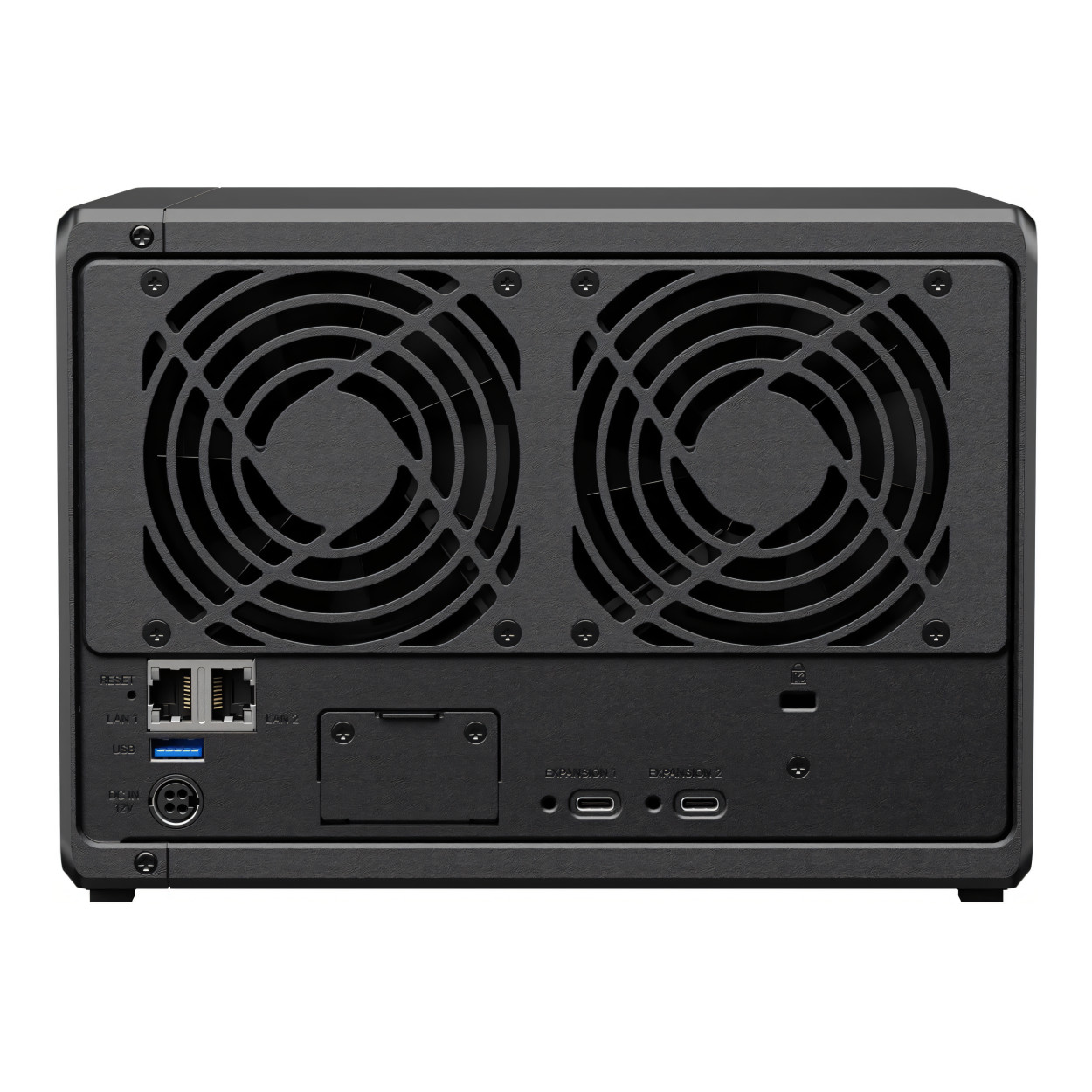

| Network Ports | 2 × 2.5GbE RJ-45 |
| Network Upgrade | Up to 10GbE with Optional E10G22-T1-Mini Module |
| Network Upgrade Slot | 1 × PCIe Gen3 x2 |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Expansion Ports | 2 × USB Type-C |
| Supported RAID Types | Synology Hybrid RAID (SHR) / Basic / JBOD / RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 |
| Internal File Systems | Btrfs / ext4 |
| Operating System | Synology DiskStation Manager (DSM) |
| System Fans | 2 × 92mm |
| Fan Modes | Full-Speed / Cool / Quiet |
| Power Adapter | 120W |
| AC Input | 100–240V AC, 50/60Hz |
| Dimensions (H × W × D) | 166 × 230 × 223mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Warranty | 3-Year Hardware Warranty |
| What's in the Box: |
|
Build a scalable private-cloud and business storage platform with the Synology DS1525neo+, featuring five drive bays, fast 2.5GbE networking and flexible storage and network expansion.
