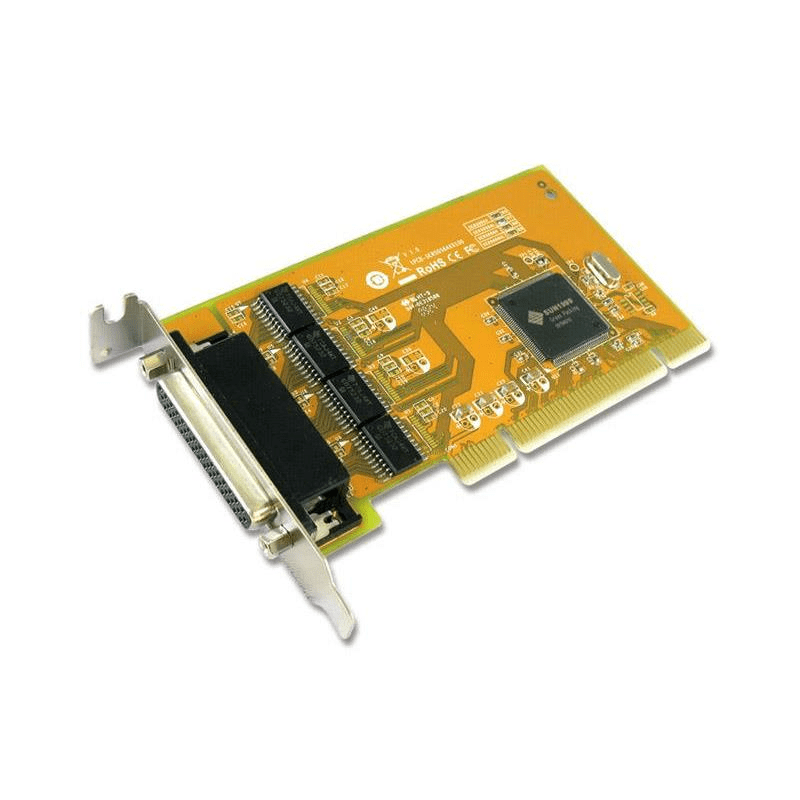

SUNIX 4-port RS-232 Universal PCI Low Profile Serial Board SER5056AL

SUNIX 4-port RS-232 Universal PCI Low Profile Serial Board SER5056AL

SUNIX SER5056AL, Universal PCI serial communication board, allows users to add or expand four RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5056AL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

• Expands 4 independent RS-232 serial port with communication speeds up to 115.2Kbps
• High reliability SUN1999 16C950 compatible UART controller on-board
• Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification
• Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power
• On-chip hardware auto flow control to guarantee no data loss
• Built-in ± 2KV ESD protection for all serial signals
• Plug-n-Play, I/O address and IRQ assigned by BIOS
• Low profile bracket design idea for slim or portable PC
• Support Microsoft Windows, Linux, and DOS

Specifications

Brand: SUNIX

Product: SUNIX SER5056AL Serial Board

Host interface: PCI

Output interface: Serial

Expansion card form factor: Low-profile

Product colour: Orange

Purpose: PC

Certification: CE, FCC
