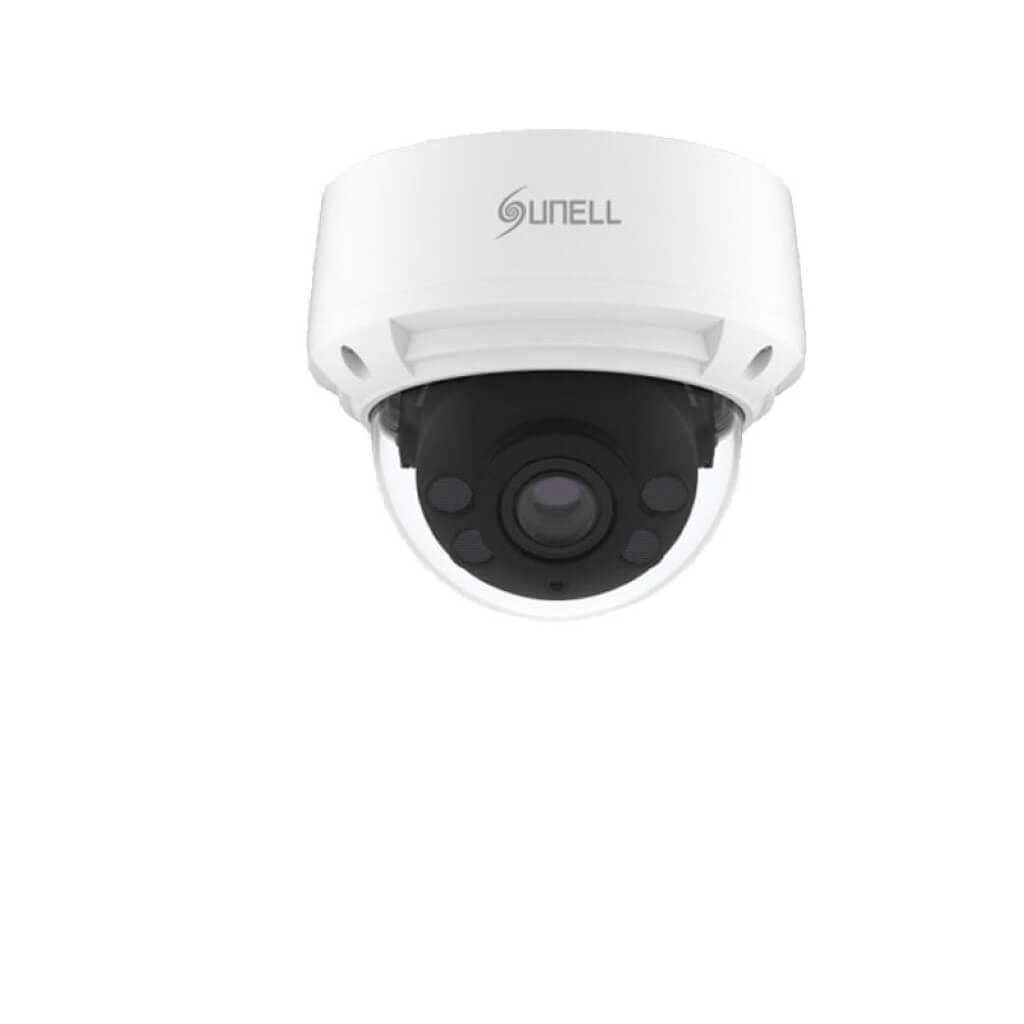

Sunell MVF IP Mini Dome 5MP CMOS PoE Camera IPV7-050EEAR-Z

Sunell MVF IP Mini Dome 5MP CMOS PoE Camera

Excellent Video Compression

Smart encode, the advanced video codec, saves 60% ~ 80% bandwidth compared with H.264.

Video Analysis (IVS)
Sunell IVS with 11 detection modes provides advanced, accurate smart video analysis for Sunell network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.

Wide Dynamic Range (WDR)
Without WDR technology, images may be underexposed or overexposed, making it impossible to identify objects and people.

Smart IR
Sunell smart IR technology used High Beam and Low Beam combination, for better image clarity and quality regardless of the object distance.

• WDR, 3D DNR, ROI, HLC, BLC
• 1/1 audio in/out, 1/1 alarm in/out
• Smart IR up to 30m
• Built-in micro SD slot, IP67, Po

IP66 & IK10
Supporting IP66-rated weather proofing and IK10-rated vandal proofing, the camera is well protected against adverse impact to ensure performance.

• Triple streams
• WDR, 3D DNR, ROI, HLC, BLC, Aisle mode, Defog
• Smart IR up to 30 m
• IP66, IK10

Camera

• Image Sensor 1/3 inch Progressive Scan CMOS
• Effective Pixels 2592(H)×1520(V)
• Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s
• Min. illumination Color: 0.05 Lux at (F1.2,AGC ON) , B/W: 0 Lux @ (IR LED ON)
• S/N Ratio 55 dB
• Day/Night Auto(ICR)/Day / Night/Timing
• Wide Dynamic Range 120 dB
• IR Range Up to 30 m (98.4 ft)
• IR On/Off Control Auto/Manual
• Pan/Tilt/Rotation Range
• Pan: 0Ëš ~ 355Ëš, Tilt: 0Ëš ~ 80Ëš, Rotation: 0Ëš ~ 355Ëš

Lens

• Focal Length Motorized
• Iris Fixed Iris
• Focal Length 2.7 ~13.5 mm
• F Number F1.3
• Angle of View H: 100° ~ 58°, V: 35° ~ 15°
• Focus Control Motorized
