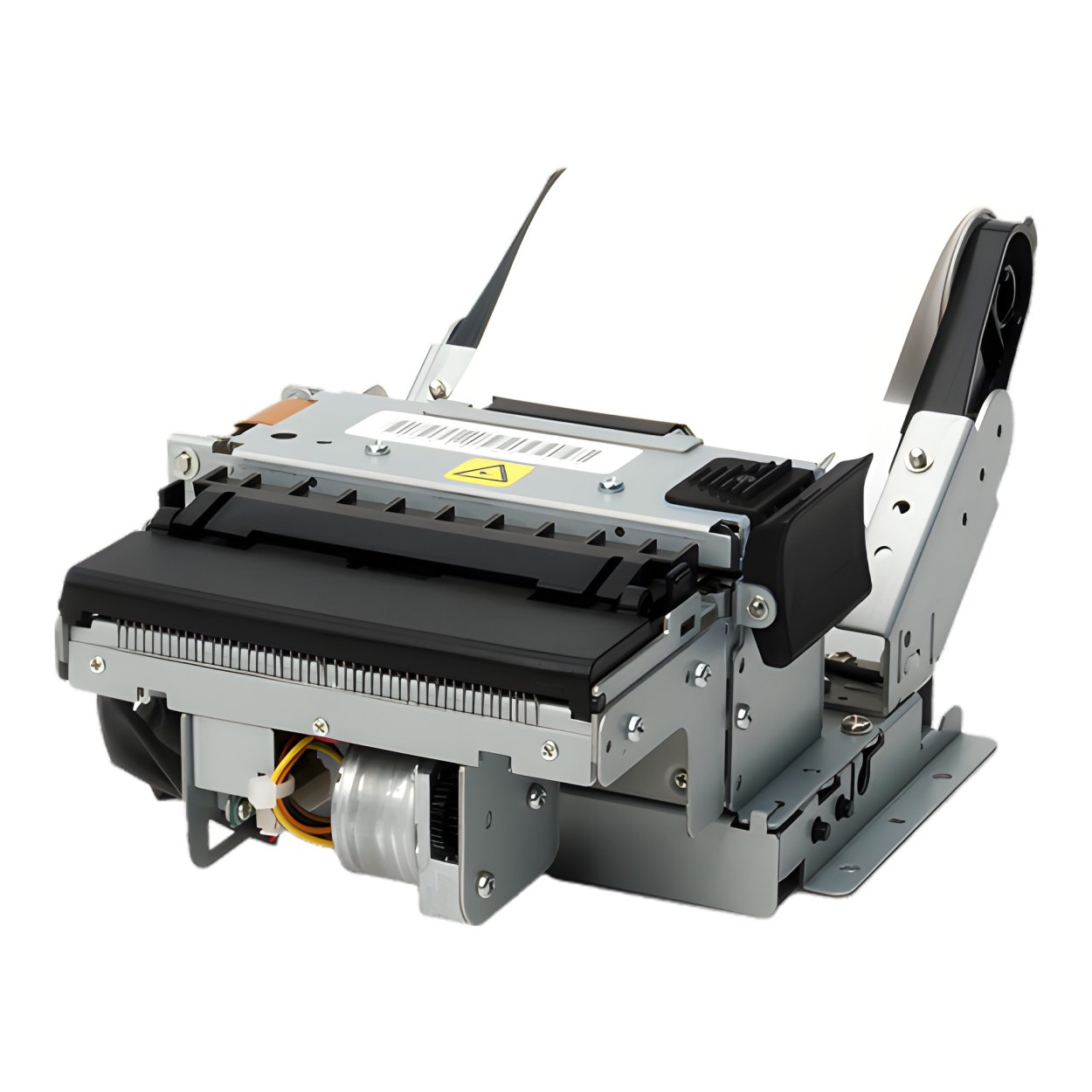

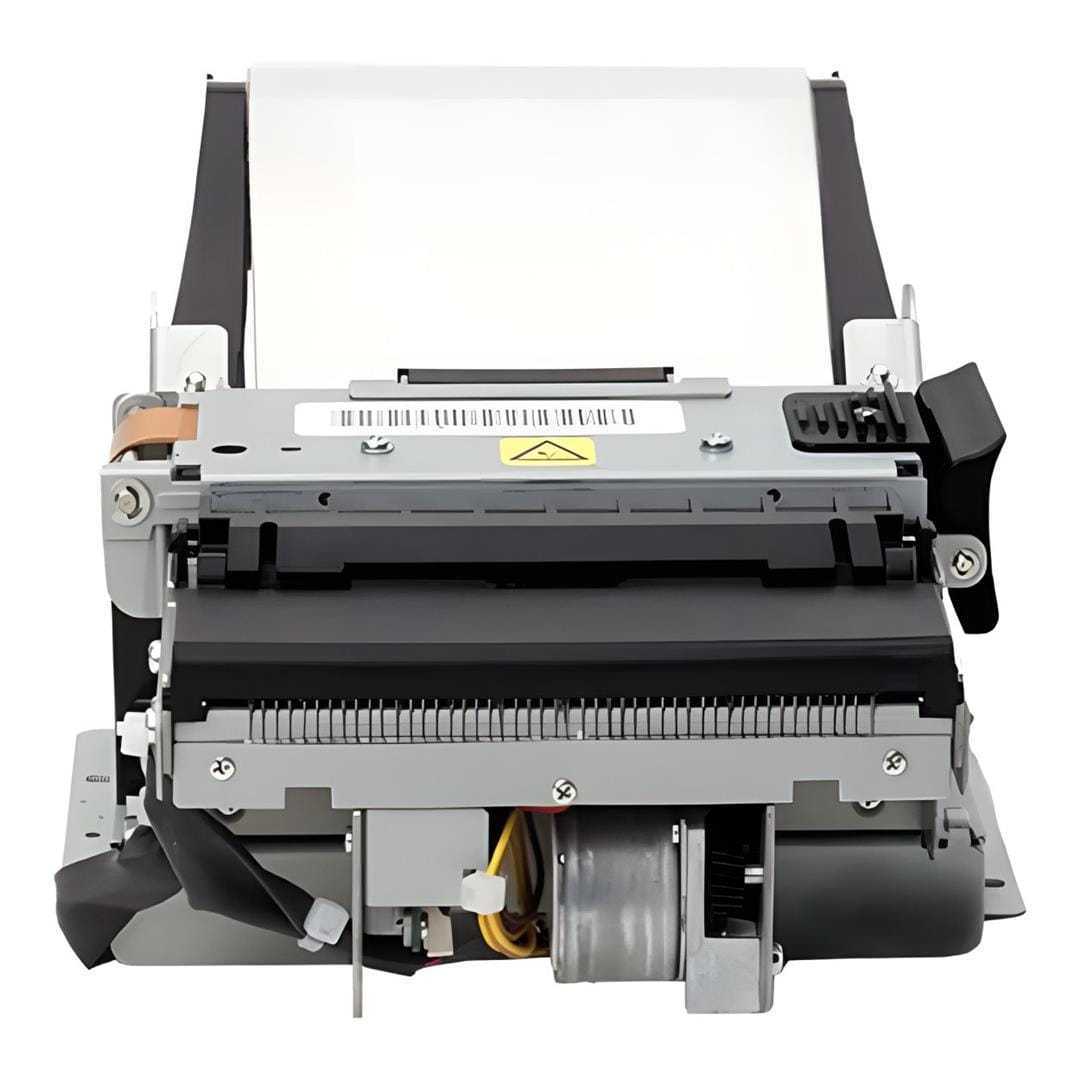

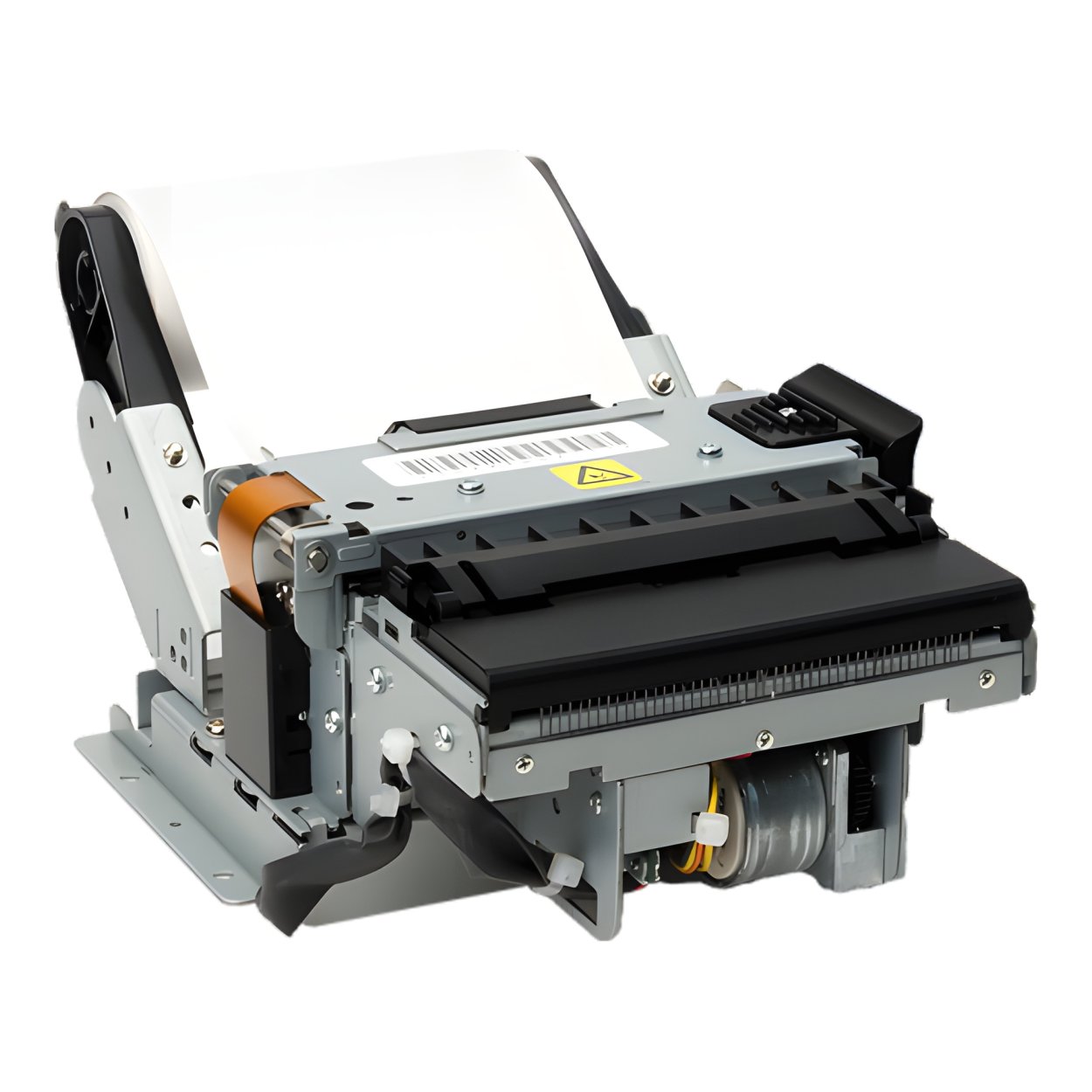

Star Micronics SK1-311 Thermal POS Printer with Presenter - Horizontal 37963776

Star Micronics SK1-311 Thermal POS Printer with Presenter - Horizontal 37963776

Space-Saving, Lightweight, with Vertical or Horizontal Orientation

The SK1-311 three-inch series provides dependable, maintenance-free printers that have a fast print speed of 250mm/sec with 203 dpi resolution. The printers come in either standard format (horizontal orientation) with or without presenter, and vertical format with or without presenter. All SK1-311 models come with RS-232C and USB interfaces which integrate with many commonly used kiosk solutions.

Features

• Compact and lightweight
• Max 250mm/sec high-speed printing
• Wide variety of accessories available
• Supports receipt, ticket, and label media
• Available with StarPRNT or ESC/POS emulation

Adaptable and Functional

The SK1-311 fits the bill for nearly any business seeking a three-inch self-service kiosk printer. Versatile and dependable, the SK1-311 thermal kiosk printer is available in either standard format (horizontal orientation) or vertical format, both with or without presenter. Installation options include vertical, horizontal, drop-in paper holder, or no paper holder. The high-speed kiosk printer is also capable of printing receipts, tickets, and Black Mark labels.

Part of the Star Micronics Kiosk Printer Series

The SK1-311 is a part of the full line of Star Micronics kiosk printers. Star Micronics proudly offers a wide variety of kiosk printers in a variety of paper sizes (2”, 3”, and 4”) with compact or modular footprints and multiple optional accessories like bezels, presenters, large paper roll holders, and more. The kiosk printers are ideal for use in self-service kiosks in restaurants, retail stores, gas stations, transportation hubs, and more.

Technical Specifications:

Printing
Printer Method: Direct Line Thermal Printing
Print Speed: Max. 250 mm/sec
Paper Width: 58 mm, 60 mm, 80 mm, 83 mm
Print Width: 54 mm, 56 mm, 72 mm, 80 mm
Paper Roll Holder: 120 mm
Resolution: 8 Dots/mm (203 DPI)
Font: 8 × 16 Dots, 12 × 24 Dots

Character Support
Character Types: PS427, PS850, PS852, PS857, PS858, PS860, PS863, PS865, PS866, WPC 1252

Barcode Support
Bar Code:

• JAN8
• JAN13
• CODE39
• ITF
• CODABAR
• CODE128
• UPC-A
• UPC-E

2D Bar Code:

• QR
• Maxicode
• Micro PDF-417
• PDF-417
• DataMatrix

Connectivity
Interface: Dual Serial (RS232C) and USB 2.0 Full Speed

Cutter
Cutter: Full and Partial Cut (Command Selectable)

Environmental Conditions
Operating Temperature: -20 °C to 60 °C
Optimal Print Quality Temperature: 5 °C to 40 °C
Operating Humidity: 20% to 85% (Non-Condensing)

Power
Operating Voltage: DC 24 V

Physical Characteristics
External Dimensions: 127 x 137 x 79 mm (W x D x H)

Reliability
MCBF (Printer): 200 Million Lines
Print Head Life: 150 km
Auto Cutter Life: 2 Million Cuts

Compliance
Safety Standard: CE, FCC, VCCI

Warranty
Warranty: 1-Year Warranty for Parts and Labour
