Sonnet Tech Echo II DV T5 Desktop Thunderbolt 5 Expansion System DM-MOD-E2DV5
Sonnet Tech Echo II DV T5 Desktop Thunderbolt 5 Expansion System DM-MOD-E2DV5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more about FirstShop delivery
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Sonnet Tech Echo II DV T5 Desktop Thunderbolt 5 Expansion System DM-MOD-E2DV5 is backordered and will ship as soon as it is back in stock.
Description
Description

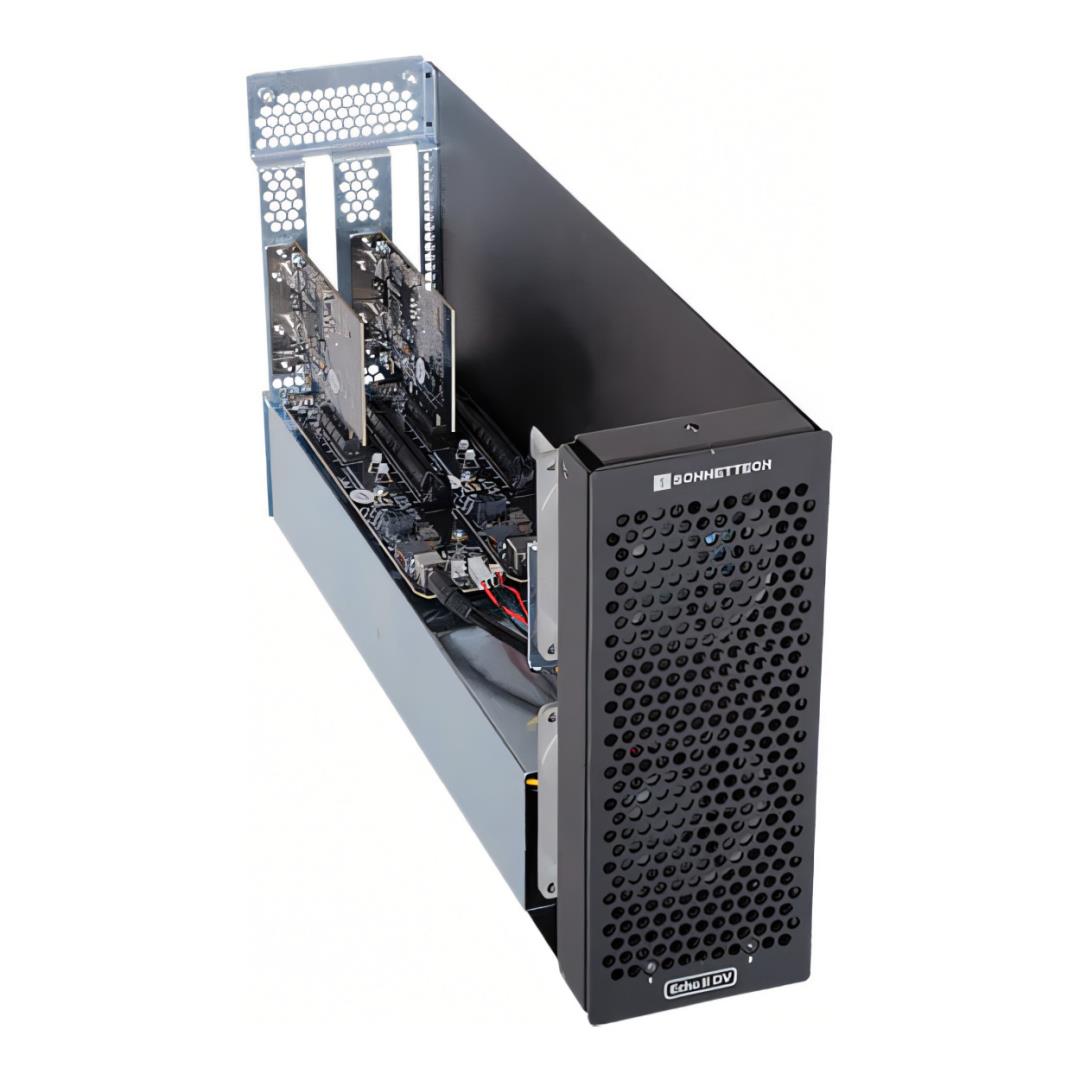

Sonnet Tech Echo II DV T5 Desktop Thunderbolt 5 Expansion System DM-MOD-E2DV5
The Sonnet Echo II DV T5 Module adds two PCIe card slots to a compatible Sonnet expansion enclosure. Each slot has its own Thunderbolt 5 interface, supporting demanding video, audio and other compatible PCIe workflows.
Key Features
- Two PCIe 4.0 slots accommodate full-height, full-length, single-width cards.
- Independent Thunderbolt interfaces give each card a dedicated host connection.
- Four Thunderbolt ports provide host and downstream connectivity.
- A built-in 400 W power supply includes auxiliary power for demanding cards.
- Two temperature-controlled Noctua fans provide active cooling.
- Automatic power switching follows the connected computer.
Installation requirement: A compatible Sonnet enclosure and supported PCIe cards are required and sold separately. Maximum simultaneous performance requires two host ports with independent PCIe bandwidth. GPU cards are not supported.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Sonnet |
| Model | Echo II DV T5 Module |
| Part Number | DM-MOD-E2DV5 |
| Product Type | Thunderbolt 5 to PCIe expansion module |
| PCIe Slots | 2 × PCIe 4.0; x16 mechanical, x4 electrical |
| Supported Card Format | Full-height, full-length, single-width; Thunderbolt-compatible non-GPU cards |
| Thunderbolt Ports | 4 × Thunderbolt 5; two per independent interface |
| Power Supply | Internal 400 W |
| Auxiliary Card Power | 2 × 6-pin connectors, up to 75 W each |
| Cooling | Dual temperature-controlled, variable-speed Noctua fans |
| System Compatibility | Compatible Mac, Windows and Linux computers; supported operating system and card drivers required |
| Enclosure Compatibility | Compatible Sonnet DuoModo, xMac Studio, xMac mini (2024+) and Echo rackmount systems |
What's in the Box
- 1 × Echo II DV T5 Module
- 1 × region-specific power cable
- 2 × installed 6-pin PCIe auxiliary power cables
- 2 × 0.8 m Thunderbolt 5 cables
- 3 × ThunderLok-A connector locks
- Documentation
Add the Sonnet Echo II DV T5 Module to your cart to expand your compatible Sonnet system with two independently connected PCIe cards.
