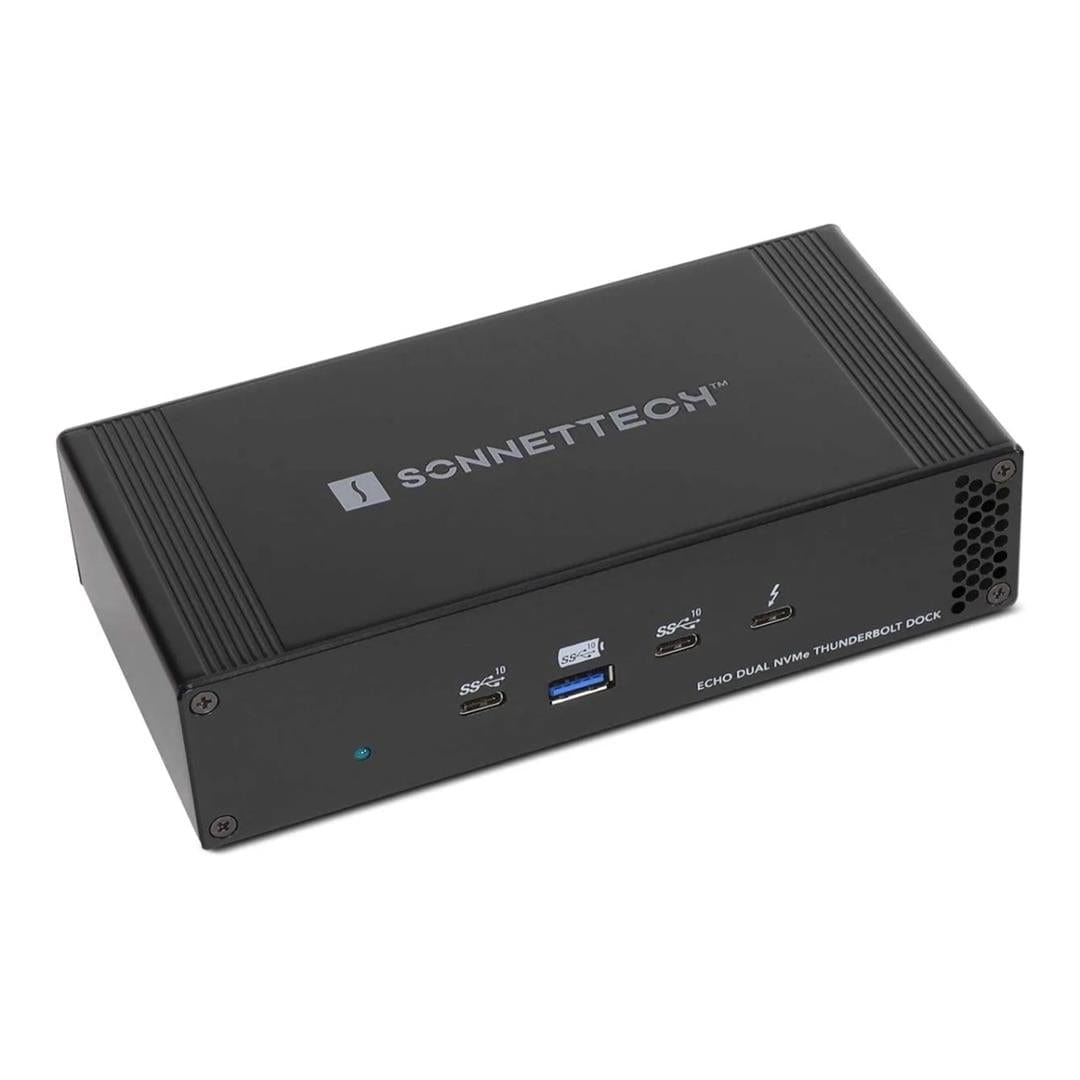

Sonnet Echo Dual NVMe Thunderbolt 4 Docking Station Black ECHO-DK2M2-TB

Sonnet Echo Dual NVMe Thunderbolt 4 Docking Station Black ECHO-DK2M2-TB

Two M.2 NVMe SSD Sockets
Add up to 16TB of storage inside (SSDs sold separately); achieve data transfer speeds up to 3000 MB/s (SSDs configured as RAID 0 set).

Connects to Your Peripherals with One Cable
Plug in peripherals to the dock with their cables, and then connect your computer to the dock with the included Thunderbolt cable for instant access.

Front Panel Thunderbolt Port for Peripherals
Connects one Thunderbolt peripheral directly and supports daisy-chaining of up to five Thunderbolt devices. Also supports USB 4 and USB 3 peripherals.

Powerful 10Gbps USB Ports
Four USB 3.2 Gen 2 ports provide up to 7.5W of power each for bus-powered peripherals, and for charging of devices.

Quiet, Effective Cooling
Temperature-controlled, variable-speed fan automatically and quietly cools the dock and any installed SSDs.

macOS Boot Support
Supports booting from a single (non-RAIDed) SSD.

Apple Pro Display XDR Supported
Connect a Pro Display XDR, or a 5K or lower resolution display directly to the Thunderbolt peripheral port or at the end of the Thunderbolt device chain.

Several Display Types Supported
Connect a Thunderbolt or USB-C display directly. Supports an HDMI or DisplayPort display with a Thunderbolt-compatible adapter (sold separately).

Apple M1 Series Compatible
Supports all Apple® M1, M1 Pro, and M1 Max Mac computers.

Intel Mac Compatible
Supports all Thunderbolt 3 Mac computers running macOS® 10.12.6+.

Intel Windows Compatible
Supports all Thunderbolt 4 and Thunderbolt 3 Windows computers.

Apple M1 iPad Pro Compatible
Supports all iPad Pro tablets with a Thunderbolt port.

Specifications

External Connectors

• 2x Thunderbolt ports
• 2x USB 3.2 (10Gbps) Type-C charging ports
• 2x USB 3.2 Gen 2 (10Gbps) Type A charging ports
• Power connector

Thunderbolt 3 Computer Port

• Power Delivery: Provides laptop charging up to 15W
• Cables Supported: Any Thunderbolt 4 cable, Any Thunderbolt 3 (40Gbps) cable

Thunderbolt 3 Peripherals Port

• Connectivity: With USB-C connector

Peripherals Supported

• Thunderbolt 3
• Thunderbolt 2 (macOS)
• USB4
• USB 3, 2.0, and 1.1 devices
• Thunderbolt 3 and USB-C monitors
• DisplayPort and HDMI monitors

USB 3.2 Gen 2 Type-C Ports

USB 3.2 Gen 2 Type A Ports

SSDs Supported

• Single- and double-sided M.2 2280 NVMe PCIe SSDs (with or without heat sink)
• M.2 NVMe SSDs Compatibility PDF

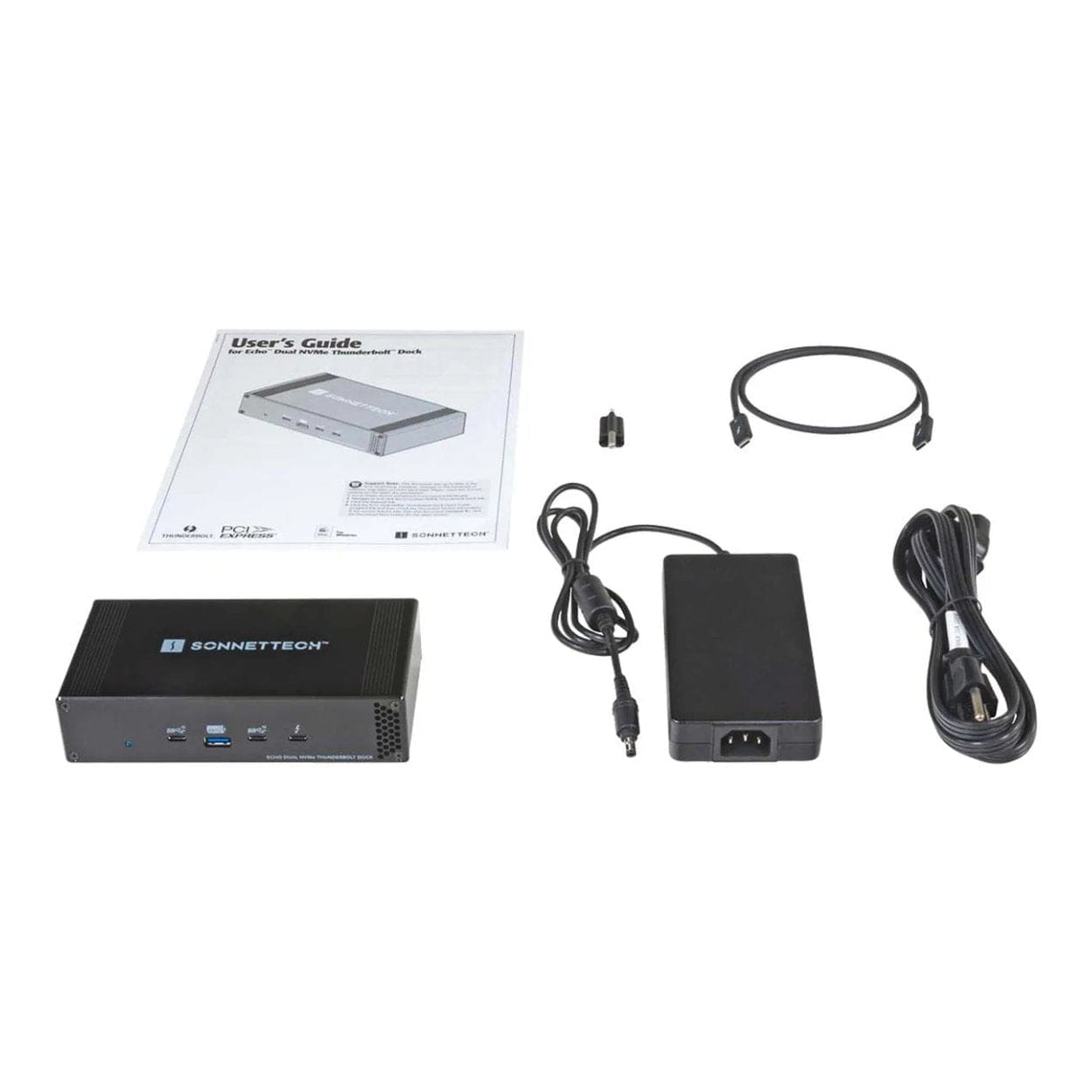

Box Contents

• Echo Dual NVMe Thunderbolt Dock
• Power adapter
• Power cord
• 0.5-meter Thunderbolt 3 (40Gbps) cable
• ThunderLok (Thunderbolt connector retainer clip)
• Documentation
