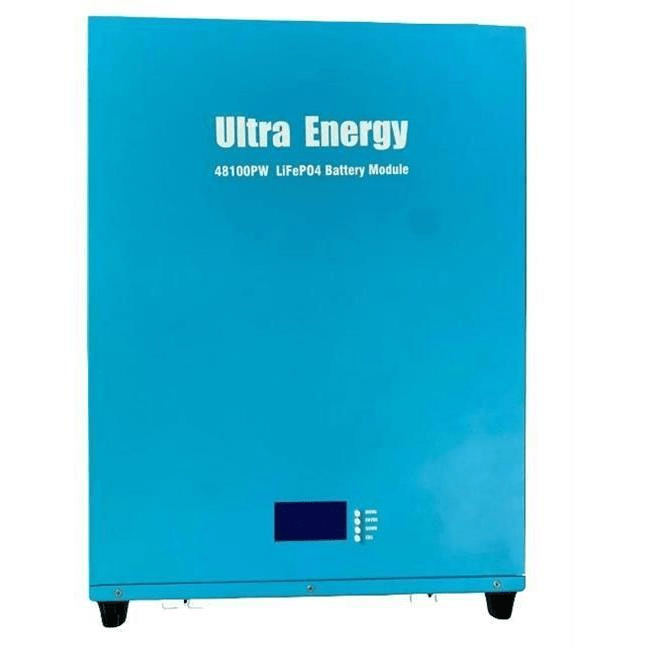

Solarix Ultra Energy Wall Mount 48V 100Ah LiFePo4 Single Battery Module SOL48100PW

Solarix Ultra Energy Wall Mount 48V 100Ah LiFePo4 Single Battery Module SOL48100PW

The Solarix Ultra Energy Wall Mount 48V 100Ah LiFePo4 Single Battery Module is designed and perfect for medium to large residential installation with a Lithium-ion battery solution with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Invertors Up To 7KVA 48V.

This Wall Mount Embedded Designed Module is designed for a single use renewable energy storage solution. When fully installed, it is a low-voltage DC battery system with an operating voltage of 51.2V, and works with a low voltage inverters to realize the goal of energy storage for home or office applications and supports parallel connection to expand capacity, which can meet various capacity requirements.

It has a built-in battery management system (BMS), which can manage and monitor the pack and cell information – including voltage, current and temperature. What’s more, the BMS can balance cell charging and discharging to extend cycle life.

Features

• Wall Mounted Design 48V 100Ah Lithium Iron Phosphate (Lifepo4) Single Battery Module
• Intelligent Battery Management System with RS485 and CAN Bus comms
• Design To Work Perfectly Low Voltage Hybrid Invertors Up To 7KVA 48V
• Battery Cycle Life ≥ 5000 Cycles @ 100% DoD @ 0.5C @ 25°C until 70% (70Ah) Capacity Retention
• Nominal Voltage 48V
• Rated Capacity: 100Ah
• Total Usable Energy 4.8kWh
• Standard Continuous Charge Current 20A
• Maximum Continuous Discharge Current 50A for Single Unit
• Bulk Absorption: 56V, Float: 54V, Low Voltage Cut Off: 44V
• Easy To Install Wall Mount Chassis
• Can Also Be Connected In Parallel To Expand Capacity

Specifications

• Battery Type Lithium Iron Phosphate (LifePO4) Chemical Composition
• Wall Mountable Modular Design
• Total Usable Energy 4.8KWh
• Rated Capacity: 100Ah
• Battery Cycle Life ≥ ≥ 5000 Cycles @ 100% DoD @ 0.5C @ 25°C until 70% (70Ah) Capacity Retention
• Voltage Range 40.5 V To 52.5V
• Voltage At End Of Discharge 47 V
• Maximum Continuous Charge Current 50A for Single Unit
• Built In Protection For Over-Charge, Over-Discharge & Over-Temperature.
• The Charging Current Is Limited By The BMS Between 20A To 40A To Ensure Optimal Battery Life
• Compatible With Sacolar And Growatt Inverters
• Dimensions 510 x 500 x222 mm
• Weight 60 kg
