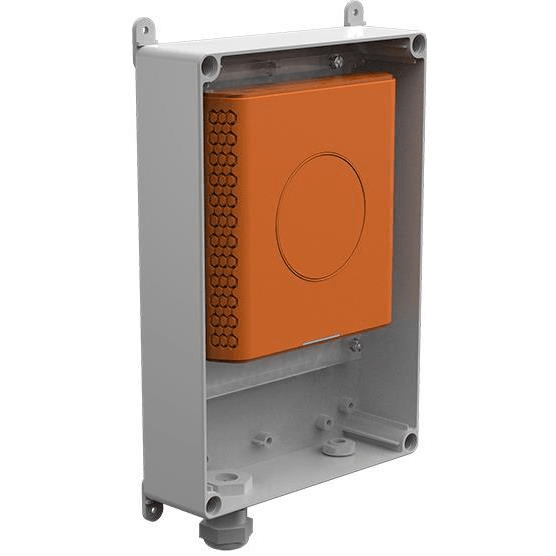

Snom M900 Outdoor Multicell Base Station 00004478

Snom M900 Outdoor Multicell Base Station 00004478

DECT

• Frequency bands: 1880-1900 MHz (EU)
• Output power: EU < 250 mW
• Protocols: DECT
• Seamless handover and roaming
• Handover using DECT or LAN synchronisation (IEEE1588)
• Wideband audio
• Authentication/encryption of base and handset

Range

• Indoors: Up to 50 metres
• Outdoors: Up to 300 metres

Multicell System

• Up to 4,000 registered handsets in the same network in multicell setup using LAN-synchronisation
• Up to 1,000 registered base stations in a multicell setup using LAN-synchronisation
  • Note: up to 16,000 registered handsets and 4,000 base station with a future FW update
• Up to 100 repeaters in a multicell setup
  • Note: Compatible DECT repeater is Snom M5 (sold separately, please see accessories tab)
• Up to 8 narrowband or 4 wideband calls per base station in multicell setup
• Up to 10 narrowband or 5 wideband calls per base station in single-cell set-up
• Common phonebook with up to 3000 entries
• List of registered handsets
• Compatible with M700 running the same software version (sold separately, please see accessories tab)

Audio, Codecs

• G.722 (5 channels; 4 in multicell operation)
• G.711 A-law, µ-law,
• G.726 (10 channels; 8 in multicell operation)
• Codec negotiation, codec switching
• A900 enables
  • G.729 (10 channels, 8 multicell operations)
  • BV32 (10 channels, 8 multicell operations)
  • Opus (8 channels)

User Interfaces

• LED status indication, multicolour
• Reset key
• Web interface

Installation

• Positioning:
  • Wall mounting
  • Ceiling mounting
• Remote software updates via HTTP/ HTTPS/TFTP
• Automatic loading of settings via HTTP/ HTTPS/TFTP
• Completely configurable through Web interface
• Static IP, DHCP support
• NTP (Network Time Protocol)
• Secure provisioning and authentication with Mutual TLS through individual certificate issued by Snom CA
• Compatible handset feature RSSI tool, no additional measurement equipment needed

Hardware Specifications

• Weight: approx. 1,100g
• Dimensions: approx. 144mm x 140mm x 35mm (base) approx. 300mm x 175mm x 80mm (housing)
• Antenna diversity (two internal omni-directional antennas for better transmission and reception)
• Power: Power over Ethernet (PoE) IEEE802.3af Class 2. If PoE is not available, the A5 PoE injector can be used (not included)
• Ethernet connector: RJ 45
• LAN interface: 10/100 BASE-T IEEE 802.3
• Colour: Orange (base), Light grey (housing)
• Temperature range: -20°C to +60°C
• Housing IP55 protection rated
• UV protected
• Impact strength IK08
• UL746C 5V flammability tested
• UL746C water exposure tested

Network

• HTTP and HTTPS
• LLDP
• IEEE 802.1Q
• TLS 1.2
