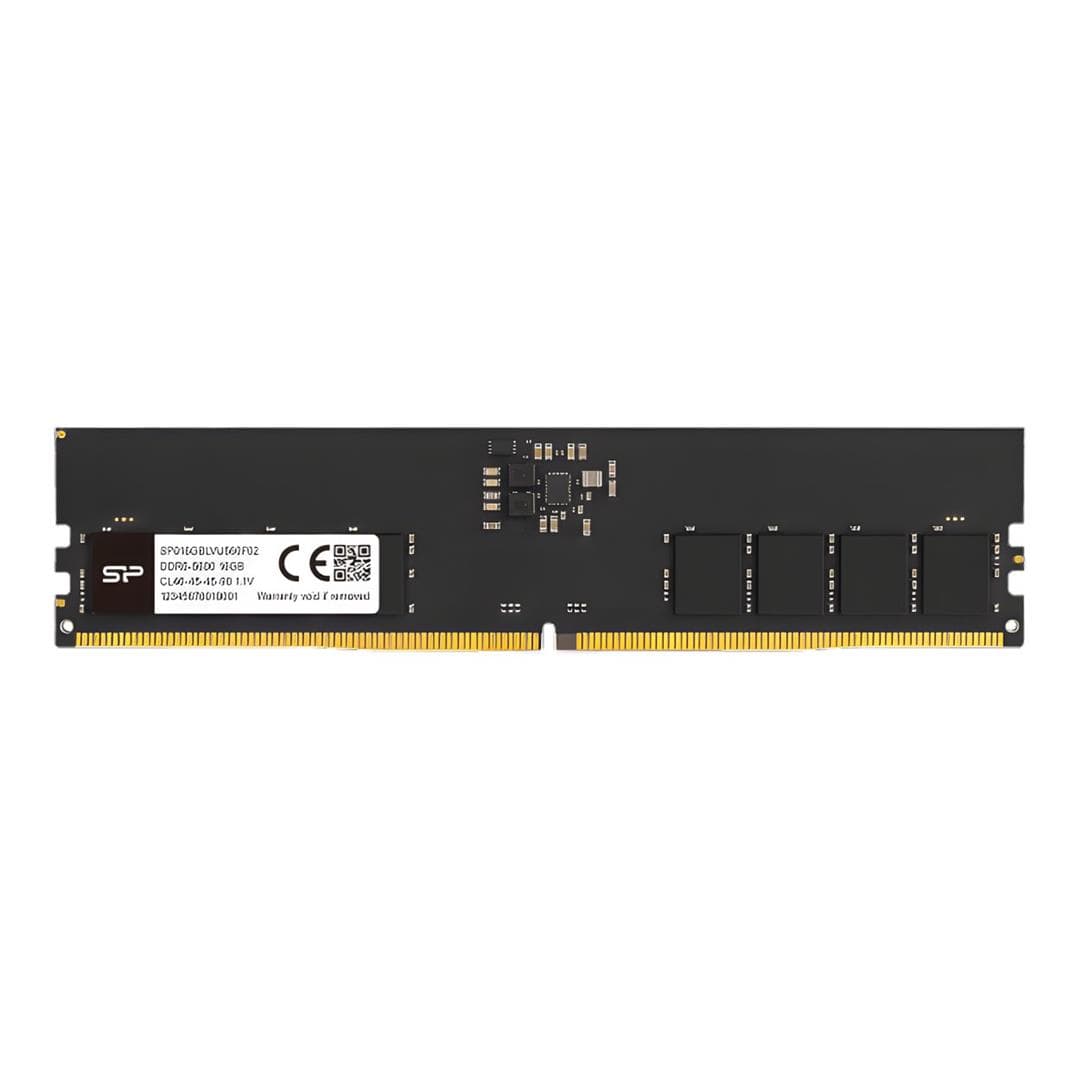

Silicon Power SP016GBLVU560F02 UDIMM Memory Module 16GB DDR5 5600MHz

Silicon Power SP016GBLVU560F02 UDIMM Memory Module 16GB DDR5 5600MHz

Harness The Power Of DDR5

Taking speed, capacity, and reliability even further, the cutting-edge technology of this DDR5 module gives that next-level edge for your system's performance. With aggressive speeds of 5600MT/s, it's 1.5x faster than standard 3200MT/s DDR4 to provide multi-core CPUs with extreme responsiveness and the power to multi-task seamlessly.

Features:

• 5600MT/s grants faster transmission speeds and higher bandwidth than DDR4
• Available in 8GB, 16GB, 24GB, 32GB and 48GB module densities
• More than 2x faster than DDR4 to provide multi-core CPUs with extreme responsiveness
• Doubled chip unit capacity compared to DDR4 (from 16GB to 32GB) for seamless multi-tasking
• Low voltage of 1.1V for less power consumption
• Improved reliability versus DDR4 with On-Die Error Correction Code (ECC)
• Optimized efficiency with two independent 32-bit channels per module
• High computing performance with double the banks and double the burst length compared to DDR4
• Compatible with 13th Gen Intel® Core™ processors that support DDR5 and DDR5 compatible motherboards

Greater Power Efficiency

Even with all of its extra power, this DDR5 module improves upon its predecessor with on-module voltage regulation. A power management integrated circuit (PMIC) reduces the burden on the motherboard control and results in a lower voltage of 1.1V versus 1.2V for DDR4 for even less power consumption.

No Need To Keep Tabs On Your Tabs

Compared to DDR4's 16GB chip unit capacity, this DDR5 module doubles that number to 32GB by packing in more banks and bank groups. This allows for more pages to be open at a time so you can increase your productivity without worrying about your system slowing down from having too many tabs open at once.

Higher Computing Performance

That's not all that's doubled – the minimum burst length on this DDR5 module is up to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.

Less Room For Error

This DDR5 module introduces On-Die ECC (Error Correction Code), a new feature that was designed to correct bit errors in real-time within the DRAM chip. By doing so, this advanced technology keeps your system reliably stable while automatically correcting data errors.

2 Channels Are Better Than 1

For even greater performance, this DDR5 module features two independent 32-bit channels per module. Compared to DDR4's single channel, splitting it into two increases efficiency and lowers the latencies of data accesses for the memory controller to promote optimized efficiency.

Technical Specifications:

Memory

Capacity Options — Single Module

• 16 GB

Tested Speeds

• 5600 MT/s

Form Factor: UDIMM

CAS Latency Options

• CL40
• CL42
• CL46

Operating Voltage: 1.1 V

Physical

Dimensions: 133.4 × 31.3 mm

Compliance and Certification

Certifications

• CE
• UKCA
• Green Dot (Germany and Spain Only)
• WEEE
• Triman
• RoHS

Warranty

Warranty Type: Limited Lifetime Warranty
