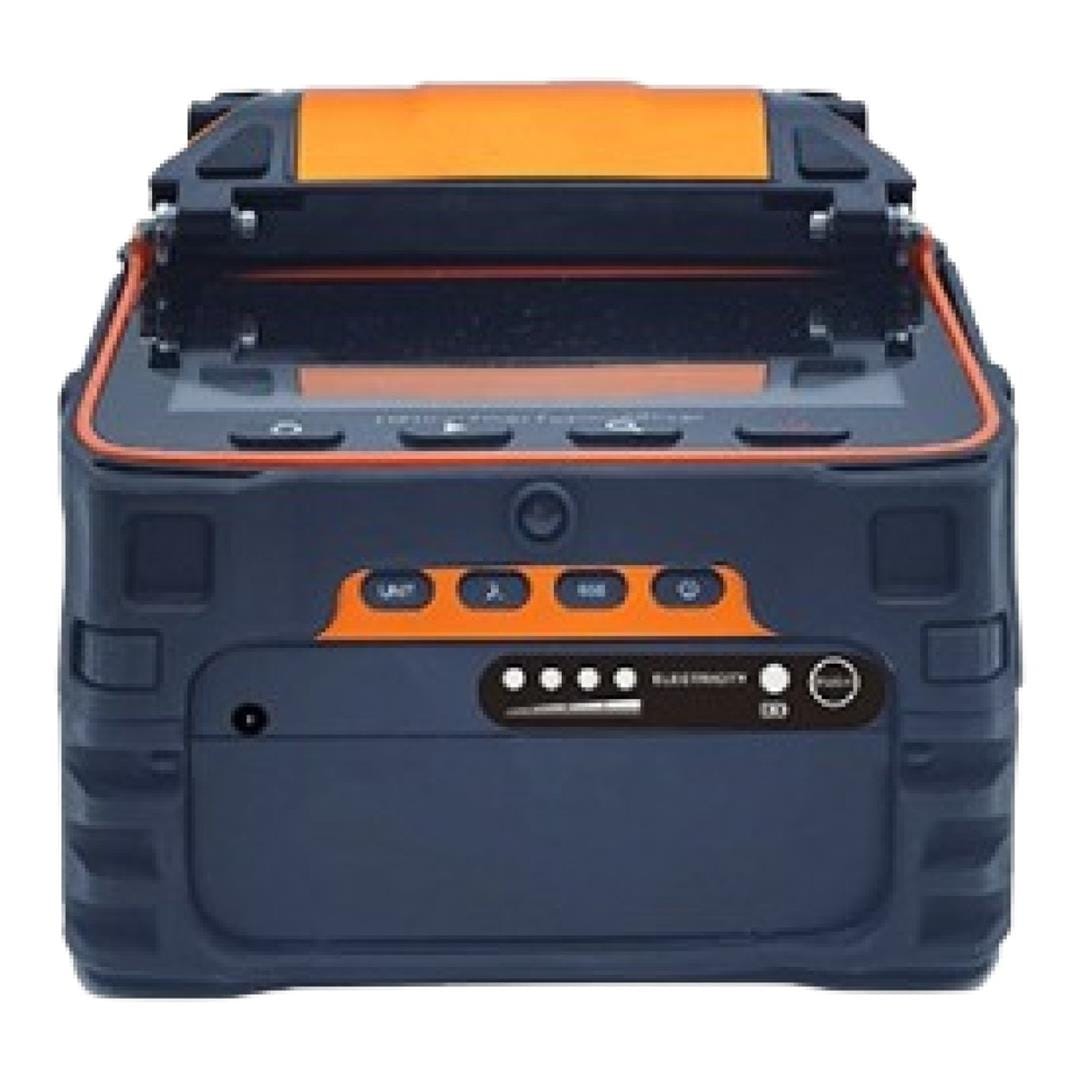

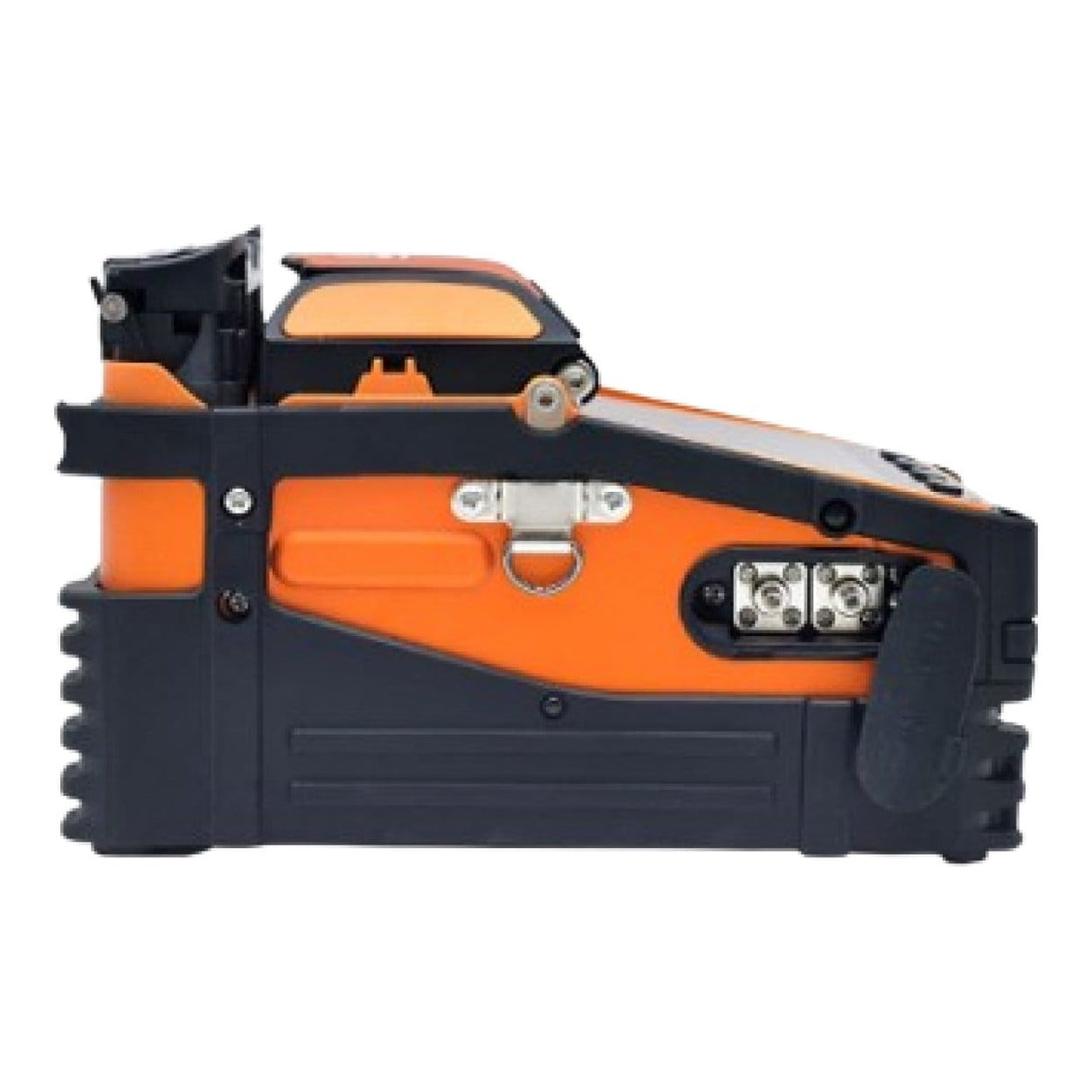

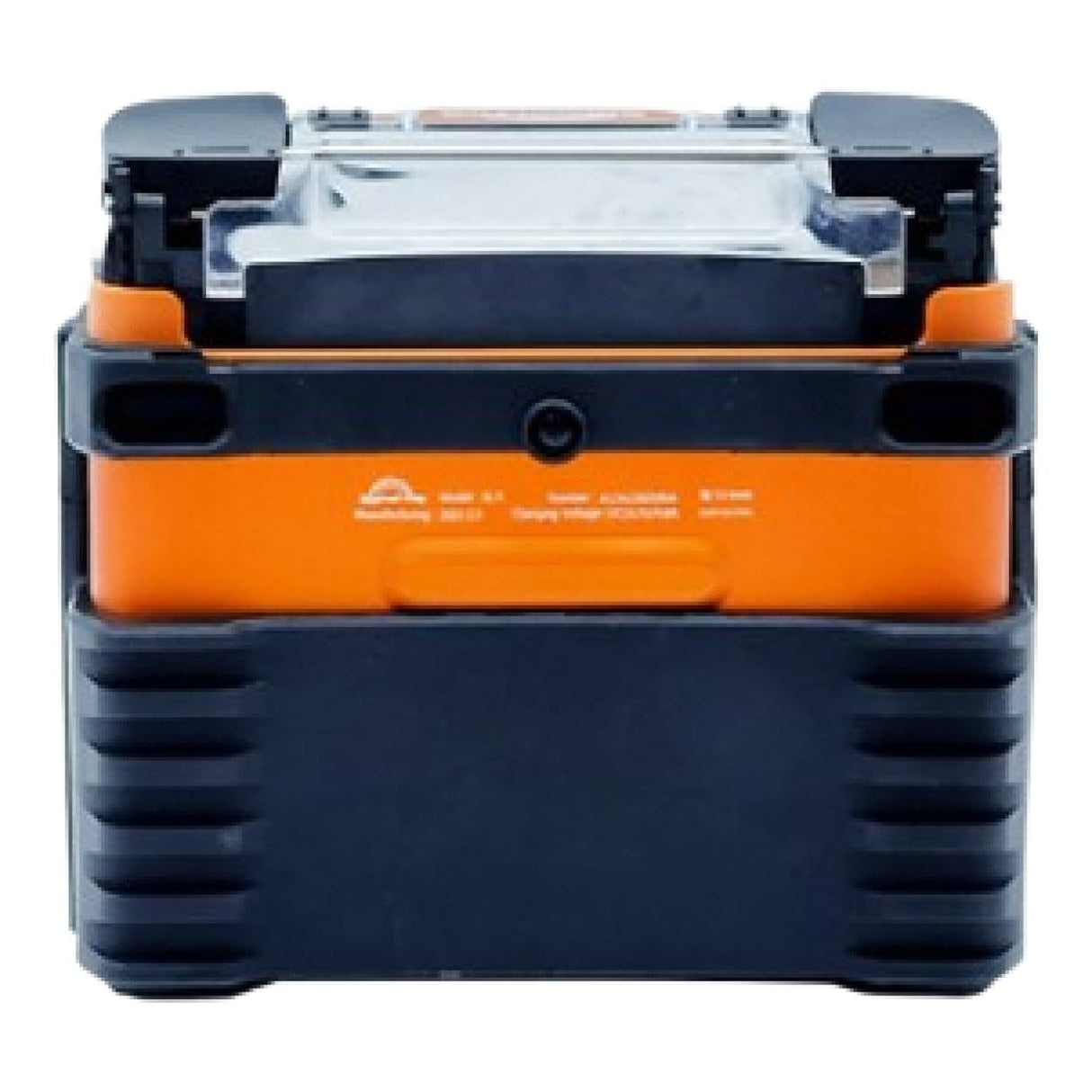

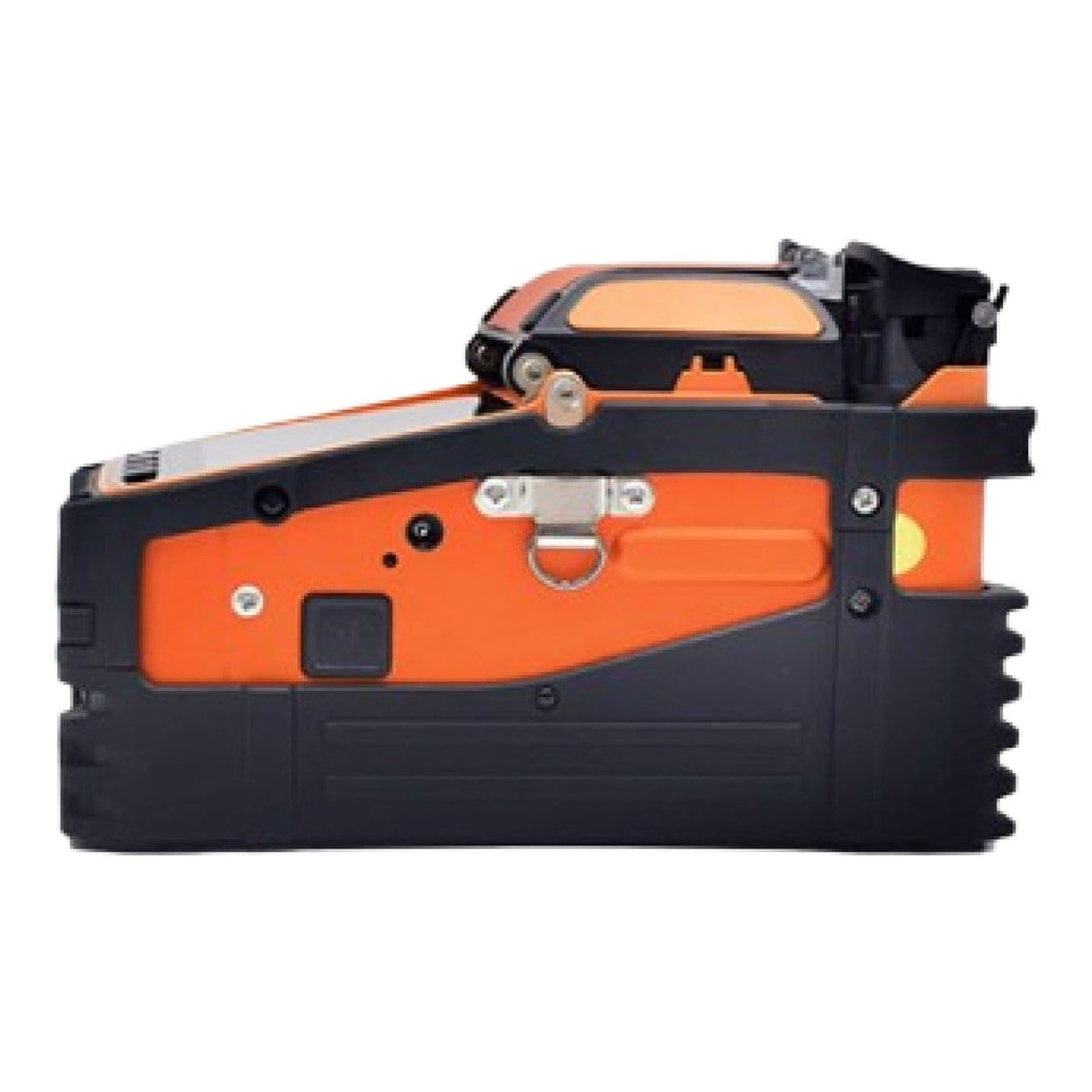

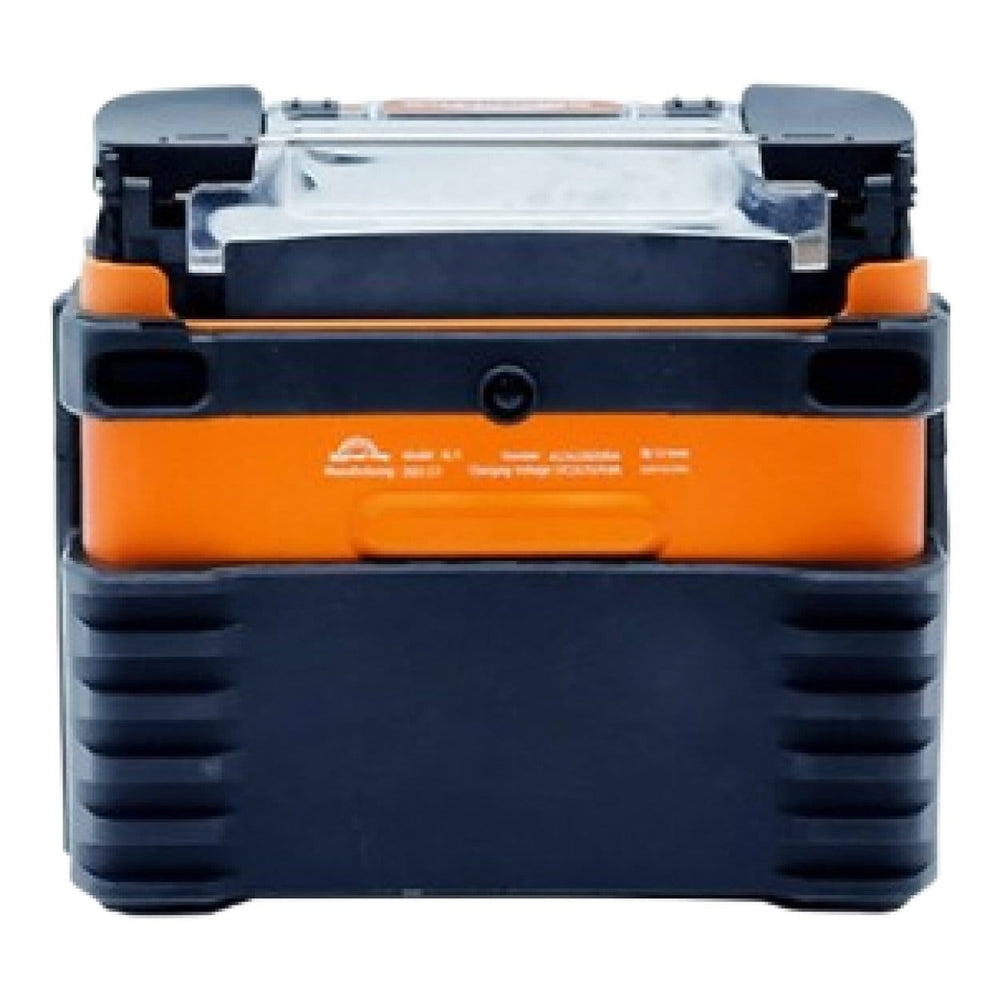

Signal Fire AI-9 Fusion Splicing Machine Kit NET-AI-9-FUSION-SPL

Signal Fire AI-9 Fusion Splicing Machine Kit NET-AI-9-FUSION-SPL

Masterpiece

High-end luxury

Signalfire fiber splicer AI-9 is a six-motor, fiber core alignment automatic fiber welding machine, with optical power, red light detection function. Industrial quad-core CPU, fast running speed, 5 seconds fast welding, 15 seconds fast heating, 5 inches high resolution LCD screen, 300 times magnification; The working efficiency is 50% higher than that of ordinary welding machine.

Large-capacity lithium battery can be heated by fusion of about 260 cores, high altitude, desert, extremely cold and other harsh environment performance is still outstanding.

Metal body with beautiful details

Used in telecom, mobile, Unicom, radio and television operators, posts and telecommunications, railway engineering companies and institutions of optical cable line construction, line maintenance, emergency repair, security monitoring and research institutes research, teaching.

Within VFL and OPM function
Effectively measure connection losses, verify continuity, and help evaluate fiber link transmission quality.

OPM: SWITCH BETWEEN TEN STATES

Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm

VFL: SWITCH BETWEEN THREE STATES

power: 15mW, 2Hz flashing and steady on mode

Specifications:

Fiber alignment: Core/cladding

Motor number: 6 motors

Splicing time: 5s

Heating mode: 15s, can be customized according to the external environment

Fiber type: Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), G.654 fiber, non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber.

The cladding diameter: 80-150μm

Splicing loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)

Splicing mode: Automatic focusing core alignment, conventional/high precision welding

Splicing way: Automatic, semi-automatic

Fiber holder: Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable

 VFL: The machine comes with: power: 15mW, 2Hz flashing and steady on mode

OPM: Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm/Measurement range: -50+26dbm Absolute error: <0.3dB (-50dbm ~+3dBm range)

Battery capacity: 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 260 cores

Magnification: 320x (X or Y axis single display) 200x (x and Y axis dual display)

Fiber diameter: Coating diameter: 80-150μm/Coating diameter: 100-1000μm

Cutting length: Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm

Heat shrink tube: 60mm, 50mm, 40mm, 25mm

Tensile testing: standard 2N

Display: 5-inch color touchscreen

Boot time: 1s, boot can enter the working mode

Data is stored: Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.

Wireless communication: Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m

Software upgrade: Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software

Management function: The equipment owner can be bound as the highest authority, and can remotely view the welding records,welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set.The manager can effectively manage a single or multiple equipment.

Return loss: Better than 60 db

Product protection: Waterproof, dustproof and fall proof

Power supply: Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level

The work environment: Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s
