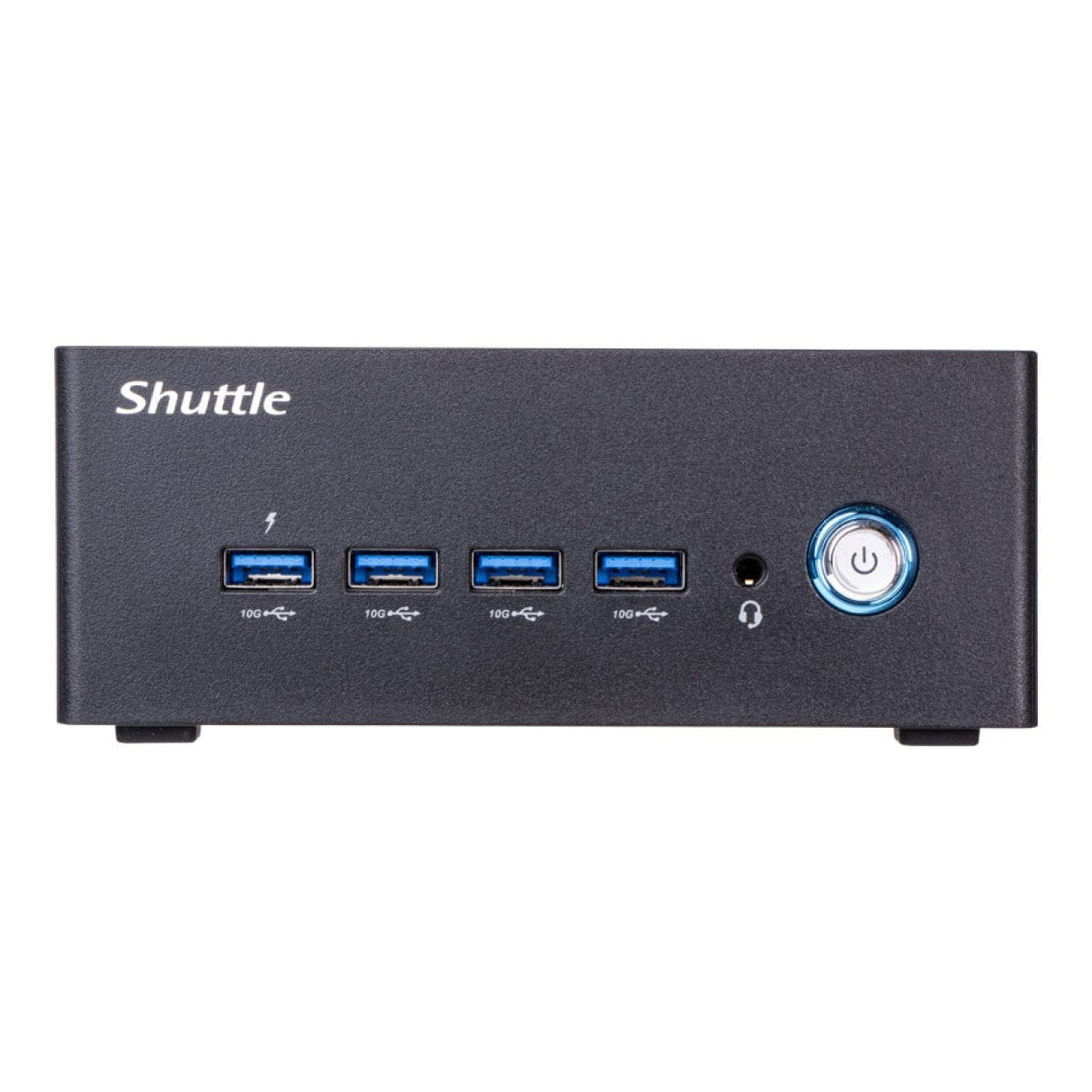

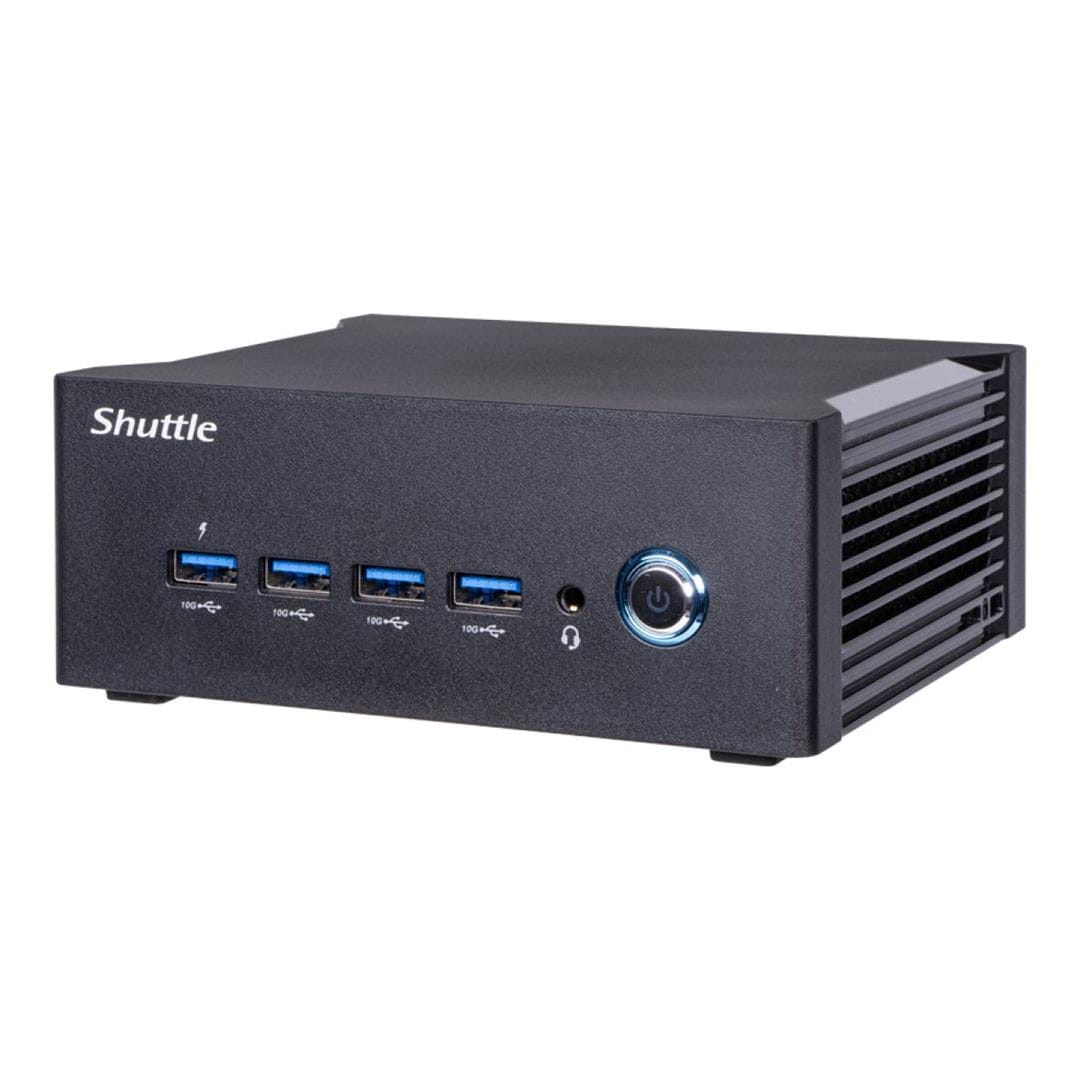

Shuttle XPC NA10H7 AMD Ryzen 7 8845HS Nano Barebone AI PC

Shuttle XPC NA10H7 AMD Ryzen 7 8845HS Nano Barebone AI PC

Key Features

• 8-Cores / 16-Threads, 4nm Zen 4 Architecture
• Ryzen AI NPU integrated with 16-TOPS performance for a total AI performance of 39-TOPS
• AMD Radeon 780M integrated graphics
• 35~54W Configurable TDP (cTDP)
• Dual 2.5Gbe LAN
• Supports DDR5 RAM
• Sleek 0.8kg design

Affordable AI-PC in Nano Format Powered by AMD Ryzen™ Zen 4 APU

The Shuttle XPC Barebone NA10H7, part of the XPC nano family, is powered by the AMD Ryzen™ 7-8845HS APU, featuring the cutting-edge Zen 4 microarchitecture. With 8 cores, 16 threads, and AMD Radeon™ 780M graphics, it delivers exceptional performance and is primed for AI-readiness.

The integrated Neural Processing Unit (NPU) achieves 16 TOPS of AI performance, while the combined NPU, CPU, and GPU offer a total of 39 TOPS, enabling demanding AI workloads. Supporting up to 64 GB of DDR5 memory, the NA10H7 also boasts a comprehensive array of I/O options, including four UHD graphics ports and two USB4 ports.

Designed as a cost-effective, high-performance solution for generative AI tasks, the NA10H7 excels in a variety of applications, such as content creation, gaming, entertainment, office work, commerce, and AIoT implementations. With its compact nano chassis and advanced connectivity features, it sets a new standard for affordable AI-PCs.

Features

Blazing-Fast USB4 Connectivity

This Mini-PC is equipped with two USB4 ports, delivering an impressive 40 Gbit/s bandwidth for ultra-fast data transfers. These versatile ports also support UHD displays and enable fast charging for mobile devices, making them ideal for both high-performance computing and everyday convenience.

Up to 96 GB of DDR5 RAM

Modern professional applications require substantial memory resources. With two SO-DIMM slots supporting up to 96 GB of high-speed DDR5 RAM, this Mini-PC is well-equipped to handle even the most demanding tasks efficiently.

Quad 4K Display Support

This Mini-PC supports up to four high-resolution displays, offering maximum flexibility for multi-monitor setups. It features:

2x HDMI 2.0

• USB4 Type-C with DisplayPort output

• USB4 Type-C with DisplayPort output

Integrated SD Card Reader for Easy Access

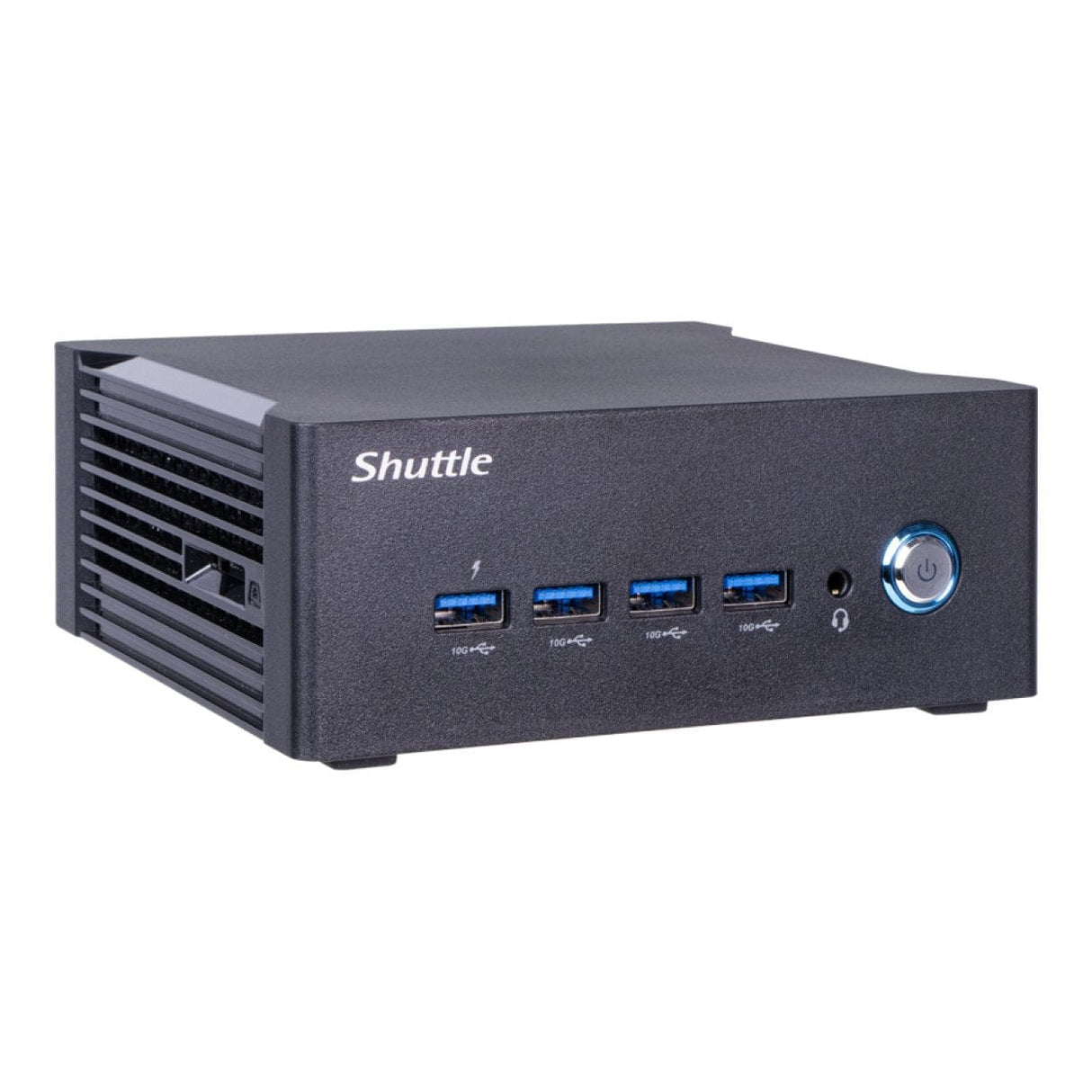

This Mini-PC features a conveniently positioned SD card reader on the side of the chassis, allowing quick and effortless access to external storage. Ideal for transferring media, backups, or expanding storage capacity with ease.

Dual M.2 Expansion

This Mini-PC features two M.2 slots, offering flexible expansion options for storage and connectivity. The high-speed PCIe interface ensures rapid data transfer, making it ideal for demanding applications.

• 1× M.2-2280 - Supports NVMe SSDs for ultra-fast storage
• 1× M.2-2230 - Accommodates a Wi-Fi module or other expansion cards

Two extra fast network connections

This feature is particularly interesting for vital network applications – this is because two 2.5 Gigabit Ethernet interfaces with RJ45 connectors allow physically separate networks with impressive bandwidth.

Built-in Anti-Theft Protection

This Mini-PC features a Kensington security slot (K-Slot), providing an effective anti-theft solution. Compatible security locks are widely available from specialist retailers, ensuring enhanced protection in various environments.

Technical Specification

Product: Shuttle XPC NA10H7 Nano Barebone AI PC

Product type: Barebone PC

Processor family: AMD Ryzen 7 8000 series

Processor model: 8845HS

Processor frequency: 3.30 / 4.40 GHz (12MB Cache, 10 Cores)

NPU: AMD Ryzen AI, up to 16 TOPS

Internal memory: Optional, Not Included

Internal memory type supported: Up to 2× DDR5 Max. 64GB

Total storage capacity: Optional, Not Included

Storage media supported

• M.2-2280M slot for SSD cards in M.2 form factor
• Supports PCIe Gen4 x4 with NVMe (no SATA)
• Supports M.2 cards with a width of 22 mm and a length of 80 mm
• Supports M.2 cards with M key or B+M key

On-board graphics card model: AMD Radeon 780M Graphics

Connectivity: Optional, Not Included

Connectivity supported: M.2-2230E slot supports WLAN expansion cards

Power: 19V 6.32A, 120W AC Adapter

OS Support: Optional, Not Included

Dimensions: 132 × 143 × 55mm (57.8mm Including Rubber Feet)

Weight: 0.80 kg

Warranty: 1-year Carry-in

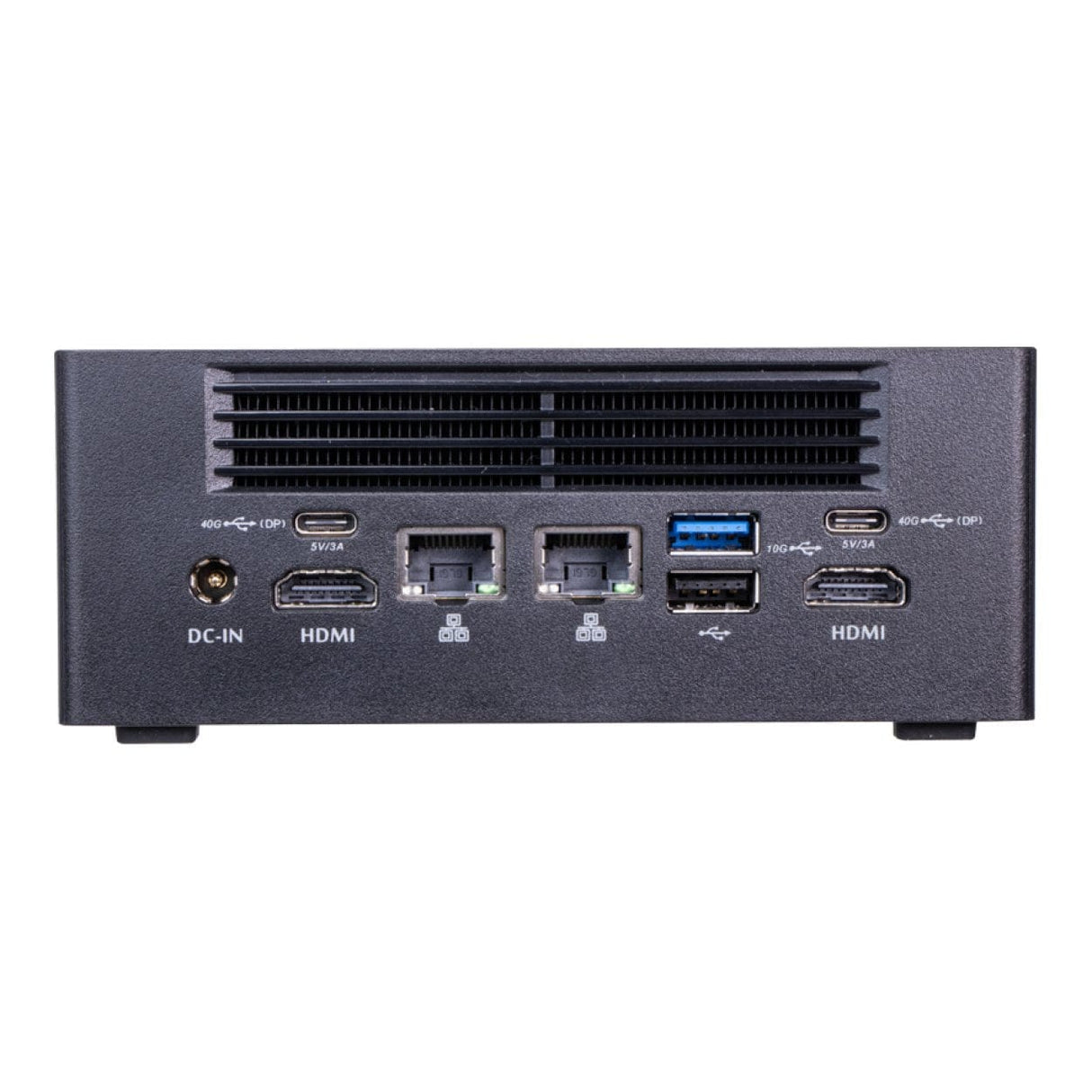

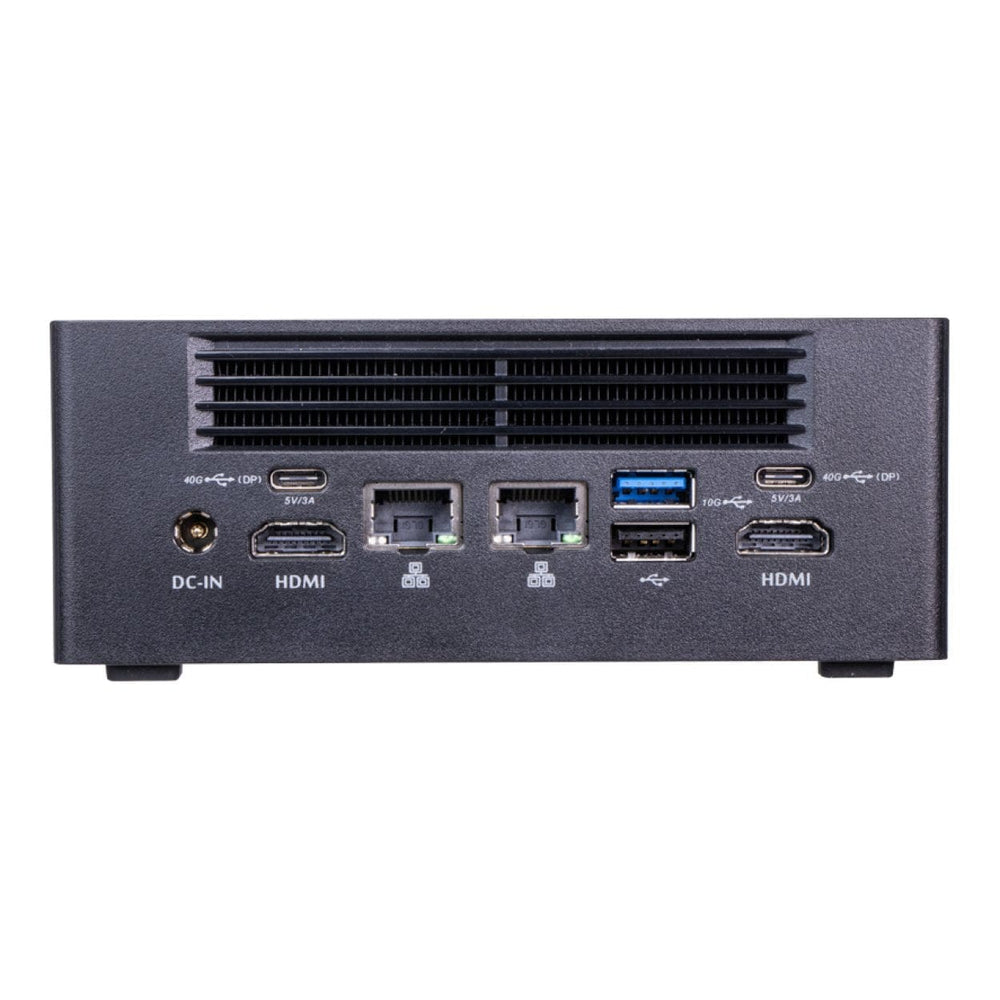

Ports and Slots

• 2x HDMI
• 2x DisplayPort (USB4.0 Type-C) Simultaneously Video Display or 2x USB4.0 Type-C (Data)
• 5x USB3.2 Gen2
• 1x USB2.0
• 2x 2.5Gbe LAN
• 1x 3.5mm Combo Audio
• 1x Kensington Lock slot
