COM/LPT/RJ11 port expansion for XPC All-in-One

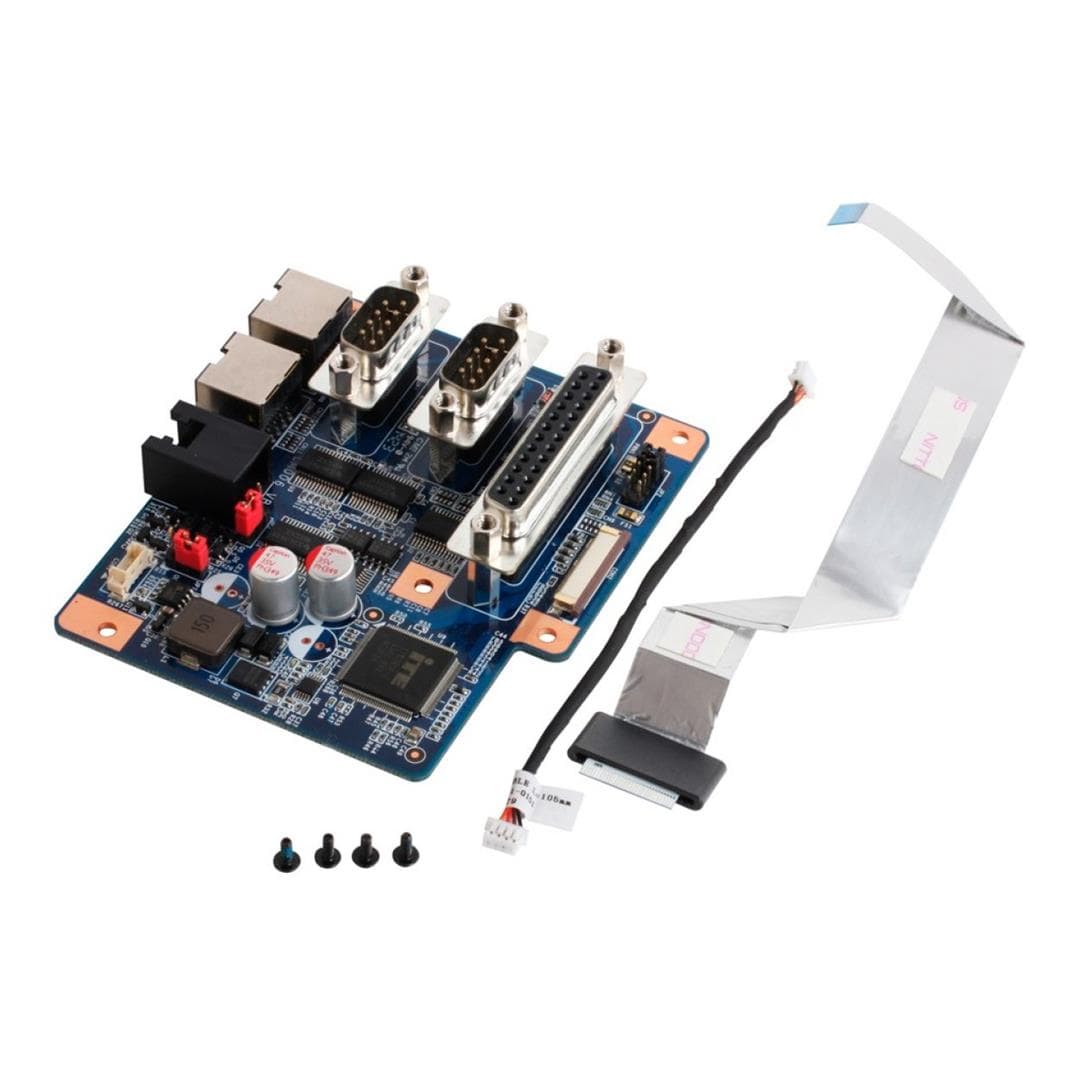

The Shuttle accessory POS01 is compatible with the Shuttle XPC All-in-One X50 series (V4~V8) and P90U/P92U series. It will add four serial (COM), one parallel (LPT) port and one RJ11 port for a cash drawer to the back panel of the PC.

Technical Specification

Product: Shuttle Accessory POS01

External ports

• 2x Serial port RS232 (Sub-D, 9 pins, male) (*)
  (*) The serial port "COM 1" can also be switched to RS422/485 mode in the BIOS
• 2x Serial port RS232 (RJ45 connector)
• 1x Parallel port (Sub-D, 25 pins, female)
• 1x Digital I/O for cash drawer (DIO, RJ11 connector, 12V or 24V)

Serial port as voltage source

• Both serial ports with D-Sub connector can provide an auxiliary voltage supply of either 5V or 12V

Scope of delivery

• Printed Circuit Board (PCB)
• 4 screws
• Power connector cable (4 pin)
• Ribbon cable
• Type label sticker (Rating label)
• Multi-language quick installation guide (EN, DE, FR)

Compatibility

• Compatible with the following Shuttle XPC All-in-One products:
• with 15.6" display: X50V4, X50V5(U3), X50V6(U3), X50V7(U3), X50V8(U3)
• with 19.5" display: P90U, P90U3, P90U5, P92U, P92U3, P92U5
