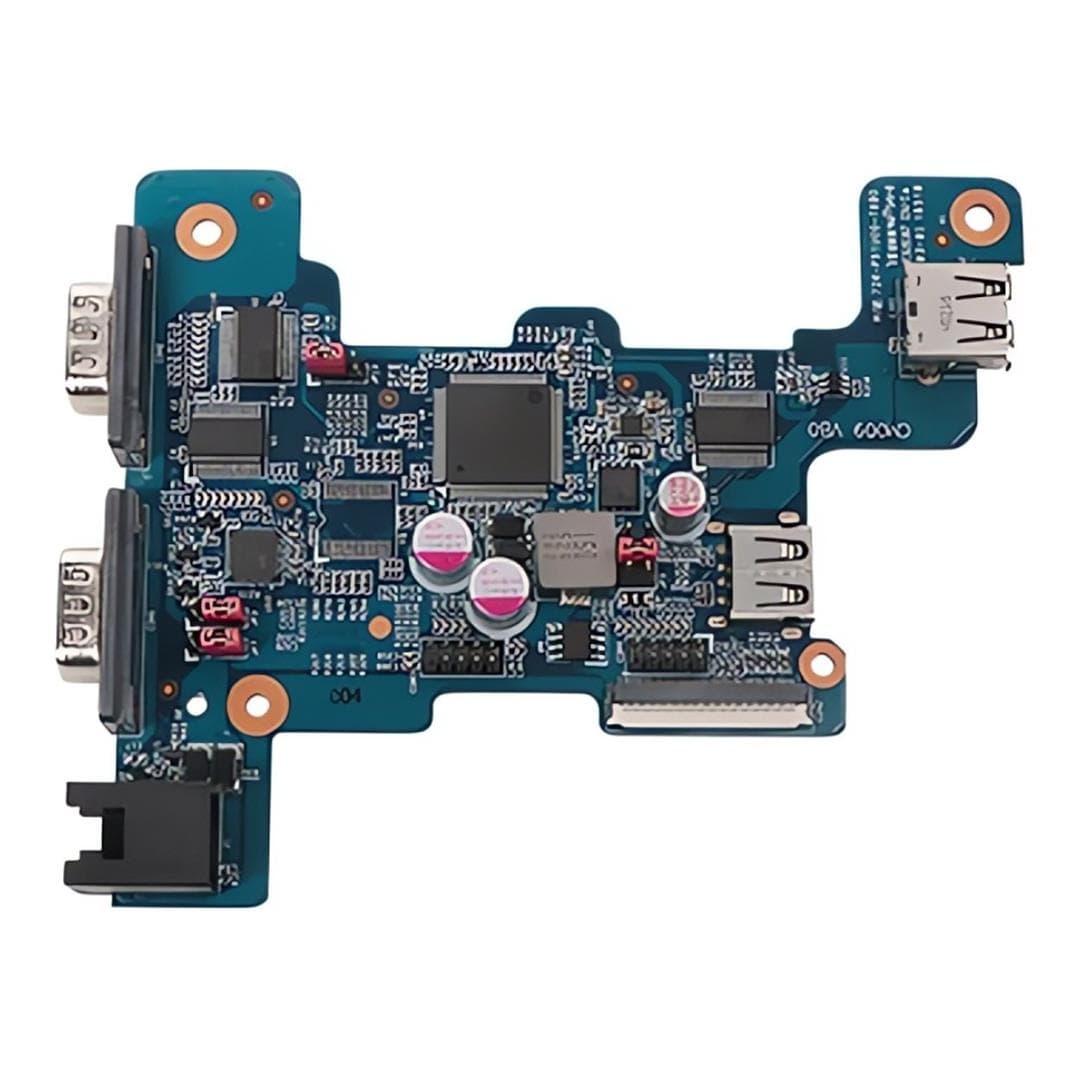

Shuttle P5 Series AiO COM/RJ11 Expansion Board POS03

Shuttle P5 Series AiO COM/RJ11 Expansion Board POS03

COM/RJ11 Expansion Board

The POS03 is compatible with Shuttle AIO P5 series. It provides one RJ11, three RS232, one RS232/RS422/RS485 with 0V/5V/12V support and two USB ports for flash memory, MSR or 4G dongle module.

Technical Specification

Product: Shuttle POS03 COM/RJ11 Expansion Board

Purpose

• CM009 full function DB for P51U.
• DIO RJ11 port for cash drawer.
• The internal USB connector is for expansion stick

External Port(s)

• 1x COM1(RS232)
• 1x COM2(RS232)
• 1x COM3(RS232/RS422/RS485) (Support 0V/+5V/+12V)
• 1x COM4(RS232)
• 1x DIO RJ11 port

Internal Port(s): 2x USB2.0

Support list

• P51U - 15.6" Versatile, Multi-touch AIO for POS, POI, and Kiosk
• P52U - 15.6-inch Multi-touch All-in-One PC | Flexible Connectivity Fit Diverse Business Scenario
