Shuttle LTE 4G M.2 Adapter Card Kit WWN01

Shuttle LTE 4G M.2 Adapter Card Kit WWN01

If you want integrated mobile network on your XPC Barebone DL10J or Edge EN01x, then you need the Shuttle accessory WWN01 which includes two LTE/4G antennas with cables. This kit also includes a riser adapter card which is required for DL10J only.
It supports an LTE/4G module and a Nano SIM card for connecting to the mobile network. The riser card is to be installed into the M.2-2230 slot of DL10J and replaces the pre-installed WLAN card.

Technical Specification

Product: Shuttle M.2 adapter kit LTE/4G

Adapter card (for DL10J only)

Riser card for the M.2-2230 Key E slot

• supports one LTE/4G module M.2-3042 Key B
• supports one SIM card in Nano format

Dimensions: 30 × 30 mm

Two external antennas

• LTE/4G dipole omnidirectional antenna
• Multi-band: supports EU frequency bands (800, 1800, 2600 MHz) for GSM/UMTS/LTE and the following frequency ranges: 704~960, 1428~1575, 1720~2170, 2400~2690 MHz
• Colour: Black
• Length overall: 135.7 mm
• Dimensions of the antenna body: 114.8 mm × 20.1 mm
• Impedance: 50 Ohm
• Voltage Standing Wave Ratio (VSWR): <= 3.0
• Radiation: Omni
• Gain: 2 dBi
• Polarisation: vertical
• Connector: SMA

Two antenna cables

• RF cable lengths: 20 cm
• Connectors:
• 1) SMA Pigtail female
• 2) I-PEX MHF 4

Compatibility

• The WWN01 can be used for
  - Shuttle XPC slim DL10J
  - Shuttle Edge EN01J3, EN01J4, EN01E (adapter card is not required)

LTE module and SIM card are not included

• Note that two more components are required for operation which are not included with WWN01:
  - LTE/4G module M.2-3042 Key B
  - SIM card in Nano format
• Successfully tested LTE/4G modules:
  - Sierra EM7455 (CAT 6, for Europa and North America)
  - Sierra EM7430 (CAT 6, for APAC)
  - Huawei ME906S (CAT 4, for EMEA, Australia, New Zealand)
  - Quectel EM06-E (CAT 6, for EMEA, Australia, Brazil)

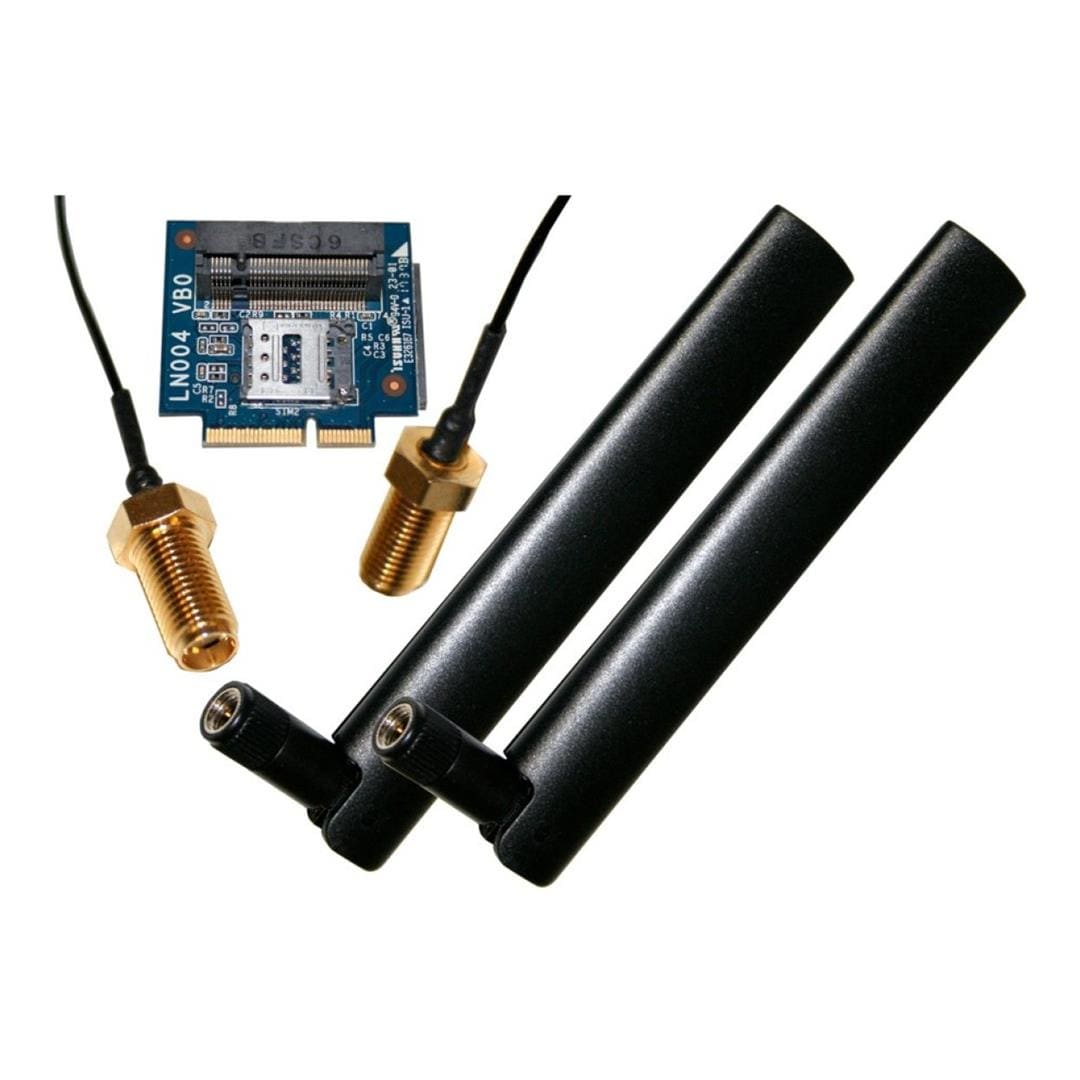

Contents

• M.2 adapter card LN004
• Fastening screw for LTE/4G card (two-parts)
• 2× LTE/4G antennas
• 2× antenna cables with toothed lock washer and screw nut
• Quick installation guide
