The Shuttle Accessory PD01 is a daughterboard for the EN01 series which provides a second Gigabit network port with Power-over-Ethernet (PoE) function. This enables the EN01 to receive power over the same network cable that transports data, and so does away with the need for a nearby power outlet. The power comes from a PoE-enabled Ethernet switch or a power injector at the other end of the network cable.

Technical Specification

Product: Shuttle PD01 Power-over-Ethernet (PoE) Kit

Power sourcing equipment (PSE)

• up to 30W (48 V / 0.65 A)
• Supports 802.3AT PoE standard

LAN controller: Realtek RTL8119I supports 1 Gbit/s

Contents

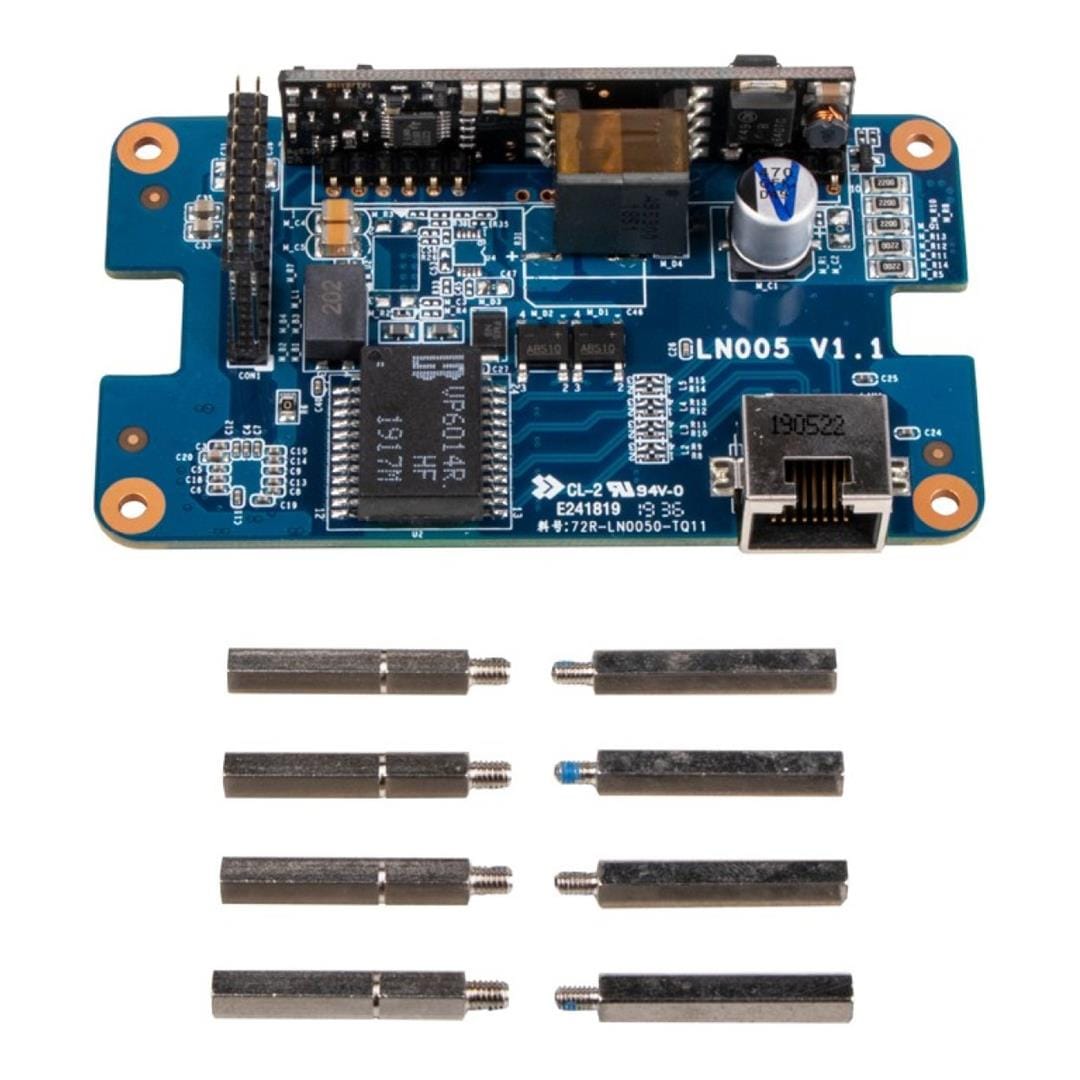

• PoE daughterboard with RJ45 network connector
• 8× standoff (4 of these have a marking)
• Adhesive membrane
• Quick Guide

Compatibility

• Compatible with the following Shuttle products:
  Shuttle Edge EN01J3, EN01J4, EN01E, EN01B
