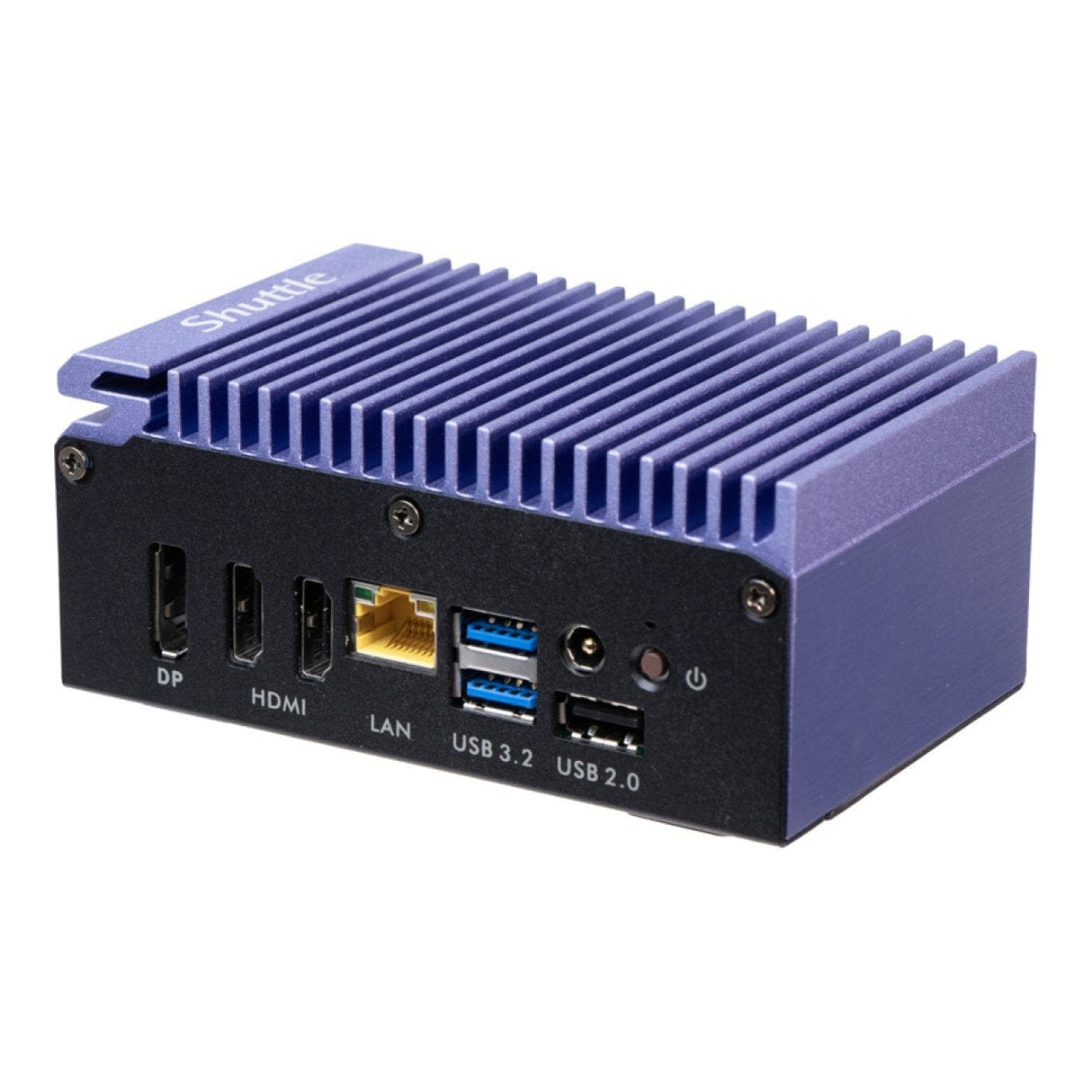

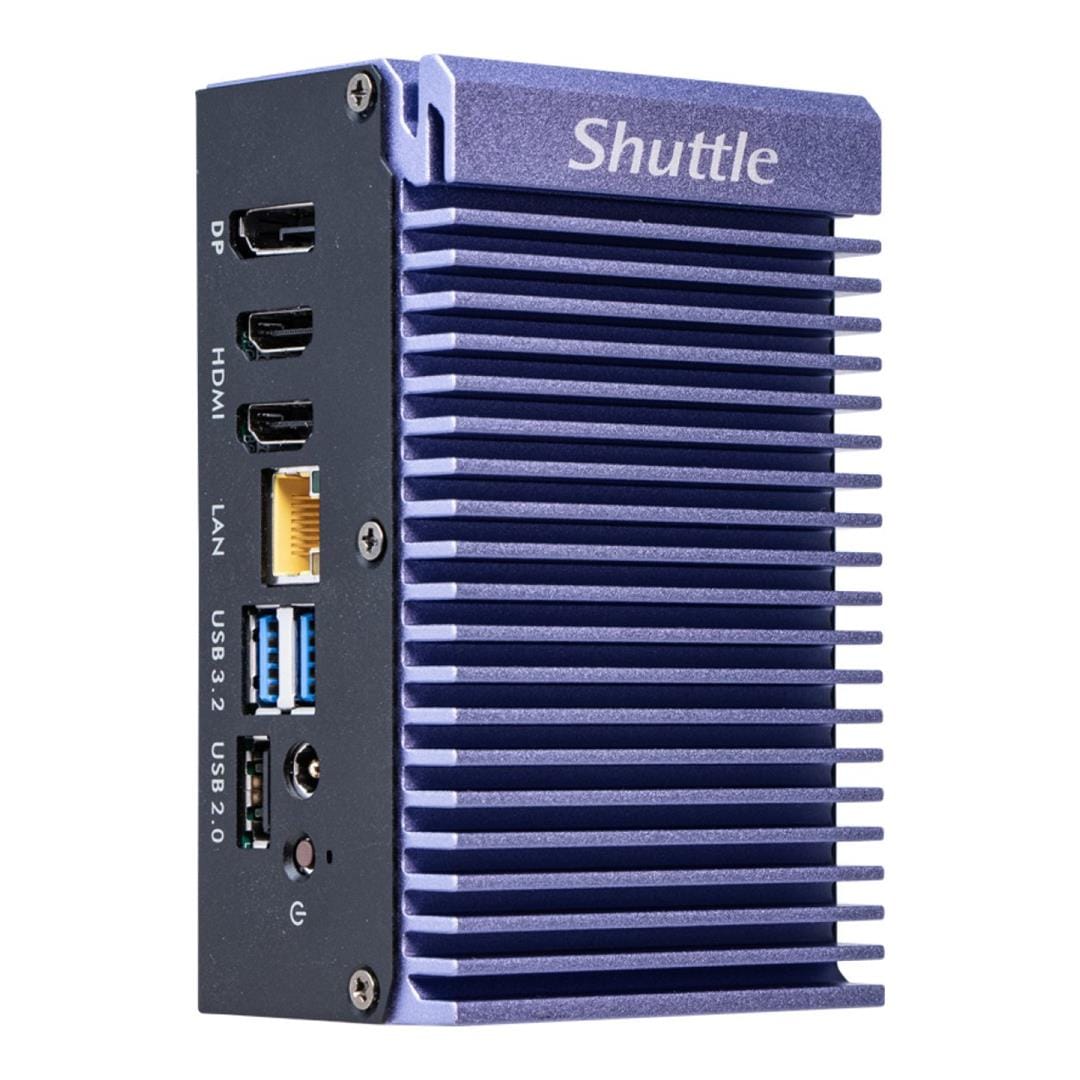

Shuttle Edge SPCEL12 Intel Celeron J6412 Fanless Industrial Barebone PC

Shuttle Edge SPCEL12 Intel Celeron J6412 Fanless Industrial Barebone PC

Ideal for Space-Saving Digital Signage Applications with 2× HDMI and 1× DisplayPort Outputs

Key Features

• Ultra-Compact Design – Measuring just 120 × 75 × 51 mm with a 0.5l footprint
• Advanced Motherboard – Features the industry’s smallest PICO-ITX (100×72mm) x86 motherboard
• Stunning Visuals – Enjoy immersive 4K visuals with support for up to three displays via HDMI 2.0b and DisplayPort 1.4 connections
• Enhanced Multitasking – Supports DDR4-3200 with a maximum capacity of 32GB for efficient multitasking
• Stable Dual LAN Support – Stay connected with up to 2.5GbE dual LAN support, ensuring reliable network performance
• Wake-on-LAN (WoL) Functionality – Enable remote powering of your device from S3/S4/S5 mode, enhancing convenience and efficiency
• Robust – 0.5L Industry PC with Intel Celeron Processor and Support for Three Displays
• Power Supply – 19V 65W PSU Adapter

Features

Dual 2.5 Gigabit Ethernet for High-Speed Networking

Equipped with two 2.5 Gbit/s Ethernet ports, the system enables fast and reliable network connectivity. Ideal for industrial automation, edge gateways, or secure data transfers - dual LAN also supports network redundancy or segmented communication paths for enhanced operational stability.

SO-DIMM Memory

Equipped with a single SO-DIMM slot, the system supports up to 32 GB of DDR4 memory — ensuring responsive performance for multitasking, data processing, and complex edge workloads. Designed for efficiency and reliability in professional and industrial environments.

High-performance storage with M.2-2280 SSD

The integrated M.2-2280 slot supports high-performance SATA modules, enabling fast system boot and efficient data processing.

M.2 Slot for Wireless Communication Modules

A dedicated M.2-2230 slot allows easy integration of Wi-Fi and Bluetooth modules. This expands connectivity options for environments that require wireless access, such as remote monitoring, mobile systems, or space-constrained installations.

Expandable Storage and Mobile Connectivity

For added flexibility, the system includes a microSD card slot for external storage and a nanoSIM slot to support 4G/LTE connectivity (module required, not included). Ideal for mobile deployments, remote monitoring, and applications requiring local data logging or wireless access.

Triple Display Support via HDMI 2.0b and DisplayPort 1.4

Equipped with two HDMI 2.0b ports and one DisplayPort 1.4, the system supports up to three high-resolution displays simultaneously. Ideal for digital signage, control rooms, or data visualisation — with smooth 4K playback and flexible screen configurations.

• HDMI 2.0b

• DisplayPort 1.4

Technical Specification

Product: Shuttle Edge SPCEL12 Industrial Barebone PC

Product type: Barebone PC

Processor family: 6th Generation Intel Celeron

Processor model: J6412

Processor frequency: 2.00 / 2.60 GHz (4MB Cache, 4 Cores)

NPU: Not supported

Internal memory: Optional, Not Included

Internal memory type supported: 1× DDR4 Max. 32GB

Total storage capacity: Optional, Not Included

Storage media supported: M.2-2280/2242 M-Key SATA/SSD

• Supports SSD cards in M.2-2242 format (length: 42 mm)
• Only supports SSD cards in M.2-2280 format (length: 80 mm) if no WLAN or 4G card is installed
• Only upports SSD cards with SATA interface (not PCIe/NVMe)

M.2 expansion slots for WLAN or 4G

• 1) M.2-2230 E-Key slot for WLAN cards in 22 x 30 mm format (W x L)
• 2) M.2-3042 B-Key slot for 4G cards in 30 x 42 mm format (W x L)

On-board graphics card model: Intel UHD Graphics

Connectivity: Wi-Fi 5 (802.11ac) + Bluetooth 5.0

Power: 19V, 65W AC Adapter

OS Support: Optional, Not Included

• Windows 11 64bit
• Linux 64bit

Product colour: Purple

Dimensions: 120 × 75 × 51mm

Weight: 1.60 kg

Warranty: 1-year Carry-in

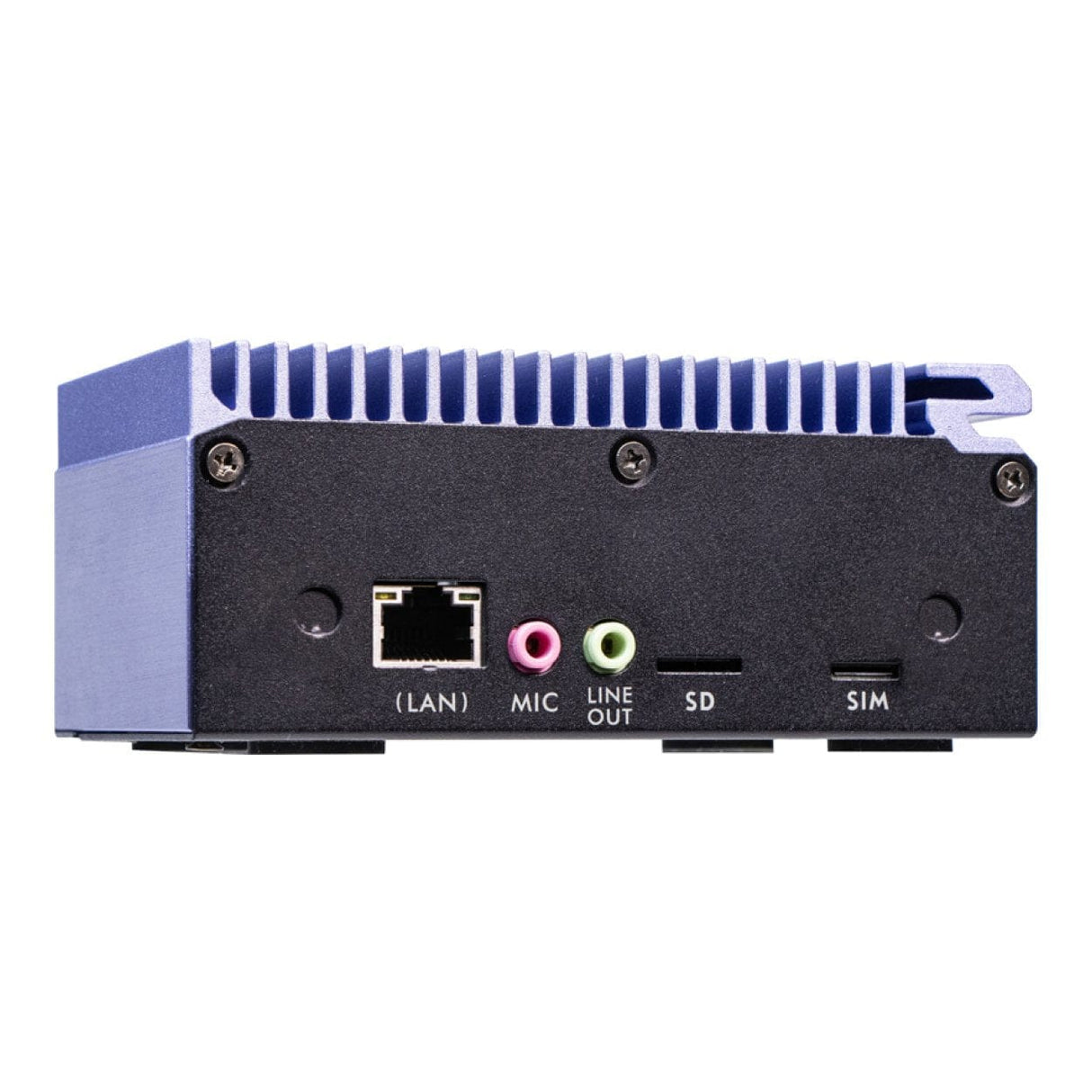

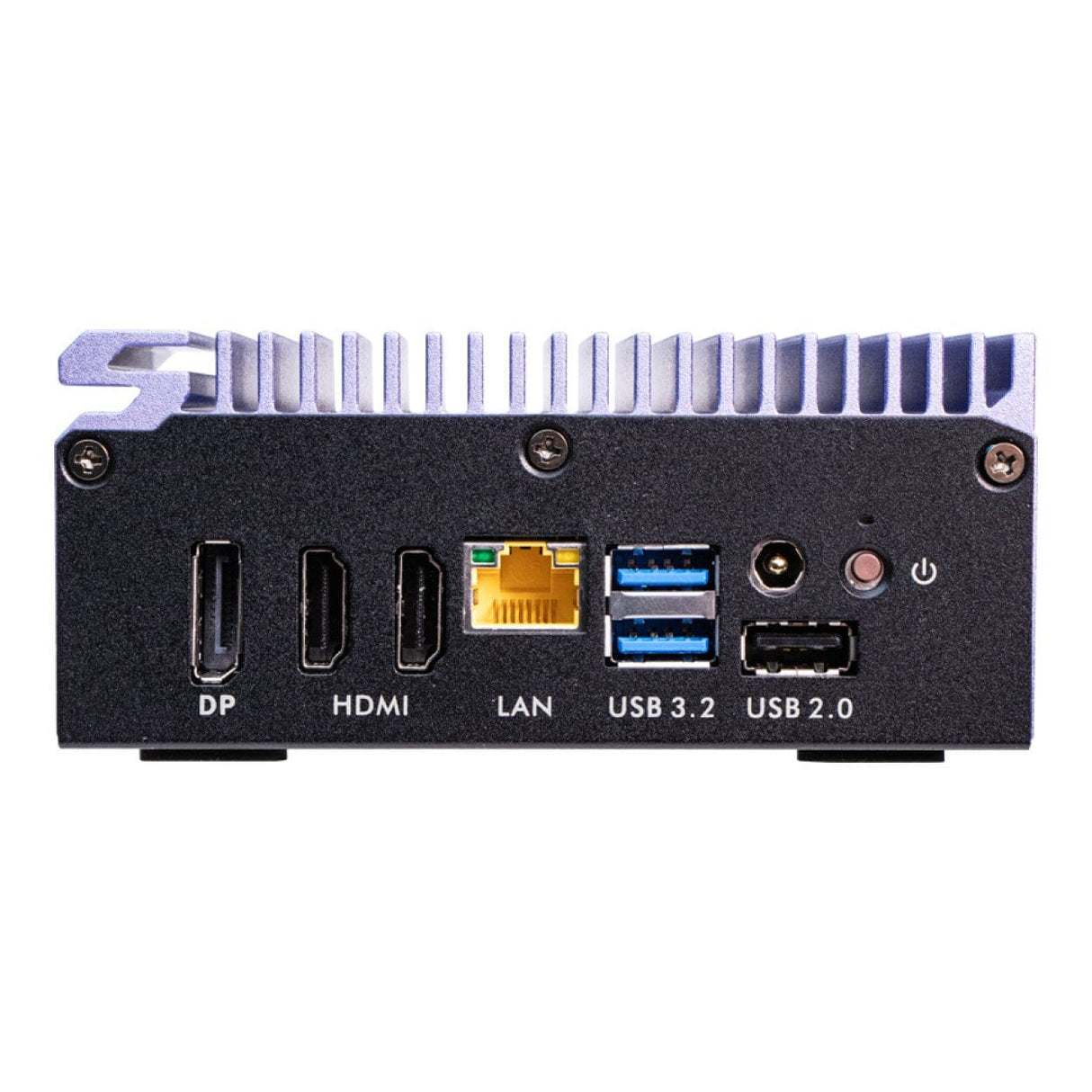

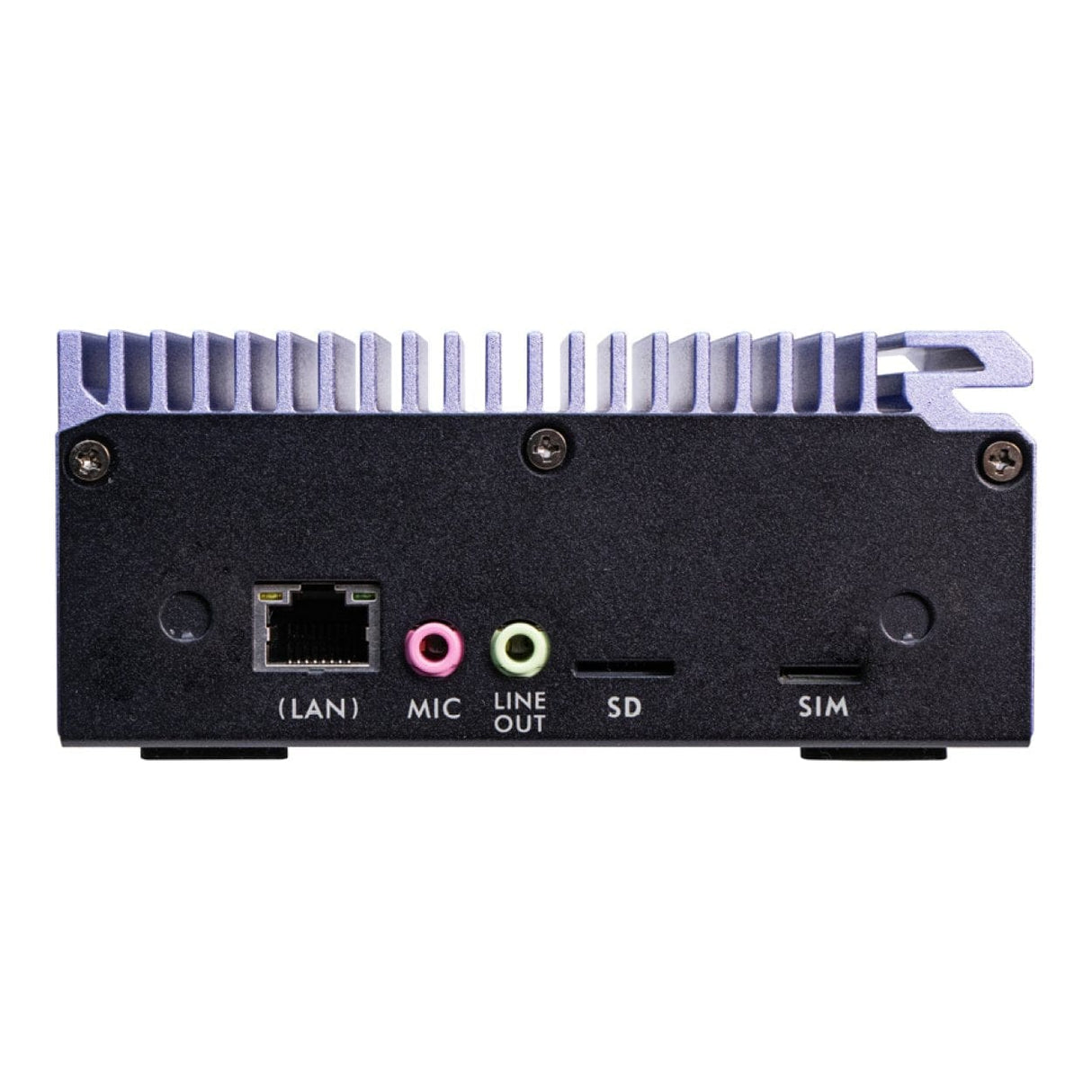

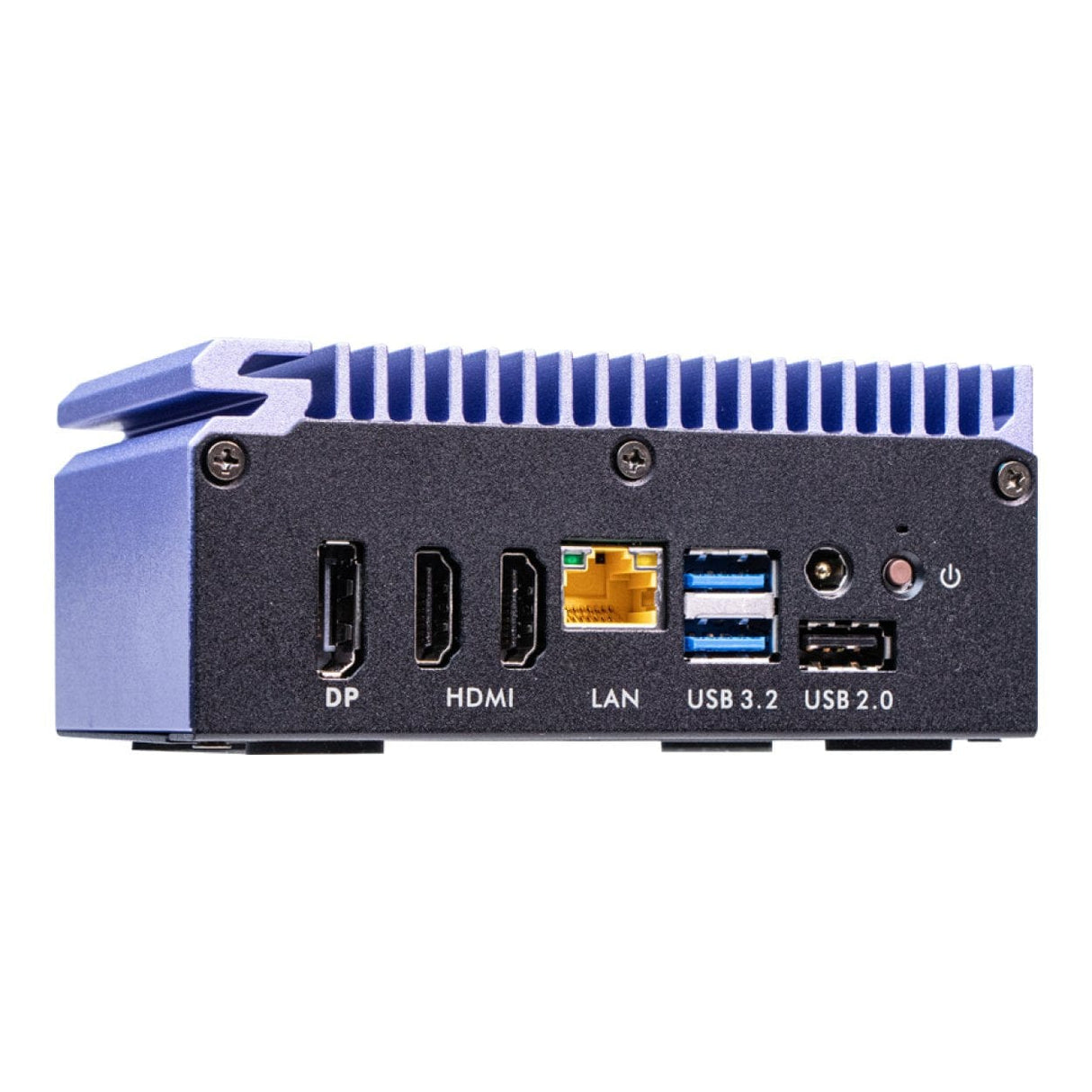

Ports and Slots

• 2x HDMI2.0
• 1x DisplayPort 1.4
• 2x 2.5Gbe LAN
• 2x USB 3.2 Gen2
• 1x USB 2.0
• 1x SIM Card Slot
• 1x SD Card Slot
• 1x Line-Out
• 1x Mic-In
