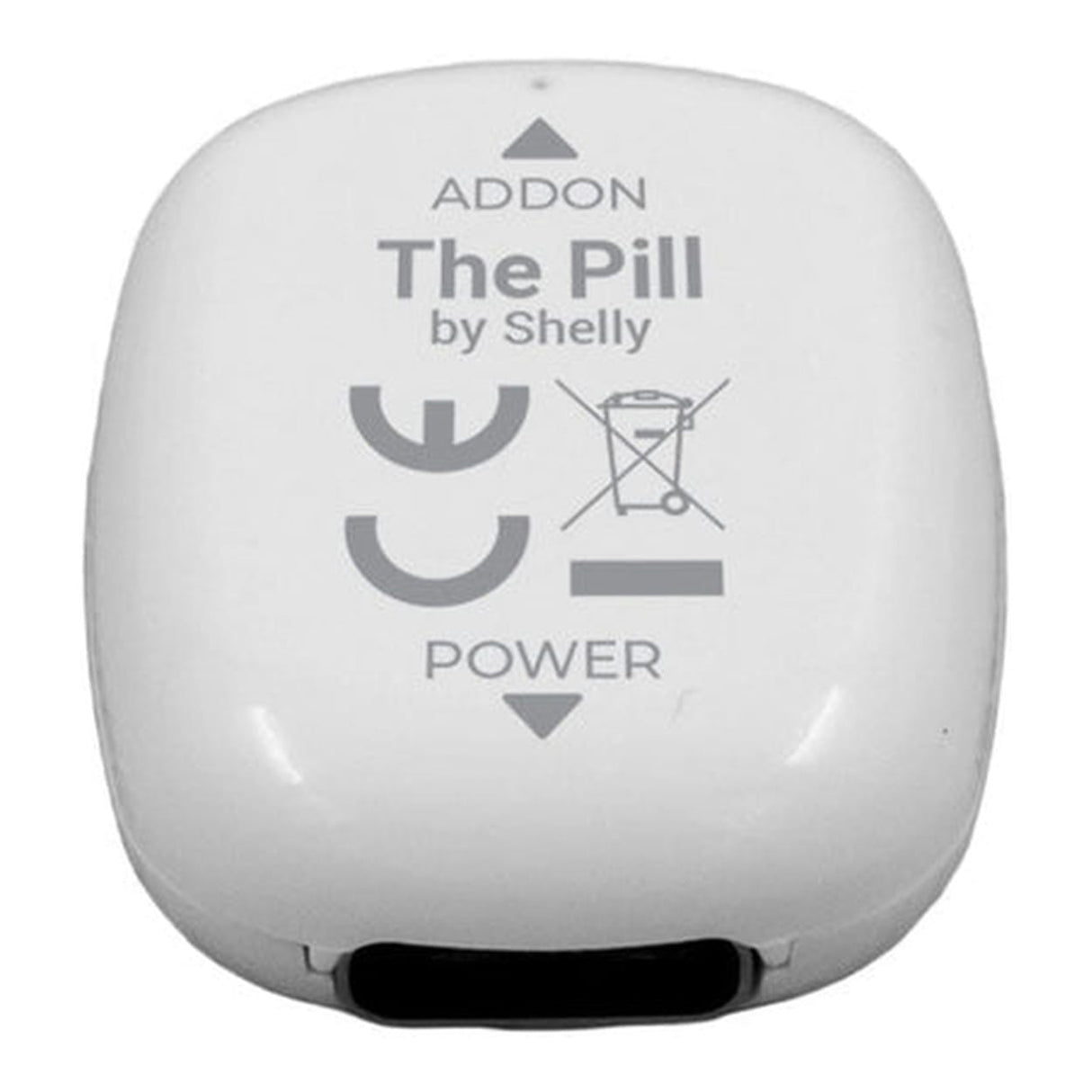

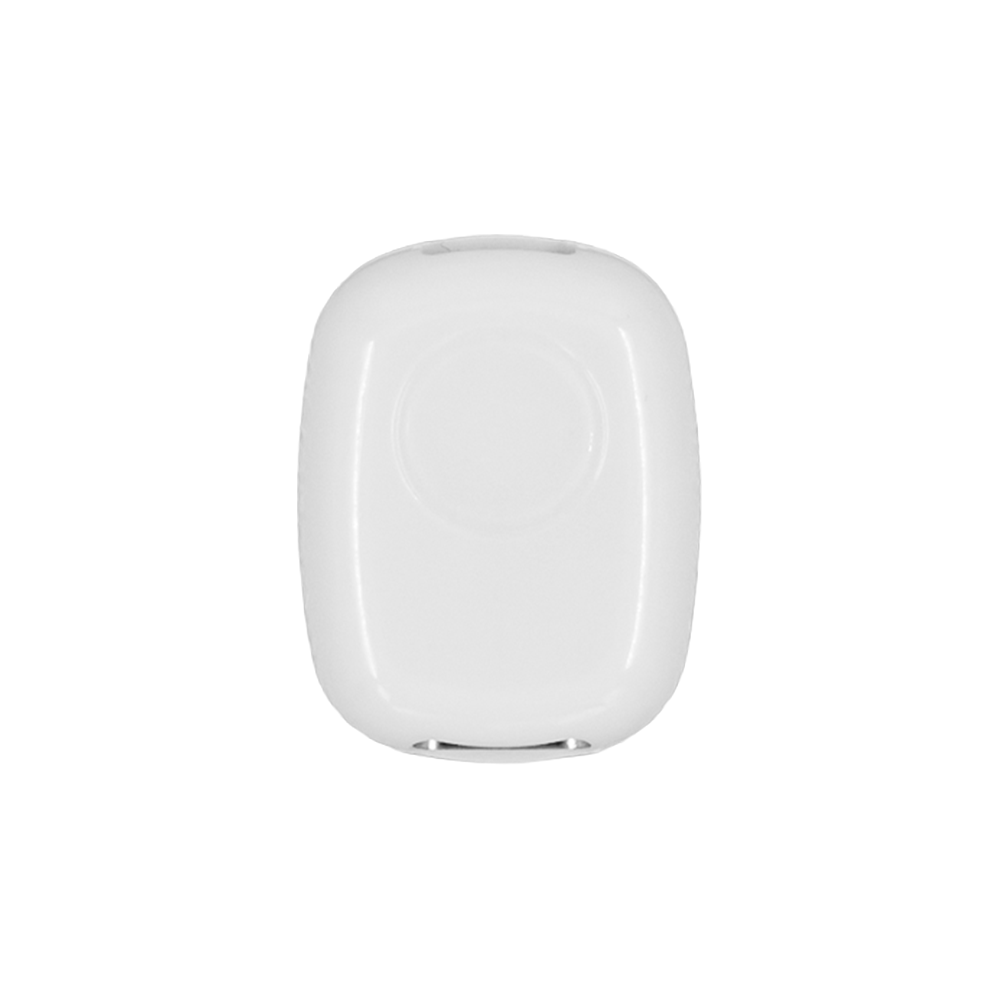

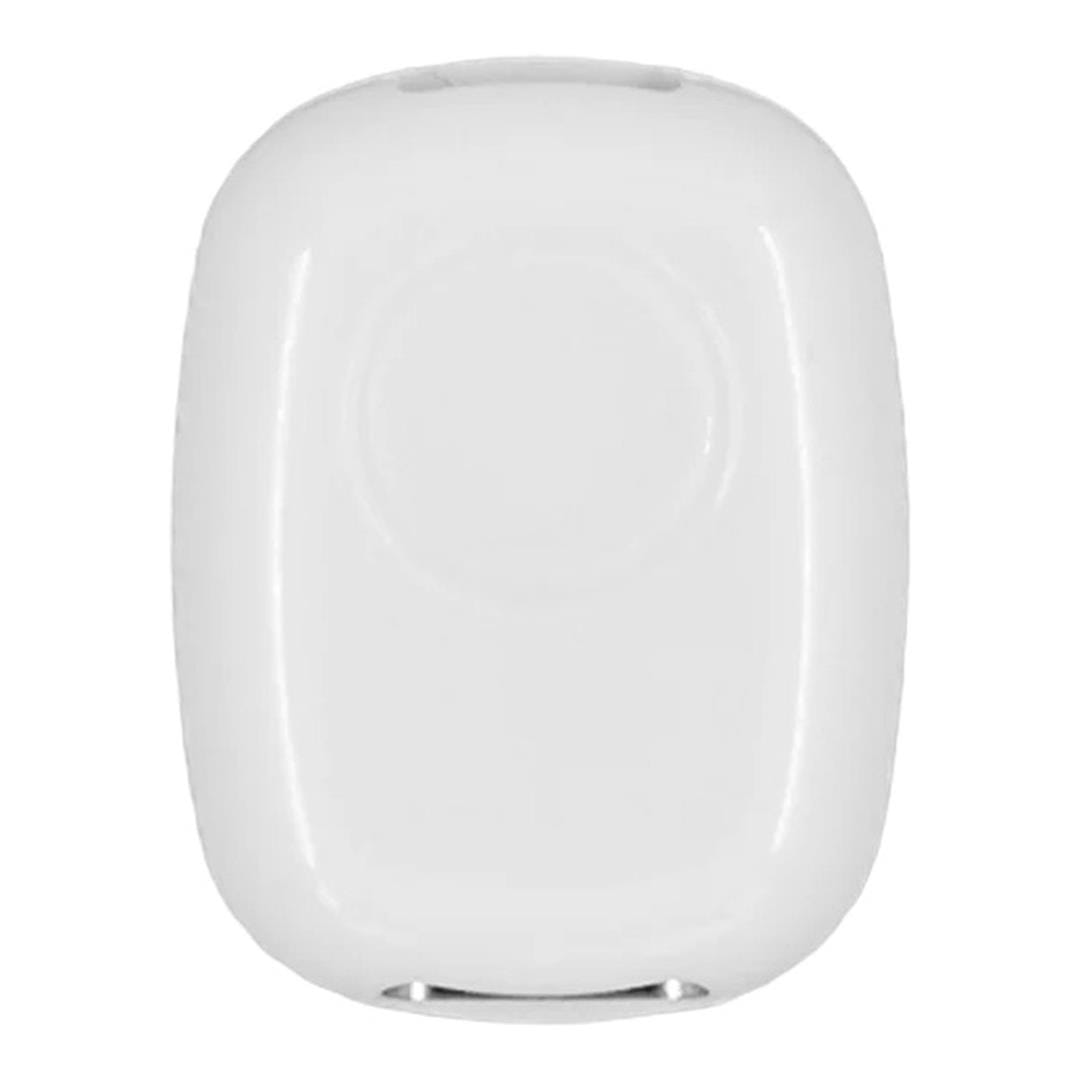

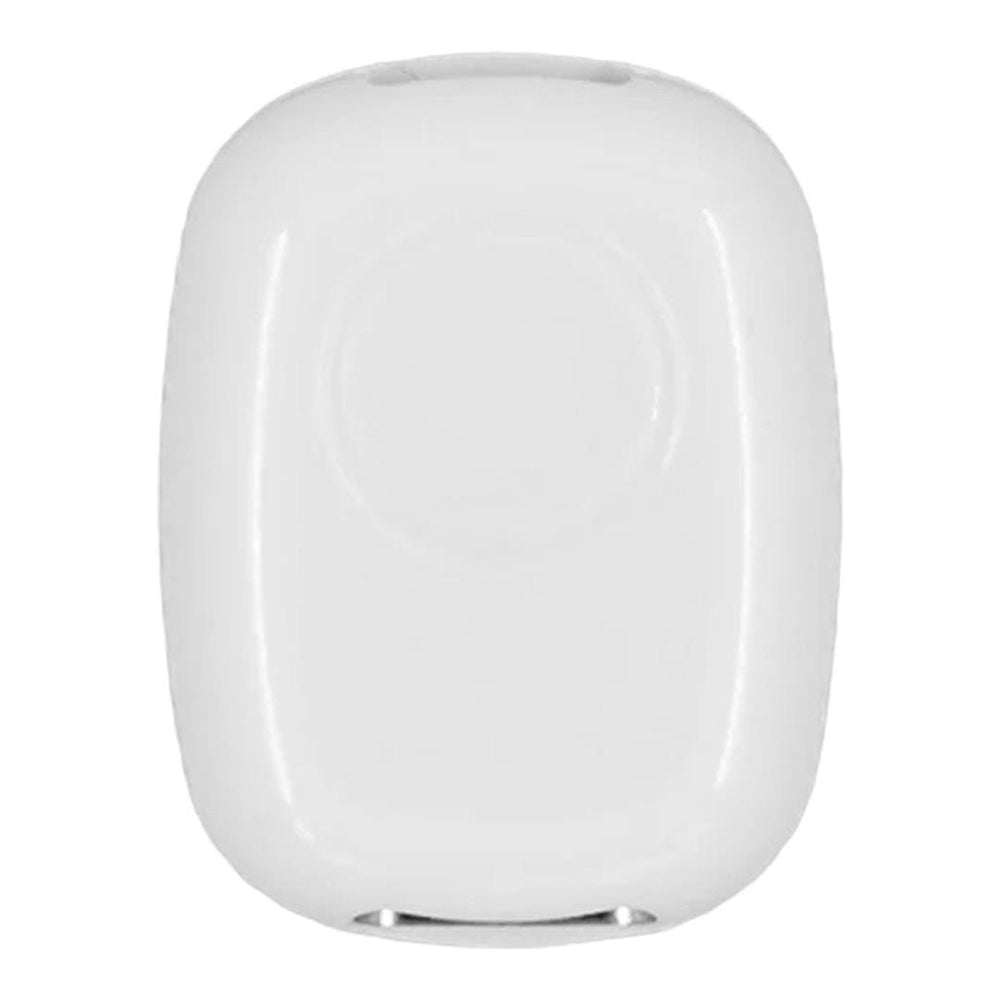

Shelly The Pill Compact Type-C Temperature and Humidity Monitor
The Shelly The Pill is an ultra-compact, USB-C powered Wi-Fi and Bluetooth sensor reader designed for environmental monitoring and low-voltage automation. Connect a compatible external sensor to monitor temperature or humidity in living spaces, server cabinets, greenhouses, water systems and other suitable indoor applications. Its Shelly Gen3 platform also supports local actions, schedules, scripting and integration with compatible automation systems.
Important: The Pill does not contain a built-in temperature or humidity sensor. Temperature monitoring requires a compatible DS18B20 sensor, while combined temperature and humidity monitoring requires a DHT22 sensor. External sensors and optional add-ons may be sold separately.
Key Features:
- Compact 26 × 19.95 × 8.5 mm design fits neatly inside enclosures, behind panels and in space-restricted installations.

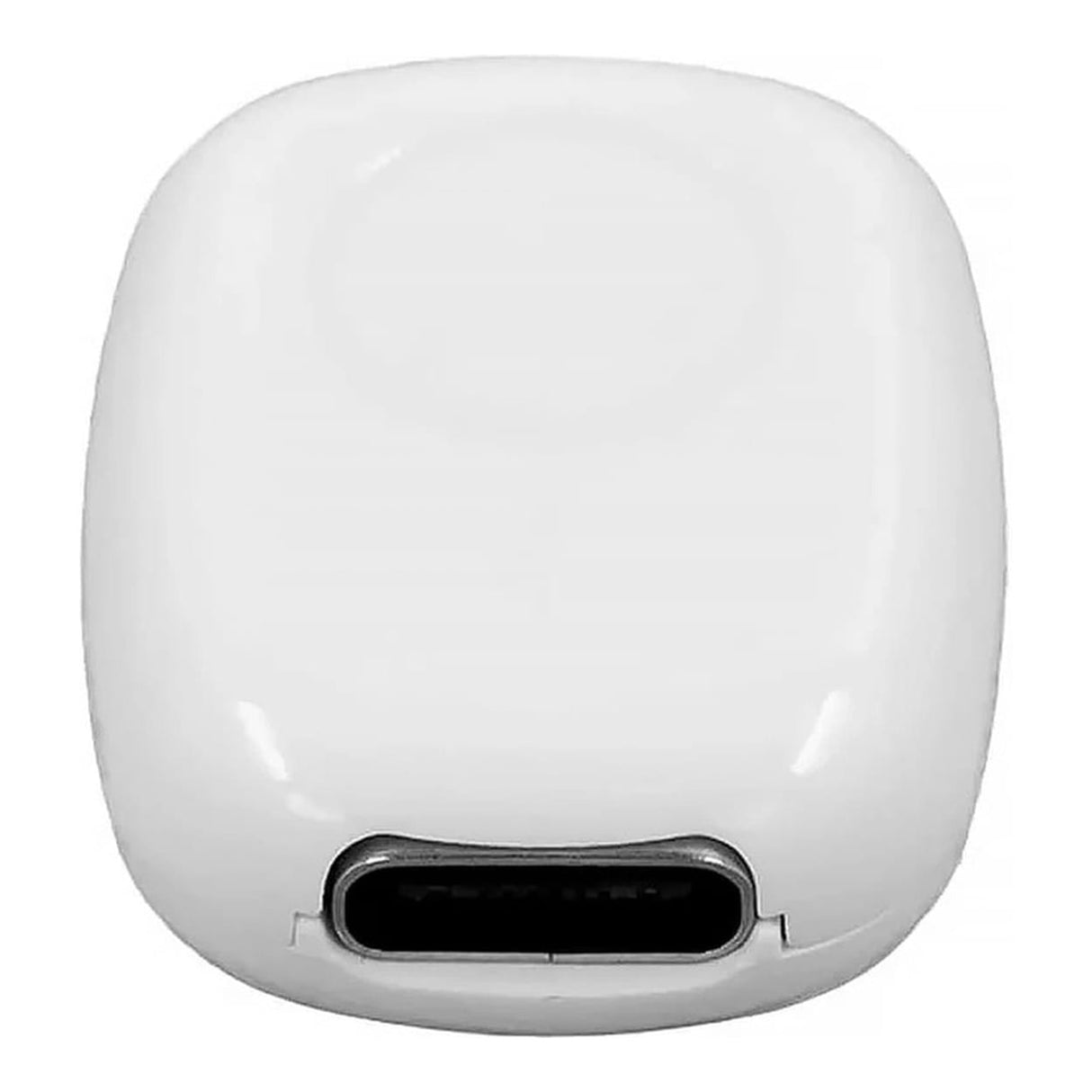

- Powered by a 5 V USB-C connection for convenient, low-voltage operation.
- Supports one DHT22 sensor for combined temperature and humidity monitoring.
- Supports up to five DS18B20 temperature sensors when used with the compatible 1-to-5 splitter.
- Wi-Fi and Bluetooth connectivity provides flexible local and cloud-based communication.
- Built-in Bluetooth gateway functionality connects compatible Shelly BLU devices to the Shelly ecosystem.
- Shelly Gen3 features include schedules, webhooks, scripting, virtual components and third-party integration through MQTT, WebSocket and HTTP.
Compact Environmental Monitoring
Pair The Pill with a DHT22 sensor to monitor temperature and relative humidity in rooms, storage areas, server cabinets, warehouses or greenhouses. Readings can be viewed through the Shelly Smart Control app and used as triggers for compatible heating, cooling, ventilation or humidification automations.
Multi-Point Temperature Monitoring
A compatible DS18B20 probe can be used to measure temperature in aquariums, pools, water tanks, boilers and other suitable applications. With the optional 1-to-5 splitter, a single Pill can receive readings from as many as five DS18B20 temperature probes for multi-point monitoring.
More Than a Temperature Monitor
The configurable add-on interface allows The Pill to work with selected digital inputs, digital outputs and analogue sensors. It includes a built-in 0–2.5 V DC voltmeter, while optional Shelly add-ons can extend voltage measurement to 30 V or provide control of compatible low-voltage loads.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Shelly |
| Product Name | The Pill by Shelly |
| Model | S3SN-0U53X |
| Product Type | Smart low-voltage sensor reader and actuator controller |
| Colour | White |
| Housing Material | Plastic |
| Power Supply | 5 V DC through USB-C |
| Power Consumption | Less than 1 W |
| Internal Temperature Sensor | No; a compatible external sensor is required |
| Supported Environmental Sensor | One DHT22 temperature and humidity sensor |
| Supported Temperature Sensors | Up to five DS18B20 sensors when used with a compatible splitter |
| Built-in DC Voltmeter Range | 0–2.5 V DC |
| Extended Voltmeter Range | 0–30 V DC with the optional Analogue 0–30 V Add-on |
| Voltmeter Accuracy | ±(2% + 5 digits) |
| Digital Inputs and Outputs | Up to three configurable 3.3 V logic-level inputs or outputs, depending on peripheral mode |
| Maximum Digital Output Current | 20 mA |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4 GHz |
| Wi-Fi Range | Up to 30 m indoors or 50 m outdoors, depending on local conditions |
| Bluetooth | Bluetooth Low Energy 4.2 |
| Bluetooth Range | Up to 10 m indoors or 30 m outdoors, depending on local conditions |
| Processor | Shelly ESP32-C3 (ESP-Shelly-C38F) |
| Flash Memory | 8 MB |
| Automation Features | 20 schedules, 20 webhooks, scripting, local actions and virtual components |
| Integration Protocols | MQTT, WebSocket and HTTP |
| Operating Temperature | -20°C to 40°C |
| Permitted Ambient Humidity | 30% to 70% RH |
| Dimensions | 26 × 19.95 × 8.5 mm |
| Weight | 3 g |
| Package Contents | The Pill by Shelly, 3.5 mm jack adapter cable and user documentation |
Build a compact temperature, humidity or low-voltage monitoring solution with The Pill by Shelly and add it to your cart today.
