Shelly The Pill Analog 0-30V Add-On Measuring Sensor

Shelly The Pill Analog 0-30V Add-On Measuring Sensor

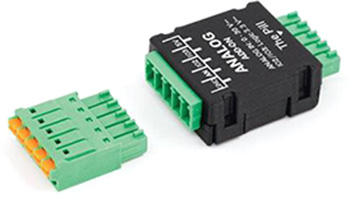

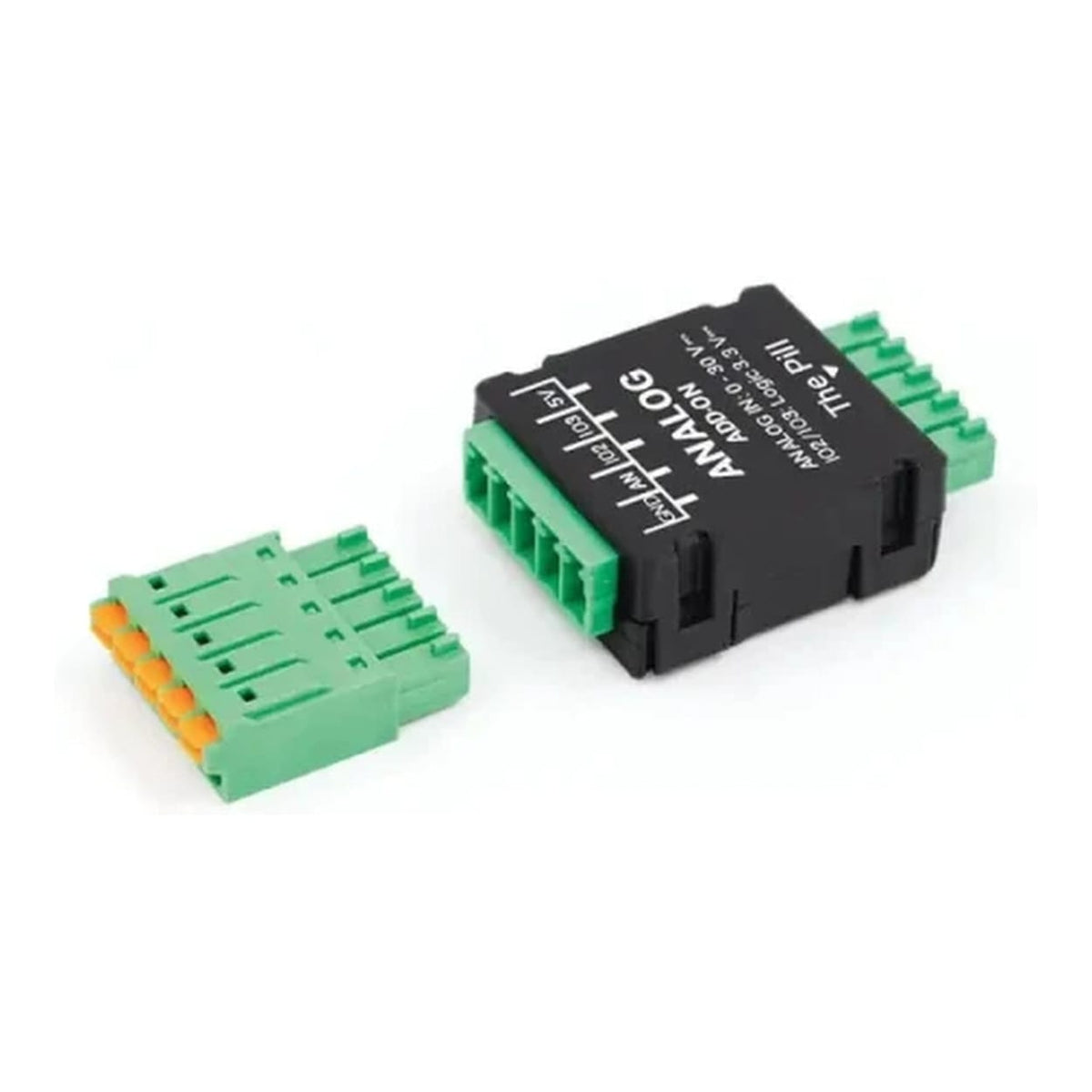

The Shelly Analog 0–30 V Add-On expands the measuring capabilities of The Pill by Shelly, allowing it to monitor compatible analogue sensors and DC voltage sources up to 30 V. Its compact design makes it a practical addition to battery-monitoring, low-voltage automation and sensor-integration projects where voltage data needs to be brought into the Shelly ecosystem.

The add-on provides one analogue input, two configurable 3.3 V digital input/output connections and optional 5 V power terminals for compatible sensors. It requires both The Pill by Shelly and the Shelly 5-Terminal Add-on for operation; these products are sold separately.

Key Features:

• Measures analogue signals and DC voltage sources across a 0–30 V range.
• Suitable for compatible 0–5 V analogue sensors and common low-voltage battery systems.

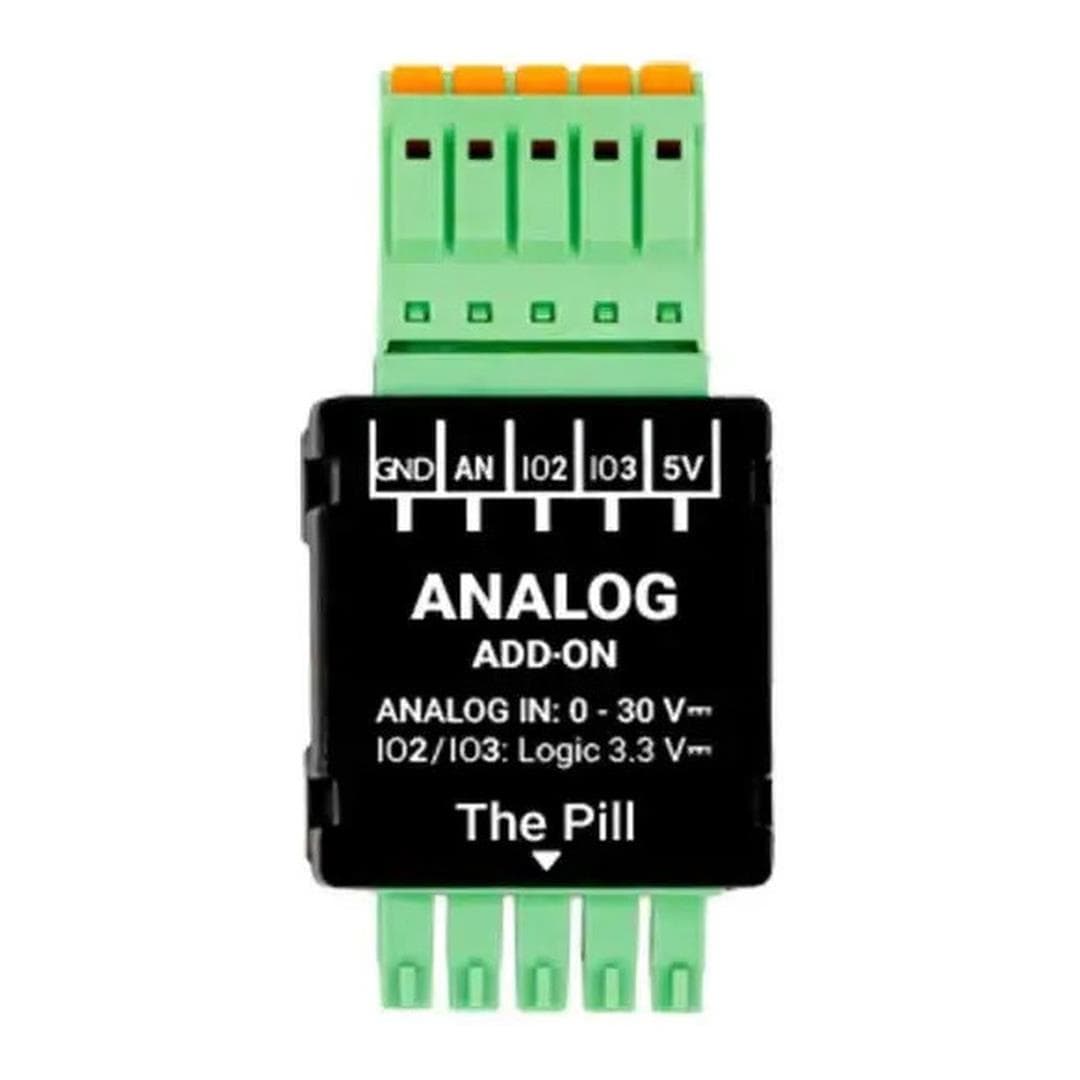

• One AN analogue input provides the connection for a sensor output or DC voltage source.
• Two configurable IO2 and IO3 connections support 3.3 V logic-level digital input or output operation.
• Optional 5 V and ground terminals can provide power to a compatible connected sensor.
• Compact 36.5 × 26.5 × 11.5 mm enclosure is easy to accommodate in suitable low-voltage projects.
• Designed specifically for connection to The Pill by Shelly through the separately available 5-Terminal Add-on.

Extend Your Voltage Monitoring

The module increases The Pill’s DC measuring range to 30 V, enabling voltage readings from compatible sensors, batteries and other low-voltage sources. Readings can then be incorporated into a Shelly-based monitoring or automation system.

Analogue Sensor Integration

Connect compatible analogue sensors that communicate through a voltage signal, including suitable hobby sensors and professional 0–10 V devices. Depending on the sensor and system configuration, the resulting measurements can support monitoring, alerts and automated actions.

Battery and DC Supply Monitoring

Use the add-on with The Pill by Shelly to observe supported low-voltage battery systems and DC power lines. Its 0–30 V DC range covers applications such as 4.2 V, 12 V and 24 V battery monitoring, helping you keep track of voltage changes within a compatible Shelly setup.

Connection Overview

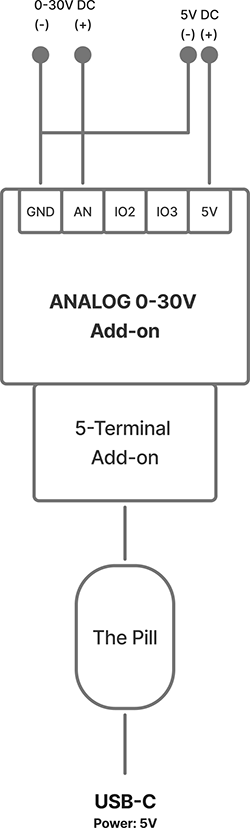

Basic Wiring Diagram

Please note: Check the terminal labels and official Shelly documentation before connecting the module. The voltage applied to the AN input must remain within the specified 0–30 V DC measuring range, while IO2 and IO3 are limited to 3.3 V logic levels.

Technical Specifications:

Expand your compatible Shelly monitoring project with practical 0–30 V DC measurement and add the Shelly Analog Add-On to your cart today.
