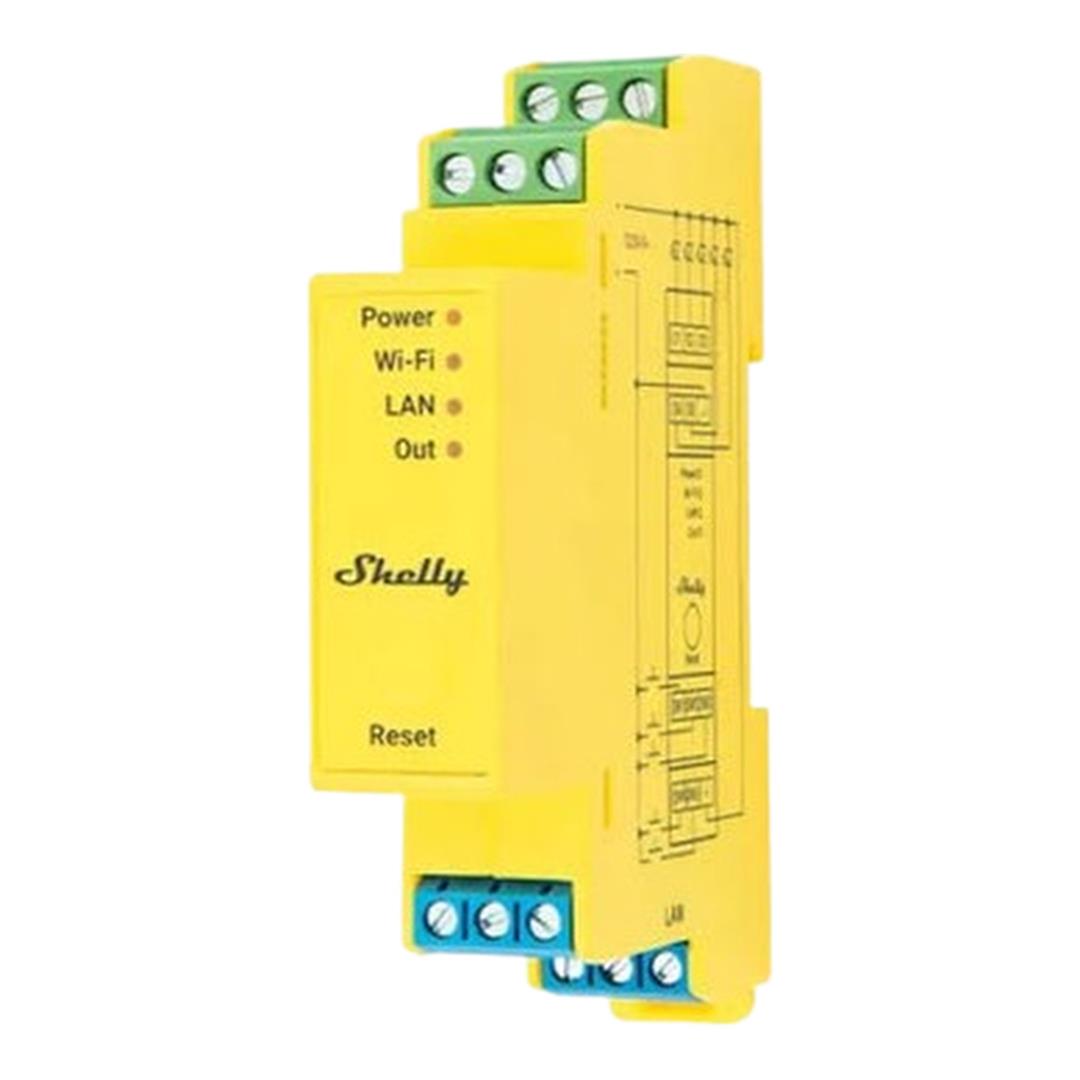

Shelly Pro RGBWW PM 5-channel DIN-rail Mountable Smart Light Controller

Shelly Pro RGBWW PM 5-channel DIN-rail Mountable Smart Light Controller

Experience versatile smart lighting control with the Shelly Pro RGBWW PM 5-channel DIN-rail Mountable Smart Light Controller. Designed for compatible 12-24V DC LED lighting installations, this professional controller provides five configurable output channels for RGB, adjustable white (CCT) and individual LED strip control. Featuring four lighting profiles, integrated power monitoring, Wi-Fi, Ethernet and Bluetooth connectivity, it enables precise brightness, colour and energy management. Its compact DIN-rail design, advanced automation features and integrated electrical protections make it suitable for residential and commercial smart lighting systems.

Key Features:

• Shelly Pro RGBWW PM smart lighting controller
• Manufacturer model SPDC-0D5PE16EU
• Five configurable lighting output channels
• Five switch, button or analogue inputs
• Standard DIN-rail mounting design
• 12-24V DC power supply requirement
• Maximum current of 6A per channel
• Maximum combined output current of 16A
• Four configurable lighting profiles
• RGB + CCT lighting control
• Dual CCT lighting control
• RGB with two independent lights
• Five independent lighting outputs
• Adjustable brightness and colour temperature
• Default CCT range of 2700-6500K
• Configurable CCT range within 1000-10000K
• Integrated voltage, current and power monitoring
• 2.4GHz Wi-Fi connectivity
• Wired Ethernet LAN connection
• Bluetooth 4.2 connectivity
• Wi-Fi Range Extender and BLE Gateway support
• Shelly Smart Control app compatibility
• Embedded web-based management interface
• MQTT, webhooks and scripting support
• Up to 20 configurable schedules
• Night Mode and automatic on/off timers
• Adjustable PWM frequency up to 22kHz
• Overcurrent, overvoltage and overpower protection
• Integrated overheating protection
• Compact yellow DIN-rail enclosure

Features

Five-Channel Smart Lighting Control

The Shelly Pro RGBWW PM features five output channels for controlling compatible low-voltage lighting. Its flexible architecture supports multi-colour LED strips, adjustable white lighting and independent lighting zones.

Four Configurable Lighting Profiles

The controller supports RGB + CCT, CCT x2, RGB + two individual lights and five independent lights. These operating profiles allow the device to accommodate different lighting installations without requiring separate controllers for every configuration.

Independent Control of Five Lights

In the Lights x5 profile, each output can independently control a compatible LED strip or light group. Users can configure individual brightness levels, operating schedules and automation actions for separate lighting areas.

RGB and Adjustable White Lighting

The RGB + CCT profile supports colour-changing lighting alongside adjustable white illumination. This allows compatible LED strips to produce decorative colours and different white colour temperatures according to the selected lighting environment.

Flexible Colour Temperature Adjustment

The controller uses a default colour temperature range of 2700-6500K. Supported configurations allow the range to be adjusted within 1000-10000K, depending on the connected lighting hardware.

12-24V DC Operation

The Pro RGBWW PM is designed for compatible 12V and 24V DC lighting systems. A suitable external DC power supply is required, with adequate capacity for the controller and all connected lighting loads.

High-Capacity Lighting Outputs

Each output channel supports a maximum control current of 6A, subject to a combined maximum of 16A across all channels. This provides flexible control for supported LED strip installations while remaining within the manufacturer's electrical limits.

Integrated Power Monitoring

Built-in measurement functionality provides real-time information about voltage, current, power and energy consumption. These measurements allow users to monitor supported lighting circuits and review electricity usage through compatible management interfaces.

Wi-Fi Connectivity

Integrated 2.4GHz Wi-Fi allows the controller to connect to compatible wireless networks. Users can configure and manage supported lighting functions locally or through compatible Shelly cloud services.

Reliable Ethernet Connectivity

The built-in RJ45 Ethernet connection provides wired networking for installations where a stable connection is preferred. This is particularly useful when the controller is installed inside an electrical distribution enclosure.

Bluetooth 4.2 Support

Bluetooth 4.2 enables supported wireless configuration and integration functions. The device also offers BLE Gateway functionality for compatible Bluetooth Low Energy devices.

Flexible Switch and Analogue Inputs

Five configurable inputs support compatible switches, push buttons and analogue controls. Depending on the selected lighting profile, inputs can be assigned to brightness adjustment, lighting operation and other supported functions.

Adjustable PWM Lighting Control

The controller uses pulse-width modulation for brightness control. Its default PWM frequency is 833Hz, with an optional high-frequency mode of 22kHz that can help reduce audible noise from certain compatible LED installations.

Customisable Night Mode

Night Mode allows predefined brightness, colour or colour temperature settings to be applied during configured periods. This enables softer lighting arrangements for bedrooms, corridors and other indoor areas.

Smart Lighting Schedules

Create up to 20 schedules to automate lighting behaviour. Supported actions include brightness adjustment, colour changes and timed switching, allowing lighting to follow household or business routines.

Shelly Smart Control Integration

The Shelly Smart Control app allows users to manage compatible lighting settings, monitor device operation and configure automation scenes. The controller can also operate through its local web interface without depending on cloud connectivity for basic operation.

Advanced Automation Capabilities

MQTT, webhooks, scripting and local actions enable integration with compatible automation platforms. These features provide flexible options for synchronising lighting with supported sensors, switches and other smart devices.

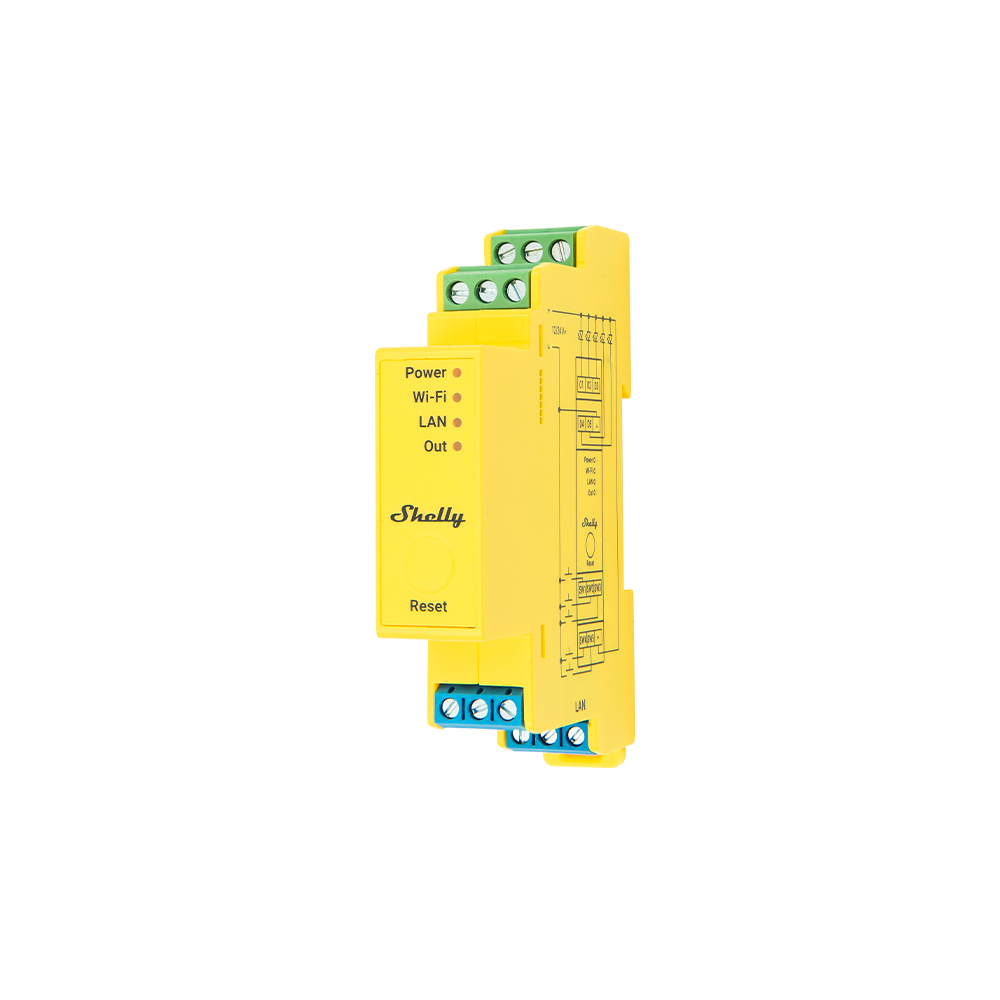

Compact DIN-Rail Construction

Measuring approximately 94 x 19 x 69mm, the controller features a compact yellow enclosure suitable for standard DIN-rail installation. Its narrow design helps conserve space inside appropriately ventilated electrical cabinets.

Integrated Electrical Protection

The Pro RGBWW PM includes overcurrent, overvoltage, overpower and overheating protection. These safeguards help protect the controller during specified electrical fault conditions when correctly installed.

Technical Specifications:

Specification	Details
Brand	Shelly
Product Model	Pro RGBWW PM
Manufacturer Model Code	SPDC-0D5PE16EU
Product Type	Smart LED Lighting Controller
Mounting Type	DIN Rail
Output Channels	5
Control Inputs	5 Configurable Switch / Button / Analogue Inputs
Lighting Profiles	RGB+CCT, CCT x2, RGB+2 Lights, Lights x5
Power Supply	12-24V DC
Maximum Switching Voltage	24V DC
Maximum Current per Channel	6A
Maximum Combined Current	16A
Device Power Consumption	Less Than 1.5W
Default CCT Range	2700-6500K
Configurable CCT Range	Within 1000-10000K
Default PWM Frequency	833Hz
High-Frequency PWM Mode	22kHz
Power Monitoring	Supported
Measurement Functions	Voltage, Current, Power and Energy
Wi-Fi Standard	IEEE 802.11b/g/n
Wi-Fi Frequency	2.4GHz
Ethernet	1 x RJ45 LAN Port
Bluetooth	4.2
Processor	ESP32-D0WDQ6
Flash Memory	8MB
Configurable Schedules	20
Webhooks	20, Up to 5 URLs Each
Advanced Automation	MQTT, Scripting, Webhooks, Advanced Scheduling
Protection Features	Overheating, Overvoltage, Overcurrent, Overpower
External Circuit Protection	16A Type B/C, 6kA Interrupting Rating
Dimensions	94 x 19 x 69mm
Weight	61g
Housing Material	Plastic
Colour	Yellow
Operating Temperature	-20°C to 40°C
Operating Humidity	30-70% RH

What's in the Box

• 1 x Shelly Pro RGBWW PM 5-Channel Smart Light Controller

Manage compatible LED lighting with the Shelly Pro RGBWW PM 5-channel DIN-rail Mountable Smart Light Controller. Combining flexible RGB and CCT control, five configurable outputs, integrated energy monitoring, Wi-Fi, LAN and Bluetooth connectivity, and advanced automation capabilities, this compact device provides professional smart lighting management for residential and commercial installations.
