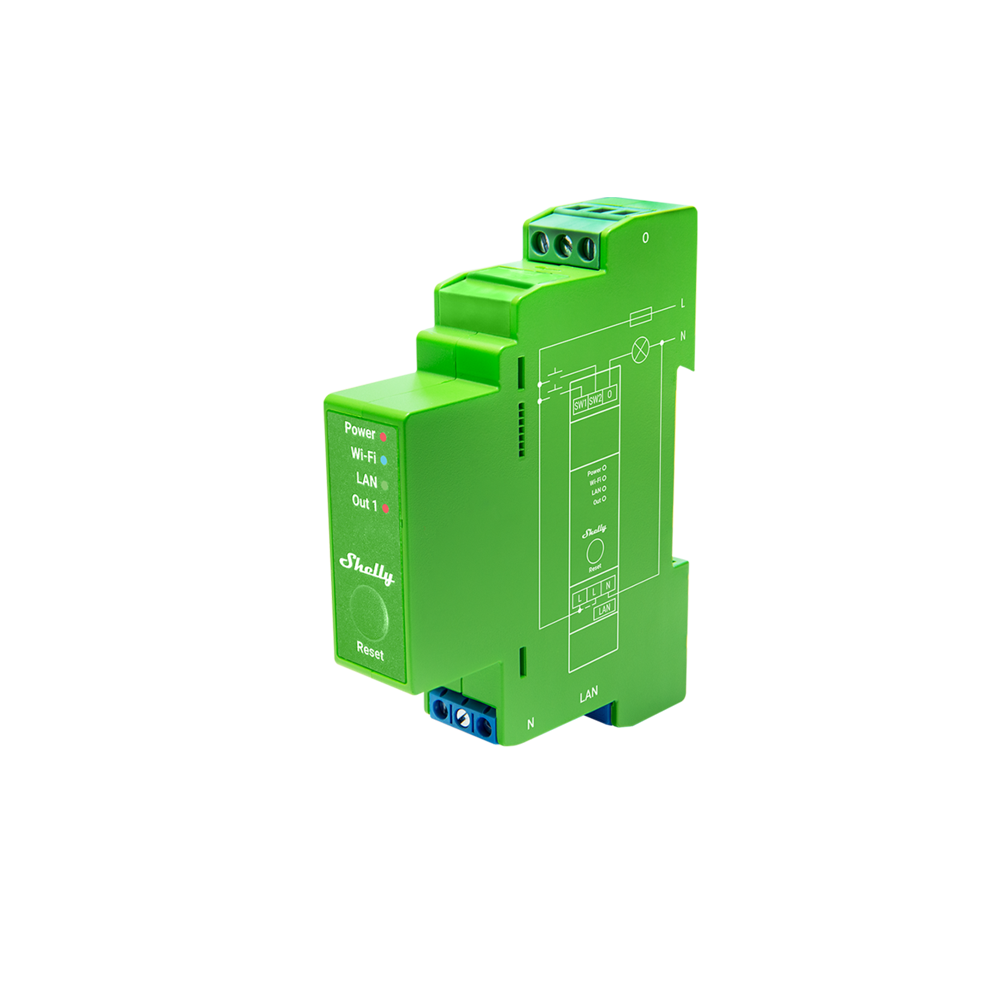

Shelly Pro Dimmer 1PM DIN-rail Mountable Smart Dimmer

Shelly Pro Dimmer 1PM DIN-rail Mountable Smart Dimmer

Enhance lighting control with the Shelly Pro Dimmer 1PM DIN-rail Mountable Smart Dimmer. Designed for residential and commercial electrical installations, this single-channel smart dimmer provides precise brightness adjustment and built-in power monitoring for compatible lighting circuits. Supporting loads up to 200W, the device combines trailing-edge dimming, automatic calibration and configurable lighting schedules with Wi-Fi, Ethernet LAN and Bluetooth connectivity. Its compact DIN-rail design, local web interface, Shelly Smart Control compatibility and comprehensive electrical protection features make it suitable for advanced smart lighting installations.

Key Features:

• Shelly Pro Dimmer 1PM smart lighting controller
• Manufacturer model SPDM-001PE01EU
• Single-channel smart dimming output
• Standard DIN-rail mounting
• Maximum output power of 200W
• Trailing-edge dimming technology
• Automatic dimming calibration
• Compatible with supported dimmable LED lighting
• Supports incandescent and halogen lamps
• Supports compatible transformer lighting loads
• Integrated real-time power monitoring
• Voltage, current and energy measurement
• 2.4GHz Wi-Fi connectivity
• Wired Ethernet LAN connection
• Bluetooth 4.2 connectivity
• Two configurable switch/button inputs
• Adjustable minimum and maximum brightness
• Customisable night mode
• Smart lighting schedules and automation
• Up to 20 configurable schedules
• Shelly Smart Control app integration
• Local embedded web interface
• MQTT communication support
• Webhook automation functionality
• Custom scripting support
• Compatible with supported voice assistants
• KNXnet/IP integration support
• Overheating protection
• Overvoltage protection
• Overcurrent and overpower protection
• 110-240V AC operating voltage
• Compact green DIN-rail enclosure
• Five-year limited manufacturer warranty

Features

Professional DIN-Rail Smart Dimming

The Shelly Pro Dimmer 1PM is designed for installation on a standard DIN rail inside a suitable electrical distribution enclosure. Its compact construction provides a practical solution for centralised smart lighting control in homes, offices and commercial premises.

Single-Channel Lighting Control

The device provides one independently controlled dimming output, allowing users to adjust the brightness of a compatible lighting circuit. This makes it suitable for installations requiring precise control over individual lighting zones.

Up to 200W Output Power

The Pro Dimmer 1PM supports compatible lighting loads up to 200W. It is suitable for supported dimmable LED lamps, incandescent bulbs, halogen lighting and selected transformer-based installations.

Trailing-Edge Dimming Technology

The device uses trailing-edge phase-cut dimming to adjust brightness on compatible lighting circuits. This provides smooth lighting control for supported lamps and drivers when correctly installed and configured.

Automatic Dimming Calibration

Automatic calibration helps determine suitable dimming characteristics for the connected load. This assists with achieving consistent brightness adjustment and reducing flickering on compatible dimmable lamps.

Adjustable Brightness Settings

Users can configure minimum and maximum brightness levels to suit compatible lighting installations. These settings help establish an appropriate operating range and improve everyday lighting control.

Built-In Power Monitoring

The Pro Dimmer 1PM includes integrated power and energy measurement functionality. Users can monitor electricity consumption from the connected lighting circuit and access supported energy information through compatible management interfaces.

Wi-Fi Connectivity

Built-in 2.4GHz Wi-Fi provides wireless network connectivity without requiring a dedicated Shelly hub. The device can be controlled through its local interface or supported smart home services when properly connected.

Reliable Wired LAN Connection

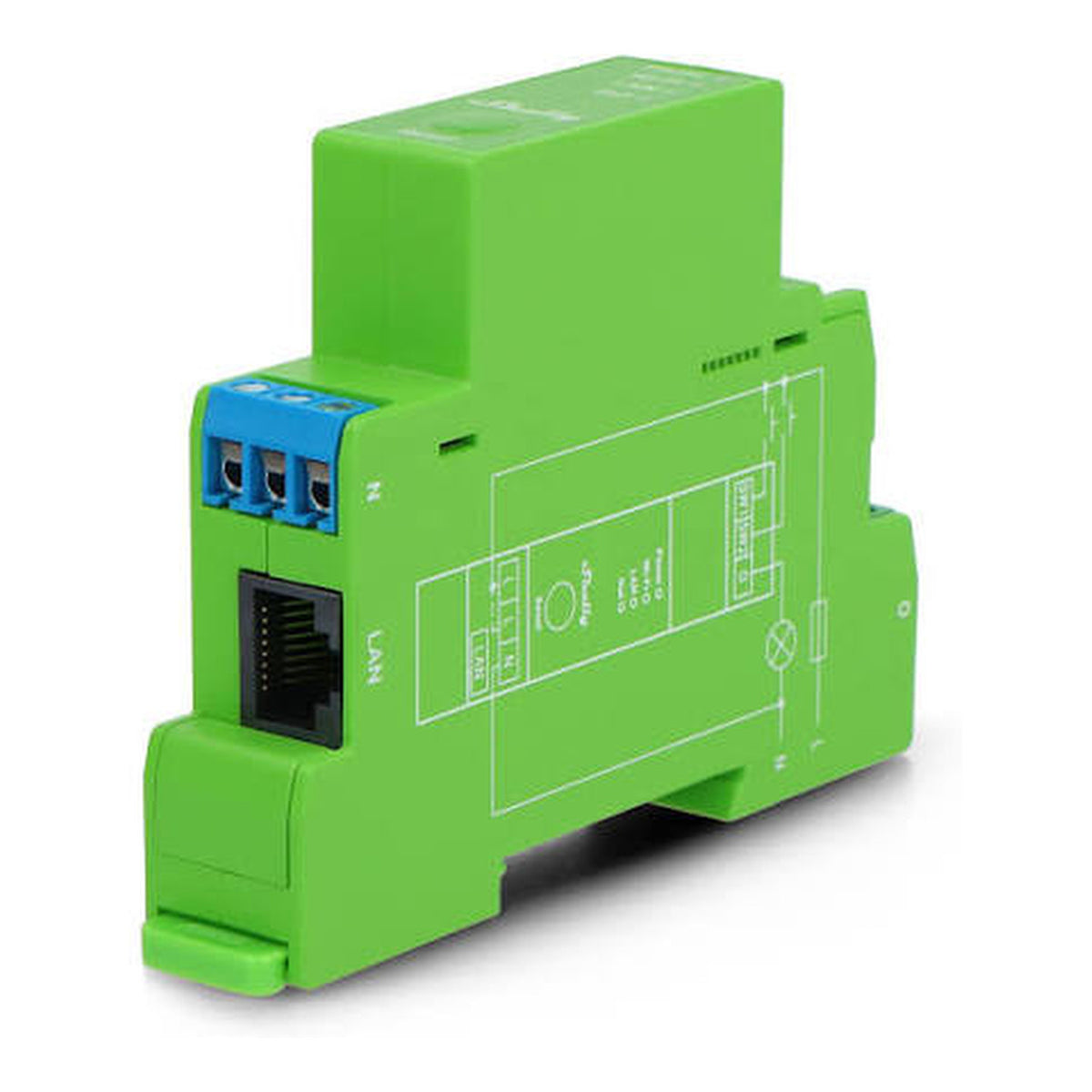

An integrated RJ45 Ethernet port provides wired network connectivity. This is particularly useful for electrical distribution boards where a stable network connection is preferred.

Bluetooth Connectivity

Bluetooth 4.2 provides additional wireless connectivity capabilities for compatible setup and integration functions. Availability depends on firmware and supported applications.

Two Configurable Switch Inputs

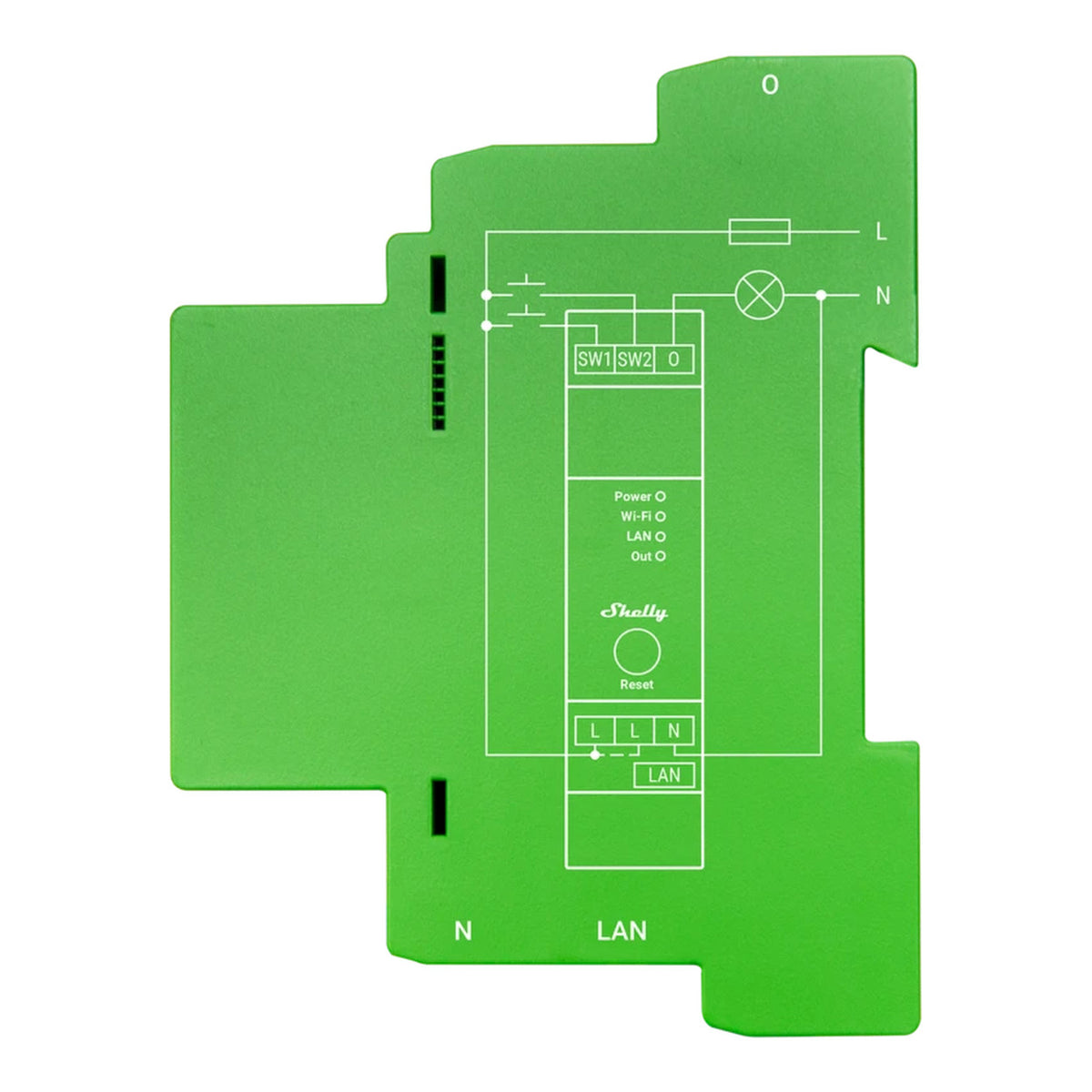

The device includes two switch/button inputs, SW1 and SW2, for connection to compatible wall switches or push buttons. Supported input modes allow flexible manual lighting control alongside smart automation.

Customisable Night Mode

Night mode allows the device to operate at predefined brightness levels during configured periods. This is useful for creating softer lighting in corridors, bedrooms and other indoor spaces during evening hours.

Smart Lighting Schedules

Create up to 20 schedules to automate lighting operation at selected times. This enables brightness adjustments and switching actions that follow daily household or business routines.

Shelly Smart Control Integration

The Shelly Smart Control app allows compatible users to monitor, configure and operate the dimmer. Supported automation scenes can coordinate lighting with other Shelly devices.

Local Web-Based Management

An embedded web interface allows configuration and monitoring through a compatible browser on the local network. This provides direct access to device settings without requiring routine cloud access.

Advanced Automation Integration

Support for MQTT, webhooks, custom scripting and KNXnet/IP integration provides flexible connectivity with compatible building automation and smart home platforms.

Voice Assistant Compatibility

The Pro Dimmer 1PM supports compatible voice assistant ecosystems through supported integrations. This allows users to control lighting using voice commands when correctly configured.

Comprehensive Electrical Protection

Integrated overheating, overvoltage, overcurrent and overpower protection helps safeguard the device under specified fault conditions. Appropriate upstream circuit protection and professional installation remain essential.

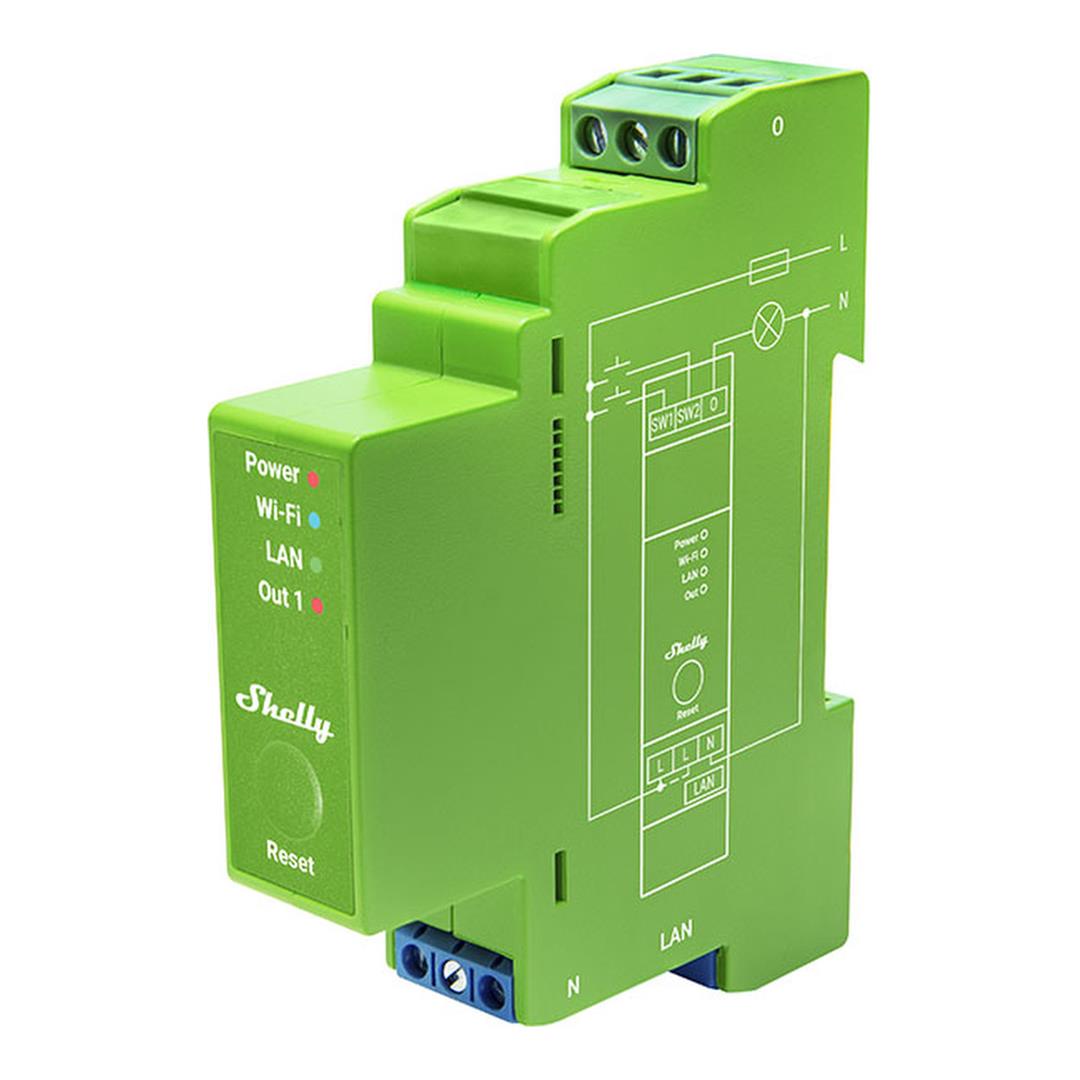

Compact DIN-Rail Construction

Measuring approximately 94 x 19 x 69mm, the dimmer occupies a narrow space within a compatible distribution enclosure. Its green plastic housing includes status indicators and a reset button for convenient identification and management.

Low Device Power Consumption

The dimmer consumes less than 2W for its own operation, excluding the connected lighting load. This supports efficient smart lighting management in compatible electrical installations.

Technical Specifications:

What's in the Box

• 1 x Shelly Pro Dimmer 1PM DIN-Rail Smart Dimmer
• Product and safety documentation as supplied by the manufacturer

Experience flexible smart lighting control with the Shelly Pro Dimmer 1PM DIN-rail Mountable Smart Dimmer. Combining single-channel dimming up to 200W, integrated energy monitoring, Wi-Fi, LAN and Bluetooth connectivity, automatic calibration and advanced automation support, this compact DIN-rail device provides professional lighting management for compatible residential and commercial installations.
