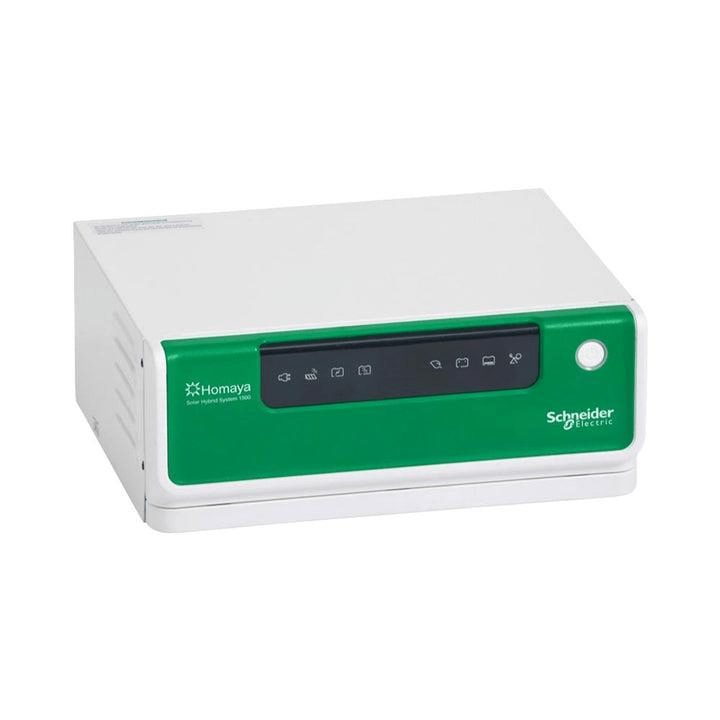

Schneider Electric Hybrid Solar Inverter System 850 AEH-SHI01-0850

Schneider Electric Hybrid Solar Inverter System 850 AEH-SHI01-0850

Features

Protection: Short-circuit, Overload, High Temperature, Internal Fault, Deep Discharge, Battery Low.

Solar Panel: Supports up to 800Wp, 12V Solar Panel Array, Voc Required between 17V to 21V.

Battery: 12V Operating Voltage: 100Ah to 200Ah. Supports tubular, Flat plate, GEL / VRLA battery.

Display Indications

• Mains available
• Battery Charging through Mains or Solar Panel
• Input Voltage regulation Mode
• Power Savings
• Load Output through Battery
• Low Battery Indication
• Overload Indication

Buzzer Sound Indications

• Battery ON
• Low Battery Pre-Alarm
• Battery Low Shut Down
• Overload Shutdown Indication
• Short Circuit & ECO / UPS Mode Selection

Technical Specifications
Colour: Green and White
Material: Metal and Plastic
Wave Type: Pure Sine Wave
Capacity: 850VA
Solar Charge Current (Max.): 40Amp / 12V
Voltage:

• Eco Mode: 100V - 290V
• UPS Mode: 180V - 260V

DC Output: 12V / 20A
AC Output: 230V / 50Hz
Height: 135mm
Width: 315mm
Length: 375mm
