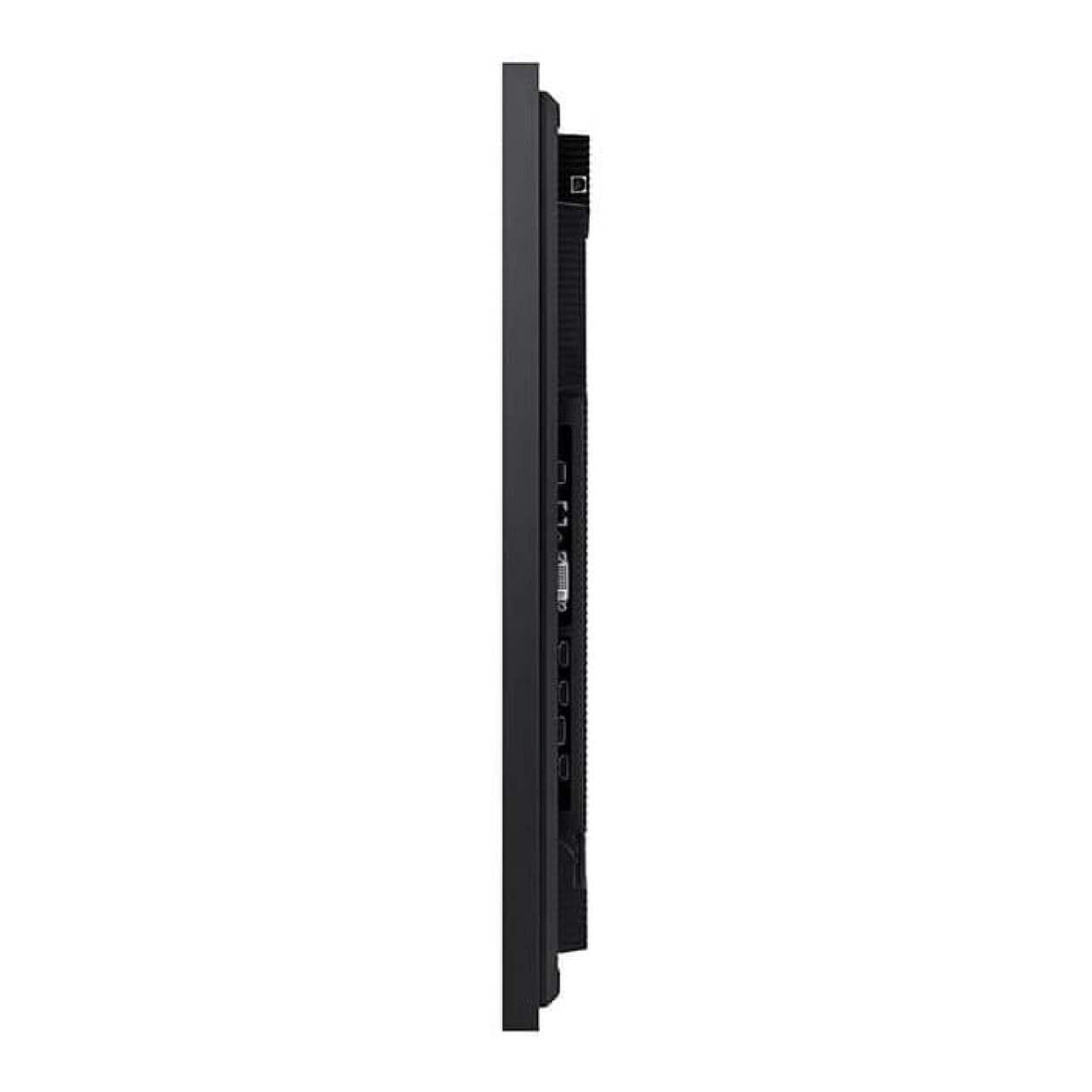

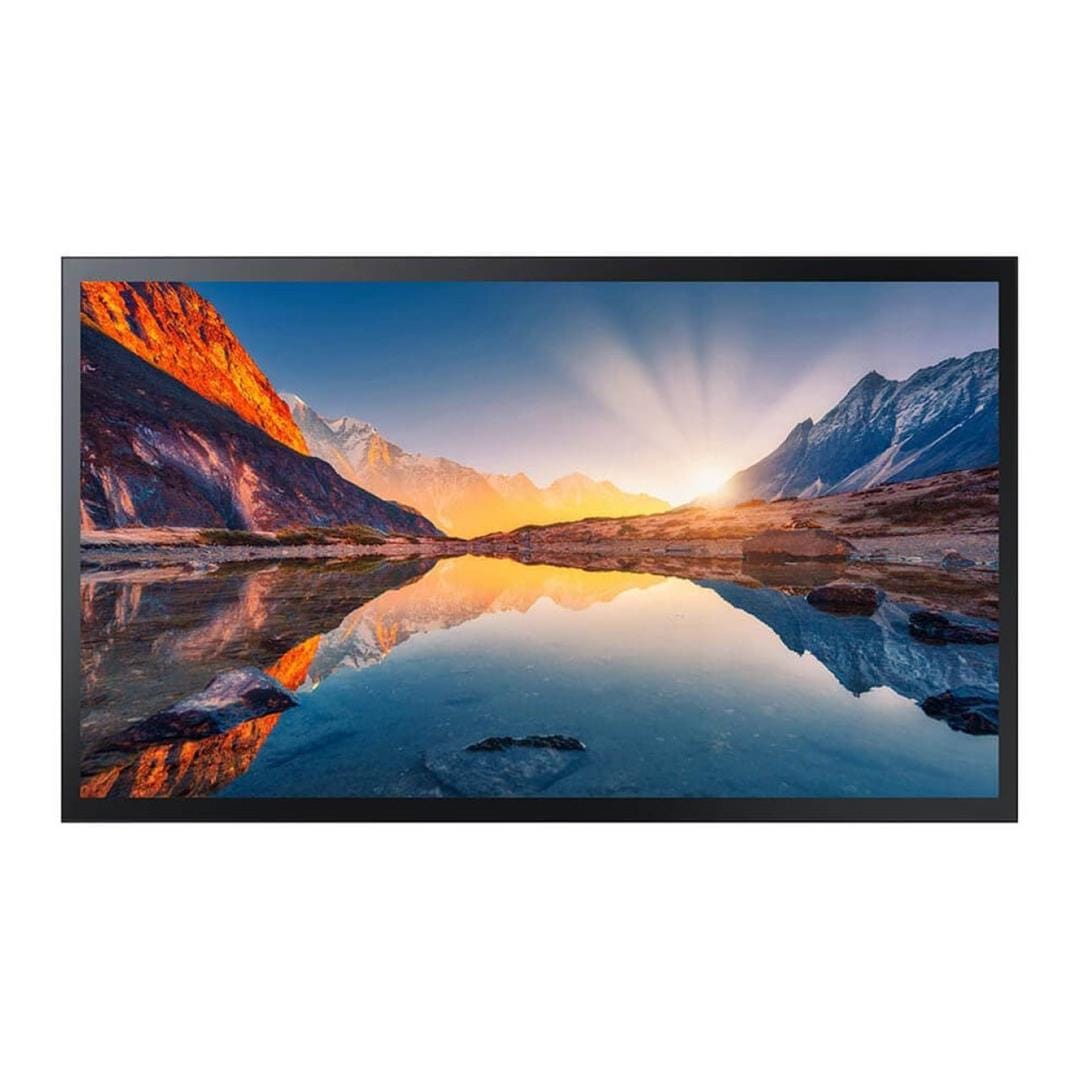

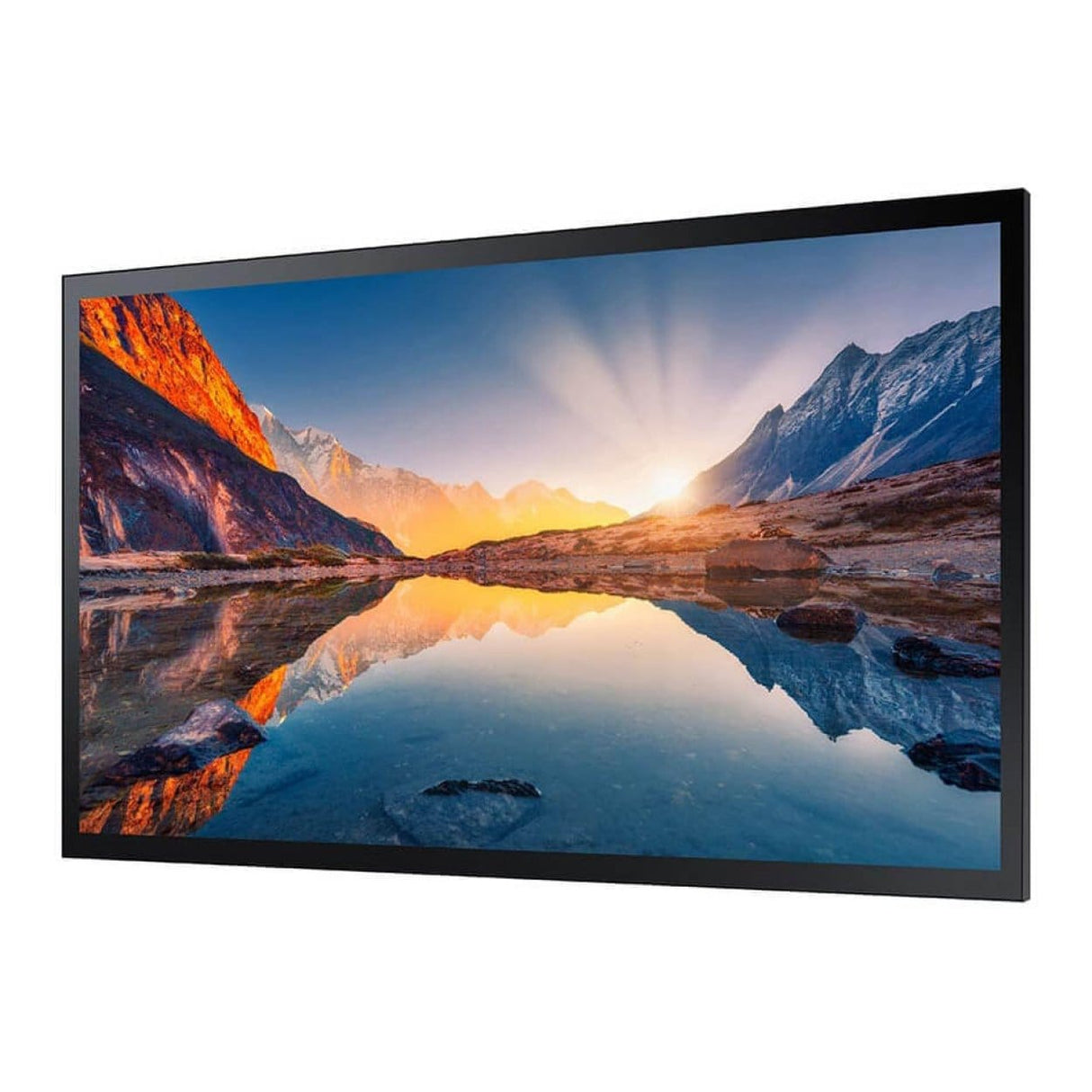

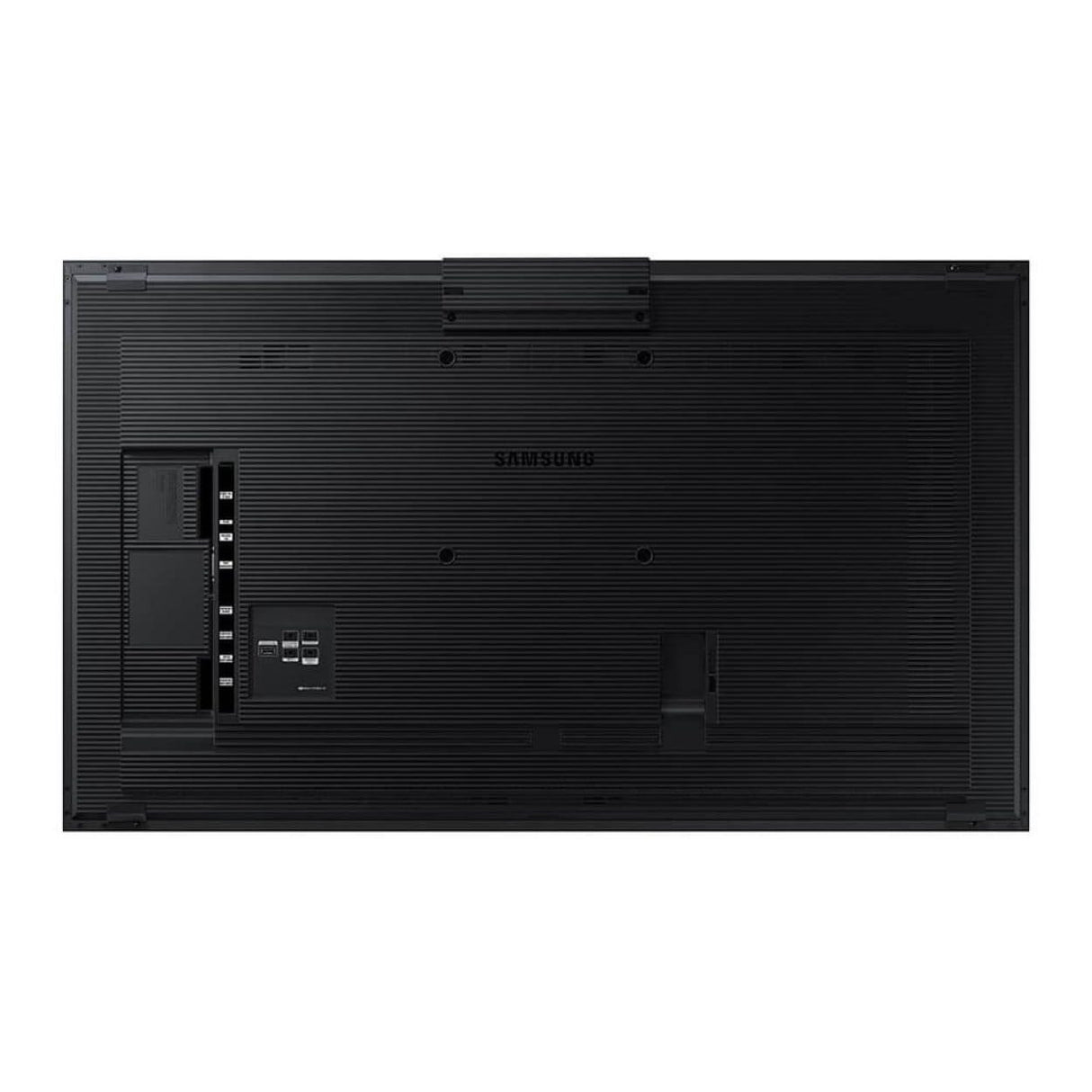

Samsung QM32R-T 32-inch FHD LCD Digital Signage Panel LH32QMRTBGCXEN

Samsung QM32R-T 32-inch FHD LCD Digital Signage Panel LH32QMRTBGCXEN

All-in-one touch solution for any environment

QMR-T displays maximize the touch display experience with a built-in, high performance Tizen-based media player. The all-in-one design eliminates the need for an external media player and an upgraded Tizen OS makes it easier than ever to utilize various touch apps.

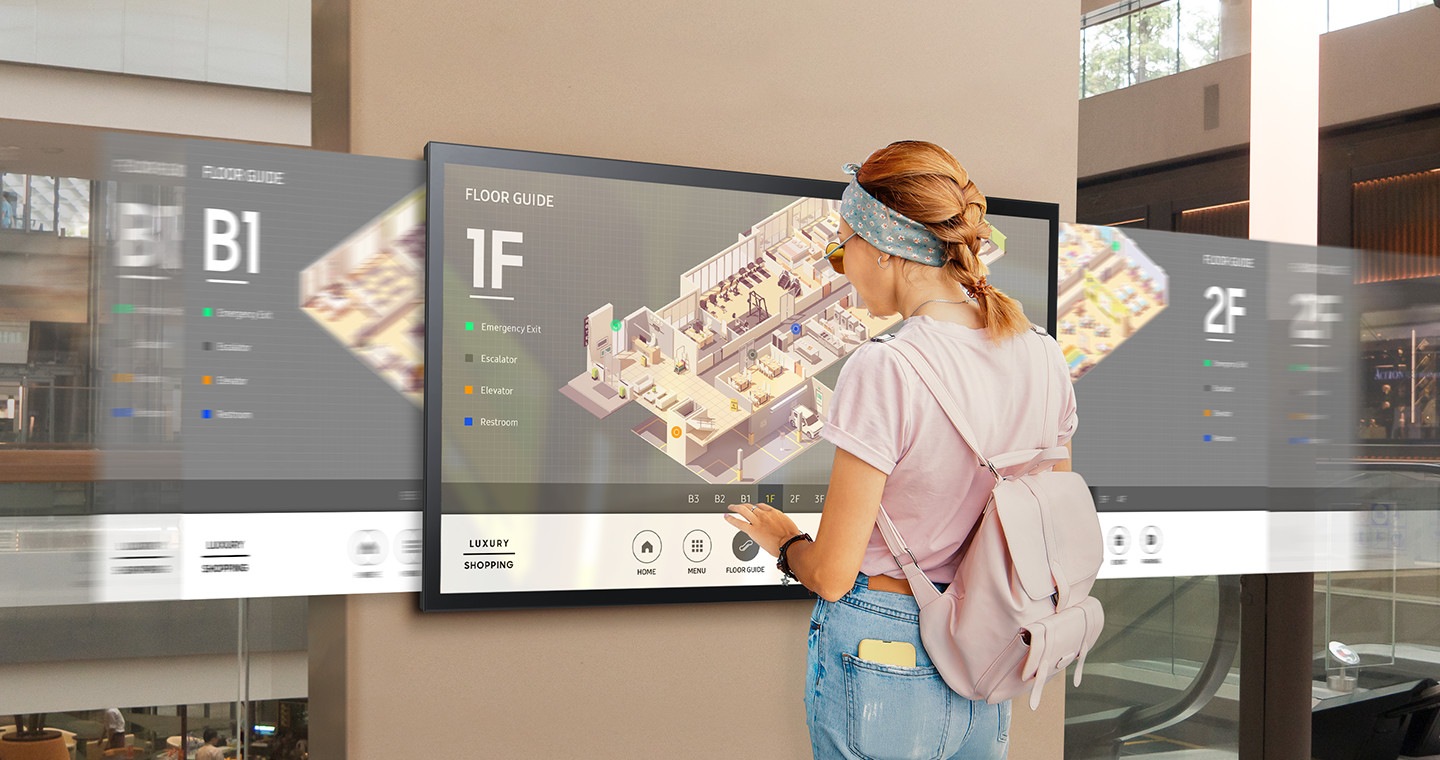

Powerful touch experience

Upgraded Tizen OS makes playback more stable and opens up new possibilities with high-speed content. A responsive capacitive touch functionality offers an engaging user experience and the user-friendly design enables comfortable, productive digital interaction.

Better visibility even in sunlight

The QMR-T series offers improved visibility through non-glare glass which removes reflections that might disturb customer engagement, while the haze coating creates a smoother touch.

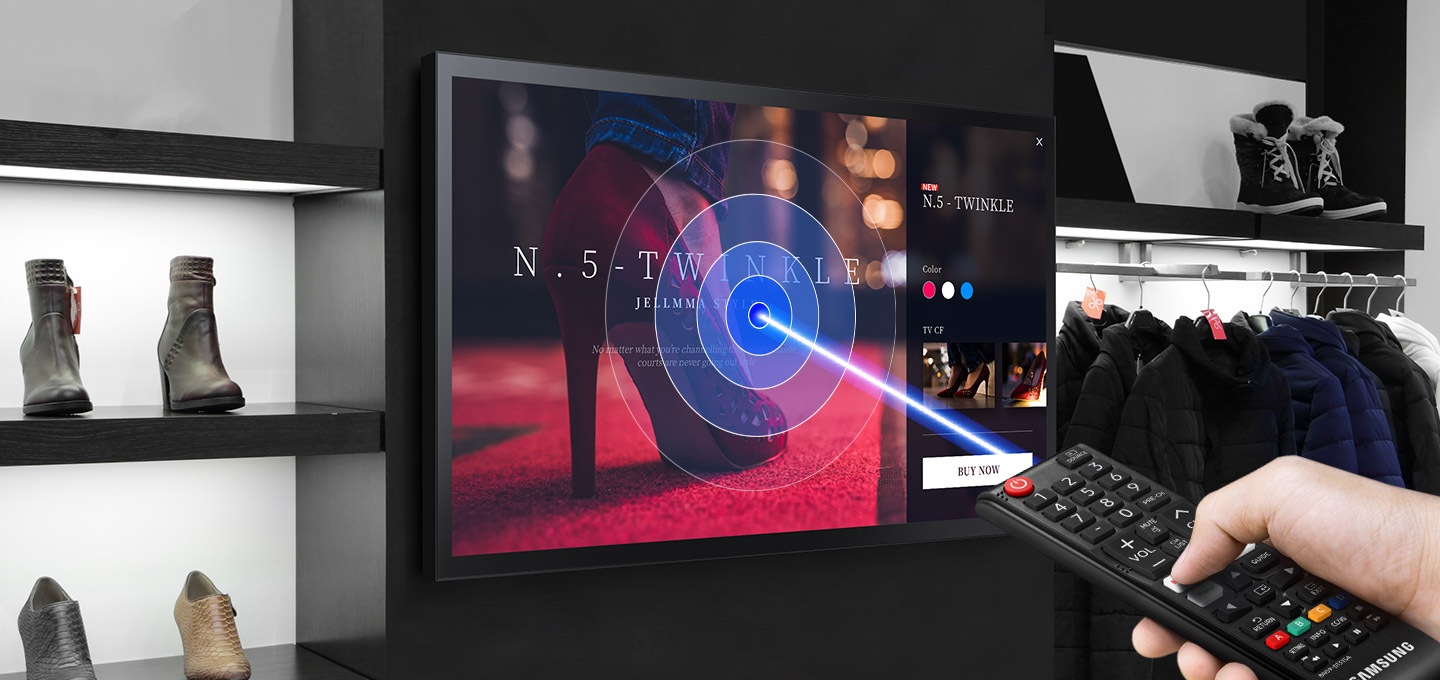

Built to be reliable and efficient

With an IP5X rating standard, the display is guaranteed to be efficient and reliable even in dusty environments. An innovative center IR means businesses implementing the display, won’t have to make any adjustments and a conformal coating protects the display from repeated customer interactions.

Built to be reliable and efficient

With an IP5X rating standard, the display is guaranteed to be efficient and reliable even in dusty environments. An innovative center IR means businesses implementing the display, won’t have to make any adjustments and a conformal coating protects the display from repeated customer interactions.

Integrated content and device management solution

Samsung’s MagicINFO solution enables easy content creation for touch display and simple scheduling and management from a selection of curated images and videos. An early warning alert system ensures no downtime.

Specifications:

Diagonal Size: 32"

Panel Type: New Edge, 60Hz

Resolution: 1,920 x 1,080

Pixel Pitch (HxV): 0.36375 x 0.36375 (mm)

Brightness (Typical): 400(without glass), 300(with glass)

Contrast Ratio: 5000:1(without glass)

Viewing Angle (Horizontal/Vertical): 178/178

Response Time: 8ms

Colour Gamut: 72%

Glass Haze: 2% (without Glass)

H-Scanning Frequency: 30 ~ 81kHZ

Maximum Pixel Frequency: 594MHz

V-Scanning Frequency: 48 ~ 75HZ

Contrast Ratio (Dynamic):

• Mega DCR
• Connectivity
• HDMI In
• 2

DP In: Yes

USB: 2

IR In: Yes

HDBaseT In: No

Audio In: No

Audio Out: Stereo Mini Jack

Video Out: Yes

RS232 In: Yes

RS232 Out: Yes

RJ45 In: Yes

RJ45 Out: No

WiFi: Yes

3G Dongle: No

Bluetooth: Yes
