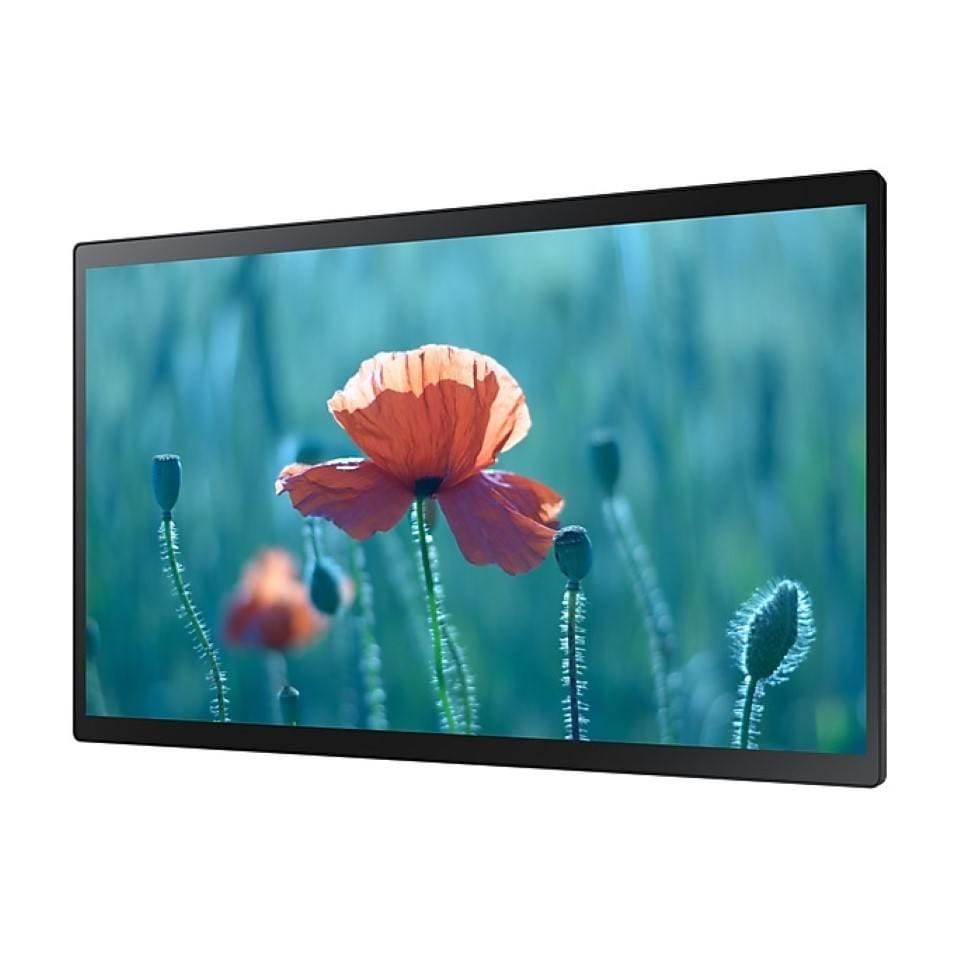

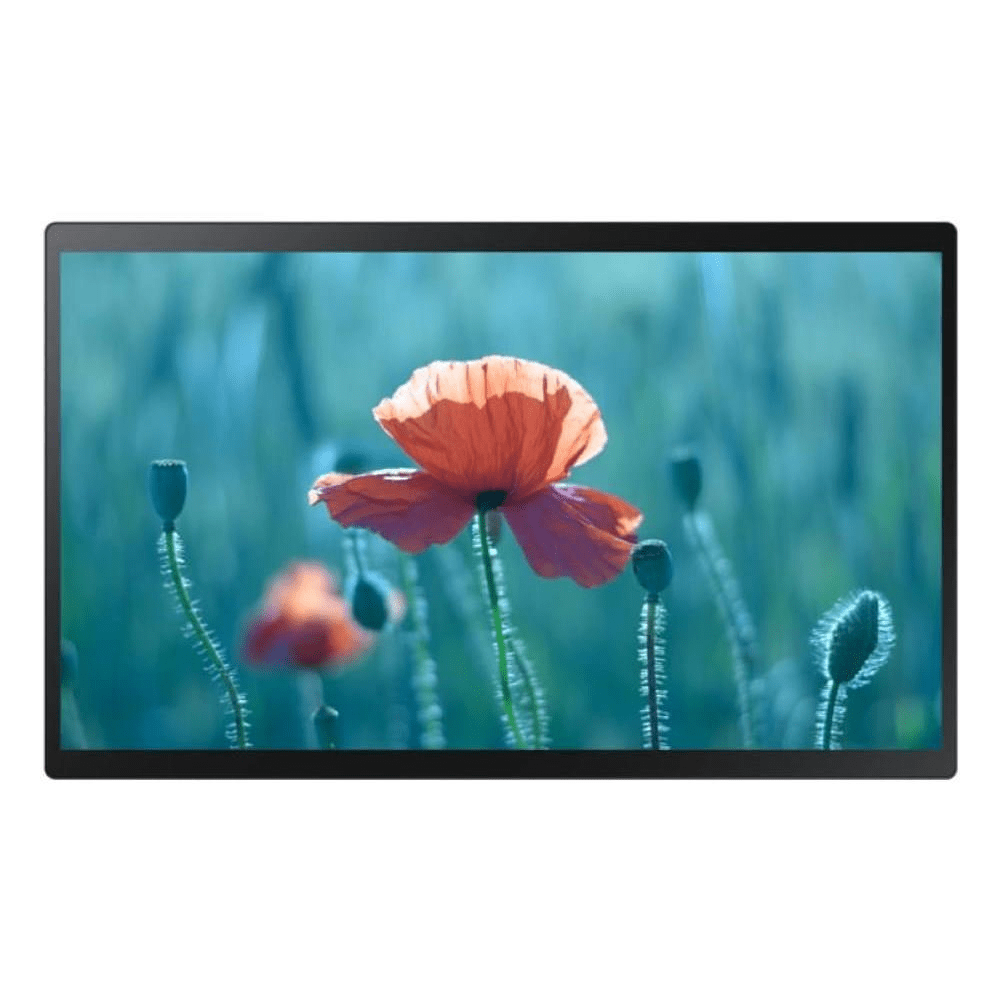

Samsung QB24R-T 24-inch FHD Digital Interactive Display LH24QBRTBGC

Samsung QB24R-T 24-inch FHD Digital Interactive Display

Improved engagement with intuitive interaction

Samsung’s QB24R-T touch-enabled small display provides a unique store experience and improves customer engagement, offering customers content up close in a compact design. Designed for professional use, it enables efficient content operation and reliable performance for any business use.

Fast, effective touch capabilities

With integrated capacitive touch functionality, the QB24R-T provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action, creating new customer interactions and driving purchase.

Crisp and visible content

Samsung’s QB24R-T is enhanced by a non-glare panel which always delivers clear images and text regardless of any ambient light. This essential feature is supported by reliable 16/7 operation, suitable for professional use.

Slim design

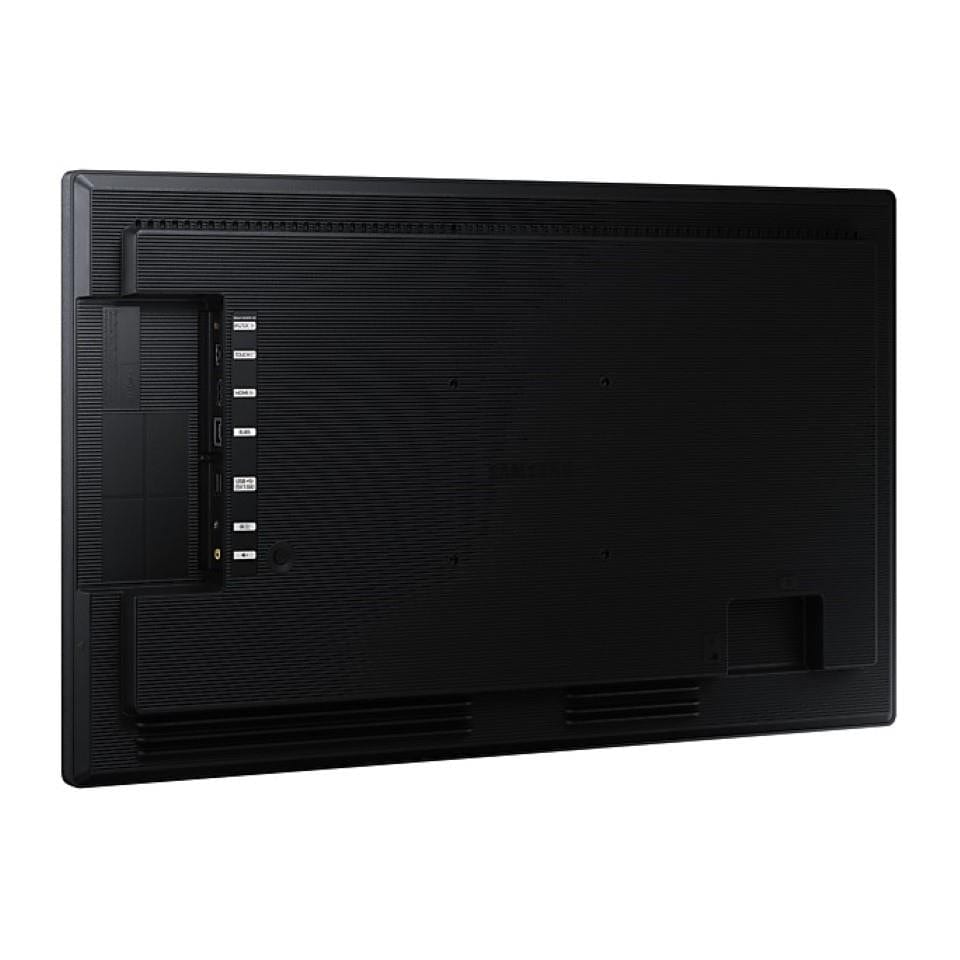

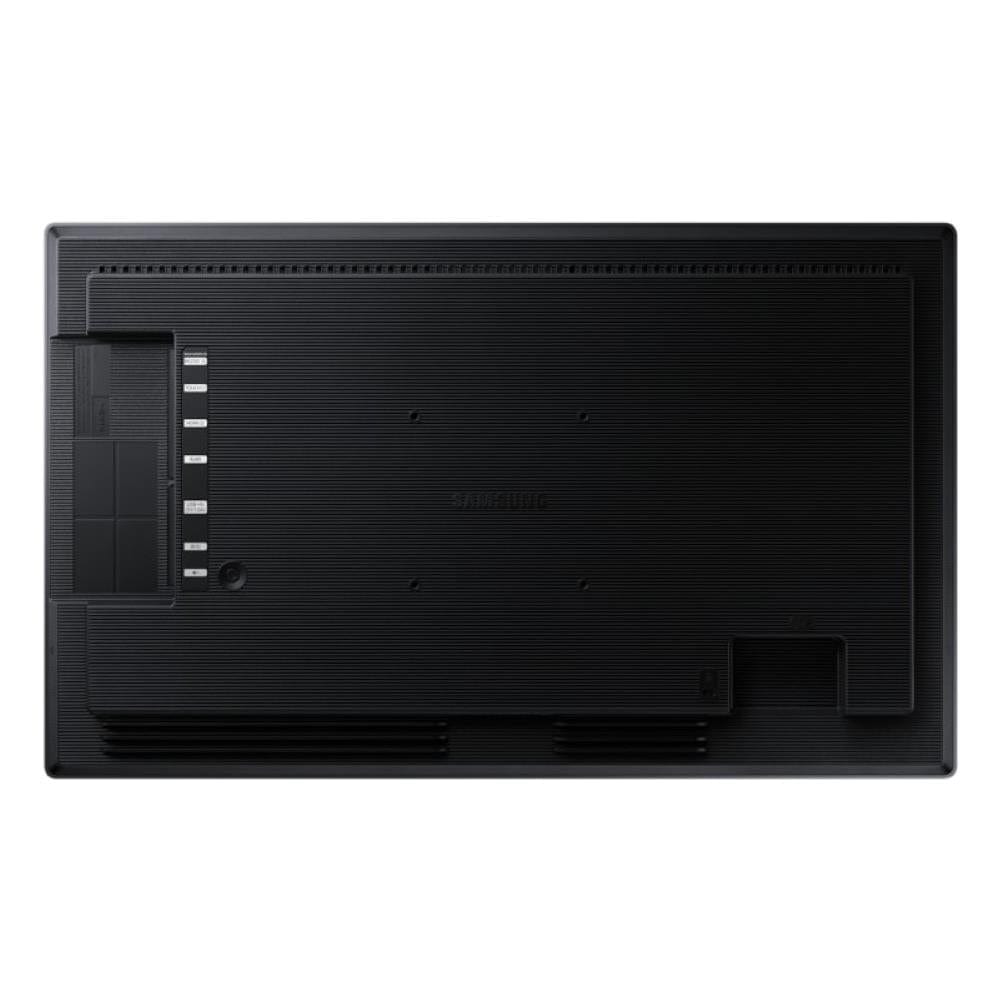

The compact and slim design of the QB24R-T allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB24R-T allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

Comprehensive security setup

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

Convenient, clean display control

With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance

The QB24R-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Specifications:

Diagonal Size: 23.8"

Panel Type: ADS

Resolution: 1,920 x 1,080

Pixel Pitch (HxV): 0.2745 x 0.2745 mm

Brightness (Typical): 250 (Typ, w/o glass)

Contrast Ratio: 1000:1(without glass)

Viewing Angle (H/V): 178/178

Response Time: 14ms

Color Gamut: 72%

Glass Haze: 25(without glass)

H-Scanning Frequency: 48~75KHz

Maximum Pixel Frequency: 594MHz

V-Scanning Frequency: 56~84.5Hz

Contrast Ratio (Dynamic): Mega

HDMI In: 1

DP In: No

USB: 1

IR In: Yes

HDBaseT In: No

Audio In: No

Audio Out: Stereo Mini Jack

Video Out: No

RS232 In: Yes

RS232 Out: No

RJ45 In: Yes

RJ45 Out: No

WiFi: Yes

3G Dongle: No

Bluetooth: Yes

Power Supply: AC100-240V 50/60Hz

Power Consumption (On Mode): 38.5W

Power Consumption (Sleep Mode): 0.5W

Set Dimension (WxHxD): 547.9 x 334.4 x 34.6 mm
