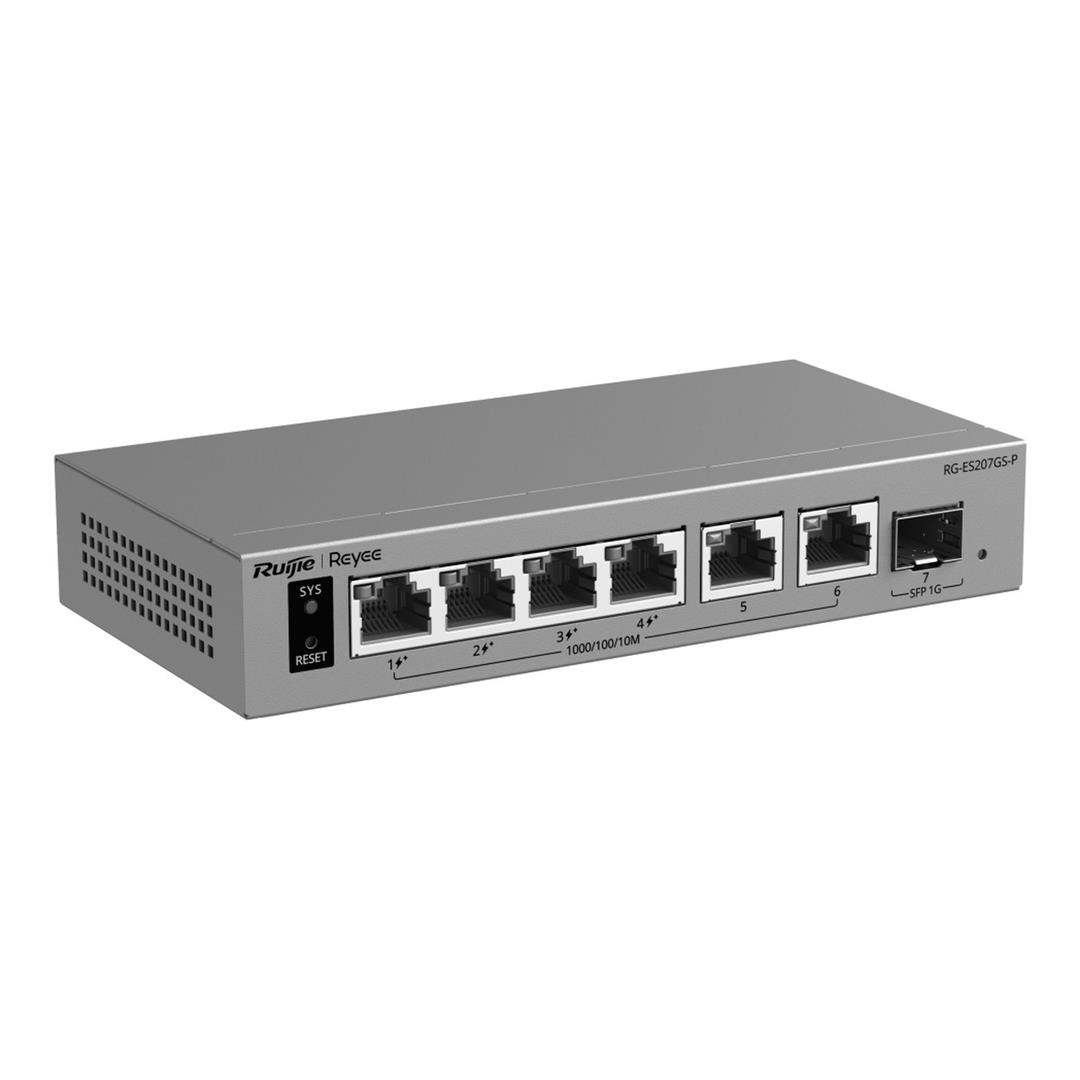

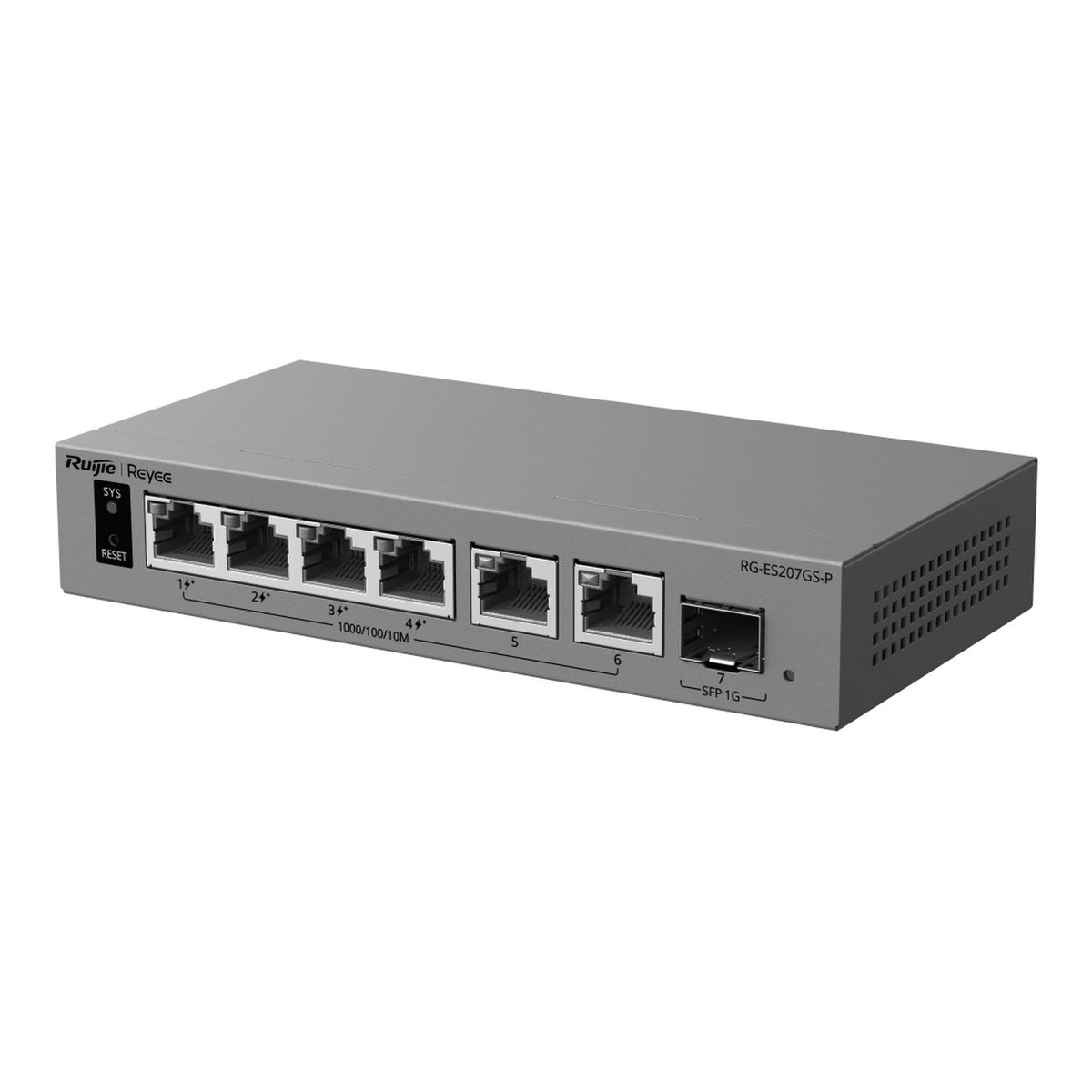

Ruijie Reyee 6-port Gigabit Uplink Smart Managed Switch RG-ES207GS-P

Ruijie Reyee 6-port Gigabit Uplink Smart Managed Switch RG-ES207GS-P

The Ruijie Reyee RG-ES207GS-P is a compact Layer 2 smart cloud-managed Gigabit PoE+ switch designed for CCTV installations, small offices and business networks. Featuring six Gigabit RJ45 ports, one dedicated Gigabit SFP port and four PoE+ ports with a combined 54W power budget, it provides reliable network connectivity and convenient power delivery. Ruijie Cloud management, intelligent CCTV features and a fanless design make it a practical solution for modern networks.

Key Features:

• Layer 2 smart cloud-managed network switch
• 6 x 10/100/1000Mbps RJ45 ports
• 1 x dedicated Gigabit SFP port
• 4 x Gigabit PoE+ Ethernet ports
• IEEE 802.3af/at PoE support
• 54W total PoE power budget
• Up to 30W PoE output per supported port
• 14Gbps switching capacity
• 10.42Mpps forwarding performance
• Ruijie Cloud remote management
• Intelligent IP camera recognition
• PoE watchdog functionality
• Port isolation for network security
• Perpetual PoE during switch restarts
• 6kV surge protection
• Quiet fanless operation
• Compact 155 x 78 x 28mm chassis
• 3-year manufacturer warranty

Features

Six Gigabit Ethernet Ports

The RG-ES207GS-P provides six 10/100/1000Mbps RJ45 ports for connecting IP cameras, computers, access points and other compatible network devices. Gigabit connectivity supports efficient data transmission across small business and surveillance networks.

Four PoE+ Ports with 54W Budget

Ports 1 to 4 support IEEE 802.3af/at Power over Ethernet, delivering network data and electrical power through a single Ethernet cable. Each port supports up to 30W, subject to the shared 54W total power budget.

Dedicated Gigabit SFP Uplink

A dedicated 1GE SFP port provides an additional uplink option for compatible fibre-optic or Gigabit SFP transceivers. It enables flexible network expansion and connections between supported networking devices.

Smart Ruijie Cloud Management

Ruijie Cloud provides convenient remote network monitoring and management through supported web and mobile interfaces. Network administrators can check device status and manage compatible network equipment without being physically present.

Optimised for CCTV Networks

Intelligent IP camera recognition and CCTV-oriented management functions help simplify the deployment and maintenance of surveillance networks. The switch is suitable for small IP camera installations in offices, shops and other business environments.

PoE Watchdog Protection

PoE watchdog functionality helps monitor supported connected devices and restore PoE power when recovery is required. This can reduce manual troubleshooting and improve the reliability of compatible IP camera installations.

Perpetual PoE Functionality

Perpetual PoE is designed to maintain power delivery to connected PoE devices during supported switch restart operations, helping minimise disruption to powered network equipment.

6kV Surge Protection

Integrated surge protection improves electrical resilience in challenging installation environments. The switch supports up to 6kV surge protection, helping protect its network interfaces against specified electrical surges.

Port Isolation

Port isolation helps separate traffic between connected devices, providing useful security and traffic-control functionality for compatible surveillance and business network configurations.

High-Speed Switching Performance

With a 14Gbps switching capacity and 10.42Mpps forwarding rate, the RG-ES207GS-P delivers efficient Gigabit data handling for connected network devices.

Quiet Fanless Design

The fanless construction operates without mechanical fan noise, making the switch suitable for offices, retail counters and other environments where quiet operation is preferred.

Compact and Convenient Installation

Measuring 155 x 78 x 28mm, the switch fits comfortably into compact networking spaces. Its straightforward front-panel port arrangement makes connecting Ethernet cables and monitoring port status convenient.

• Four RJ45 ports support PoE+; two are non-PoE.
• The total PoE budget is 54W across all PoE ports.
• The SFP port supports 1Gbps SFP transceivers.
• SFP transceiver and fibre cable are not confirmed as included.
• This is a wired Ethernet switch, not a Wi-Fi router.
• Cloud management requires network connectivity.
• Perpetual PoE does not provide backup power during an external power failure.
• Suitable for indoor installation within rated conditions.

Technical Specifications:

The Ruijie Reyee RG-ES207GS-P combines Gigabit Ethernet connectivity, a dedicated SFP uplink, intelligent PoE+ power delivery and convenient cloud management in a compact fanless design. With a 54W PoE budget, CCTV-focused features and three-year manufacturer warranty, it provides a reliable networking solution for small businesses and surveillance installations.
