Description
Description

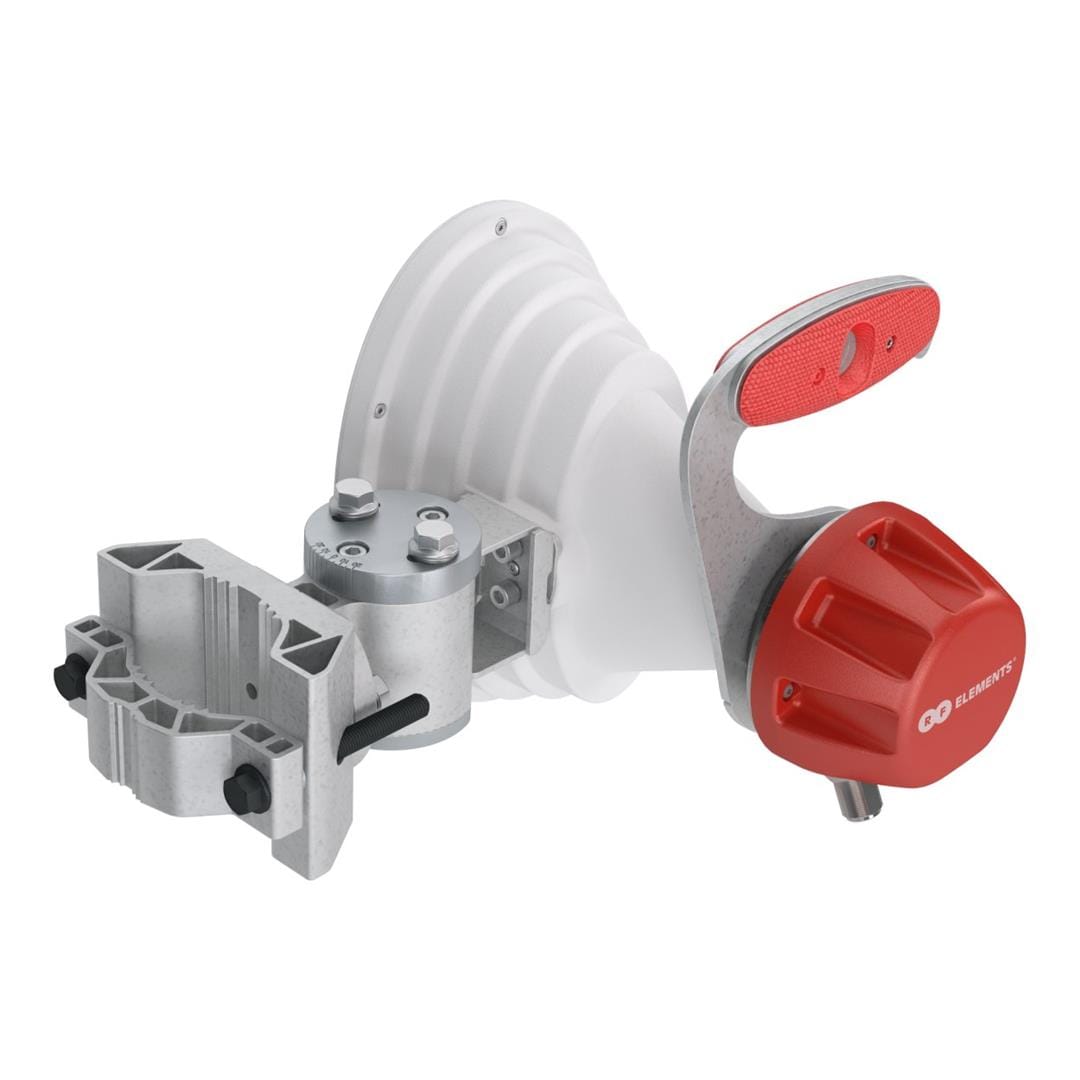

RF Elements 45-degree Asymmetrical Horn Antenna HG4-TP-A45
The RF elements HG4-TP-A45 is a compact 5GHz asymmetrical horn antenna designed for high-performance wireless broadband deployments. With a 45° azimuth and 30° elevation beam pattern, 17dBi gain and TwistPort connector, it is well suited to dense sector deployments, micro-PoPs and networks that require strong noise rejection in a compact outdoor antenna.
Key Features
- 45° asymmetrical horn antenna for 5GHz wireless broadband networks.
- 17dBi gain supports focused sector coverage and improved signal performance.
- Asymmetrical 45° azimuth and 30° elevation beam pattern.
- TwistPort connector enables quick radio installation with compatible TwistPort adaptors.
- Designed to suppress side lobes and improve noise immunity.
- Compact HG4 form factor suitable for dense cluster and micro-PoP deployments.
- IP55-rated outdoor construction with UV-resistant and corrosion-resistant materials.
Compact Sector Coverage
The HG4-TP-A45 provides a focused asymmetrical beam pattern that is wider in azimuth and narrower in elevation. This makes it suitable for network designs where operators need controlled 5GHz coverage, improved frequency reuse and better sector splitting compared with wider traditional sector antennas.
TwistPort Radio Integration
RF elements TwistPort technology allows compatible radios to connect quickly using a twist-and-lock waveguide interface. With the correct TwistPort adaptor, the antenna can integrate with supported connectorised radios from popular wireless broadband platforms.
Designed for Outdoor Wireless Networks
The antenna combines a durable outdoor construction, UBR mounting system and compact shape to support reliable installation in demanding fixed wireless access environments. Its side-lobe suppression and stable beam pattern help improve signal-to-noise ratio in crowded RF locations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | RF elements |
| Model | HG4-TP-A45 |
| Product Type | 5GHz Asymmetrical Horn Antenna |
| Antenna Type | Asymmetrical Horn |
| Frequency Range | 5150–6400MHz |
| Gain | 17dBi |
| Beamwidth | 45° Azimuth, 30° Elevation |
| Antenna Connection | TwistPort Waveguide Port |
| Mounting System | UBR Mount |
| Compatible Pole Diameter | 30–80mm |
| Environmental Rating | IP55 |
| Materials | UV-Resistant ABS Plastic, Polyethylene, Aluminium and Stainless Steel |
| Operating Temperature | -30°C to +55°C |
| Wind Survival | 180km/h |
| Product Dimensions | 339 x 150mm |
| Product Weight | 2.53kg |
| Application | Fixed Wireless Access, Sector Coverage, Dense Cluster Deployments and Micro-PoPs |
Build scalable 5GHz wireless networks with the RF elements HG4-TP-A45, designed for compact sector coverage, high gain and strong noise rejection.
