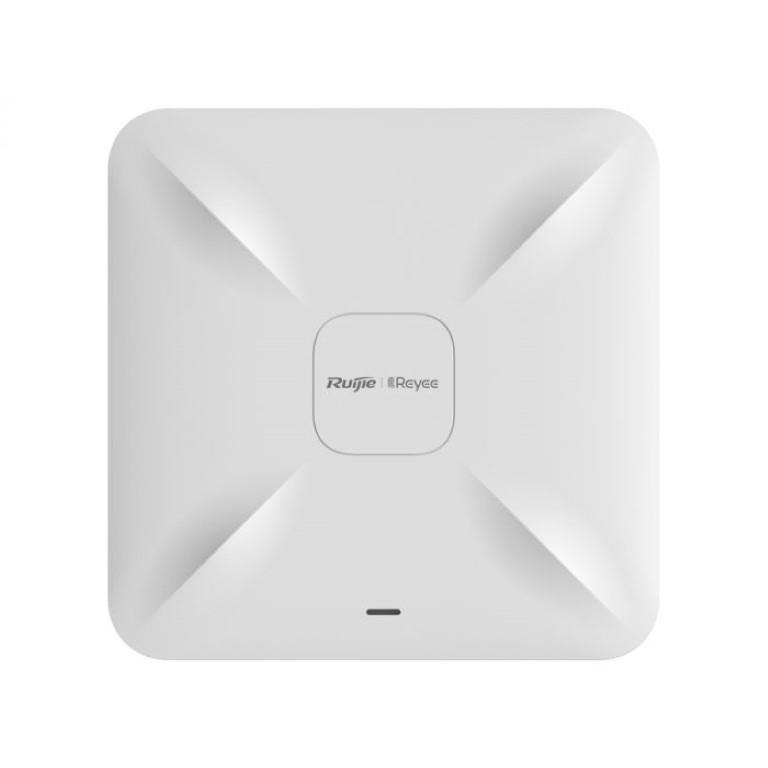

Reyee Dual Band AC Fast Ethernet Wave 2 Ceiling Mount Access Point RG-RAP2200F

Reyee Dual Band AC Fast Ethernet Wave 2 Ceiling Mount Access Point RG-RAP2200F

Reyee's RG-RAP2200F Reyee's is an 802.11ac (WiFi 5) dual-band ceiling mount access point featuring MU-MIMO Wave 2 technology, dual Fast Ethernet ports, seamless roaming and speeds up of up to 1267Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: Power Supply/PoE Injector not included.

Technical Specification

Antenna Gain: 2.4GHz: 2dBi; 5.8GHz: 2dBi

Beam-width: 360°

Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps

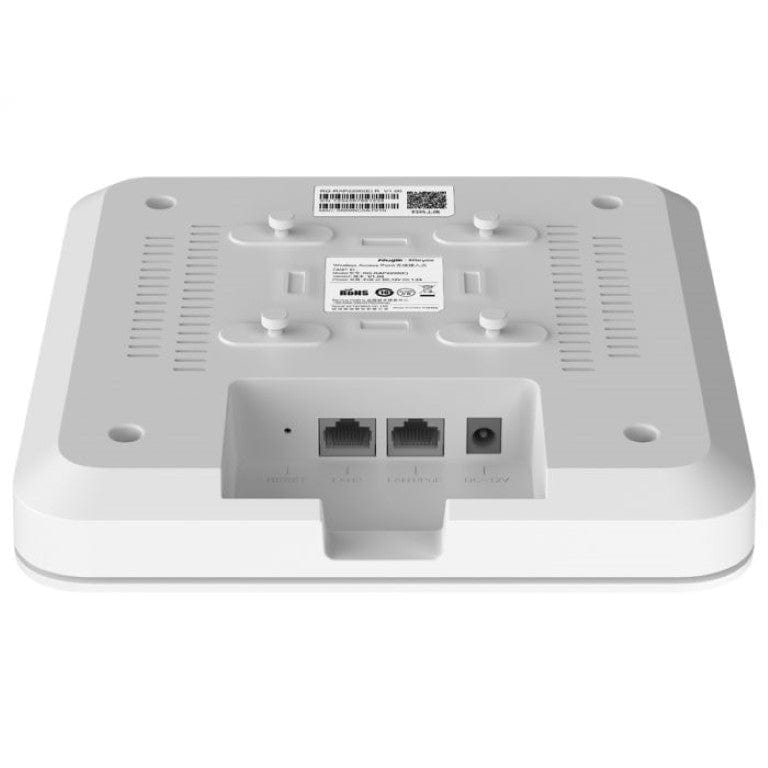

Ethernet Ports: 2x 10/100

Hardware Button: Reset

Max. Power Consumption: 12.95W

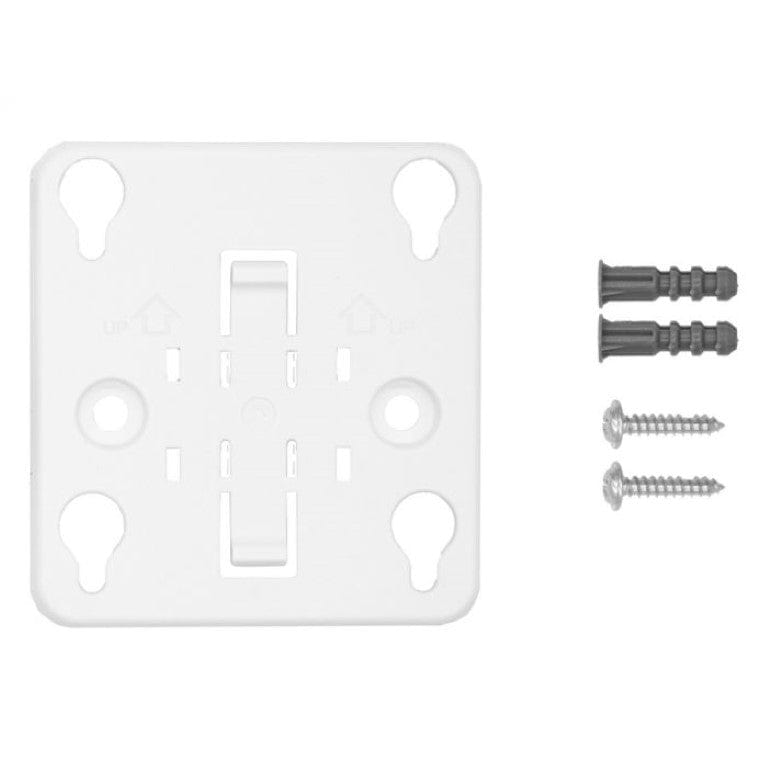

Mounting: Ceiling or Wall-Mount

Operating System: Reyee

Operating Temperature: 0°C to 40°C

PoE Input: 802.3af/at

PoE Output: None

Power Input: 802.3af/at or 12V 1.5A Power Supply (not included)

Serial Interface: None

SIM Slots: None

Supported Voltage Range: 37-57V (PoE) 12V (DC Input)

USB Ports: None

Dimensions: 194 x 194 x 35mm

Weight: 450g
