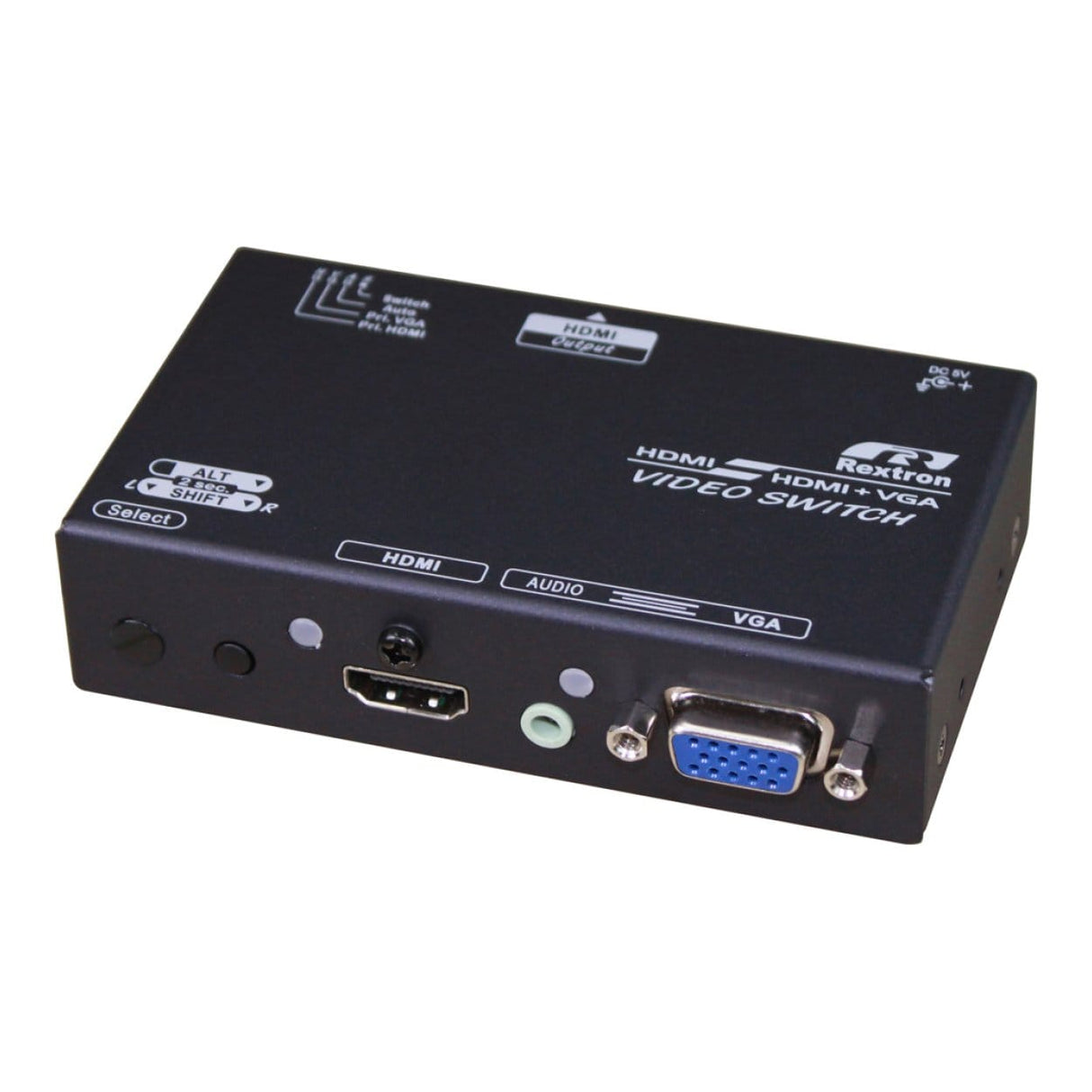

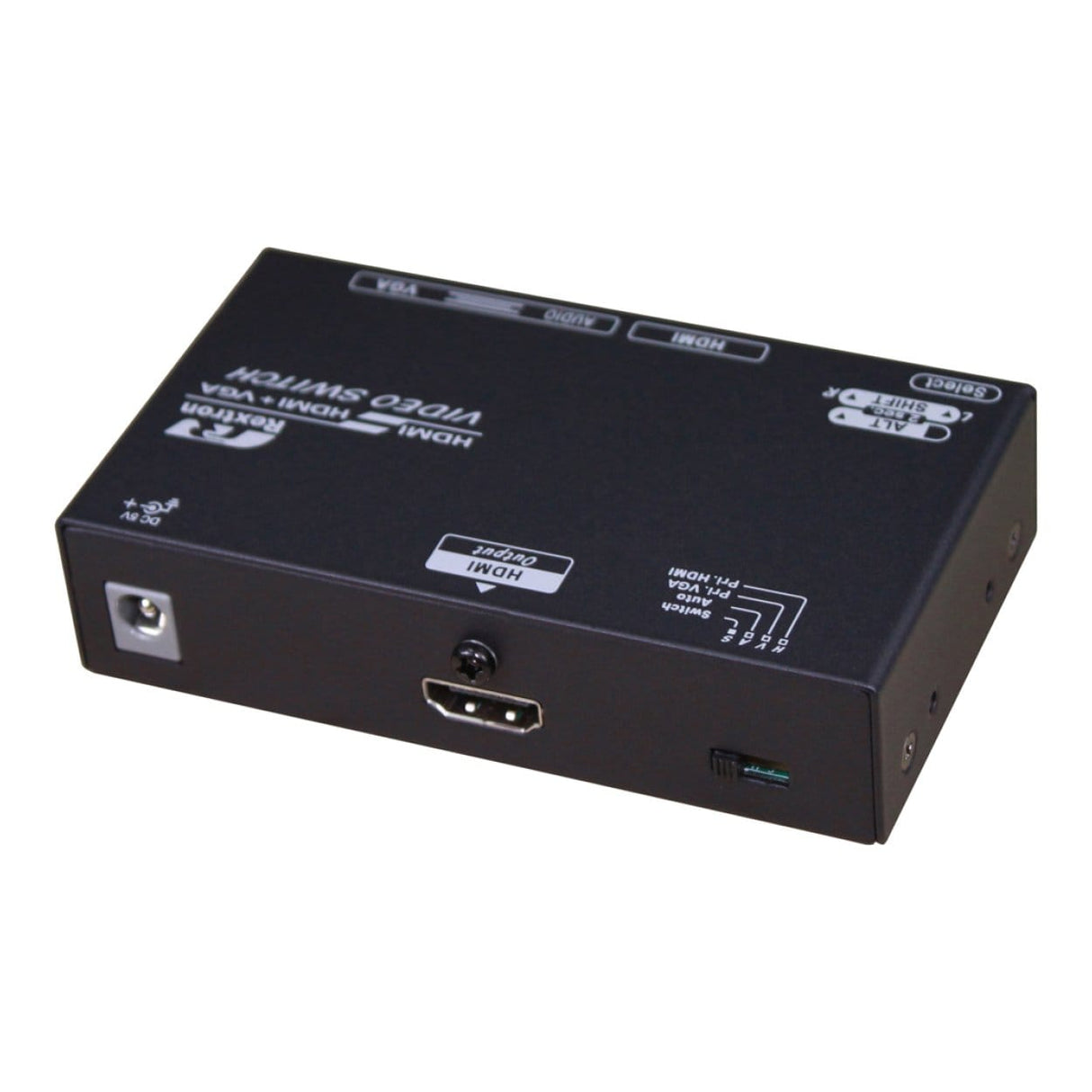

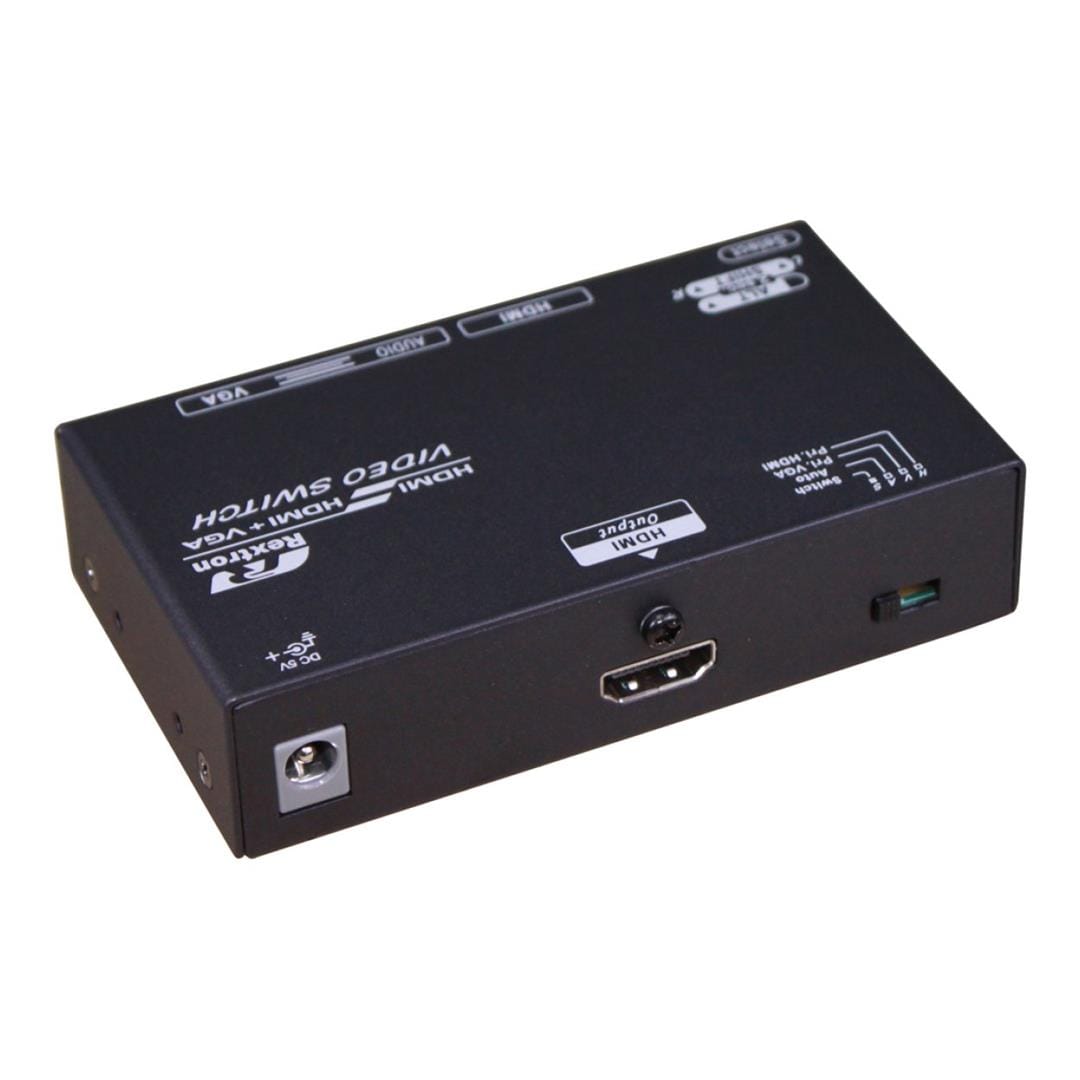

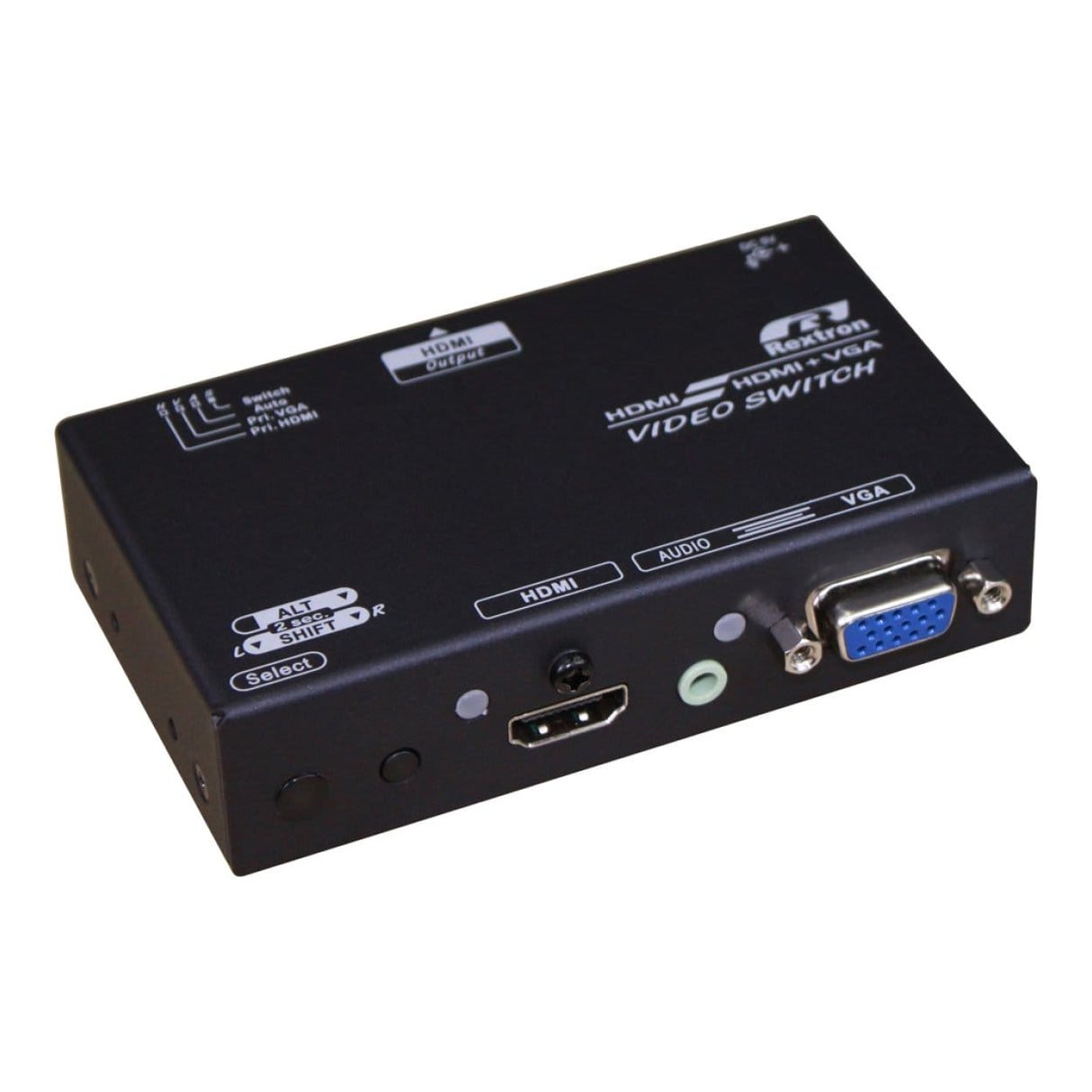

Rextron 2-port VGA and HDMI Video Switch with HDMI Output VSAVM-021

Rextron 2-port VGA and HDMI Video Switch with HDMI Output VSAVM-021

Key Features

• Select a VGA plus analog audio or a digital HDMI signal converting to an HDMI signal
• ADC Converter
• Support video with the resolution up to Full HD (1920 x 1080) / WUXGA (1920 x 1200)
• Intelligent EDID handling and processing algorithm
• No software required ensuring Plug and Play operation
• HDTV, HDCP compliant and Blu-ray ready
• Compliant with HDCP v1.4

2-Ports Multi Format Video Switch with ADC Converter, Auto-switching, Audio Embedder, EDID, VSAVM-021

VSAVM-021, Video Switch with ADC Converter, allows users to quickly and easily share HDMI/ VGA sources and display the video contents to one output device (HDMI Monitor or Projector). The video switching can be simply achieved by button pressing. Unique Alt/Shift buttons support Screen Shift Mode for VGA signal horizontal position adjustment.

Auto-switching / input auto detecting / input priority setting functions always routes the last connecting stream (as first priority) to the output and/or forces the Input source selection based on the priority level.

The VGA/ HDMI and 3.5mm audio inputs bring in multiple audio/video feeds supporting audio embedding which embeds audio from a 3.5-mm source to an HDMI signal. VSAVM-021, Video Switch with ADC Converter, allows users to diversely incorporate the audio signal for more informative contents in video postproduction that are beneficial for the conference call, meeting room or show room application

Technical Specification

Product: Rextron 2-Ports VGA and HDMI Video Switch with HDMI Output (ADC Converter) VSAVM-021

Video Resolution (Max.)

• Full HD (1920 x 1080)
• WUXGA (1920 x 1200)

Video Input

• 1x HDMI
• 1x VGA + Audio

Video Output: 1x HDMI

Push Button

• 1x ALT
• 1x Input Selection

LED Indicator: 2x Input LED

Slide Switch: Switch / Auto / VGA Priority / HDMI Priority

Power Supply: DC 5V

Enclosure: Metal

H x W x D (mm): 25 x 103 x 60

Weight (g): 226

Warranty: 1-year Carry-in
