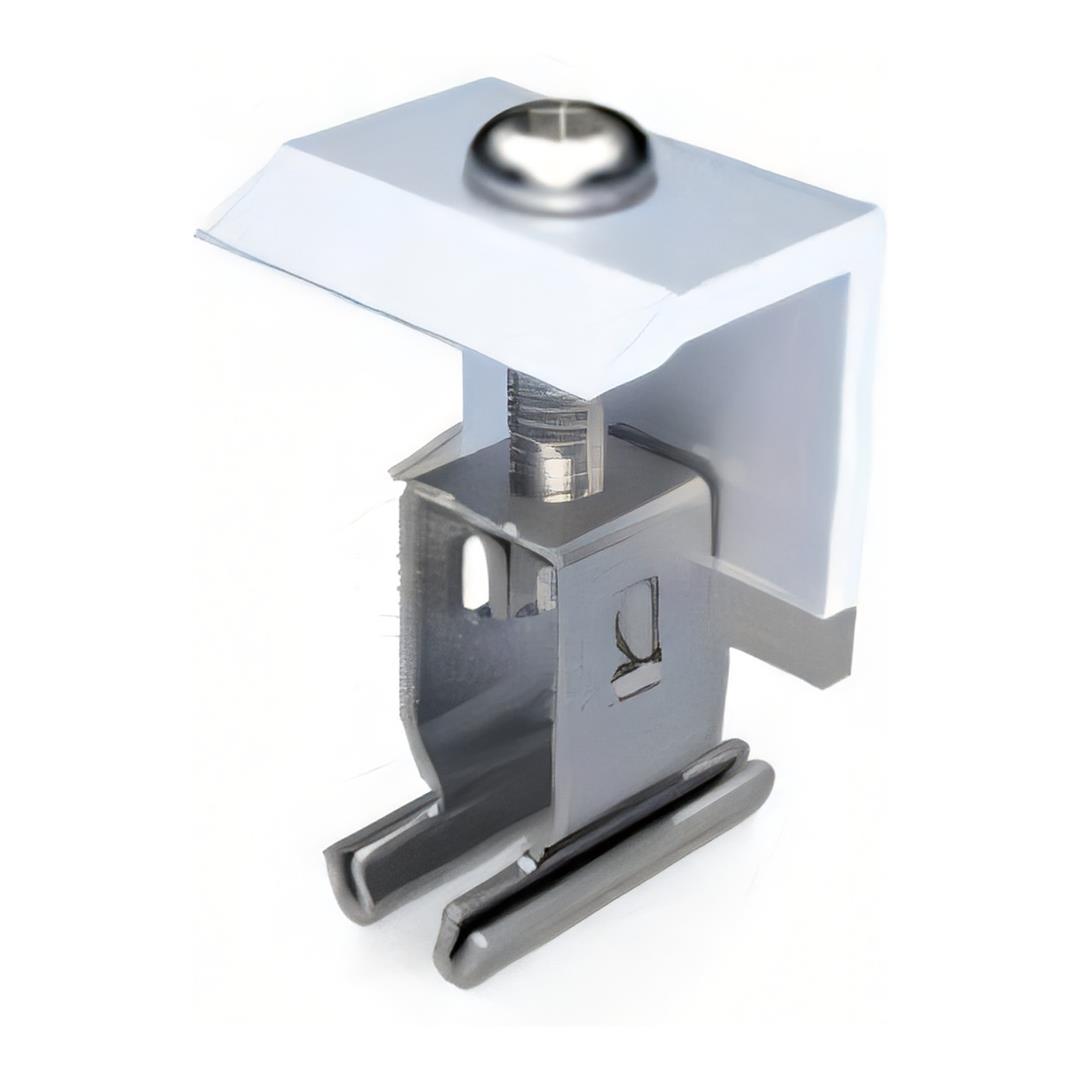

Renusol PV Mount End Clamp 30-50mm - Silver UPS-MNT-REN-420081
The Renusol End Clamp+ 30-50mm Silver (UPS-MNT-REN-420081 / REN-420081) is a pre-assembled solar PV mounting end clamp designed to securely fasten framed photovoltaic modules to compatible mounting rails. Suitable for solar module frame thicknesses from 30mm to 50mm, the clamp combines an aluminium body with corrosion-resistant steel components for durable outdoor PV installations. Its adjustable design allows a single clamp to accommodate a broad range of framed solar panel thicknesses, while the 5mm hexagon socket fixing provides straightforward installation with a maximum specified tightening torque of 12Nm.
Key Features
- 30-50mm Module Compatibility: Designed for framed photovoltaic modules with frame thicknesses between 30mm and 50mm.
- Adjustable End Clamp: Accommodates multiple module frame heights with a single clamp design.
- Pre-Assembled: Supplied as a complete pre-assembled clamp set for convenient installation.
- Aluminium Construction: Durable aluminium construction is suitable for professional solar mounting applications.
- Corrosion-Resistant Steel: Steel components are corrosion resistant for long-term outdoor installation.
- Silver Finish: Natural silver appearance complements standard aluminium PV module frames and mounting rails.
- 5mm Hexagon Socket: Installation and tightening are performed using a 5mm hexagon socket driver.
- 12Nm Maximum Torque: Manufacturer specification permits a maximum tightening torque of 12Nm.
- Compact Design: Measures approximately 35 × 40 × 60mm.
- Lightweight: Weighs approximately 64g per clamp.
- For Framed Modules: Specifically designed for use with framed photovoltaic modules.
- Certified Mounting Component: Listed with TÜV ID 48970, ETN BT120019 and MCS012 IK0197 certification references.
Module Compatibility
| Specification | Details |
|---|---|
| Application | Solar PV Module Mounting |
| Clamp Type | End Clamp |
| Supported Module Type | Framed PV Modules |
| Minimum Module Thickness | 30mm |
| Maximum Module Thickness | 50mm |
| Module Thickness Range | 30-50mm |
| Position | End of PV Module Array / Mounting Rail |
Installation Specifications
| Specification | Details |
|---|---|
| Driver Type | Hexagon Socket |
| Driver Size | 5mm |
| Maximum Tightening Torque | 12Nm |
| Assembly | Complete Pre-Assembled Set |
Construction & Physical Specifications
| Specification | Details |
|---|---|
| Primary Material | Aluminium |
| Additional Material | Corrosion-Resistant Steel |
| Colour | Silver |
| Dimensions | 35 × 40 × 60mm |
| Weight | Approximately 0.064kg / 64g |
Certification Information
| Certification | Reference |
|---|---|
| TÜV | ID 48970 |
| ETN | BT120019 |
| MCS | MCS012 IK0197 |
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Renusol |
| Product Name | End Clamp+ 30-50mm Silver |
| Distributor / Reseller SKU | UPS-MNT-REN-420081 |
| Manufacturer Part Number | REN-420081 / 420081 |
| Product Type | Solar PV Module End Clamp |
| Module Type | Framed Modules Only |
| Supported Module Thickness | 30-50mm |
| Material | Aluminium / Corrosion-Resistant Steel |
| Colour | Silver |
| Driver | 5mm Hexagon Socket |
| Maximum Torque | 12Nm |
| Dimensions | 35 × 40 × 60mm |
| Weight | 0.064kg |
| Set | Complete Pre-Assembled Set |
What's Included:
- 1 × Renusol End Clamp+ 30-50mm Silver Pre-Assembled Clamp Set
Please Note: UPS-MNT-REN-420081 is a distributor/reseller SKU for the Renusol REN-420081 / 420081 End Clamp+ 30-50mm Silver. This clamp is intended for framed PV modules only with a frame thickness between 30mm and 50mm. Correct mounting rail compatibility and installation requirements should be confirmed for the specific Renusol mounting system being used. The specified maximum tightening torque is 12Nm.
The Renusol End Clamp+ 30-50mm Silver (UPS-MNT-REN-420081 / REN-420081) provides a compact, adjustable and corrosion-resistant solution for securing the outer edges of framed photovoltaic modules in compatible solar mounting systems.
