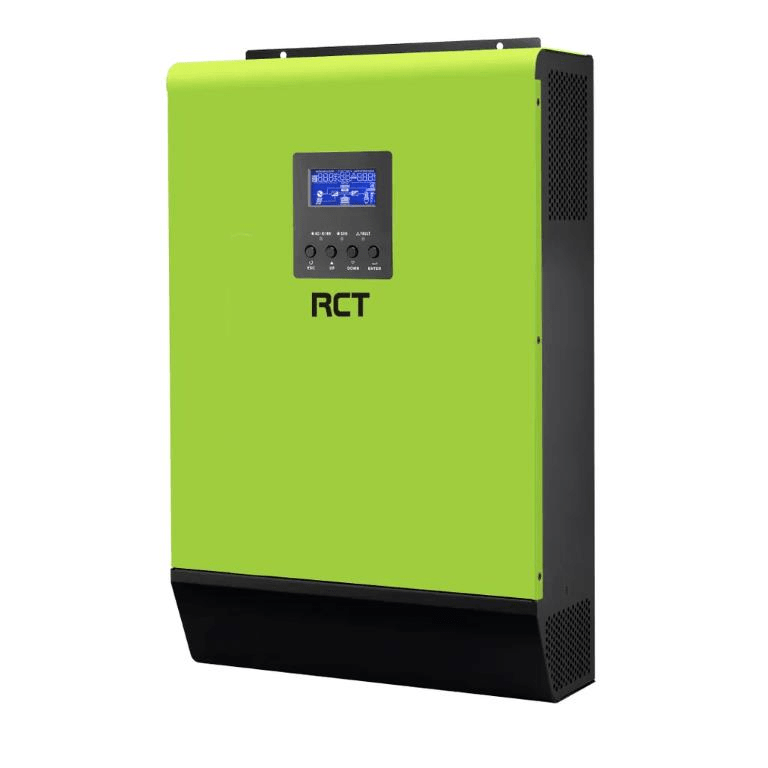

RCT Axpert VM3 5kVA 5kW 48VDC Inverter

RCT Axpert VM3 5kVA 5kW 48VDC Inverter

Pure sine Wave inverter 48V battery independent (Supply load from Grid or PV, even if battery is not available), BMS Com Port, Built-in Bluetooth for Mobile monitoring, Reserved communication Port for BMS, Supply load from grid or PV even if battery is not available, 10 ms transfer time, 48 VDC

Detachable LCD control module with various communications

This detachable LCD control module can be turned to remote panel. Users can install the LCD panel in accessible area away from inverter up to 20 meters.

Integrated Bluetooth interface with Android App

VM III series is integrated Bluetooth interface ready for mobile monitoring. This technology allows wireless communication up to 6~7m in an open space. Now, WatchPower App is available in google store.

Supports USB On-the-Go function

VM III series supports USB On-the-Go function to facilitate data upload/download.

Reserved communication port (RS-485, CAN-BUS or RS-232) for BMS

This third generation inverter is reserved communication port for BMS. For the detailed information, please contact sales directly.

Battery equalization extends lifecycle

This inverter charger is built in battery equalization function. This function will help remove sulfation to optimize battery performance and even extend lifecycle.

Battery independency

Inverter can keep supplying power to the loads from PV energy or the grid without battery connected.

User-friendly LCD operation

Users can easily set up or change the charging current, output source and charger source prioritization through LCD control panel to optimize inverter performance.

Replaceable fan design

VM III series is designed with replaceable fan.

Technical Specifications:

General
Rated Power: 5000 VA / 5000 W

Operational Conditions
Operating Temperature: -10°C to 50°C

Input
Voltage: 230 V AC
Selectable Voltage Range: 170 V to 280 V AC (PC), 90 V to 280 V AC (Home Appliance)
Frequency Range: 50 Hz / 60 Hz (Auto Sensing)

Output
AC Voltage Regulation (Battery Mode): 230 V AC ±5%
Surge Power (5 Seconds): 10000 VA
Efficiency (Peak): 93%
Wave Form: Pure Sine Wave
Transfer Time: 15 ms (PC), 20 ms (Home Appliance)

Solar and AC Chargers
Maximum PV Array Power: 5000 W
MPPT Range @ Operating Voltage: 120 V DC to 430 V DC
Maximum PV Array Open Voltage: 500 V DC
Maximum Solar Charge Current: 80 A
Maximum AC Charge Current: 60 A
Maximum Charge Current: 80 A

Weight and Dimensions
Net Weight: 10 kg

Parallel Capabilities
Parallel Capabilities: No

Built-In BMS Communication
Built-In BMS Communication: Yes
