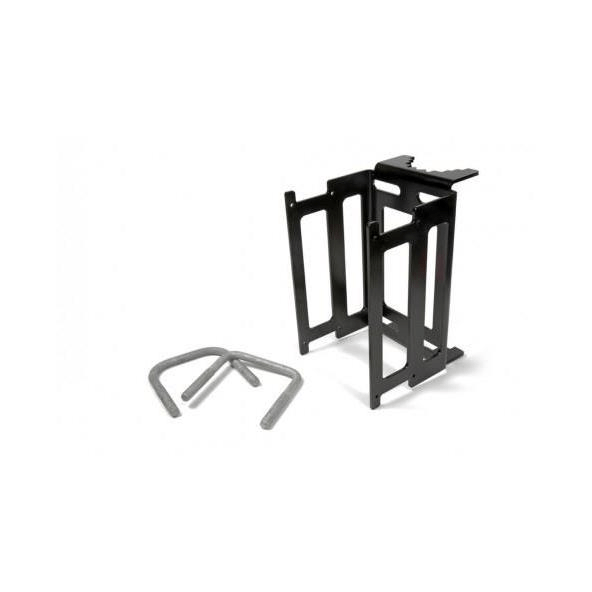

Rajant ME4 Pole Mounting Kit 01-000035-001

Rajant ME4 Pole Mounting Kit 01-000035-001

The ME4 Pole Mount Kit can be used to mount an ME4 BreadCrumb.

1. Use the two (2) supplied U-bolts and four (4) nuts to secure the Pole Mount Bracket to a pole up to 3" in diameter
2. Use the eight (8) supplied screws to attach the BreadCrumb ME4 to the Pole Mount Bracket

Though the standard U-Bolt supplied with the bracket can accommodate a tube of 1.72 inches to 0.78 inches, the bracket itself can accommodate a tube between 2.75 inches and 0.5 inches.

The mounting holes on the ME4 accept 4-40 x 5/16” screws (not counting the thickness of any mounting plate). The ME4’s mounting holes are located on the long narrow sides of the ME4. The centres of one side’s four mounting holes form a rectangle 5.25" x 1.6".
