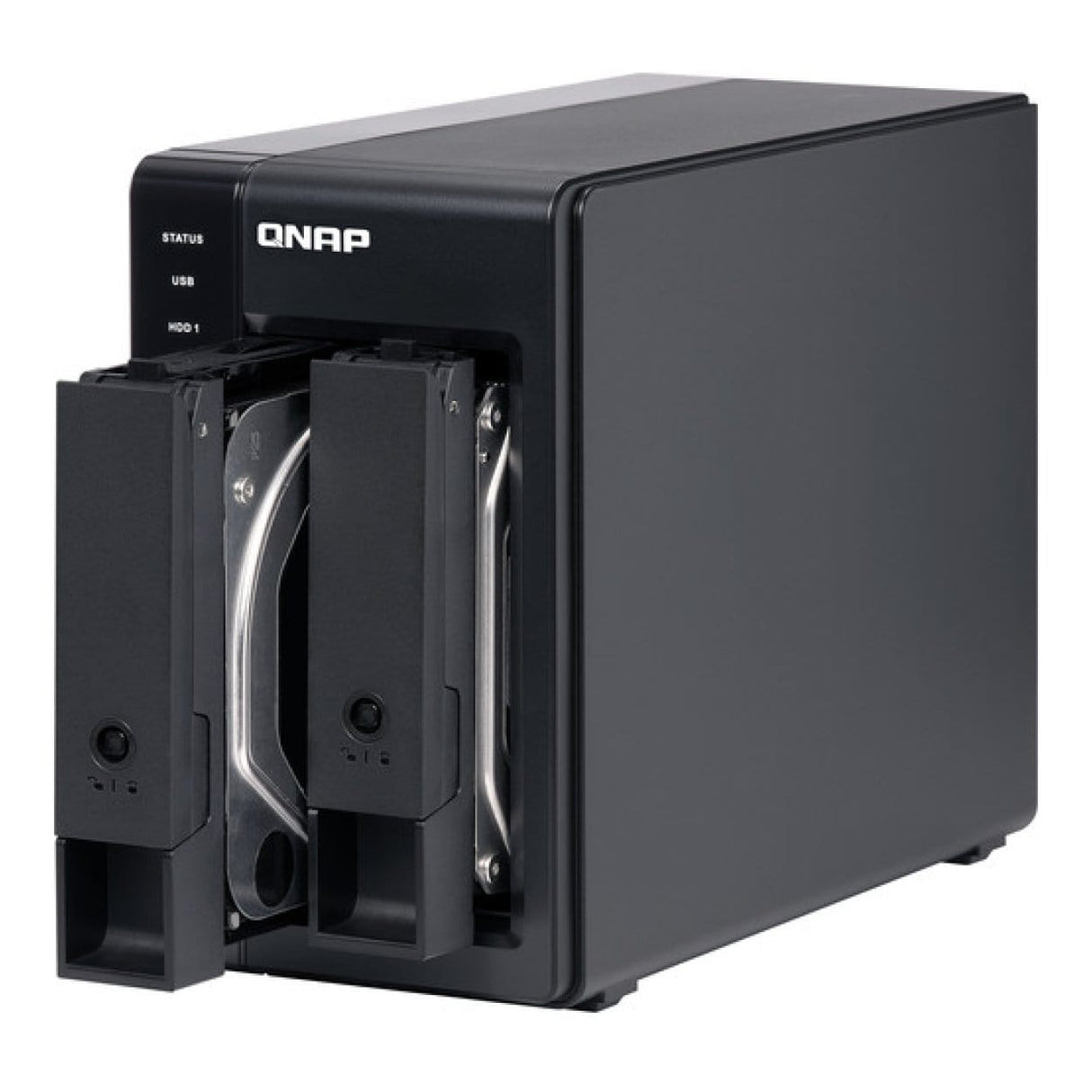

QNAP TR-002 2-Bay Type-C Direct Attached Storage with Hardware RAID

QNAP TR-002 2-Bay Type-C Direct Attached Storage with Hardware RAID

The TR-002 USB 3.2 Gen 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.2 Gen 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.

• USB 3.2 Gen 2 (10Gbps): USB 3.2 Gen 2 Type-C port* for faster data transfer.Maximum 1M USB cable is recommended.
• Supports SATA drives: Supports up to two SATA drives.

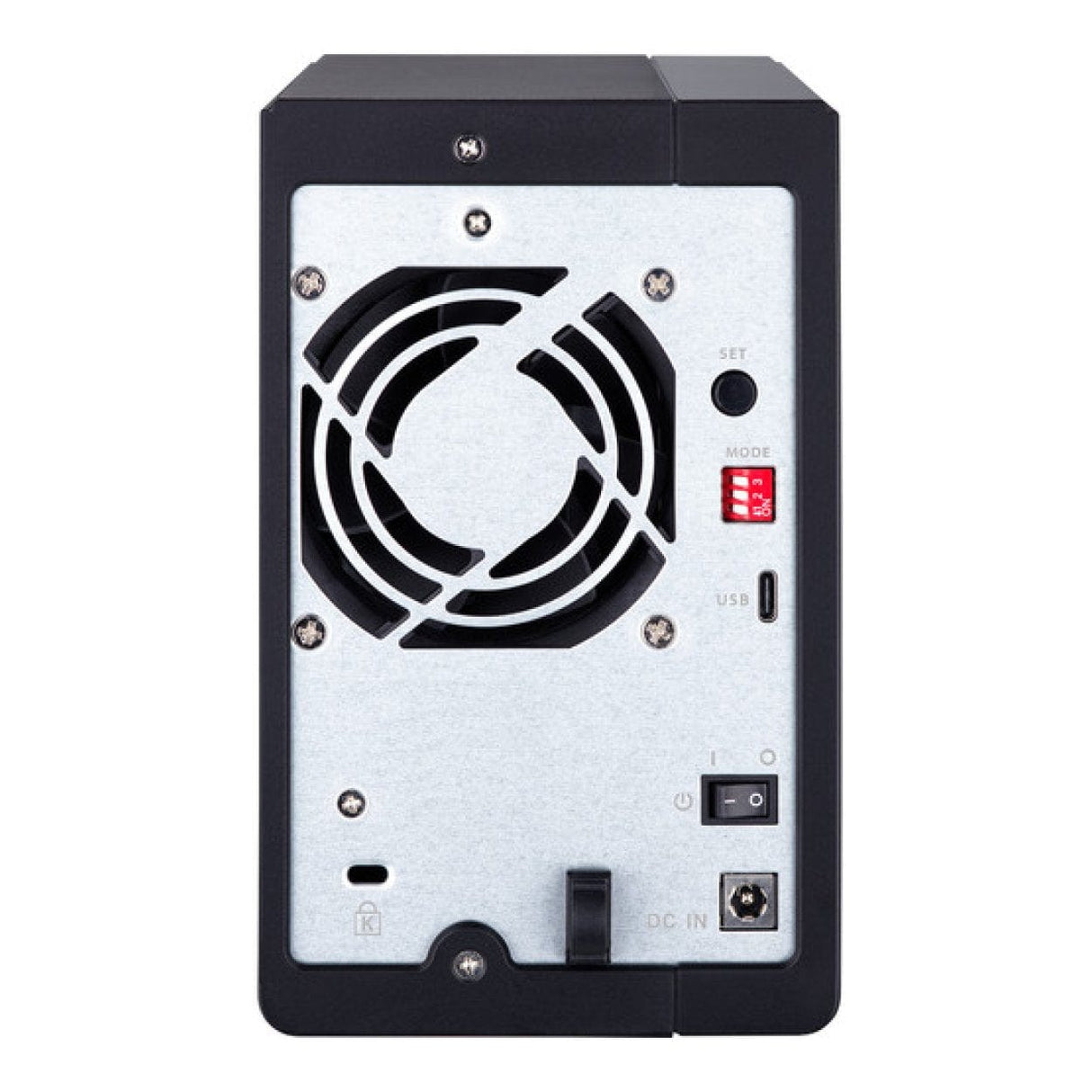

• Disk mode DIP switch: Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.
• Lockable drive trays: Lockable hard drive trays to prevent accidental drive removal.
• Easy to eject: Eject button for disconnecting the TR-002 from a NAS or computer*.

Effective storage expansion with RAID Support

The TR-002 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install higher-capacity drives. Featuring two 3.5-inch SATA drive bays and supporting RAID configuration, the TR-002 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.

Supports various RAID levels

The TR-002 supports various RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0 or RAID 1. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.

Flexible storage configuration and management

Compared with other RAID enclosures, the TR-002 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.

Specifications

JBOD Connection Interface: USB

Main chip: Micro processor with hardware RAID

Drive Bay: 2 x 3.5-inch

Hot-swappable: Yes

USB 3.2 Gen 2 (10Gbps) Port: 1 x Type-C USB 3.2 Gen 2 10Gbps

Form Factor: Tower

Drive Compatibility:

• 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
• 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
• 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
