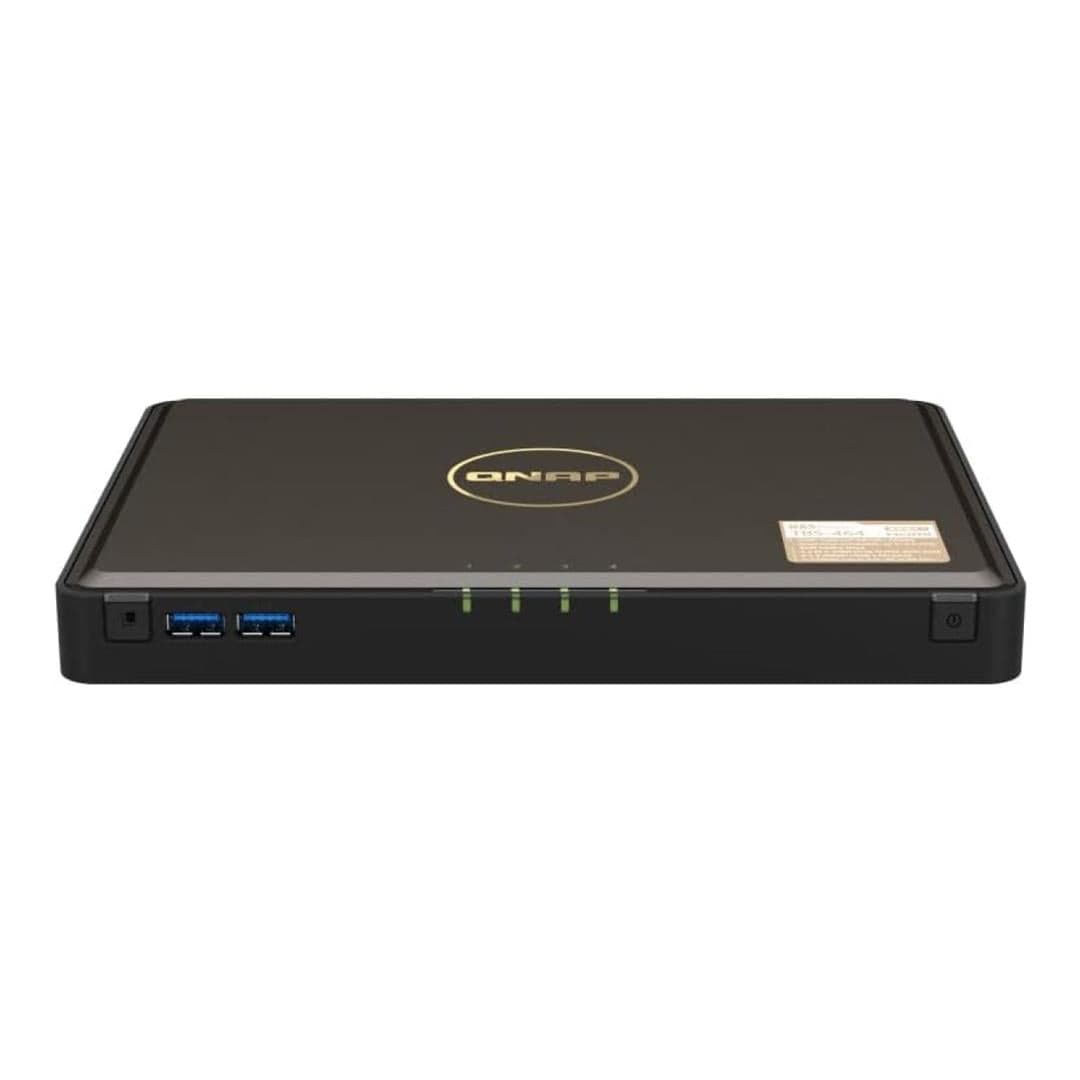

QNAP NASbook TBS-464 Compact NAS System

QNAP NASbook TBS-464 Compact NAS System

Say goodbye to your external hard drives, and hello NASbook. QNAP’s portable, high-performance TBS-464 NASbook is specifically designed for mobile workers and remote content creators to easily store and share precious business data and content. Let TBS-464 bring you a brand-new business data collaboration experiences of high-speed file transmission, smart storage, and hybrid cloud.

The TBS-464 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)

2.5GbE connectivity

Dual-port 2.5GbE supports SMB Multichannel for up to 5 Gbps to speed up big file sharing!

Quad-core multitasking

Powered by an Intel® Celeron® N5105 quad-core processor, burst up to 2.9 GHz.

Thin, portable

The thin and B5-sized TBS-464 weighs just 740 g, while offering storage capacity up to four M.2 2280 NVMe SSDs.

4K HDMI™ output

Up to two HDMI™ 2.0 ports support 4K @60Hz output.

Record online meetings

Use the TBS-464 with QNAP KoiMeeter to build a high-quality wireless presentation and online video conferencing storage system.

Faster USB transfer

Two USB 3.2 Gen 1 (5Gbps) ports allow faster backup to/from USB devices.

B5 size that just fits!

Designed around QNAP’s unique "NASbook" concept, the TBS-464 is a thin, B5-sized device that measures just 1.18 inches in height and weighs just 740 g. Have it within your office, carry it around, and take it into meetings to enable quick file sharing, collaboration, and presentations with team members. Compared with a conventional NAS, the TBS-464's usage of M.2 NVMe SSDs (sold separately) for storage allows it to be significantly smaller and quieter while at the same time providing ultra-high performance and mobility. The M.2 SSDs are also easily accessible for installation and maintenance by removing the bottom rubber pads and screws. Alongside laptops and mobile phones, the TBS-464 NASbook is an essential device for modern offices and workgroups.

Performance without compromise

The compact TBS-464 is powered by a 10 nm Intel Celeron N5105 quad-core processor with 8 GB DDR4 memory. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

CPU

Intel® Celeron® N5105 4-core/4-thread processor, burst up to 2.9 GHz

Connectivity

2 x 2.5GbE RJ45 ports (2.5G/1G/100M)

Sufficient storage capacity

Supporting four M.2 2280 NVMe SSDs, the TBS-464 can achieve up to 12 TB storage capacity by installing four 4 TB SSDs in RAID 5. Compared with external SSDs/hard drives, the TBS-464 secures your data with RAID protection. Need more storage space? Mount cloud storage services like Dropbox® and Google Drive™ on the TBS-464 to enjoy more storage space.

Enable flexible team file-sharing for mobile workers

For remote workers and digital nomads, the TBS-464 is designed to light up the best of NAS applications.

Wireless presentation and record online meetings

The TBS-464 can be used with QNAP KoiMeeter to build a high-quality 4K video conferencing system. Presenters can easily share their screens wirelessly and remotely using their web browser. Important files can be shared using the built-in chat room and video calls and messages can be recorded to the TBS-464 for future playback or archiving.

Plex® Media Server

By installing Plex® Media Server from the QTS App Center, you can stream media files stored on the TBS-464 to mobiles and media streaming devices (including DLNA®, Roku®, Amazon Fire TV® and Google Chromecast™).

QTS 5. Fast, smooth, and easy-to-use!

The TBS-464 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel and optimized user interface.

Specifications:

CPU: Intel® Celeron® N5105 4-core/4-thread processor, burst up to 2.9 GHz

CPU Architecture: 64-bit x86

Graphic Processors: Intel® UHD Graphics

Floating Point Unit: Yes

Encryption Engine: Yes (AES-NI)

Hardware-accelerated Transcoding: Yes

System Memory: 8 GB DDR4, not expandable

Flash Memory: 4GB (Dual boot OS protection)

M.2 Slot: 4 x M.2 2280 NVMe Gen3 x2 slots

SSD Cache Acceleration Support: Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)

Wake on LAN (WOL): Yes

Jumbo Frame: Yes

USB 2.0 port: 3

USB 3.2 Gen 1 port: 2

IR Sensor: Yes (RM-IR004)

HDMI Output: 2, HDMI™ (up to 2.0 resolution 3840 x 2160 @ 60Hz)

Form Factor: Set-top design

LED Indicators: SSD1-4

Buttons: Power, Reset, Copy

Weight (Gross): 1.7 kg

Power Consumption: Disk Standby Mode: 18 W

Power Consumption: Operating Mode, Typical: 28 W

Fan: 1 x system fan
