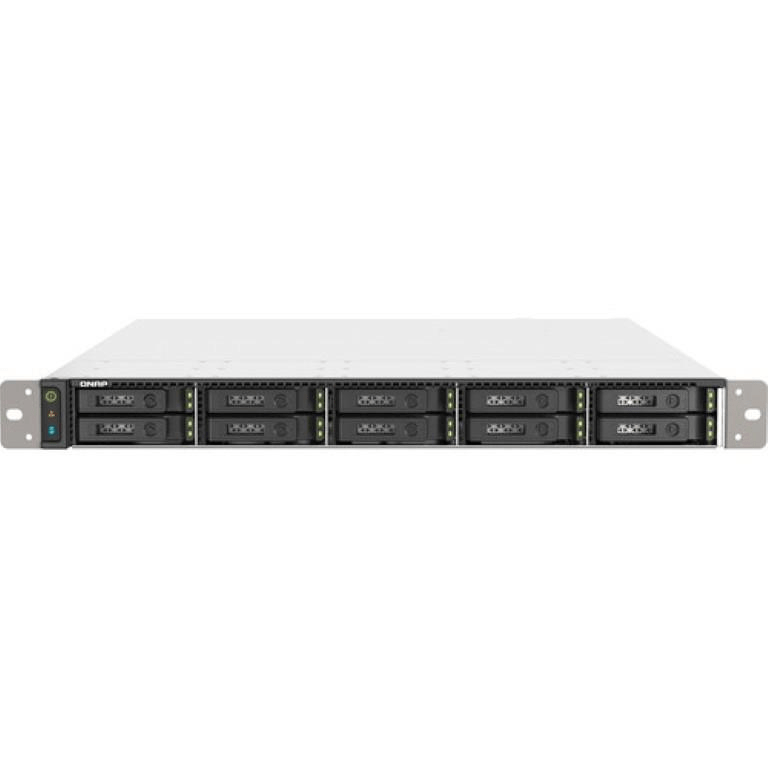

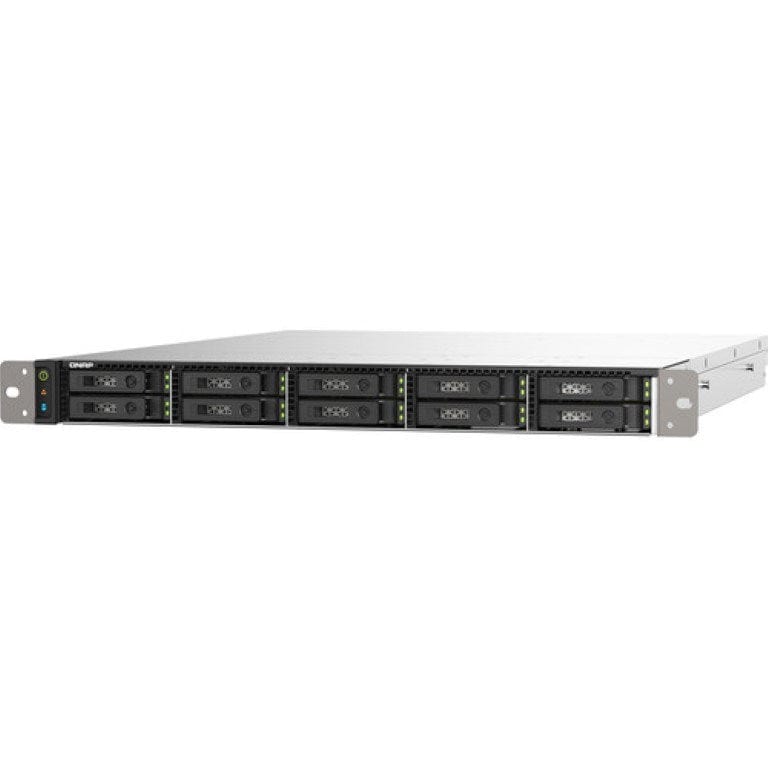

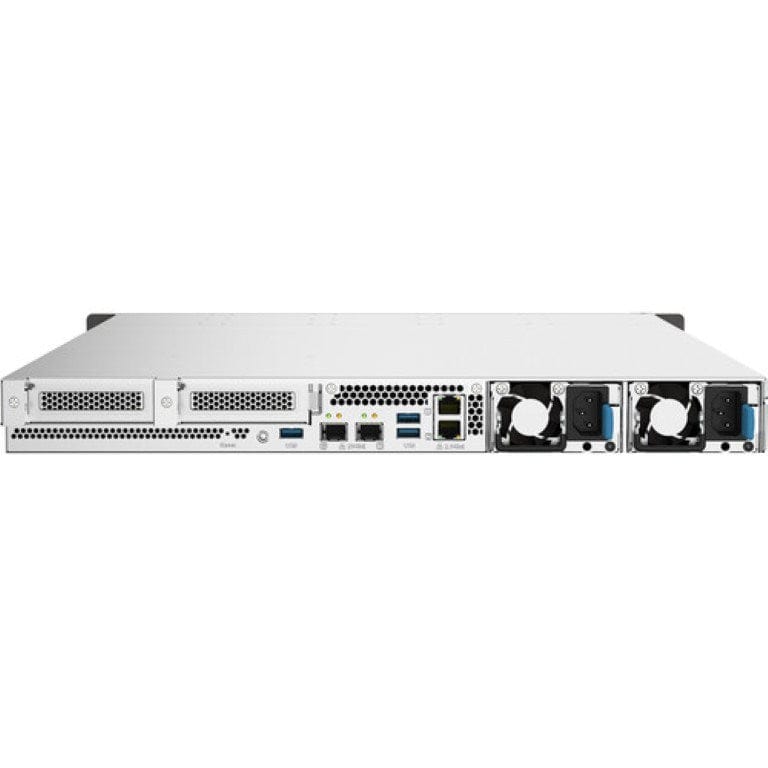

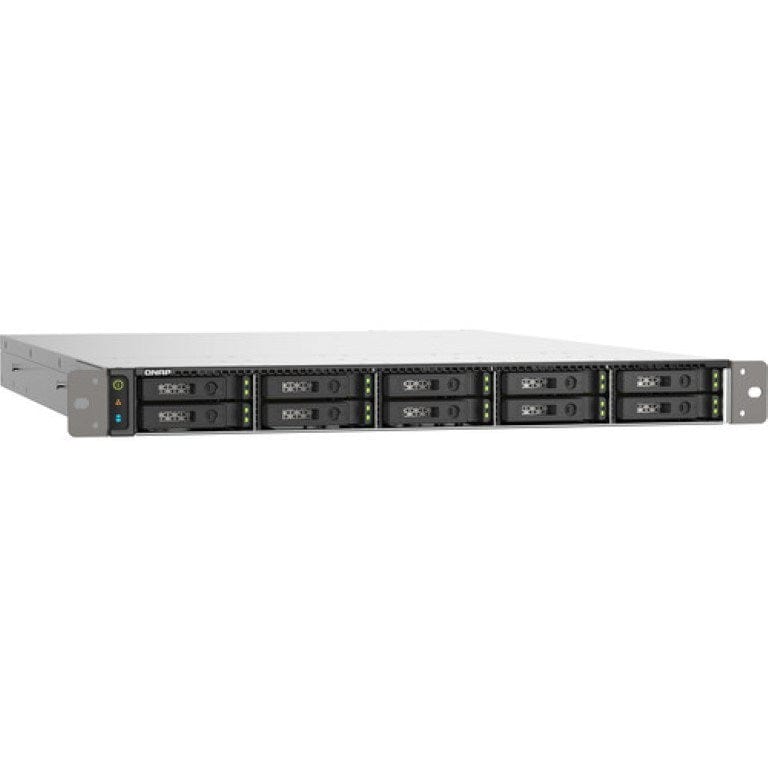

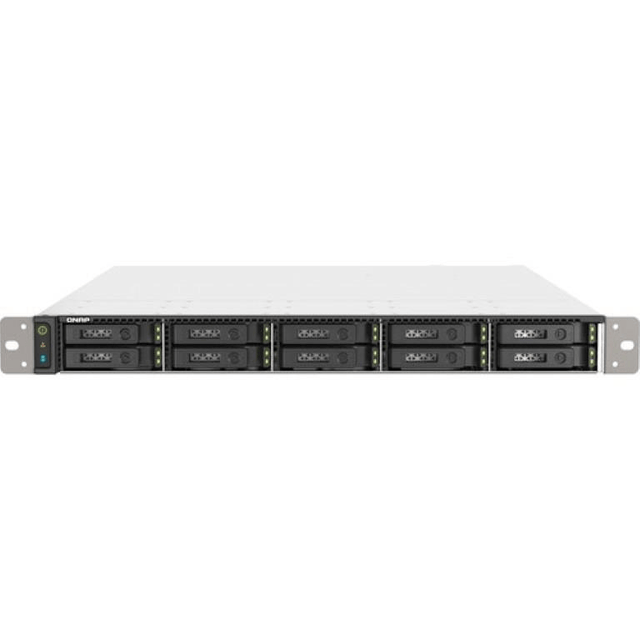

QNAP 10-Bay 1U NAS Enclosure TS-H1090FU-7232P-64G

QNAP 10-Bay 1U NAS Enclosure

Expand your network storage capacity to handle demanding, bandwidth-intensive workflows such as 4K/8K media streaming and post-production with the TS-h1090FU-7232P-64G 10-Bay NAS Enclosure from QNAP. This high-performance rackmount enclosure features ten lockable 2.5" bays that support U.2 PCIe Gen 4 and SATA III solid-state drives that may be configured in RAID 0, 1, 5, 6, 10, 50, 60, JBOD, or Single mode to balance between your speed and data redundancy needs. Powered by a 3.1 GHz AMD EPYC 7232P 8-core processor with 64GB of DDR4 ECC memory, the TS-h1090FU can smoothly handle a multitude of simultaneous tasks.

Integrate the TS-h1090FU into your network through its dual 2.5G RJ45 Ethernet ports and two 25G SFP28 ports for blisteringly fast fiber connections. Additionally, the ZFS-based QuTS hero 5.0.0 operating system supports inline data deduplication and compression, which significantly extends SSD lifespan by reducing I/O and SSD storage consumption.

All Flash Array

The 10 drive bays allow you to build a high-performance array with U.2 NVMe PCIe Gen 4 x4 SSDs or SATA III SSDs. Latency-sensitive applications can be bolstered with U.2 NVMe PCIe SSDs to attain optimized performance and utmost application response times.

Performance

The TS-h1090FU is equipped with a 3.1 GHz AMD EPYC 7232P 8-core processor, which is based on the "Zen 2" architecture with 7nm process technology. It also has 64GB of DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability. The TS-h1090FU includes 12 Long-DIMM slots, supporting up to 1TB memory to handle memory-intensive workloads such as virtualization and 4K/8K multimedia applications.

25G Connectivity

The two 25G SFP28 SmartNIC ports (compatible with 10G SFP+ and 1G SFP) also support iSCSI Extensions for RDMA (iSER) to increase performance of data transfer between NAS and VMware ESXi server and offload CPU workloads. With port trunking and auto negotiation, the TS-h1090FU empowers your organization with the bandwidth and reliability to allow thousands of endpoint users to smoothly access data stored on the NAS while satisfying the most performance-demanding applications.

PCIe Gen 4 Expansion Slots

The TS-h1090FU is equipped with two PCIe Gen 4 slots. With twice the I/O performance of PCIe Gen 3, the TS-h1090FU can take advantage of PCIe cards to expand application potential.

QuTS hero

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Optimized SSD Performance

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%.

SSD Performance & Lifespan Optimization

Write Coalescing

Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.

Pool Over-Provisioning

Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.

TRIM

Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.

Comprehensive Backup & Recovery Remote Backup for NAS

Hybrid Backup Sync makes it easy to back up data from a TS-h1090FU to another QNAP NAS or remote server.

VM Backup

Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.

Cloud Backup for NAS

Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup Technology

Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Real-Time SnapSync

Real-time SnapSync immediately synchronizes data changes with the destination storage, ensuring the primary and secondary NAS always have the same data.

Multi-Version Snapshots

Supporting up to 65,536 snapshots, you can use the TS-h1090FU to create one snapshot every hour for 7 years without needing to delete any. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing.

Backup Snapshots

Multiply data protection by backing up snapshot files. Replicate volume/LUN snapshots in the TS-h1090FU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time and bandwidth, and can be run manually or on a scheduled basis.

Comprehensive Security

Simplified Privilege Settings

The TS-h1090FU supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall Protection

Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

QuWAN SD-WAN

To facilitate digital transformation, multi-site expansion, and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Counselor

A security portal for the TS-h1090FU to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover

Regularly scan your TS-h1090FU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

Hosting Virtual Machines & Containers

Virtualization Station

Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Container Station

Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import/export containers, and create abundant microservices.

QuTScloud Virtual NAS

QuTScloud is a virtual appliance based on the QTS operating system. Enterprises can quickly launch QuTScloud on hypervisors including Linux KVM, Microsoft Hyper-V, and VMware ESXi to acquire advanced NAS features without requiring additional NAS hardware.

Specifications:

• 10 x 2.5" U.2 PCIe 4/SATA III Drive Bays
• 3.1 GHz AMD EPYC 7232P 8-Core CPU
• 64GB ECC DDR4 RAM
• 2 x 2.5G Ethernet | 2 x 25G SFP28
• 3 x USB-A 3.2 Gen 1
• RAID 0, 1, 5, 6, 10, 50, 60
• 2 x PCIe 4.0 x16 Slots
• 1 RU Rackmount Design
• QuTS hero 5.0.0
