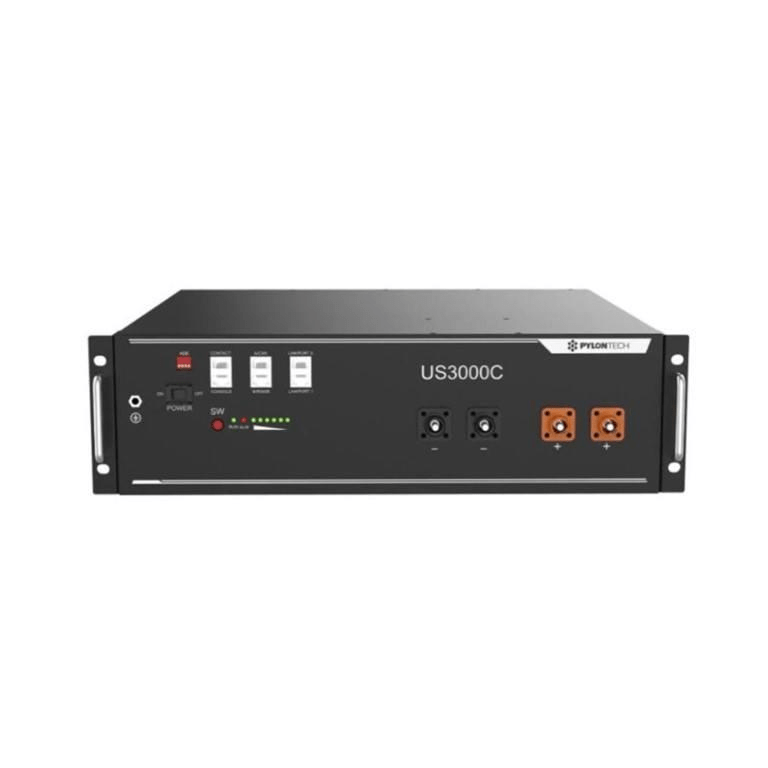

PylonTech US3000C 74Ah 3500Wh 48V Lithium Solar Battery Module SOL-B-L-P3C

PylonTech US3000C 74Ah 3500Wh 48V Lithium Solar Battery Module

Advantage

Developed with our own LFP (lithium iron phosphate) cell to ensure the highest safety

Self-designed BMS protects the cell in all angels such as abnormal temperature, current, voltage, SoC, SoH

Vertical industry integration ensures more than 6000 cycles with 95% DoD

Modular design gives the end customers the power of choice of capacity

Compatible with most of the available Hybrid inverters

Simple buckle fixing minimize the installation time and cost

Backward compatibility with existing US series product

Pre-charge function to protect ESS system from surge current

Technical Specification

• Nominal Voltage(V): 48V
• Nominal Capacity (Wh): 3552
• Usable Capacity (Wh): 3374.4
• Discharge Voltage(V): 44.5 ~ 53.5
• Charge Voltage(V): 52.5~53.5
• Charge / Discharge Current(A): 37 (Recommend), 74 (Peak@15s)
• Communication Port: RS485,CAN

*Product images are for illustration purposes only.
