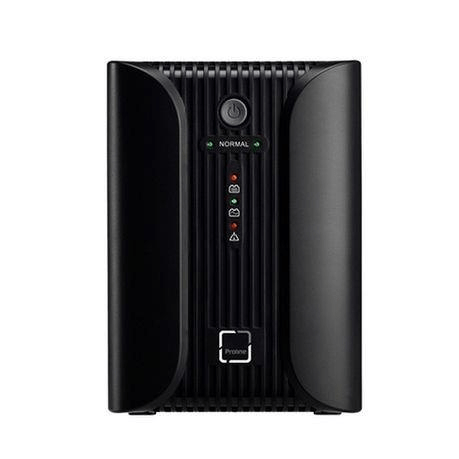

Proline 2200VA Line Interactive UPS UPSA2200

Proline 2200VA Line Interactive UPS UPSA2200

This UPS is specifically designed for a PC with multi-function. It's lightweight, compact design fits into the limited working environment.
The line of UPS is equipped with boost and buck AVR to stabilise input voltage range. It also has a built-in DC start function.

This function enables the UPS to be started without AC power supply. Although it is a small UPS, the main features of the UPS are as follows:

• Micro processor control guarantees high reliability equipped with boost and buck AVR
• Green power functions for energy saving
• DC start function
• Auto restart will in AC recovery
• Compact size and lightweight
• Provides AC overload protection

Specifications:

• Capacity 2200VA/1100W
• Input Voltage 120VAC or 230VAC
• Input Voltage Range 85-145VAC or 170-280VAC
• Output Voltage 110/120VAC or 220/230/240VAC
• Output Voltage Regulation (Batt. Mode) +/-10%
• Output Frequency 50Hz or 60Hz
• Output Frequency Regulation (Batt. Mode) +/-1 Hz (Batt. Mode)
• Output Waveform Modified Sine wave
• Battery Type 12V/9Ah x 2
• Battery Recharge Time 6 hours to 90% after complete discharge
• Transfer Time Typical 4-8 ms
• Indicator AC Mode Green lighting
• Indicator Battery Mode Yellow flashing
• Audible Alarm Backup Mode Sounding every 10 seconds
• Audible Alarm Low Battery Sounding every 1 second
• Audible Alarm Overload Sounding every 0.5 second
• Audible Alarm Fault Continuously sounding
• Full Protection Discharge, overcharge, and overload protection

Size:

• Dimension(mm) 365(L) x 139(W) x 195(H)
• Weight (kg) 10.2 kg

Package Content:

• 1x UPS unit
• 1x Male to Femail Cable
• User manual with link to download the software

*AC Power Cable is not included
