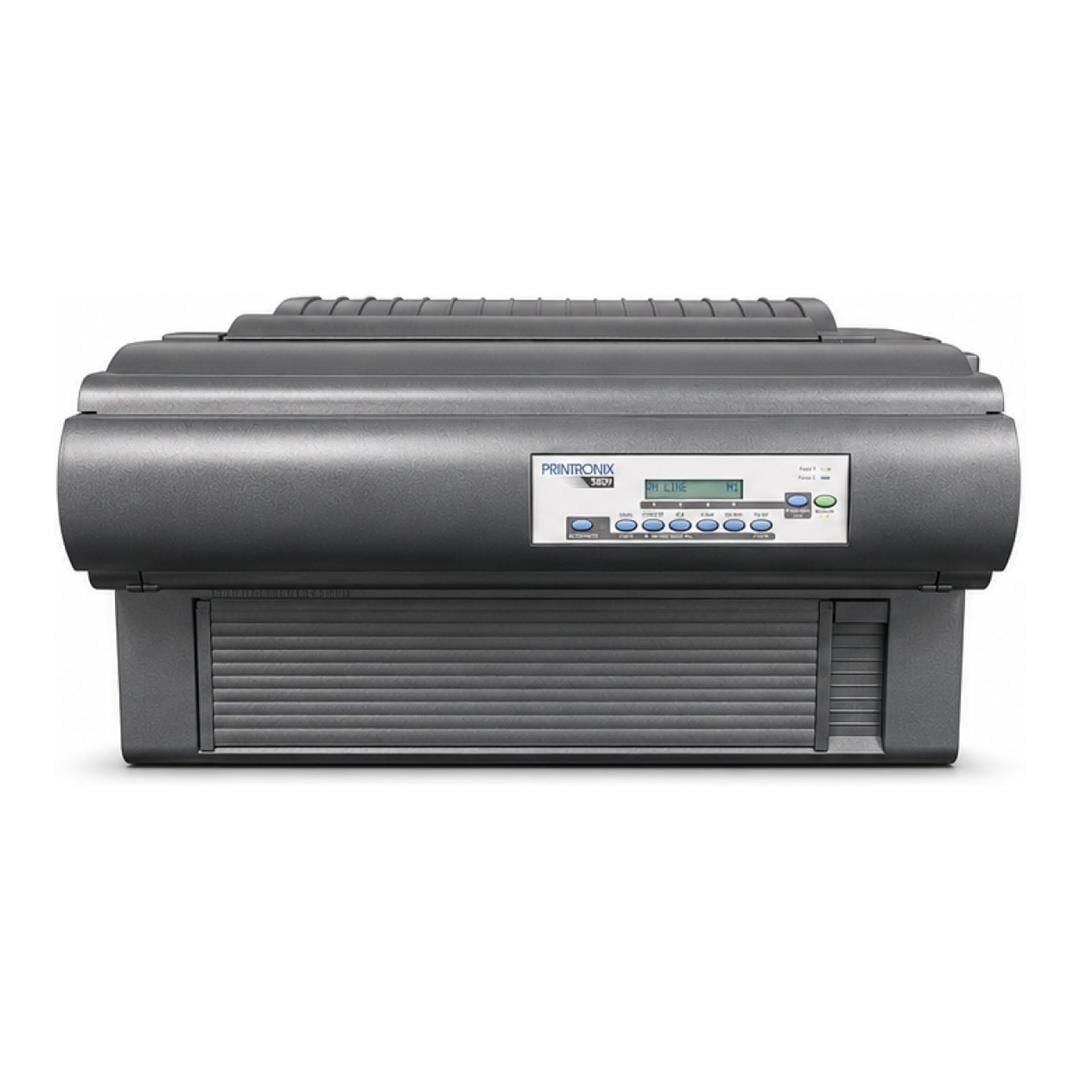

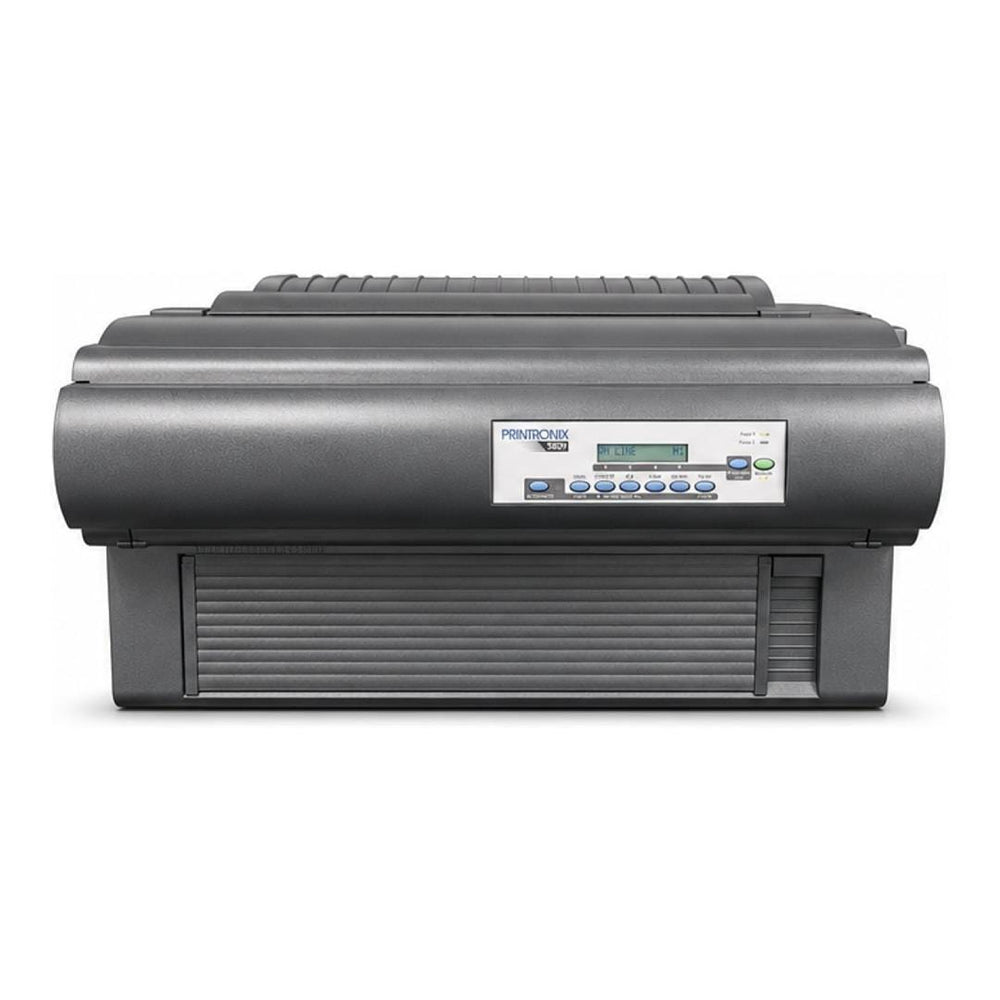

Printronix S809 Serial Dot Matrix Printer SM809-EMEA
The Printronix S809 Serial Dot Matrix Printer is designed for demanding business environments that need reliable continuous forms printing. With 24-pin serial dot matrix technology, wide 136-column output and standard Ethernet, USB, serial and parallel interfaces, it supports flexible deployment for forms, reports and multi-part document workflows.
Key Features
- 24-pin serial dot matrix print technology for business forms and continuous paper workflows.
- Wide 136-column printing at 10 cpi supports larger reports and multi-column documents.
- Print speed of up to 900 characters per second at 10 cpi.
- Standard USB 2.0, parallel, serial RS-232 and Ethernet 10/100 interfaces provide flexible connectivity.
- Automated zero-tear forms handling helps reduce paper waste and user intervention.
- Heavy-duty 6-pin tractors support reliable feeding for up to 8-part forms.
- Extended ribbon life of up to 25 million characters helps support high-volume operation.
Built for Forms Printing
The S809 is suitable for businesses that rely on continuous forms, multi-part documents and transactional printing. Its front feed forms paths, automatic paper parking and auto gap adjustment help simplify operation when working with different media and form thicknesses.
Flexible Connectivity
With Ethernet 10/100, USB 2.0, serial RS-232 and parallel interfaces included as standard, the printer can be integrated into a range of existing print environments. It also supports remote printer management for status monitoring and configuration across distributed installations.
Quiet High-Volume Operation
The S809 is listed with a 54dBA noise level, making it a practical option where serial impact printing is required but operating noise still matters. Its printhead life of up to 800 million characters and ribbon life of up to 25 million characters are intended to support demanding business use.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Printronix |
| Model | S809 Serial Dot Matrix Printer |
| Product Reference | SM809-AM |
| Listed SKU | SM809-EMEA |
| Product Type | Serial dot matrix printer |
| Print Technology | 24-pin serial dot matrix |
| Print Width | 136 columns at 10 cpi |
| Print Speed | Up to 900 cps at 10 cpi |
| Noise Level | 54dBA |
| Printhead Life | Up to 800 million characters |
| Ribbon Life | Up to 25 million characters |
| Connectivity | USB 2.0, parallel, serial RS-232, Ethernet 10/100 |
| Emulations | Epson ESC/P LQ Series, IBM Proprinter XL24, IBM Personal Printer 2391, ANSI 3.64, S809 native commands |
| Forms Handling | Auto paper path switching, auto gap adjustment, auto fanfold positioning for zero tear-off, auto paper parking |
| Forms Support | Up to 8-part forms |
| Tractor System | Heavy-duty 6-pin tractors |
| Operator Panel | Multi-lingual operator panel |
| Remote Management | Remote printer management utility with status updates, remote configuration and virtual operator panel access |
| Optional Accessories | Second front feed tractor, open pedestal |
| Driver Support Listed | Windows 10, Windows 8, Windows 7, Windows Server 2008, Windows 2003, Windows NT, Windows 2000, Windows XP, Windows 98/ME, Windows Vista |
Choose the Printronix S809 for dependable wide-format forms printing in demanding business environments, and add it to your cart today.
