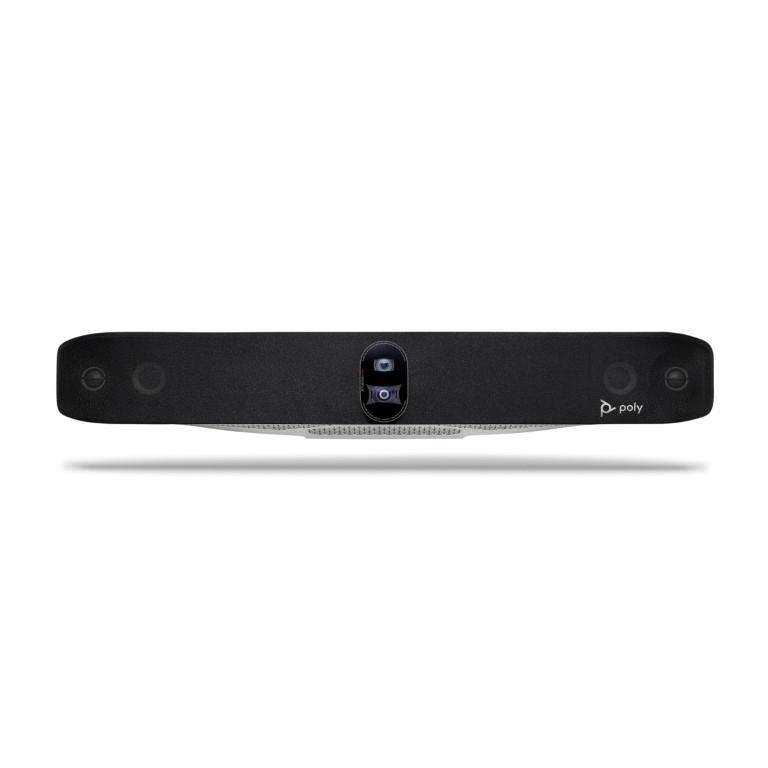

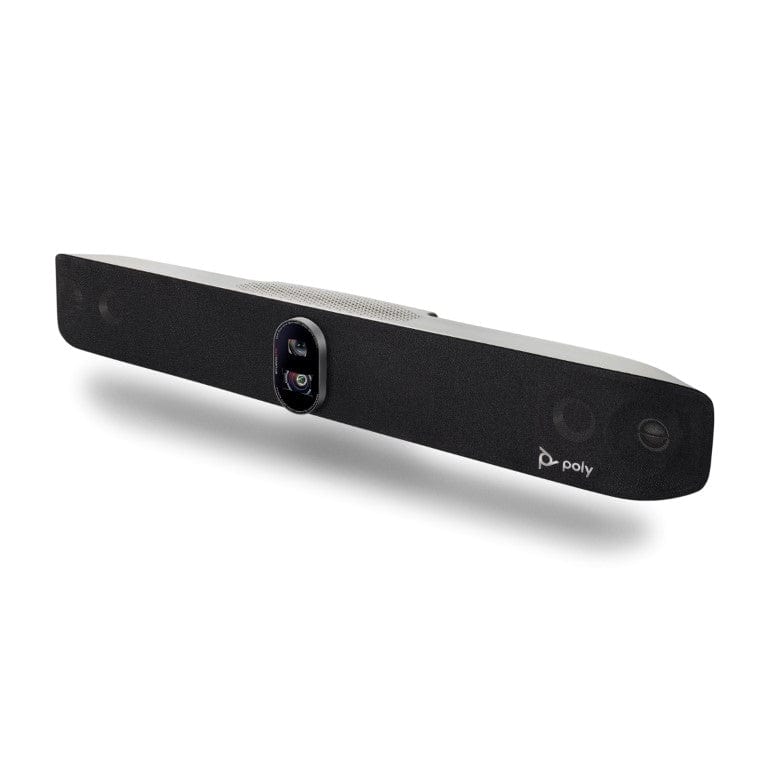

Poly Studio X70 4K Dual Camera All-in-One Video Bar Conferencing System 7200-87290-101

Please note: Maintenance Contract Required with Purchase - Partner Poly Plus 1-Year (487P-82790-160) / 3-Year (487P-82790-362)

Poly Studio X70 4K Dual Camera All-in-One Video Bar Conferencing System 7200-87290-101

Features

• Dual 4K lenses
• Two-way stereo speakers, aluminum cone tweeters, and advanced bass ports
• Poly DirectorAI smart camera technology
• NoiseBlockAI noise reduction technology
• Seamless native experience on leading cloud video services

4k Video Bar for Smarter Hybrid Meetings

Ready for the best damn meeting experience available? The Poly Studio X70 video bar combines stunning design with razor-sharp 4K video and boardroom-filling stereo that brings your large meeting rooms to life. Its all-in-one construction means you can trash all those annoying cables and stop bothering your IT people for help. And with its AI-driven video and audio experiences, the Poly Studio X70 turns any large-room video call into a hassle-free delight.

Lifelike Definition with Dual Lenses and 4k Sensors

The Poly Studio X70 transitions seamlessly between wide-angle and narrow lenses, showing everyone in your medium and large meeting spaces in sharp detail. Ready for your close-up?

Drive Meeting Equality for Hybrid Work Through Poly DirectorAI

Poly's artistically engineered meeting experience and AI come together to create Poly DirectorAI smart camera technology. Choose between group framing, people framing, or speaker framing to create the most equitable experience for your hybrid meetings.

Top Cloud Video Apps are Built Right In

Poly Studio X70 comes with native applications for key cloud video providers like Zoom. Native apps make it easier for users, with a consistent and familiar interface everywhere. We combine Poly MeetingAI technology with partner platform features for a next level experience.

Custom Microphones and Stereo Speakers Deliver Rich Audio

Enjoy the kind of crystal-clear, boardroom-filling audio you’d expect from Poly, thanks to two-way stereo speakers and advanced bass ports. And the Poly Studio X70 delivers advanced 2nd-order gradient microphone array, which means a next-level audio experience, no matter which side of the call you’re on.

Technical Specification

• 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 30 fps from 512 Kbps

• UHD (3840 x 2160)
• FHD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x 720p)
• XGA (1024 x 768)
• SVGA (800 x 600)

• UHD (3840 x 2160)
• WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)

• Room participant counting detection
• Air Quality Sensor: CO2 and Volatile Organic Compounds (VOC)

• Apple AirPlay
• Miracast
• HDMI input
• Whiteboarding

• 2 lenses

• 2x 20 Megapixel sensors
• 7.3x digital zoom
• UHD 2160p (4K) capture resolution
• Automatic meeting experience powered by Poly DirectorAI including group framing, people framing (preview feature), and speaker framing
• Additional cameras can be added via USB

• Poly NoiseBlockAI technology
• Poly Acoustic Fence technology

• 1x 3.5 mm
• 1x HDMI

• 2x MEMS microphones, plus 2x 2^nd order microphones
• Microphone pickup range up to 25 ft
• Optional expansion microphone available (p/n 2200-69631-001)

• 1x 3.5mm
• Two-way Stereo Speakers
• Mid speakers: Power Handling (RMS) 20 Watts, Power Handling (MAX) 30 Watts, Sensitivity 83 dB
• Tweeter speakers: Power Handling (RMS) 15 Watts, Power Handling (MAX) 20 Watts, Sensitivity 89 dB
• Custom Tuned Bass Ports for rich sound
• 1x HDMI

• 2x USB-A (3.0)2
• 1x USB-C3
• Bluetooth 5.04
• 2x RJ451
• WiFi 802.11a/b/g/n/ac (MIMO)

• 22 kHz bandwidth with Polycom Siren 22 technology
• 20 kHz bandwidth with G.719 (MMode) and Polycom Siren 22 technology
• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A

• IPv4
• IPv6
• 2x 10/100/1G Ethernet (RJ45)
• Auto-MDIX
• H.323 and/or SIP up to 6 Mbps running Poly Video App
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• Web proxy support: Basic, Digest, NTLM

• Poly Studio X70
• Power Supply
• 2x HDMI cable
• Ethernet Cable
• Wall mount
